Frigidaire FRT21HC5J Mode d’emploi

Product No. FRT21HC5JW0

Series R134a

Color white

Volts 115

Wiring Diagram 241582401

Owner's Guide 241857201

Market North America

Energy Guide 241935537

Service Data Sheet 241588203

Installation Instructions 240568303

N05L00004.eps N05DBDCPA1.eps N05BBAABA17.eps N05SADAEA13.eps

N05CAAAAC9.eps W241582401.eps S241582801.eps

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995520417

08/07/31

(EN/SERVICE/KHB)

137

TOP-MOUNT

REFRIGERATOR

Model No.

FRT21HC5J

Publication No: 5995520417 FRT21HC5JW0

07/08 2

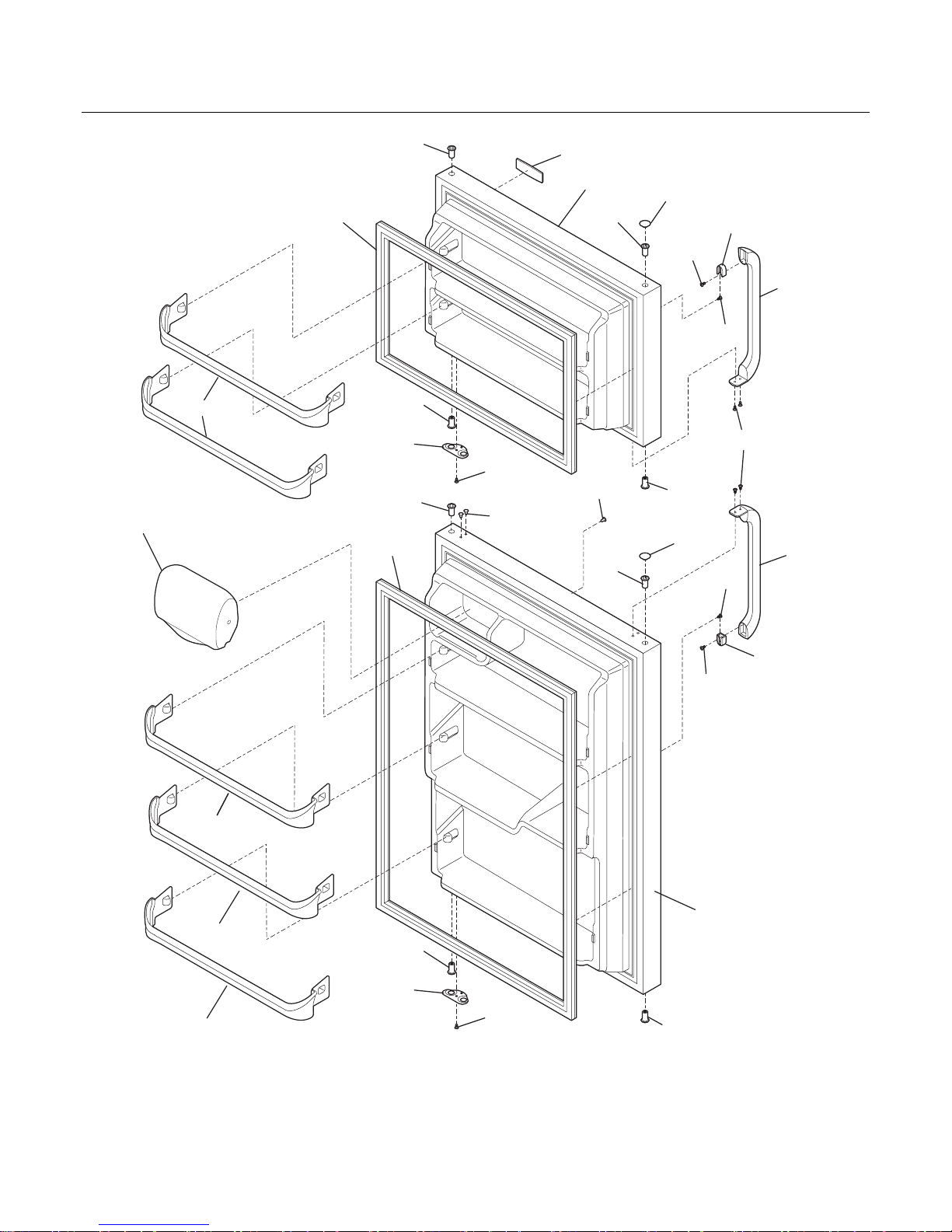

DOOR

21A

18A

13A

21C

22 18A

21A

N05DBDCPA1

FRT21HC5JW0 Publication No: 5995520417

# Functional Parts 3 07/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 241872505 Gasket-frzr door, white, magnetic

2 # 241872513 Gasket, refr door seal, white, magnetic

4 240534901 Rack-door

4B 240534701 Rack-door, 4B

7 240337703 Door-dairy, w/o graphics, clear

8 240534801 Rack-door

10 240381301 Plug-button, white, hinge brg hole, (2)

11 241798401 Door-frzr, white, completeassy

12 241808601 Label-nameplate

13 240312403 Door Stop, white, ref

13A 240312404 Door Stop, white, frzr

14 240494001 Plug-button, white

15 241798501 Door-refr, white, complete assy

18A 218428101 Handle-door, white, w/block & screw

21 240383406 Screw, truss hd quad, #10-16 x .500, zinc

21A 240521303 Screw, #10-16 x 1/2

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

73 218396700 Block-handle mtg, dovetail

74 215503203 Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995520417 FRT21HC5JW0

07/08 4

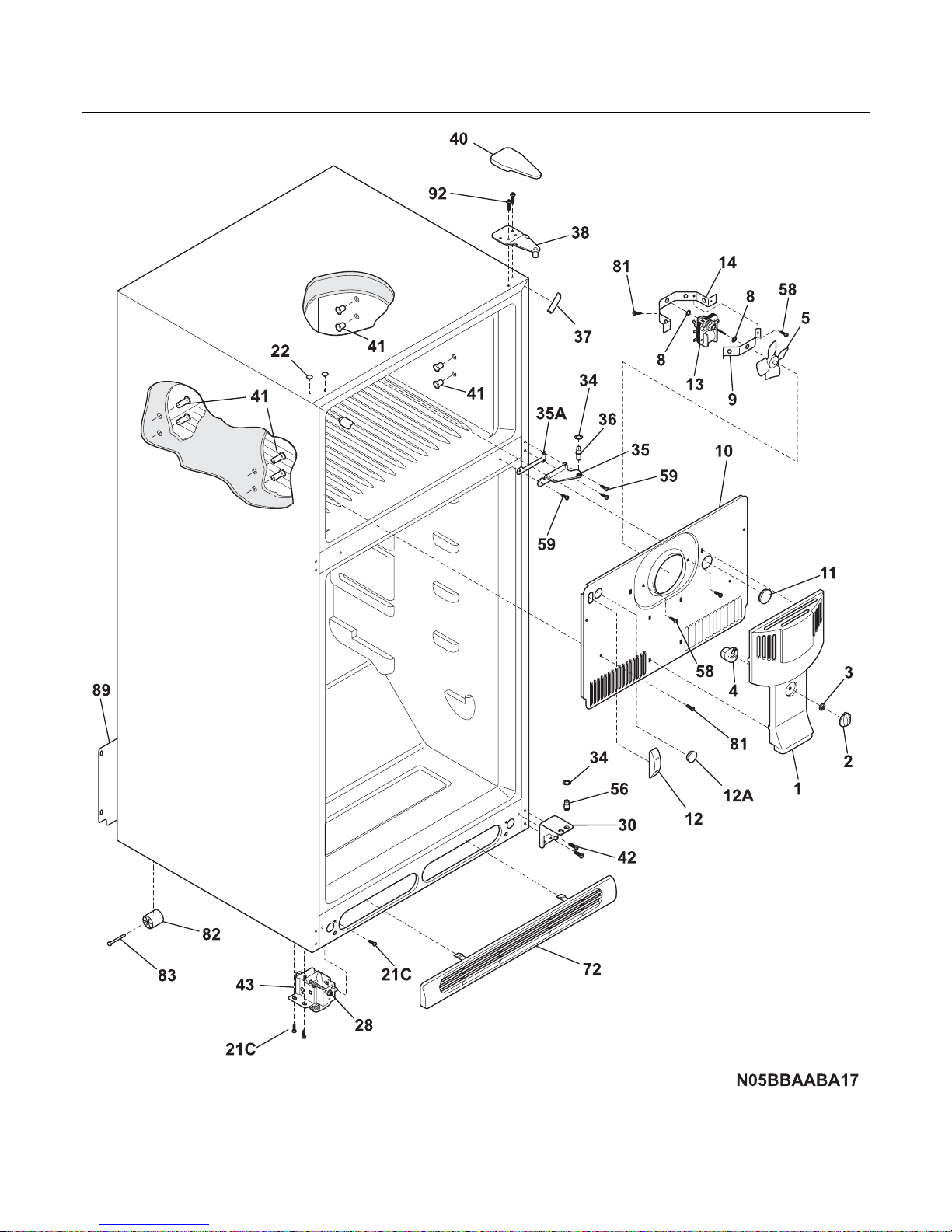

CABINET

FRT21HC5JW0 Publication No: 5995520417

# Functional Parts 5 07/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 240355402 Cover-fan

2 240367001 Knob-damper control

3 5303212803 Nut

4 241523701 Damper-fan cover

5 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 240313612 Cover-evap coil, w/o light

10* 240568606 Seal-coil cover

10*# 240524701 Wiring Harness, freezer section

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13# 240369702 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

14 5303292397 Bracket-motor mtg, rear

14* 240433204 Screw, hex washer head, 8-18 x 5/16

21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314011 Bracket-lower hinge, zinc

34 240311303 Washer, hinge, nylon, (2)

35 240313806 Bracket-ctr hinge, zinc

35A 240336802 Spacer-hinge, center

36 240516402 Pin-center hinge

37 240337608 Trim-cabinet corner, white, (2)

38 240313701 Bracket-upper hinge

40 240354401 Cover-upper hinge, white

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578902 Screw, hex head, 1/4-20 x 5/8

43 240335006 Roller Assy, front, (2)

56 240516502 Pin-lower hinge

58 5304456287 Screw, hex washer head, 8-15A x 0.500

59 240442706 Screw-#10-32 X 3/4, zinc

72 241839405 Grille/Kickplate, white

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733907 Cover-access, with label

89* 241500303 Screw, hex washer head, 8-18AB x 0.500

92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

* 240479601 Plug, button, cab liner holes

* 5303321319 Paint, touch-up, white

Publication No: 5995520417 FRT21HC5JW0

07/08 6

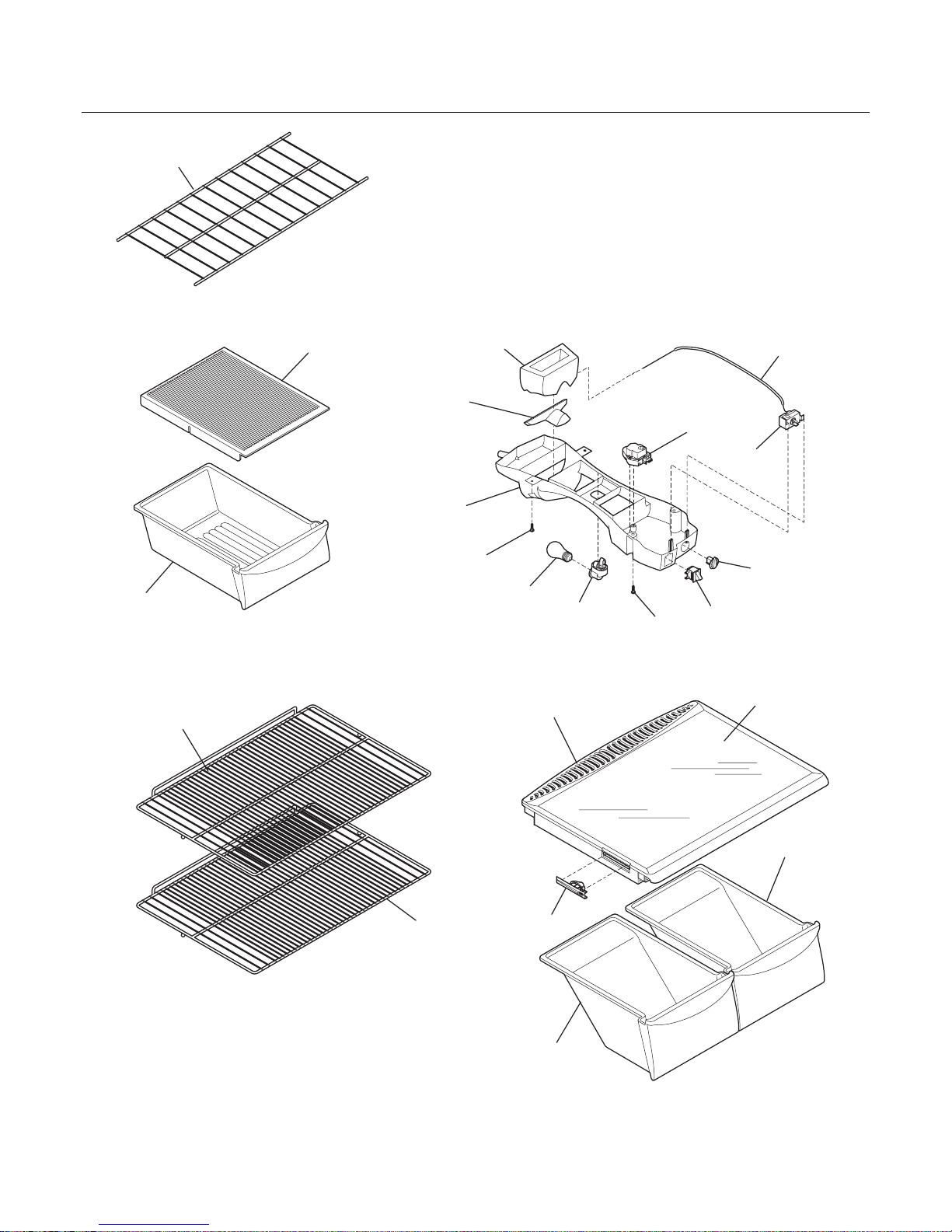

SHELVES

N05SADAEA13

22A

25C

FRT21HC5JW0 Publication No: 5995520417

# Functional Parts 7 07/08

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

11 240358006 Shelf, freezer, full-width, wire

12 240545901 Diffuser-air, top

13 240362601 Diffuser, air, bottom

14# 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240368102 Control Box

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304445058 Control-temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 Timer, defrost, 60 Hz, 0.25 W, 120 V, 10 hour/30 min

23* 5304455649 Screw, pan hd, 6-20 x 0.438

24 240360904 Shelf, sliding, wire

25 240364717 Cover-crisper pan

25C 241613502 Control-humidity, LH

26 240343801 Pan-crisper, (2)

30 240361801 Cover, meat pan hanger, drop through

31 240530803 Pan-meat, w/o graphics, clear

47 240350609 Insert-pan cover, glass

81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

* 241935537 Energy Guide

Publication No: 5995520417 FRT21HC5JW0

07/08 8

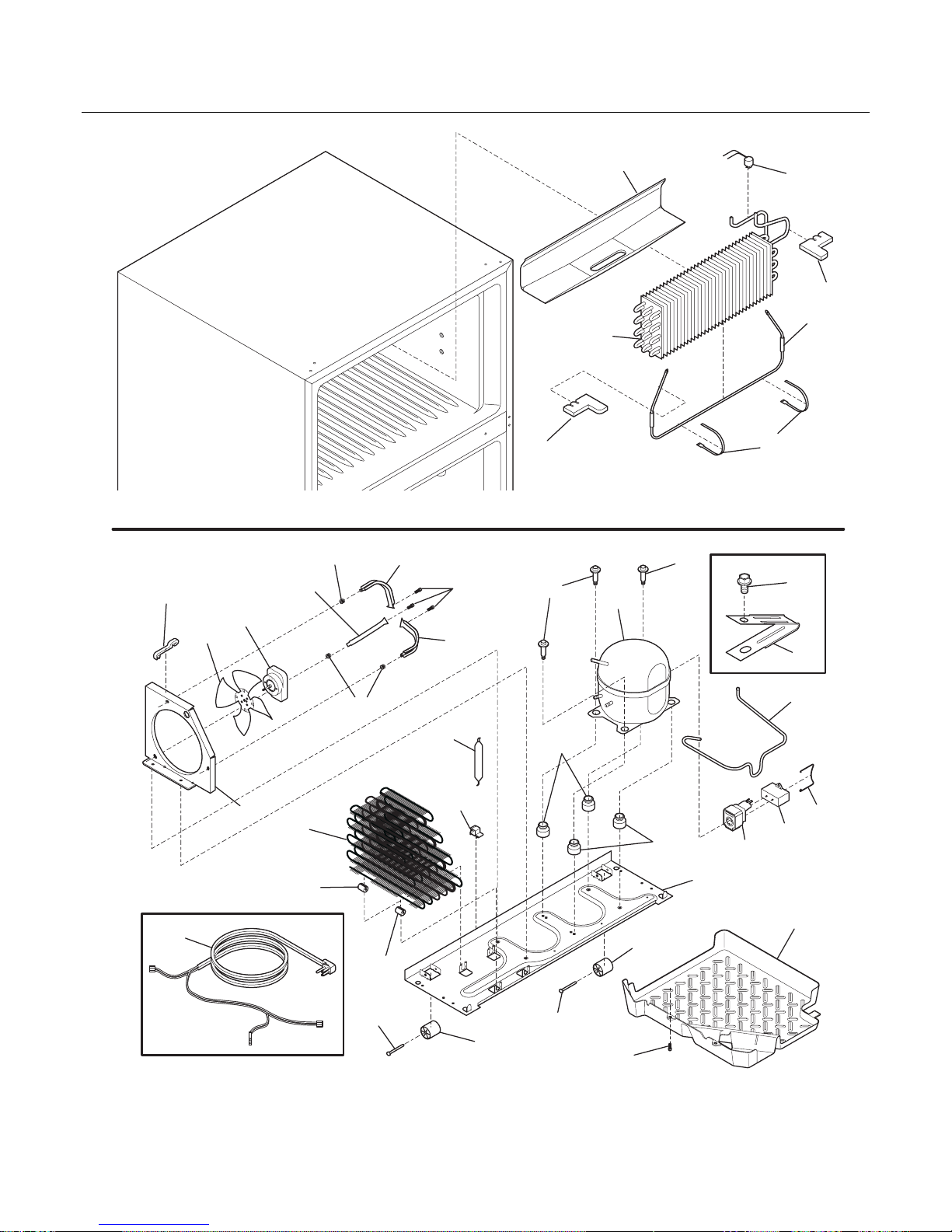

SYSTEM

59B

59A

59A 58

N05CAAAAC9

FRT21HC5JW0 Publication No: 5995520417

# Functional Parts 9 07/08

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 241965001 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 241607001 Harness-wiring, machine compt

6* # 240388701 Wiring Harness, control box

6* # 240524701 Wiring Harness, freezer section

14 # 241940103 Heater-defrost

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241801301 Trough-drain

20 241551902 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241602010 Base-compressor

22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500

22* 218709101 Screw, hex head, 10-32 x 0.500

23 241659701 Grommet, compressor

25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

26 241637401 Pan-defrost

29 # 5303918359 Compressor, w/o electricals

30 # 241707701 Starter, PTC

32 241650901 Clamp, elec cont mtg, compressor

34 240405201 Grommet, rubber, black, cond tube/wire

41 240555002 Screw-#8-32 X 3/8

44 215174700 Clamp-service cord, strain relief, galv steel

45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile

55 218909913 Capacitor, run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

58 240433203 Screw, hex washer head, 8-18 x 3/8

59 240315502 Shroud-cond fan

59* 240346701 Tape-foam seal, shroud

59* 240359403 Screw-fan shroud, (2)

59A 240346501 Bracket-support, cond mtr, (3)

59B 240346601 Grommet-bracket, (3)

60 241584301 Motor-condenser fan

61 241639501 Blade-condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

85 241844801 Tube-connector, suction

86 240409302 Spacer-cond tube, black

* 240396801 Clamp, tube/wiring, nylon, black/natural

* # 5303918330 Heat Exchanger Kit, suction line, service

* # 5304421289 Hot Tube Repair Kit, service

Publication No: 5995520417 FRT21HC5JW0

07/08 10

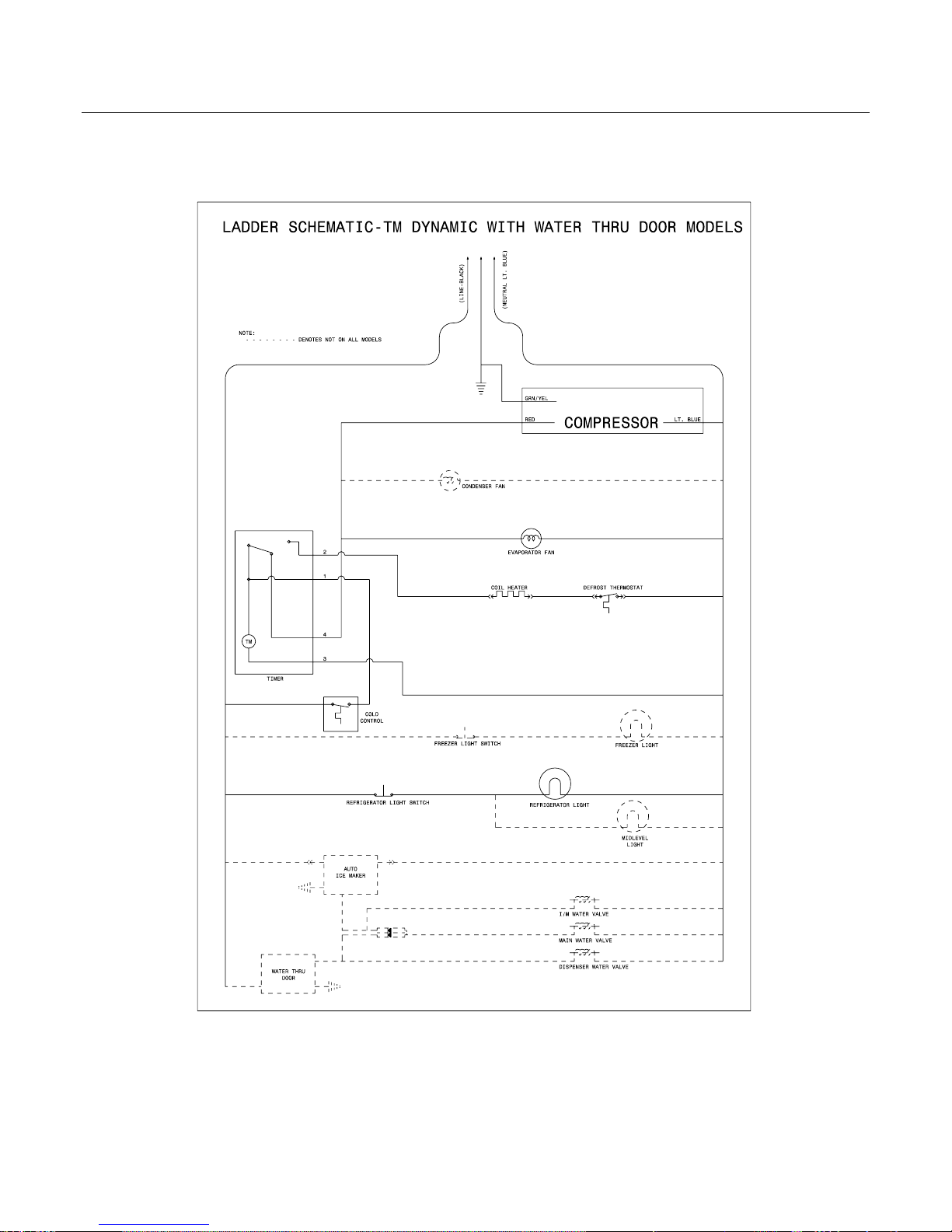

WIRING SCHEMATIC
