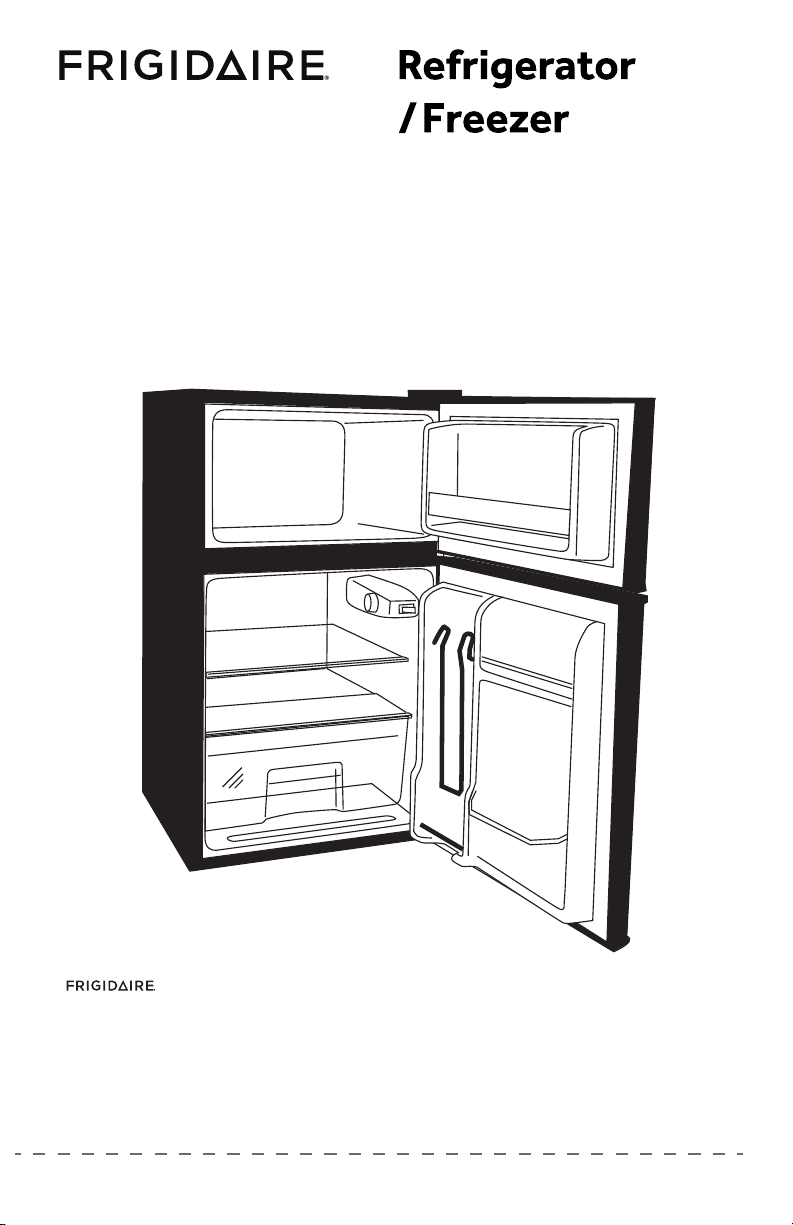

Frigidaire EFR840 Manuel utilisateur

90 L

3 2. CU FT

USERMANUAL

EFR840

For service assistance and product information, please call: 1-800-968-9853.

Curtis International Ltd.

7045 BECKETT DRIVE, UNIT 15, MISSISSAUGA, ON, L5S 2A3 www.curtisint.com

is a pending or registered trademark used under license from Electrolux Home

Products, Inc.

Made In China

SAFETY PRECAUTIONS

WARNING: Read all of the instructions before using this appliance.

When using this appliance, always exercise basic safety

precautions, including the following:

NOTE: If the refrigerator/freezer has been placed in a horizontal or

tilted position for any period of time wait 24 hours before

plugging the unit in.

1) Use this appliance only for its intended purpose as described in this use

and care guide.

2) This refrigerator/freezer must be properly installed in accordance with

the installation instructions before it is used. See grounding instructions

in the installation section.

3) This refrigerator/freezer should not be recessed or built-in an enclosed

cabinet. It is designed for freestanding installation only.

4) Never unplug your refrigerator/freezer by pulling on the power cord.

Always grasp the plug firmly and pull straight out from the outlet.

5) DANGER - Risk of Fire or Explosion. Flammable refrigerant used. Do

not use Mechanical devices to defrost refrigerator. Do not puncture

refrigerant tubing.

6) If your old refrigerator/freezer is not being used, we recommend that

you remove the doors. This will reduce the possibility of danger to

children.

WARNING:

After your refrigerator/freezer is in operation, do not

touch the cold surfaces in the freezer compartment,

particularly when hands are damp or wet. Skin may

adhere to these extremely cold surfaces.

8) Do not refreeze foods, which have been thawed completely. The United

States Department of Agriculture in Home and Garden Bulletin No. 69

reads: "…You may safely refreeze frozen foods that have thawed if

they still contain ice crystals or if they are still cold-below 40°F".

"…Thawed ground meats, poultry, or fish that have any off-odor or

offcolor should not be refrozen and should not be eaten. Thawed ice

cream should be discarded. If the odor or color of any food is poor or

questionable, discard it. The food may be dangerous to eat."

"…Even partial thawing and re-freezing reduce the eating quality of

foods, particularly fruits, vegetables, and prepared foods. The eating

quality of red meats is affected less than that of many other foods. Use

refrozen foods as soon as possible, to save as much of they’re

eating quality as you can."

9) Do not use any electrical device or any sharp instrument in defrosting

your refrigerator.

10) Unplug your refrigerator/freezer before cleaning or before making any

repairs.

Note: If for any reason this product requires service, we strongly

recommend that a certiﬁed technician perform service.

11) Do not operate your refrigerator in the presence of explosive fumes.

SAVE THESE INSTRUCTIONS

CAUTION - Risk of Fire or

Explosion

Dispose of property in accordance with Federal or Local

Regulations. Flammable refrigerant used.

DANGER

Risk of child entrapment. Before you throw away your old

refrigerator or freezer, take off the doors. Leave the shelves

in place so that children may not easily climb inside.

English

Staple your receipt to your manual.

You will need it to obtain warranty service.

Thank you for purchasing our

product. This easy-to-use manual

will guide you in getting the best

use of your appliance.

Remember to record the model and

serial number. They are on a label

in back of the appliances.

Model number

Serial number

Date of purchase

English

TABLE OF CONTENTS

Safety Precautions........................................................................ 1

Parts And Features ....................................................................... 3

Installation Instructions ................................................................ 4

Unpacking Your Refrigerator ............................................................... 4

Leveling Your Refrigerator ................................................................... 4

Proper Air Circulation......................................................................... 4

Electrical Requirements ....................................................................... 4

Door Alignment ................................................................................. 5

Refrigerator Features and Use .................................................... 6

General Features ............................................................................... 6

Refrigerator Interior Shelves................................................................. 6

Using Dispense-A-Can ..................................................................... 6

Crisper ............................................................................................. 6

Defrosting Your Refrigerator ................................................................ 7

Food Storage Information ................................................................... 8

Normal Operating Sounds.................................................................. 9

Proper Refrigerator Care and Cleaning...................................... 9

Cleaning and Maintenance................................................................. 9

Light Bulb Replacement..................................................................... 10

Power Interruptions........................................................................... 10

Vacations and Moving Care..............................................................10

Troubleshooting ..........................................................................11

1. Interior Light

2. Temperature Control

3. Refrigerator Shelves

4. Crisper

5. Front Leveling Legs

6. Refrigerator Door Shelves

7. "Dispense-A-Can" Storage

8. Freezer Door Shelf

9. Ice Cube Tray

10. Ice Scraper

English

Parts And Features

910

Installing Your Refrigerator

Unpacking Your Refrigerator

1. Remove all packaging material. This includes the foam base and all adhesive

tape holding the refrigerator accessories inside and outside.

2. Inspect and remove any remains of packing, tape or printed materials before

powering on the refrigerator.

CAUTION

Risk of Fire or Explosion due to puncture of refrigerant tubing. Flammable

refrigerant used. Handle with care when moving refrigerator to avoid either

damaging the refrigerant tubing or increasing the risk of a leak.

Leveling Your Refrigerator

• Your refrigerator has two leveling legs which are located in the front bottom

corners of your refrigerator. After properly placing your

refrigerator in its final position, you can level your refrigerator.

• Leveling legs can be adjusted by turning them counterclockwise to raise your

refrigerator or by turning them clockwise to lower your refrigerator. The

refrigerator door will close easier when the leveling legs are extended.

Proper Air Circulation

• To ensure your refrigerator works at the maximum efficiency it was designed for,

you should install it in a location where there is proper air circulation, plumbing

and electrical connections.

• The following are recommended clearances around the refrigerator:

Sides……………3/4" (19mm)

Top....................2" (50mm)

Back..................2" (50mm)

WARNING: ELECTRICAL REQUIREMENT - SHOCK HAZARD

Electrical Requirement

• Make sure there is a suitable power outlet (120 volts, 15 amps outlet) with proper

grounding to power the refrigerator.

• Avoid the use of three prong adapters or cutting off the third grounding prong

in order to accommodate a two prong outlet. This is a dangerous practice since

it provides no effective grounding for the refrigerator and may result in shock

hazard.

WARNING: USE OF EXTENSION CORDS- POTENTIAL SAFETY

HAZARD

English

Use of Extension Cords

• Avoid the use of an extension cord because of potential safety hazards under

certain conditions. If it is necessary to use an extension cord, use only a 3-wire

extension cord that has a 3-blade grounding plug and a 3-slot outlet that will

accept the plug. The marked rating of the extension cord must be equal to or

greater than the electrical rating of the appliance. DO NOT USE

EXTENSION CORD LONGER THAN 12 FT.

Installation Limitations

• Do not install your refrigerator in any location not properly insulated or heated,

e.g. garage, etc. Your refrigerator was not designed to operate in temperature

settings below 55˚ Fahrenheit.

• Select a suitable location for the refrigerator on a hard even surface away

from direct sunlight or heat source, e.g. radiators, baseboard heaters, cooking

appliances, etc. Any floor unevenness should be corrected with the leveling legs

located on the front bottom corners of the refrigerator.

Door Alignment

Freezer Door: (see fig. #1)

1. Remove the top hinge cover.

2. Loosen the top hinge screws using a phillips head screwdriver.

3. Adjust the door or put a spacer in between and then tighten the screws.

4. Replace the top hinge cover.

English

fig. # 1

WARNING: USE OF EXTENSION CORDS- POTENTIAL SAFETY

HAZARD

English

Refrigerator Features And Use General Features

Adjustable temperature dial:

Your refrigerator will automatically maintain the temperature level you select.

The temperature control dial has 7 settings plus 0. 1 is the warmest. 7 is the

coldest. Turning the dial to 0 Stops cooling in both the refrigeration and freezer

sections. At ﬁrst, set the dial to 4 and allow 24 hours to pass before adjusting the

temperature to your needs.

(Note: If the refrigerator has been placed in a horizontal or tilted position for

any period of time wait 24 hours before plugging the unit in.)

Refrigerator Interior Shelves

To remove or replace a full-width

slide-out shelf:

(see ﬁg. # 2)

1. Gently tilt the shelf up and slide

forward until the shelf has been

completely removed.

2. To replace the shelf, gently slide the

shelf back.

Using the Dispense-A-Can

• Your refrigerator is equipped with the convenient “Dispense-

A-Can” compartment. Each compartment will hold up to six

cans. Simply load the cans from the top. To dispense a can,

simply draw one out from the bottom. It is that easy.

Crisper

• Your refrigerator has a clear crisper.

Grasp the top of the crisper and gently slide our. Push back to replace.

ﬁg. # 2

ﬁg. # 3

English

Defrosting Your Refrigerator

• For maximum energy efficiency, defrost freezer

section whenever frost accumulates to a

thickness of 1/4" or more on freezer walls.

Note that frost tends to accumulate more

during the summer months.

DANGER - Risk of Fire or Explosion due to puncture refrigerant

tubing. Flammable refrigerant used. Do not use metal instruments

to defrost refrigerator. Do not puncture refrigerant tubing.

• To defrost freezer, remove food and ice cube tray from the freezer section. Turn

temperature control dial to "0" position. Defrosting may take a few hours. To

speed up defrost time, keep the door open and place a bowl of warm water in

the freezer.

• During the defrost, water will accumulate. Use a towel to wipe off excess

dripping water. Do not leave unattended.

• After defrosting, empty and wipe down the interior of the freezer. You may now

reset your refrigerator to the desired temperature and return food.

• Your freezer has been equipped with an ice scraper for your convenience.

Maintenance

Risk of Fire or Explosion. Flammable refrigerant used. Do not puncture of

refrigerant tubing. To be repaired only by trained authorized service personnel.

Consult Repair Manual before attempting to service this product. All Safety

Precautions Must be followed. Component parts shall be replaced with like

components to minimize the risk of possible ignition due to incorrect parts or

improper service.

English

Fresh Food:

• When storing fresh food that is not prepackaged, be sure to wrap or store food

in airtight and moisture proof material unless otherwise noted. This will ensure

proper shelf life and prevent the transfer of odors and tastes.

• Wipe containers before storing to avoid needless spills.

• Eggs should be stored in an upright position in their original carton to

maximize shelf life.

• Fruit should be washed and dried, then stored in sealed plastic bags before

storing in the refrigerator.

• Vegetables with skins should be stored in plastic bags or containers.

• Leafy vegetables should be washed and drained and then stored in plastic

bags or containers.

• Hot food should be allowed to cool before storing in the refrigeration. This will

prevent unnecessary energy use.

• Fresh seafood should be used the same day as purchased.

• When storing meats in the fresh food section, keep in the original

packaging or rewrap as necessary. Follow the suggestions below for safe

storage:

• Chicken 1-2 Days

• Ground Beef 1-2 Days

• Cold Cuts 3-5 Days

• Steaks/Roasts 3-5 Days

• Smoked/Cured Meats 7-10 Days

For detailed storage chart visit FDA website:

www.cfsan.fda.gov/~dms/fttstore.html

Food Storage Information

Table des matières

Langues :

Autres manuels Frigidaire Réfrigérateur

Frigidaire

Frigidaire FPHI1887KF - Gallery 18.2 cu. Ft. Top Freezer... Manuel utilisateur

Frigidaire

Frigidaire GRMC2273CD Manuel du propriétaire

Frigidaire

Frigidaire FRS6B7E Manuel utilisateur

Frigidaire

Frigidaire FFSC2323LE Instructions d'installation

Frigidaire

Frigidaire FRT21C5A Manuel utilisateur

Frigidaire

Frigidaire FRS26KF5C Manuel utilisateur

Frigidaire

Frigidaire FRT18HS6A Manuel utilisateur

Frigidaire

Frigidaire FGHS2332LE3 Manuel du propriétaire

Frigidaire

Frigidaire FRT18HS8K Mode d’emploi

Frigidaire

Frigidaire FRT18R7C Manuel utilisateur

Frigidaire

Frigidaire FRT21P5A Manuel utilisateur

Frigidaire

Frigidaire FGHC2342LF Manuel utilisateur

Frigidaire

Frigidaire FRS6HR4H Manuel utilisateur

Frigidaire

Frigidaire GLRT216TA Manuel utilisateur

Frigidaire

Frigidaire FFRU17G8QW Manuel du propriétaire

Frigidaire

Frigidaire FRT18FP5D Manuel utilisateur

Frigidaire

Frigidaire FRT21FS6C Manuel utilisateur

Frigidaire

Frigidaire FRT18HP7D Manuel utilisateur

Frigidaire

Frigidaire FRS6B5EEQ5 Manuel utilisateur

Frigidaire

Frigidaire FRT21P6CS Manuel utilisateur

Frigidaire

Frigidaire FRS26ZSGW4 Guide de l'utilisateur

Frigidaire

Frigidaire FRT22QRGW3 Manuel utilisateur

Frigidaire

Frigidaire FRT15B3A Manuel utilisateur

Frigidaire

Frigidaire FPRU19F8WF Manuel utilisateur

Manuels Réfrigérateur populaires d'autres marques

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manuel utilisateur

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manuel utilisateur

Sharp

Sharp SJ-BA31IEXW2-EU Manuel utilisateur

CORBERO

CORBERO CC2300MCW Manuel utilisateur

KitchenAid

KitchenAid 2205264 Manuel utilisateur

Stengel

Stengel KU 1101 A++ Manuel utilisateur

NEFF

NEFF KI181 Series Manuel utilisateur

Hoshizaki

Hoshizaki Reach-In Manuel utilisateur

Amana

Amana ASD2524VES00 Manuel utilisateur

BOMANN

BOMANN KGC 213 Manuel utilisateur

Danby

Danby DAR044A1SLDD Instructions de montage

Samsung

Samsung RF323TE Manuel utilisateur

Beko

Beko CSA31022 Manuel utilisateur

IKEA

IKEA FROSTIG C 185 E Manuel utilisateur

Electrolux

Electrolux ER 6821 D Manuel utilisateur

True

True TS-28 Manuel utilisateur

Beko

Beko LSP4579W Manuel utilisateur

Teledyne

Teledyne 6712FR and Mode d'emploi
