Frigidaire GHSC39EJPB - 22.6 Cu. Ft. 8 Guide de l'utilisateur

N58L00002.eps N58FFDBGA1.eps N58RFDCHA3.eps N58BABAAC2.eps

N58SDDLEE1.eps N58TBBAAB5.eps N58CACBAA3.eps N58XEAAAA1.eps

N58YDAAAC5.eps N58I115TServo.eps W241638600.eps S241638600.eps

Product No. GHSC39EJPB0 GHSC39EJPW0

Series counter depth counter depth

Color black white

Volts 115 115

Wiring Diagram 241638600 241638600

Owner's Guide 241857500 241857500

Market North America North America

Energy Guide 241868030 241868030

Service Data Sheet 241639000 241639000

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995511598

08/04/11

(EN/SERVICE/DCS)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

GHSC39EJP

Publication No: 5995511598 GHSC39EJP

04/08 2

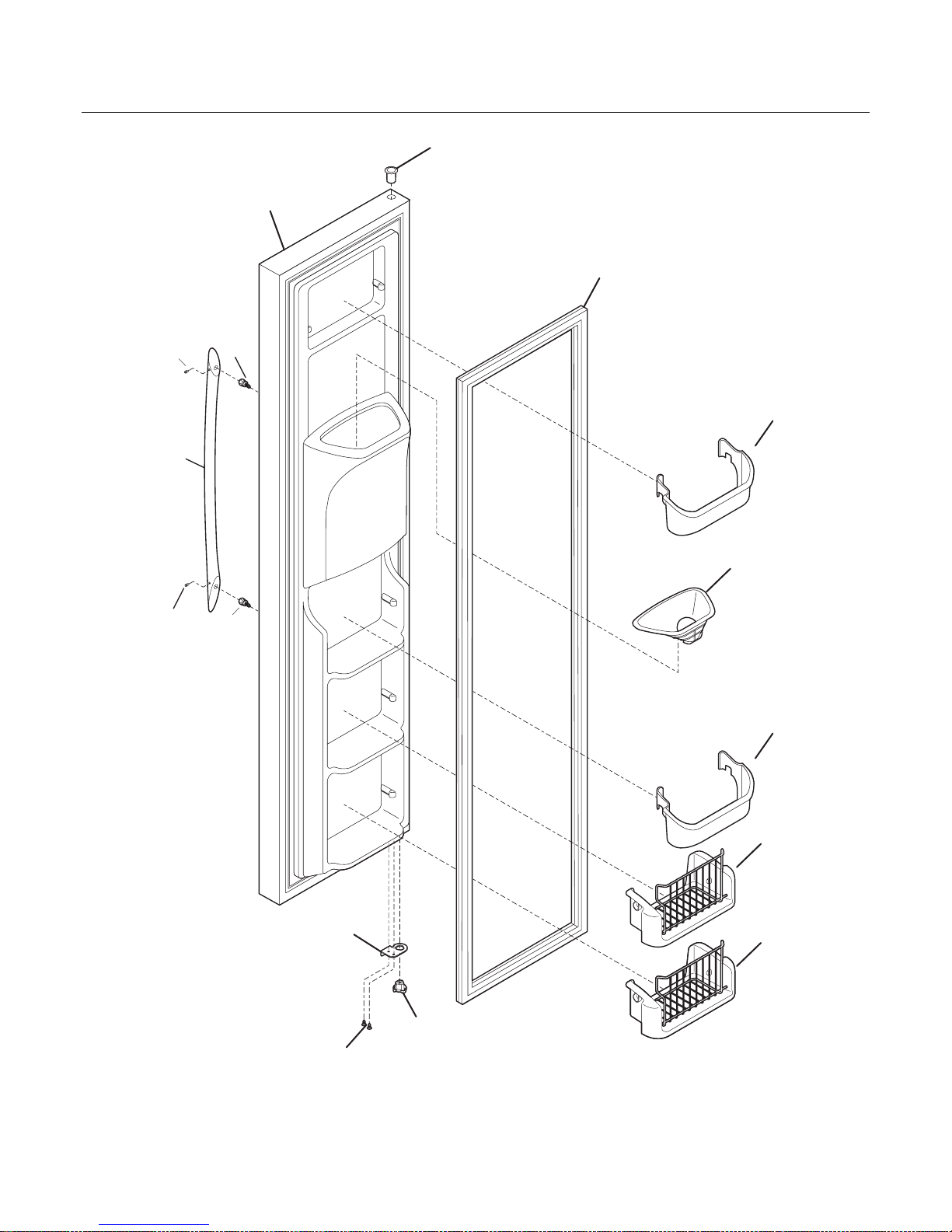

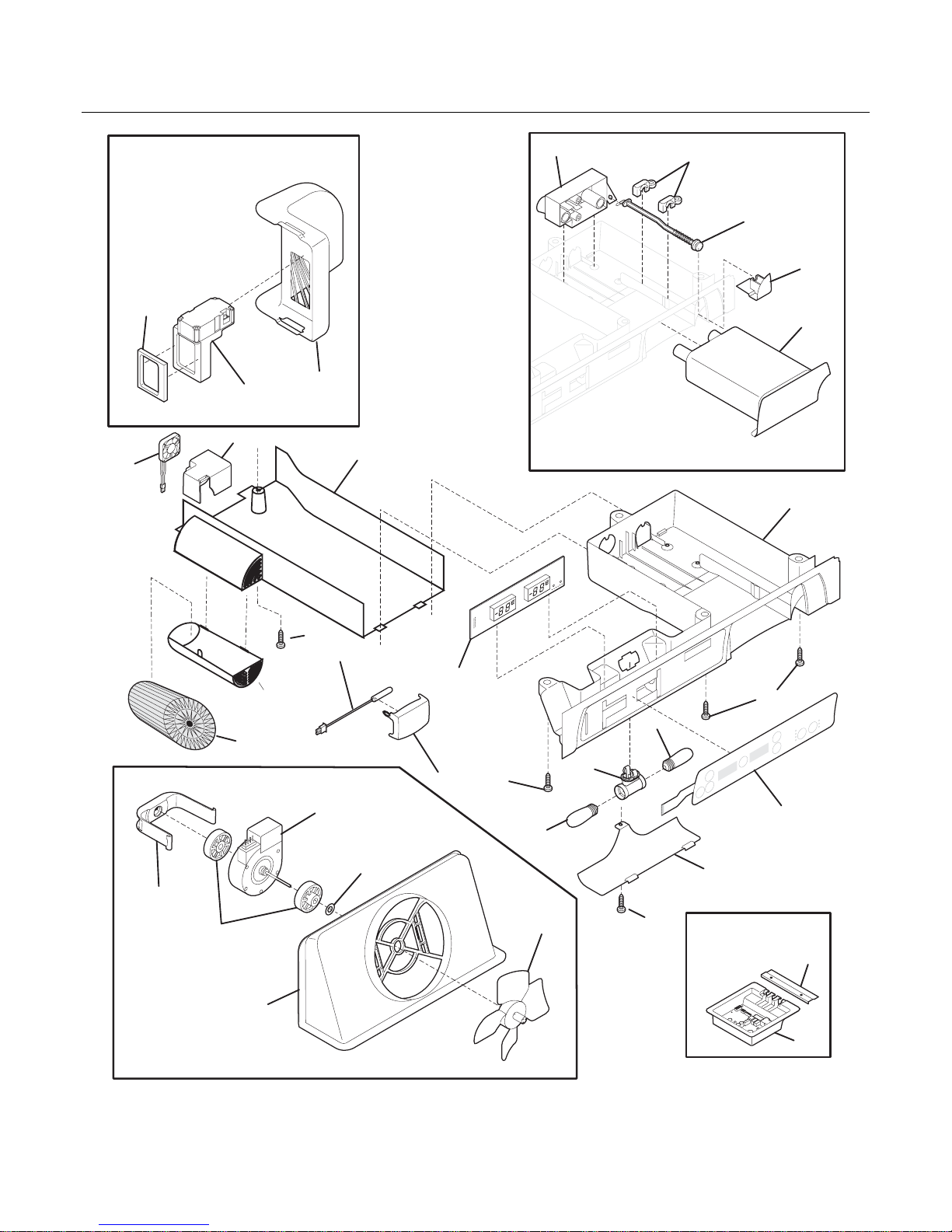

FREEZER DOOR

22C

22A

21A

13A

N58FFDBGA1

79 80

GHSC39EJP Publication No: 5995511598

# Functional Parts 3 04/08

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AGHSC39EJ (GHSC39EJPB0)

BGHSC39EJ (GHSC39EJPW0)

POS. NO PART NO. DESCRIPTION

1 # 241510204 A - Gasket-frzr door, black, magnetic

1 # 241510202 - B Gasket-frzr door, white, magnetic

4B 241808216 A B Bin-door, pseudo, frzr

5 241545001 A B Bin-tilt out, tilt-out

11 241526790 A - Door-frzr, black, complete assy

11 241526789 - B Door-frzr, white, complete assy

13A 240581906 A - Door Stop, black, frzr

13A 240581902 - B Door Stop, white, frzr

18 240536810 A - Handle-door, black

18 240536809 - B Handle-door, white

21A 240598402 A B Screw, 10-32 x 1/2

22A 240328204 A - Bearing-hinge(frz), black, closer

22A 240328202 - B Bearing-hinge(frz), closer

22C 240328404 A - Bearing-hinge, black, upper

22C 240328402 - B Bearing-hinge, natural, upper

68 241525101 A B Chute-ice

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

* 240552102 A B Harness-wiring, door

* 240451503 A B Screw, ind hex wshr hd, 8-32 x 0.375, trilobe

* 241806601 A B Connector-water, straight

* 5303918256 A B Dispenser heater kit

Publication No: 5995511598 GHSC39EJP

04/08 4

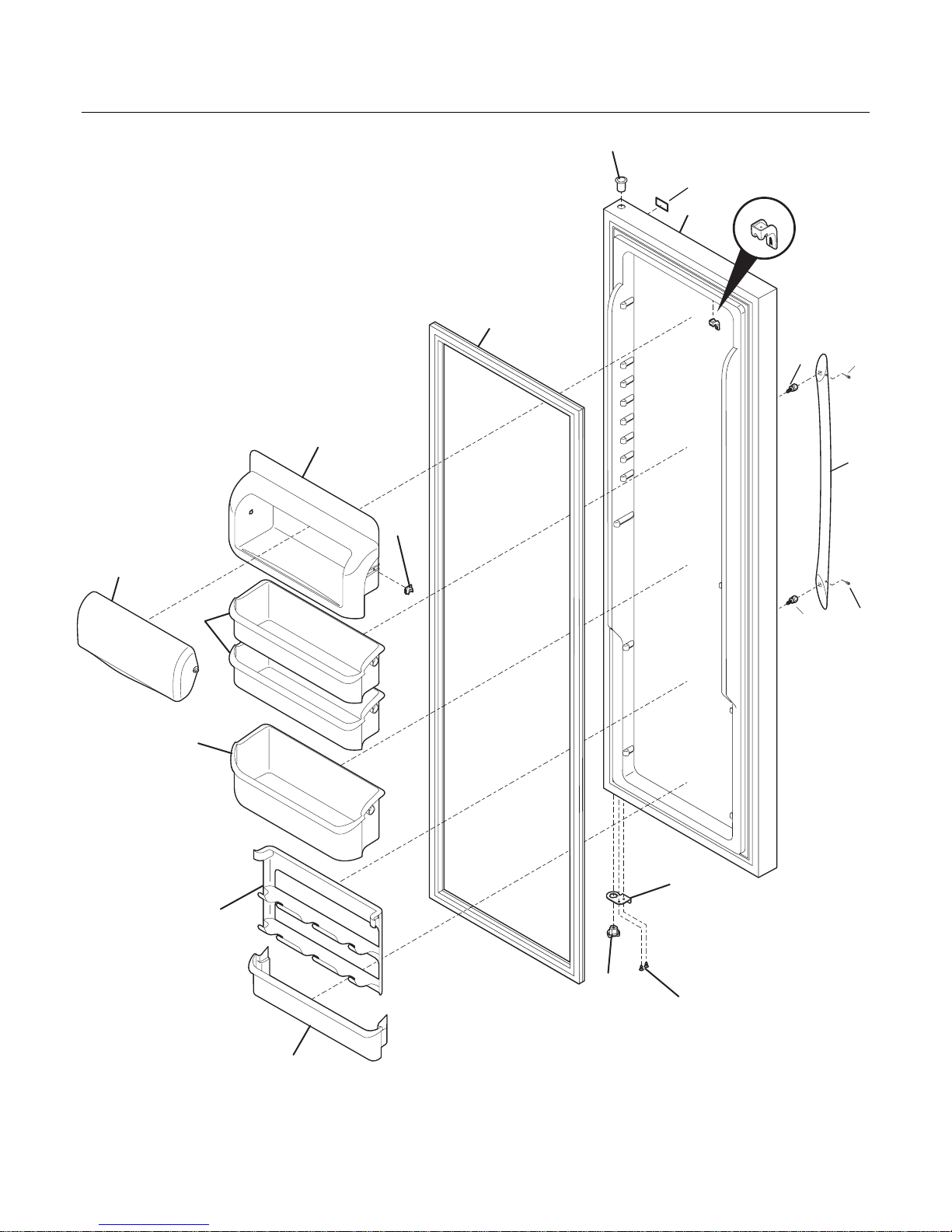

REFRIGERATOR DOOR

N58RFDCHA3

49A

22B

21A

GHSC39EJP Publication No: 5995511598

# Functional Parts 5 04/08

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AGHSC39EJ (GHSC39EJPB0)

BGHSC39EJ (GHSC39EJPW0)

POS. NO PART NO. DESCRIPTION

2 # 241510203 A - Gasket-refr door, black, magnetic

2 # 241510201 - B Gasket-refr door, white, magnetic

5 241516102 A B Rack-can

6 241515901 A B Lug-dairy compartment

7 241515601 A B Door-dairy

12 241808601 A B Label-nameplate

13 240581905 A - Door Stop, black, ref

13 240581901 - B Door Stop, white, refr

15 241534585 A - Door-refr, black, complete assy

15 241534584 - B Door-refr, white, complete assy

18 240536810 A - Handle-door, black

18 240536809 - B Handle-door, white

21A 240598402 A B Screw, 10-32 x 1/2

22 240328203 A - Bearing-hinge, black, closer

22 240328201 - B Bearing-hinge(ref), closer

22B 240328404 A - Bearing-hinge, black, upper

22B 240328402 - B Bearing-hinge, natural, upper

48 241808207 A B Bin-door, gallon, ref, w/trim

49 241808213 A B Bin-door, 2 liter

49* 241779901 A B Liner, bin, 2 liter

49A 241808210 A B Bin-door, gallon, w/trim

49A* 241780001 A B Liner, bin, gallon

50 241508401 A B Cover-magnet

70 241515801 A B Compartment-dairy, removable

79 218755402 A B Screw-set, 10-32 x 0.375

80 218755504 A B Screw-shoulder, #10 AB, handle mounting

Publication No: 5995511598 GHSC39EJP

04/08 6

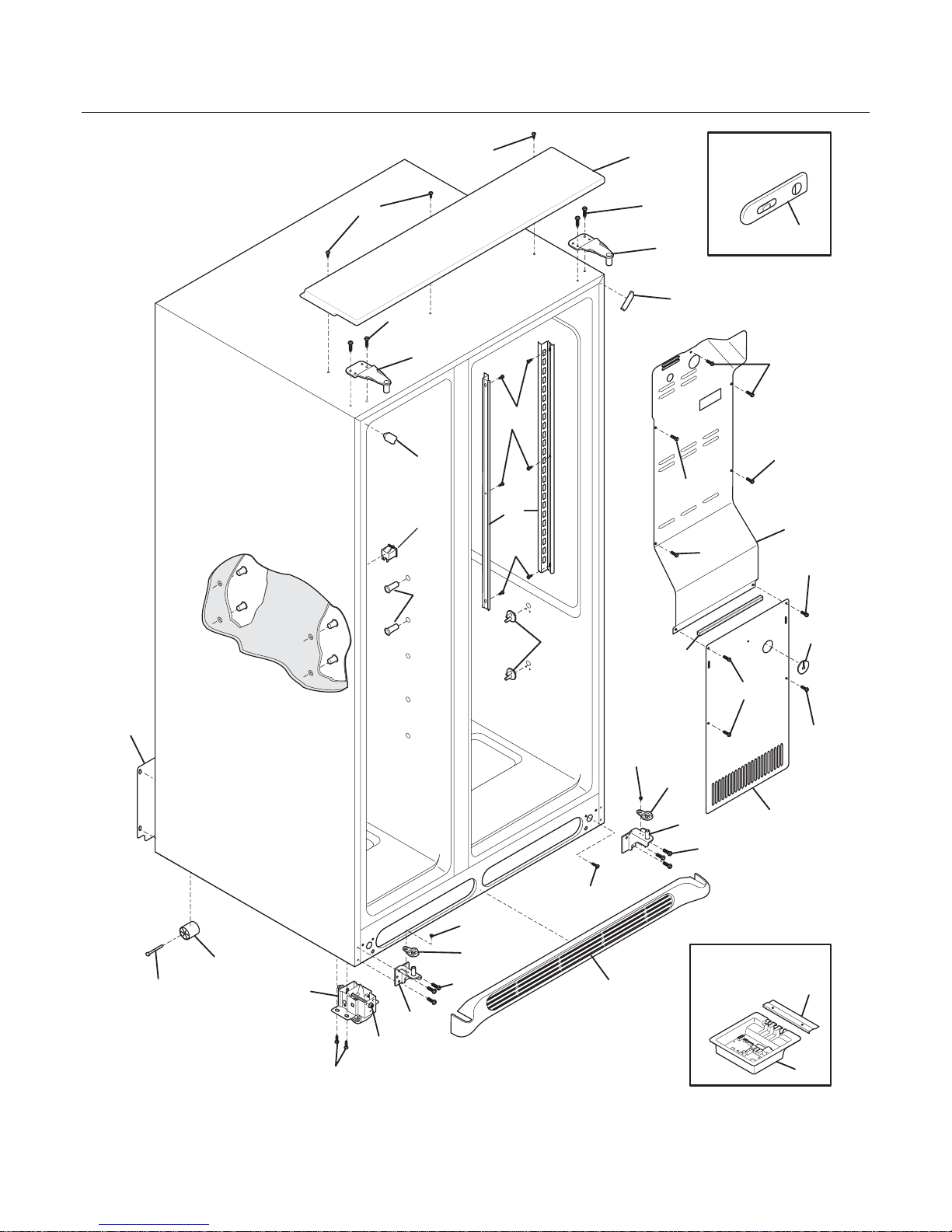

CABINET

100

30A

21C

10A

N58BABAAC2

14A

GHSC39EJP Publication No: 5995511598

# Functional Parts 7 04/08

* Non-Illustrated Parts

CABINET

Model Index: AGHSC39EJ (GHSC39EJPB0)

BGHSC39EJ (GHSC39EJPW0)

POS. NO PART NO. DESCRIPTION

10 241509804 A B Cover-air duct

10A 241719711 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A - Plate-door closer

22 240457701 - B Plate-door closer

23 240402702 A B Screw-#10-32 x 1/4 flat hd

28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 A B Bracket-lower hinge, ref

30A 241603704 A B Bracket-lower hinge

37 240337610 A - Trim-cabinet corner, black, (2)

37 240337608 - B Trim-cabinet corner, white, (2)

38 240327207 A B Bracket-upper hinge

40 241555103 A - Cover-hinge, black

40 241555101 - B Cover-hinge

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578902 A B Screw, hex head, 1/4-20 x 5/8

43 240335005 A B Roller Assy, adjustable, front, (2)

45 241500303 A B Screw, hex washer head, 8-18AB x 0.500

47 241513001 A B Channel-shelf mtg, side, (2)

50 241511102 A B Board-main power

50* 241524802 A B Seal, housing

50* 241532501 A B Clip-harness

54 241532401 A B Channel

58 215503204 A B Screw, cr pan hd, 10-16

66 241513601 A B Damper Assy

72 240324411 A - Grille/Kickplate, black

72 240324409 - B Grille/Kickplate, white

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733902 A B Cover-access, w/label

90 218249808 A B Seal-coil cover

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

* 241591701 A B Louver

* 5303321321 A - Paint, touch-up, black

* 5303321319 - B Paint, touch-up, white

Publication No: 5995511598 GHSC39EJP

04/08 8

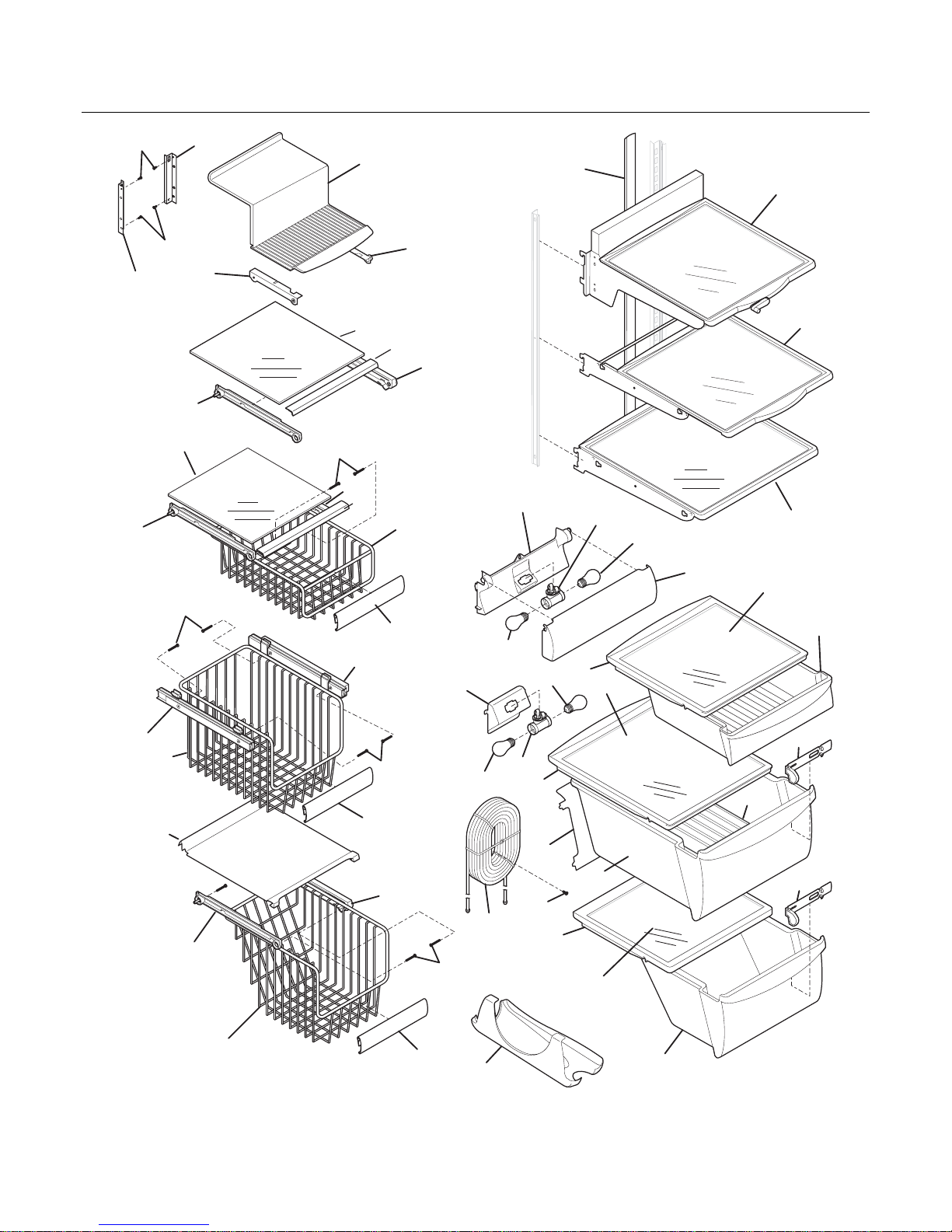

SHELVES

51A

140

136

126

122

121

120

109

108

107

101

100

52B

52A

51B

49B

49A

47B

47A

27A

26A

143

25B

25A

24C

24B

N58SDDLEE1

11A

GHSC39EJP Publication No: 5995511598

# Functional Parts 9 04/08

* Non-Illustrated Parts

SHELVES

Model Index: AGHSC39EJ (GHSC39EJPB0)

BGHSC39EJ (GHSC39EJPW0)

POS. NO PART NO. DESCRIPTION

2 241510605 A B Trim-basket

11 241711213 A B Shelf-freezer, glass, lower

11A 241711214 A B Shelf-freezer, glass, upper

15 241552801 A B Light Bulb

16 241622802 A B Socket-light

16* 241513102 A B Harness-wiring

21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625

24 240355239 A B Shelf-"Spill-Safe", fixed

24B 240350126 A B Shelf-"Spill-Safe", cantilever, sliding

24C 240424611 A B Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240599302 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240350902 A B Cover-crisper pan, lower

25B 240599801 A B Cover-meat pan

26 240351041 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26* 241595202 A B Clip-slide, pan-crisper

26A 241638201 A B Control-humidity

26A* 241638101 A B Frame-humidity control

27 240351218 A B Pan-crisper, lower

27A 240362201 A B Control-humidity

39 240367603 A B Trim-shelf, 11.65", front

41 241637601 A B Baffle-air

47 240350602 A B Insert-pan cover, glass

47A 240350603 A B Insert-pan cover, glass

47B 240443352 A B Insert-pan cover, glass

49 241515001 A B Basket-sliding

49A 241528001 A B Basket-sliding, upper, half

49B 241514901 A B Basket-sliding, upper, full

51 241514501 A B Hanger-basket, RH

51A 241514701 A B Hanger-shelf glass, RH

51B 240579803 A B Hanger-basket, RH

52 241514601 A B Hanger-basket, LH

52A 241514801 A B Hanger-shelf glass, LH

52B 240579804 A B Hanger-basket, LH

60 218362501 A B Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

62 240599704 A B Pan-meat

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 241532005 A B Water Tank

100 240326304 A B Cover-water tank

101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4

107 241513402 A B Shield-light, meat pan

108 241513301 A B Cover-wiring, meat pan light

109 241513202 A B Base-crisper light socket

120 241691701 A B Shelf-ice cream

121 241504701 A B Rail-ice cream shelf, LH

122 241504702 A B Rail-ice cream shelf, RH

126 241674401 A B Channel, auger mtg, LH

126 241674402 A B Channel, auger mtg, RH

136 241657702 A B Dispenser-can, clear

140 240430505 A B Channel, wtr tube cover

143 240423301 A B Divider-crisper pan

* 241868030 A B Energy Guide

Publication No: 5995511598 GHSC39EJP

04/08 10

CONTROLS

201

199

198

151

155

154

206

149

139

138

137

116

115

205

N58TBBAAB5

75A
