Frigidaire FRT18KD4A Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18KD4AW0 FRT18KD4A R134a white 115

FRT18KD4AW2 FRT18KD4A R134a white 115

MARKET

North America

Publication No.

5995355384

010629

-EN/SERVICE/KHB

TOP MOUNT

REFRIGERATOR

Model No.

FRT18KD4A

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - 0= 240379006 & 2= 240379007

OWNER’S GUIDE - 240400103

SERVICE DATA SHEET - 0= 240379006 & 2= 240379007

06/01 2

Publication No. FRT18KD4A

5995355384

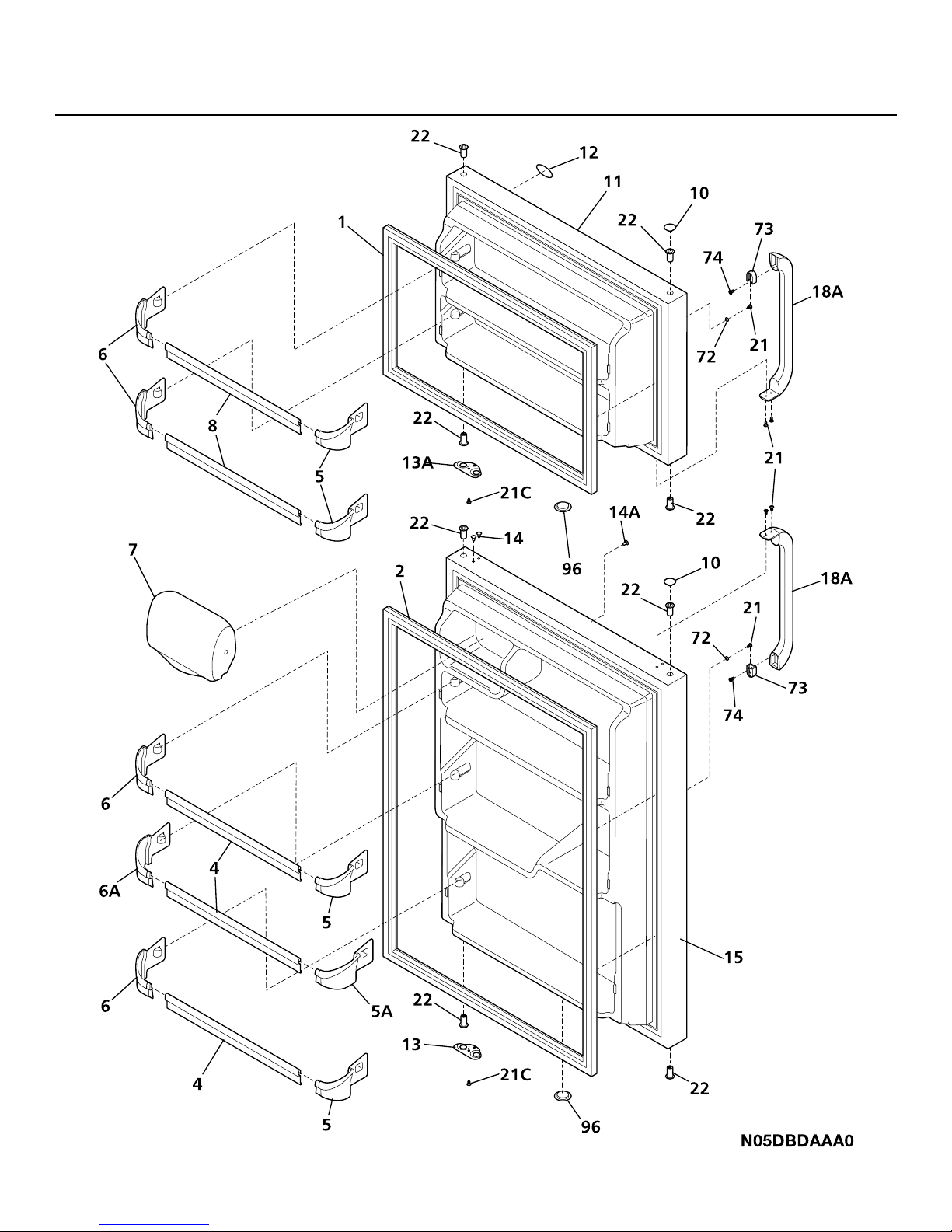

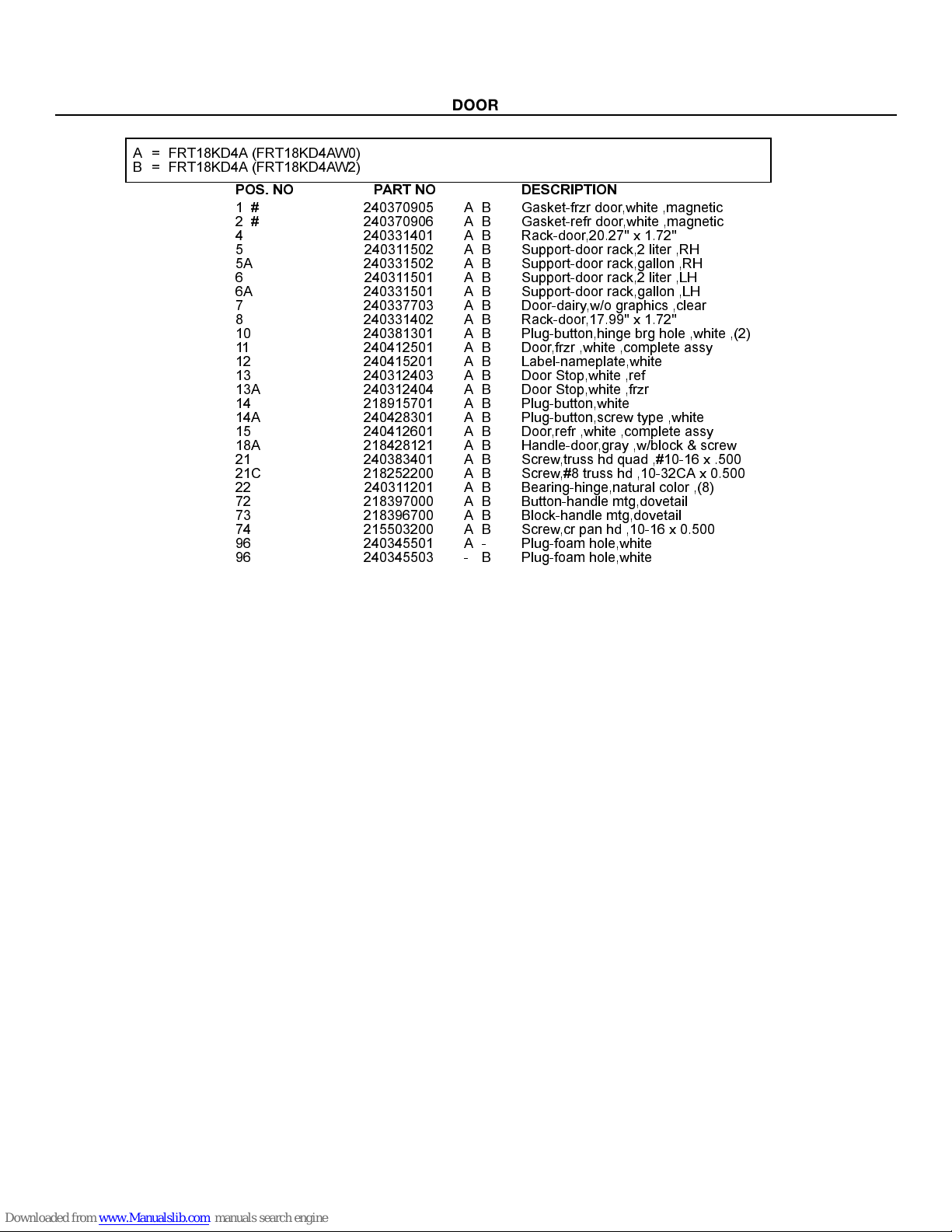

DOOR

# = Fast-moving Parts 3 06/01

* = Non-Illustrated Parts

FRT18KD4A Publication No.

5995355384

A = FRT18KD4A (FRT18KD4AW0)

B = FRT18KD4A (FRT18KD4AW2)

POS. NO PART NO DESCRIPTION

1 # 240370905 A B Gasket-frzr door,white ,magnetic

2 # 240370906 A B Gasket-refr door,white ,magnetic

4 240331401 A B Rack-door,20.27" x 1.72"

5 240311502 A B Support-door rack,2 liter ,RH

5A 240331502 A B Support-door rack,gallon ,RH

6 240311501 A B Support-door rack,2 liter ,LH

6A 240331501 A B Support-door rack,gallon ,LH

7 240337703 A B Door-dairy,w/o graphics ,clear

8 240331402 A B Rack-door,17.99" x 1.72"

10 240381301 A B Plug-button,hinge brg hole ,white ,(2)

11 240412501 A B Door,frzr ,white ,complete assy

12 240415201 A B Label-nameplate,white

13 240312403 A B Door Stop,white ,ref

13A 240312404 A B Door Stop,white ,frzr

14 218915701 A B Plug-button,white

14A 240428301 A B Plug-button,screw type ,white

15 240412601 A B Door,refr ,white ,complete assy

18A 218428121 A B Handle-door,gray ,w/block & screw

21 240383401 A B Screw,truss hd quad ,#10-16 x .500

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240311201 A B Bearing-hinge,natural color ,(8)

72 218397000 A B Button-handle mtg,dovetail

73 218396700 A B Block-handle mtg,dovetail

74 215503200 A B Screw,cr pan hd ,10-16 x 0.500

96 240345501 A - Plug-foam hole,white

96 240345503 - B Plug-foam hole,white

DOOR

06/01 4

Publication No. FRT18KD4A

5995355384

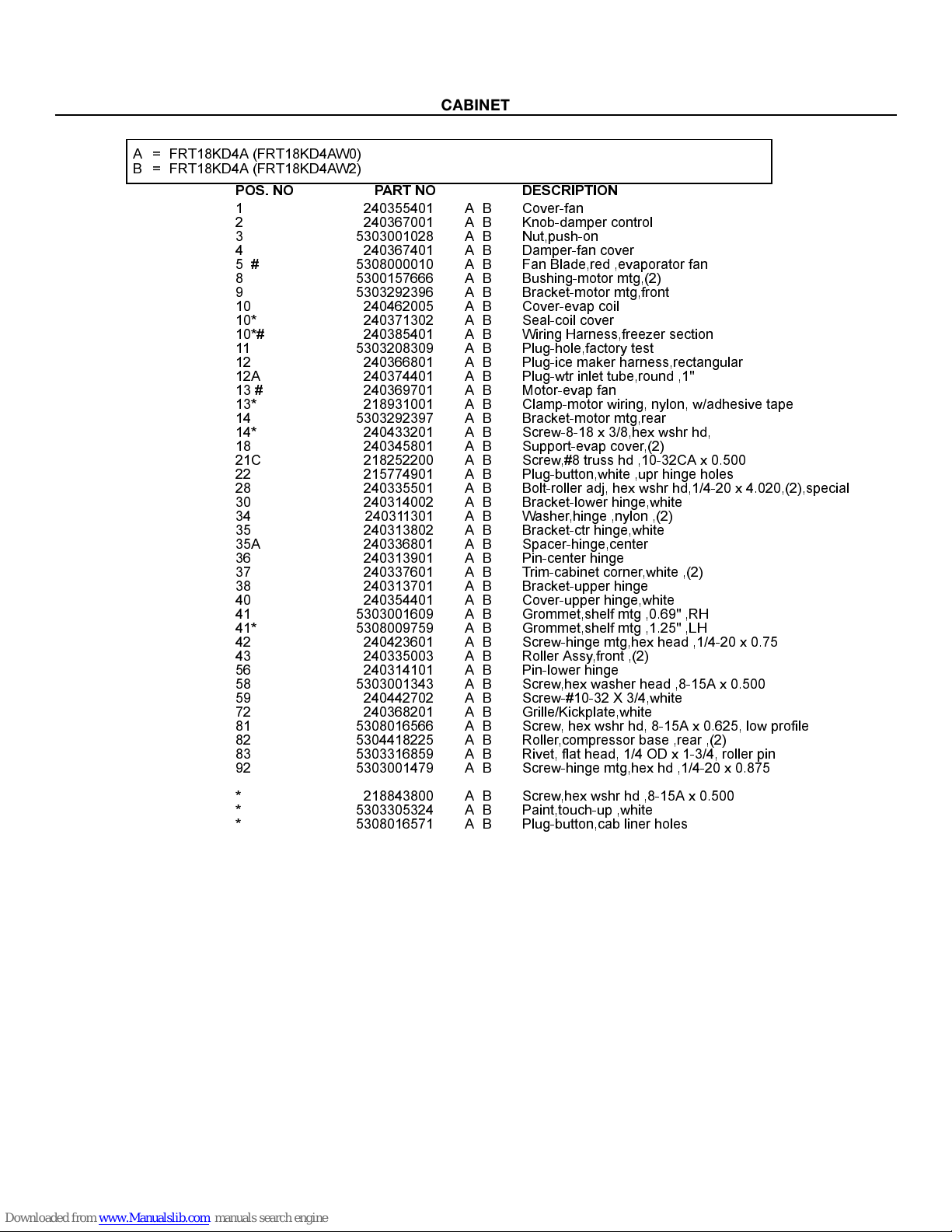

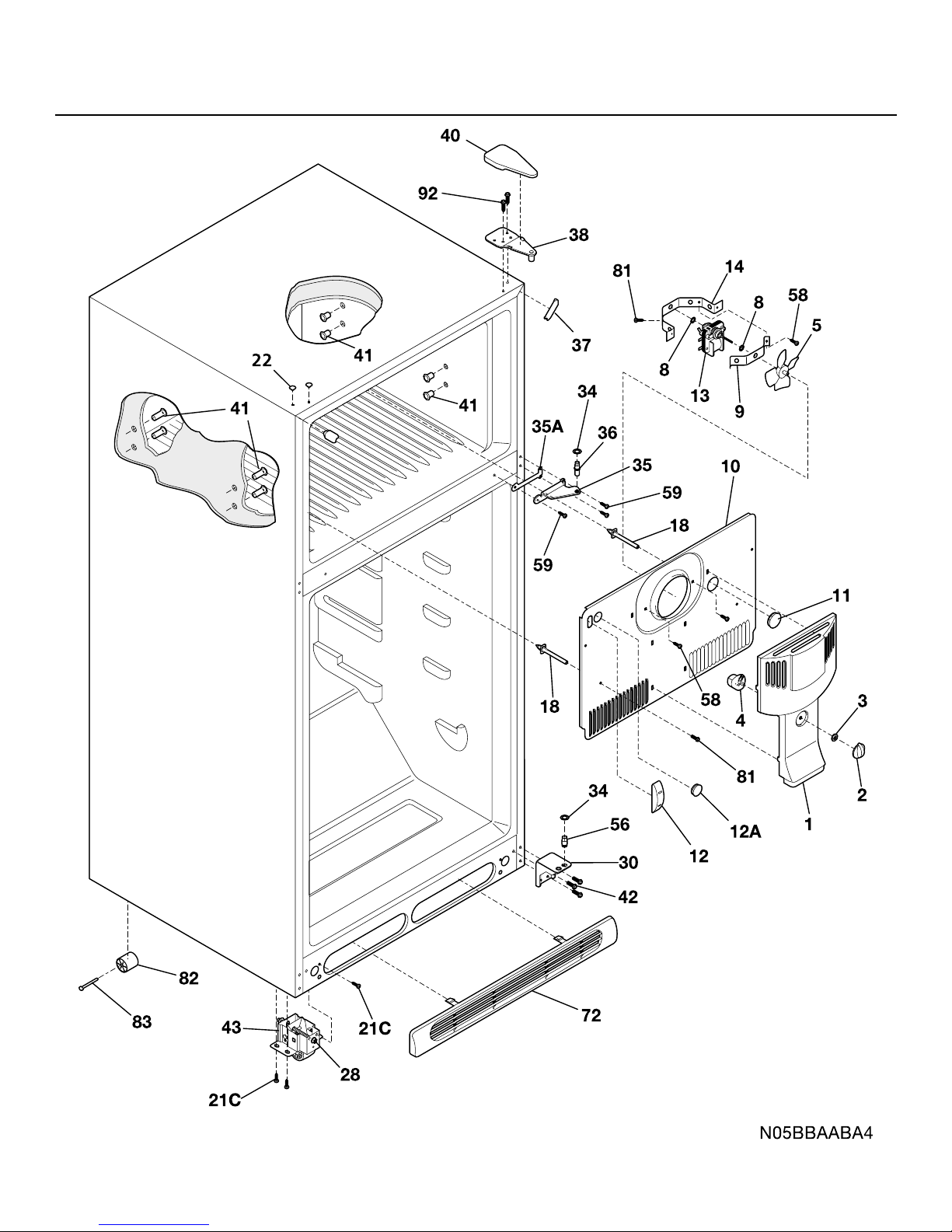

CABINET

# = Fast-moving Parts 5 06/01

* = Non-Illustrated Parts

FRT18KD4A Publication No.

5995355384

A = FRT18KD4A (FRT18KD4AW0)

B = FRT18KD4A (FRT18KD4AW2)

POS. NO PART NO DESCRIPTION

1 240355401 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut,push-on

4 240367401 A B Damper-fan cover

5 # 5308000010 A B Fan Blade,red ,evaporator fan

8 5300157666 A B Bushing-motor mtg,(2)

9 5303292396 A B Bracket-motor mtg,front

10 240462005 A B Cover-evap coil

10* 240371302 A B Seal-coil cover

10*# 240385401 A B Wiring Harness,freezer section

11 5303208309 A B Plug-hole,factory test

12 240366801 A B Plug-ice maker harness,rectangular

12A 240374401 A B Plug-wtr inlet tube,round ,1"

13 # 240369701 A B Motor-evap fan

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg,rear

14* 240433201 A B Screw-8-18 x 3/8,hex wshr hd,

18 240345801 A B Support-evap cover,(2)

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 215774901 A B Plug-button,white ,upr hinge holes

28 240335501 A B Bolt-roller adj, hex wshr hd,1/4-20 x 4.020,(2),special

30 240314002 A B Bracket-lower hinge,white

34 240311301 A B Washer,hinge ,nylon ,(2)

35 240313802 A B Bracket-ctr hinge,white

35A 240336801 A B Spacer-hinge,center

36 240313901 A B Pin-center hinge

37 240337601 A B Trim-cabinet corner,white ,(2)

38 240313701 A B Bracket-upper hinge

40 240354401 A B Cover-upper hinge,white

41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH

42 240423601 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B Roller Assy,front ,(2)

56 240314101 A B Pin-lower hinge

58 5303001343 A B Screw,hex washer head ,8-15A x 0.500

59 240442702 A B Screw-#10-32 X 3/4,white

72 240368201 A B Grille/Kickplate,white

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500

* 5303305324 A B Paint,touch-up ,white

* 5308016571 A B Plug-button,cab liner holes

CABINET

06/01 6

Publication No. FRT18KD4A

5995355384

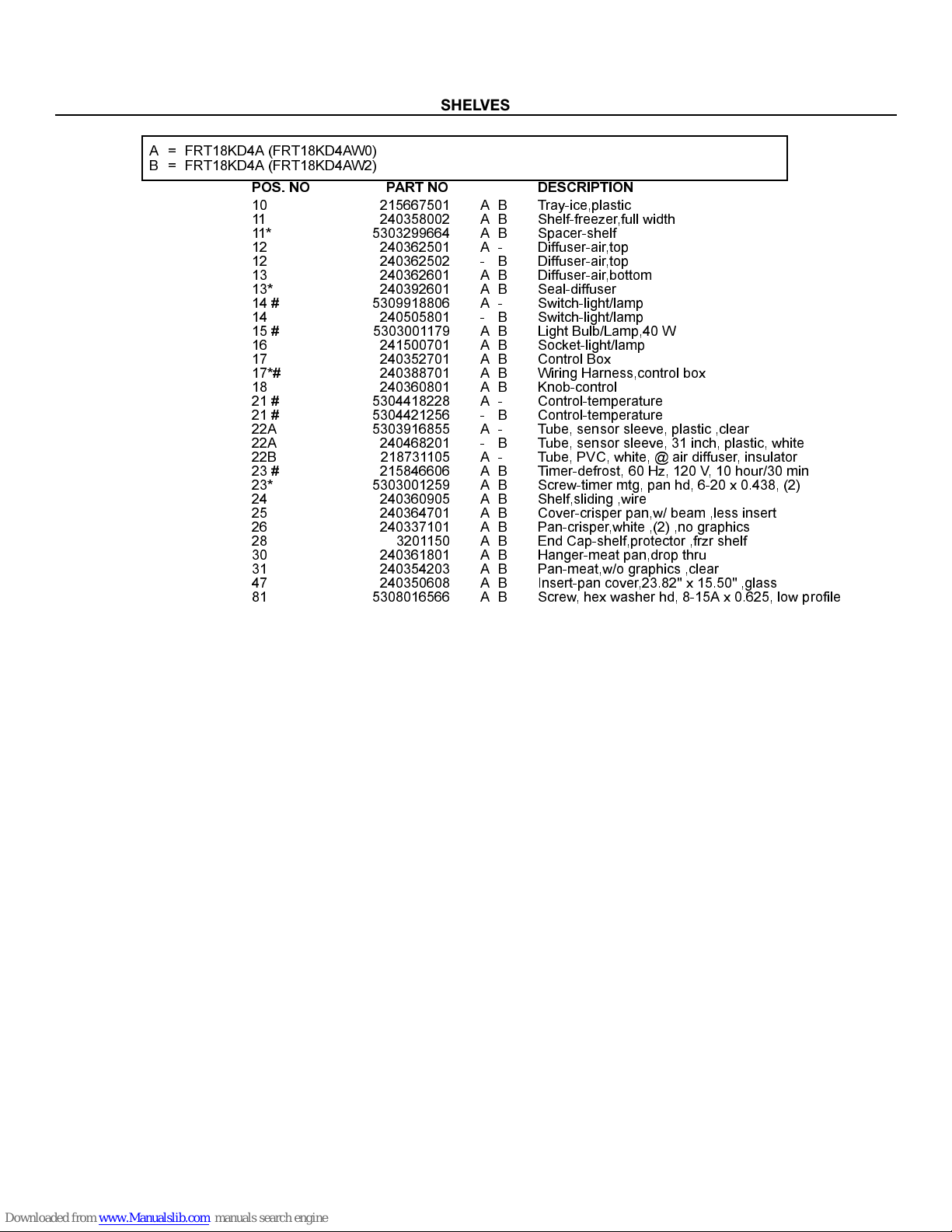

SHELVES

# = Fast-moving Parts 7 06/01

* = Non-Illustrated Parts

FRT18KD4A Publication No.

5995355384

A = FRT18KD4A (FRT18KD4AW0)

B = FRT18KD4A (FRT18KD4AW2)

POS. NO PART NO DESCRIPTION

10 215667501 A B Tray-ice,plastic

11 240358002 A B Shelf-freezer,full width

11* 5303299664 A B Spacer-shelf

12 240362501 A - Diffuser-air,top

12 240362502 - B Diffuser-air,top

13 240362601 A B Diffuser-air,bottom

13* 240392601 A B Seal-diffuser

14 # 5309918806 A - Switch-light/lamp

14 240505801 - B Switch-light/lamp

15 # 5303001179 A B Light Bulb/Lamp,40 W

16 241500701 A B Socket-light/lamp

17 240352701 A B Control Box

17*# 240388701 A B Wiring Harness,control box

18 240360801 A B Knob-control

21 # 5304418228 A - Control-temperature

21 # 5304421256 - B Control-temperature

22A 5303916855 A - Tube, sensor sleeve, plastic ,clear

22A 240468201 - B Tube, sensor sleeve, 31 inch, plastic, white

22B 218731105 A - Tube, PVC, white, @ air diffuser, insulator

23 # 215846606 A B Timer-defrost, 60 Hz, 120 V, 10 hour/30 min

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360905 A B Shelf,sliding ,wire

25 240364701 A B Cover-crisper pan,w/ beam ,less insert

26 240337101 A B Pan-crisper,white ,(2) ,no graphics

28 3201150 A B End Cap-shelf,protector ,frzr shelf

30 240361801 A B Hanger-meat pan,drop thru

31 240354203 A B Pan-meat,w/o graphics ,clear

47 240350608 A B Insert-pan cover,23.82" x 15.50" ,glass

81 5308016566 A B Screw, hex washer hd, 8-15A x 0.625, low profile

SHELVES

06/01 8

Publication No. FRT18KD4A

5995355384

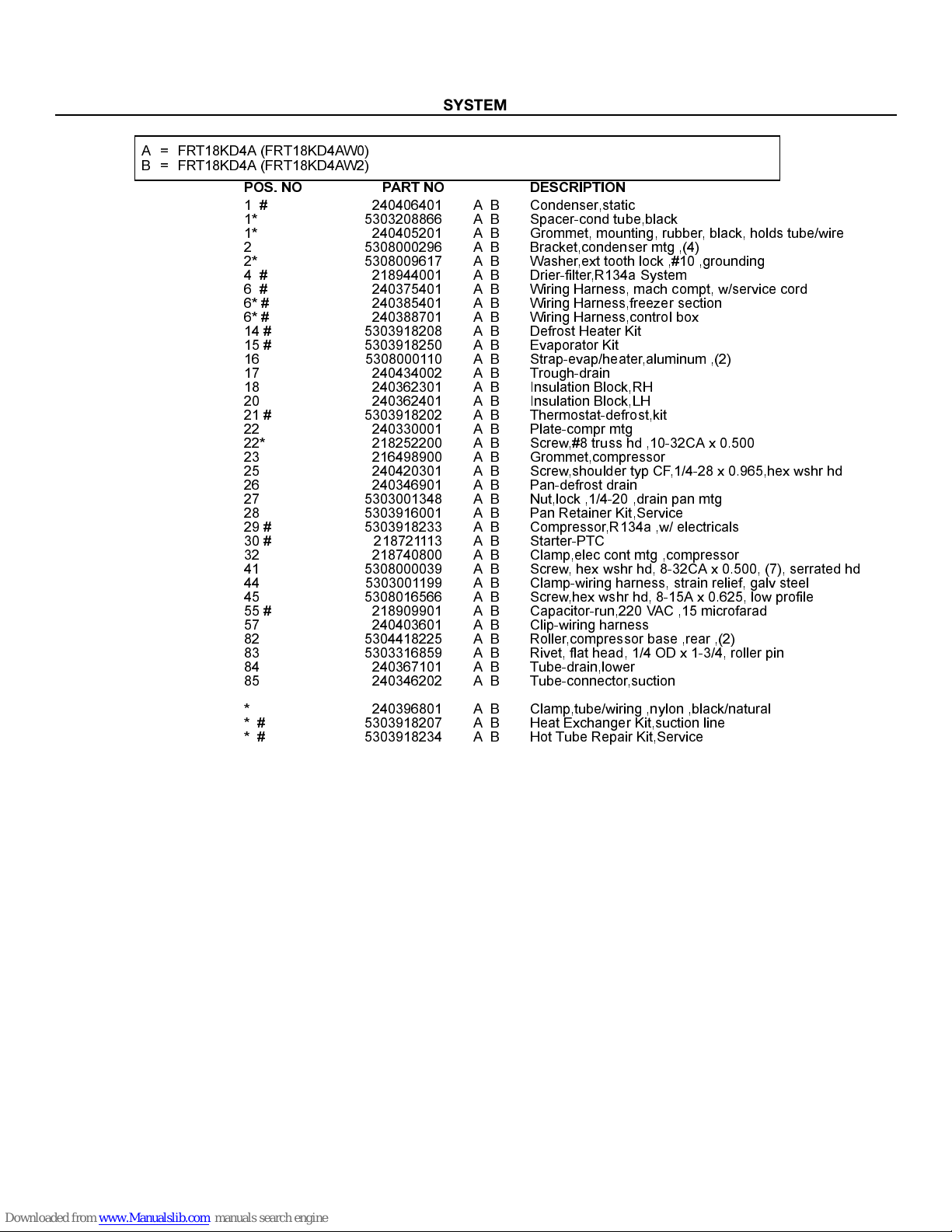

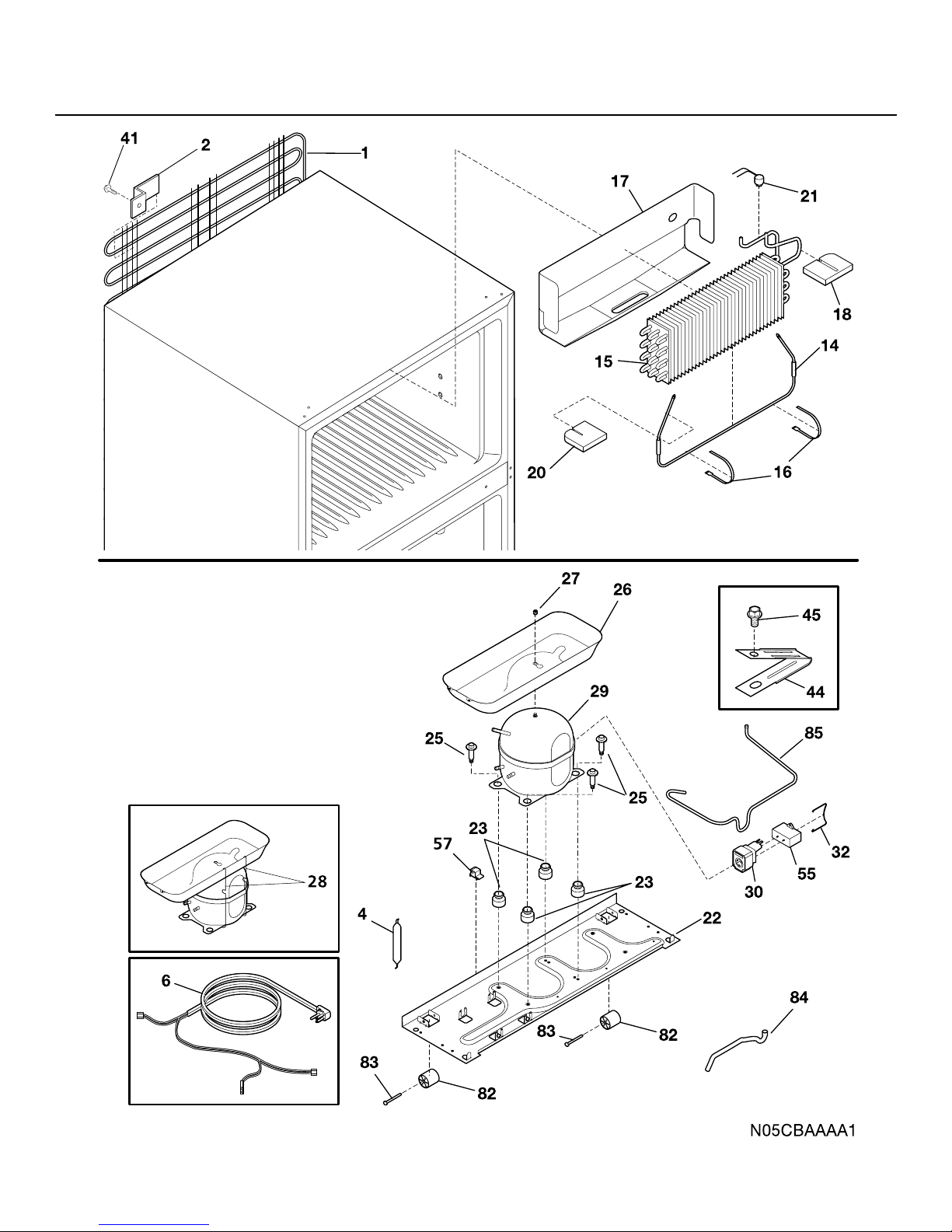

SYSTEM

# = Fast-moving Parts 9 06/01

* = Non-Illustrated Parts

FRT18KD4A Publication No.

5995355384

A = FRT18KD4A (FRT18KD4AW0)

B = FRT18KD4A (FRT18KD4AW2)

POS. NO PART NO DESCRIPTION

1 # 240406401 A B Condenser,static

1* 5303208866 A B Spacer-cond tube,black

1* 240405201 A B Grommet, mounting, rubber, black, holds tube/wire

2 5308000296 A B Bracket,condenser mtg ,(4)

2* 5308009617 A B Washer,ext tooth lock ,#10 ,grounding

4 # 218944001 A B Drier-filter,R134a System

6 # 240375401 A B Wiring Harness, mach compt, w/service cord

6* # 240385401 A B Wiring Harness,freezer section

6* # 240388701 A B Wiring Harness,control box

14 # 5303918208 A B Defrost Heater Kit

15 # 5303918250 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater,aluminum ,(2)

17 240434002 A B Trough-drain

18 240362301 A B Insulation Block,RH

20 240362401 A B Insulation Block,LH

21 # 5303918202 A B Thermostat-defrost,kit

22 240330001 A B Plate-compr mtg

22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

23 216498900 A B Grommet,compressor

25 240420301 A B Screw,shoulder typ CF,1/4-28 x 0.965,hex wshr hd

26 240346901 A B Pan-defrost drain

27 5303001348 A B Nut,lock ,1/4-20 ,drain pan mtg

28 5303916001 A B Pan Retainer Kit,Service

29 # 5303918233 A B Compressor,R134a ,w/ electricals

30 # 218721113 A B Starter-PTC

32 218740800 A B Clamp,elec cont mtg ,compressor

41 5308000039 A B Screw, hex wshr hd, 8-32CA x 0.500, (7), serrated hd

44 5303001199 A B Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B Screw,hex wshr hd, 8-15A x 0.625, low profile

55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad

57 240403601 A B Clip-wiring harness

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240367101 A B Tube-drain,lower

85 240346202 A B Tube-connector,suction

* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural

* # 5303918207 A B Heat Exchanger Kit,suction line

* # 5303918234 A B Hot Tube Repair Kit,Service

SYSTEM

06/01 10

Publication No. FRT18KD4A

5995355384

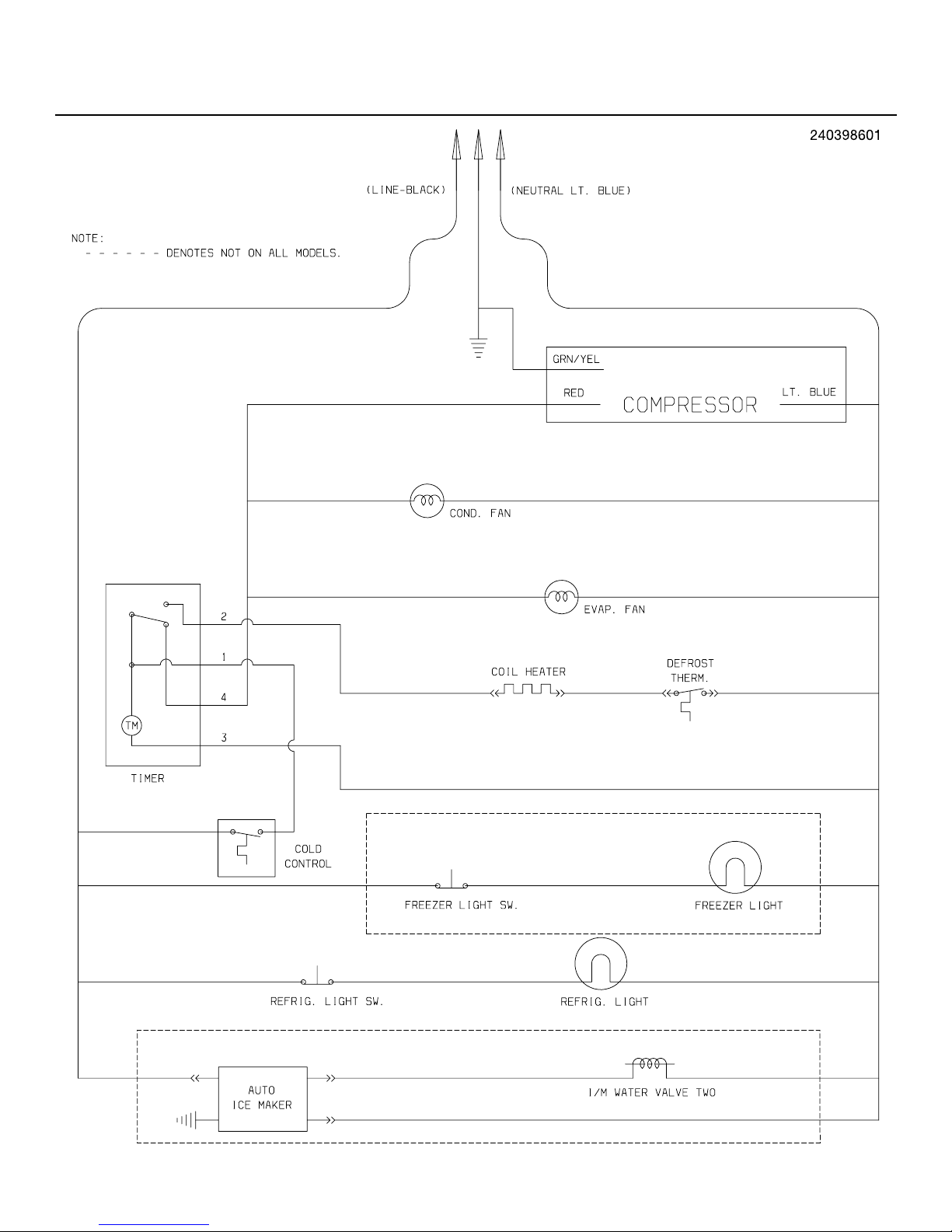

WIRING SCHEMATIC
