Frigidaire FRT18HB5D Manuel utilisateur

N05L00001.eps N05DBDCKA0.eps N05BBAABA22.eps N05SAADDA11.eps

N05CAAAAA18.eps 240398801.eps 240398601.eps

Product No. FRT18HB5DW6

Series R134a

Color white

Volts 115

Wiring Diagram 240398801

Owner's Guide 240400112

Market North America

Energy Guide 241538728

Service Data Sheet 240379017

Installation Instructions 240568300

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995452389

05/10/25

(EN/SERVICE/DCS)

390

TOP-MOUNT

REFRIGERATOR

Model No.

FRT18HB5D

Publication No: 5995452389 FRT18HB5DW6

10/05 2

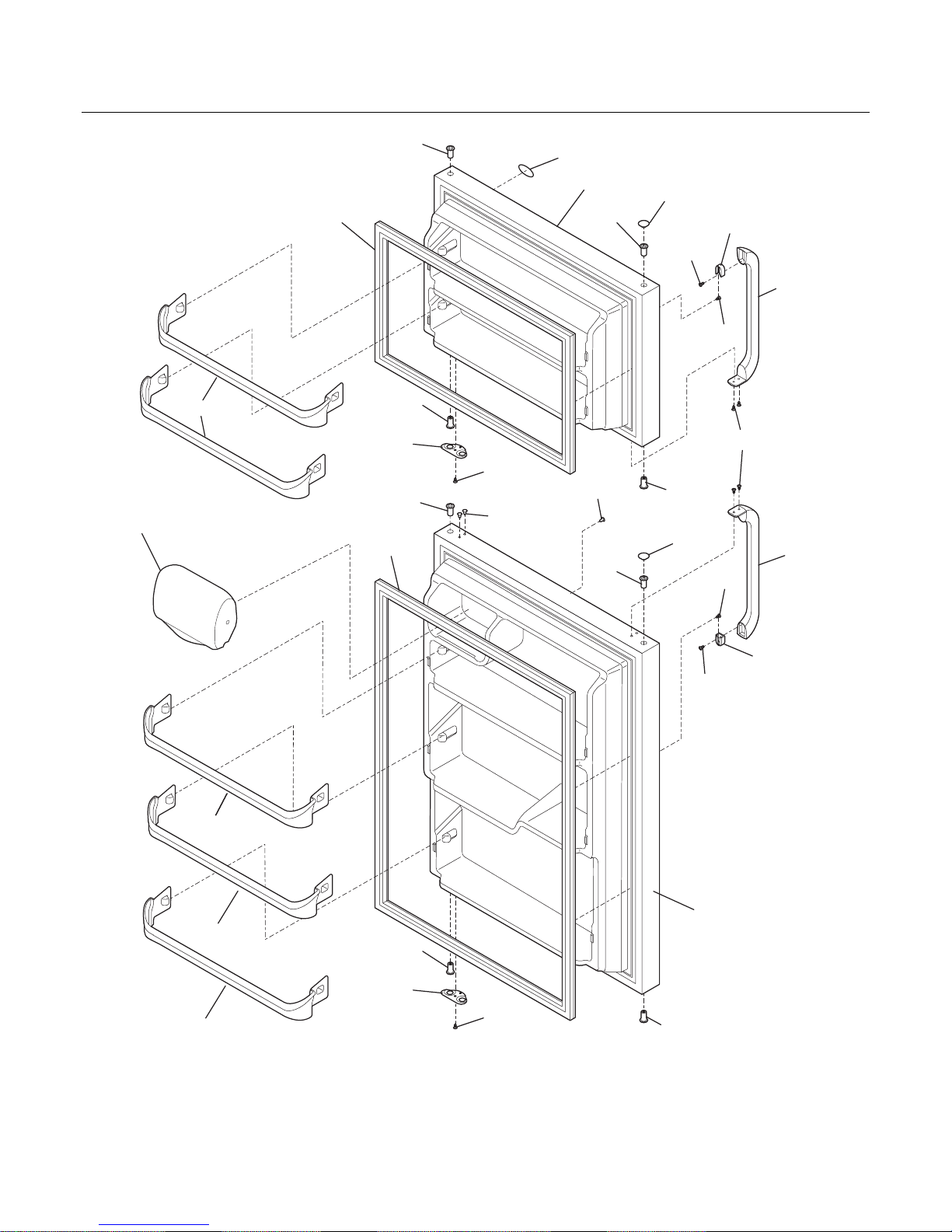

DOOR

21A

18A

13A

21C

22 18A

21A

N05DBDCKA0

FRT18HB5DW6 Publication No: 5995452389

# Functional Parts 3 10/05

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 240542115 Gasket-frzr door, white, magnetic

2 240542118 Gasket-refr door, white, magnetic

4 240534901 Rack-door

4B 240534701 Rack-door, 4B

7 240337701 Door-dairy, w/o graphics, white

8 240534801 Rack-door

10 240381301 Plug-button, white, hinge brg hole, (2)

11 240410201 Door-frzr, white, complete assy

12 240415201 Label-nameplate, white

13 240312403 Door Stop, white, ref

13A 240312404 Door Stop, white, frzr

14 240494001 Plug-button, white

15 240410301 Door-refr, white, complete assy

18A 218428101 Handle-door, white, w/block & screw

21 240383401 Screw, truss hd quad, #10-16 x .500

21A 240521301 Screw, #10-16 x 1/2

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240527101 Bearing-hinge, natural color

73 218396700 Block-handle mtg, dovetail

74 215503200 Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995452389 FRT18HB5DW6

10/05 4

CABINET

12A

35A 36

N05BBAABA22

43 21C

21C

FRT18HB5DW6 Publication No: 5995452389

# Functional Parts 5 10/05

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

1 241652301 Cover-fan

2 240367001 Knob-damper control

3 5303001028 Nut, push-on

4 240367401 Damper-fan cover

5 # 5308000010 Fan Blade, red, evaporator fan

8 5300157666 Bushing-motor mtg, (2)

9 5303292396 Bracket-motor mtg, front

10 241652210 Cover-evap coil

10* 240568601 Seal-coil cover

10* 241520701 Harness-wiring, freezer

11 5303208309 Plug-hole, factory test

12 241557601 Plug-ice maker harness, rectangular

12A 240374401 Plug-wtr inlet tube, round, 1"

12A* 241586701 Plug-foam-wtr-inlet, round

13 240369702 Motor-evap fan

13* 215474201 Washer, "slinger", nylon, evap fan shaft

13* 218931001 Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 Bracket-motor mtg, rear

14* 240433201 Screw, hex washer head, 8-18 x 0.375

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 215774901 Plug-button, white, upr hinge holes

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 240314001 Bracket-lower hinge, zinc

34 240311303 Washer, hinge, nylon, (2)

35 240313801 Bracket-ctr hinge, zinc

35A 240336802 Spacer-hinge, center

36 240516401 Pin-center hinge

37 241611301 Trim-cabinet corner, white, (2)

38 241622601 Hinge-up-plastc-wht, plastic, white

41 5308009759 Grommet, shelf mtg, 1.25", LH, (4)

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, adjustable, front, (2)

56 240516501 Pin-lower hinge

58 5303001343 Screw, hex washer head, 8-15A x 0.500

59 240442701 Screw-#10-32 X 3/4, zinc

72 240368205 Grille/Kickplate, white

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574607 Cover-access, w/label

89* 241500302 Screw, hex washer head, 8-18AB x 0.625

92 241624301 Screw-hinge mtg, hex head, 1/4-20 x 1.00

* 240479601 Plug, button, cab liner holes, (2)

* 5303305324 Paint, touch-up, white

Publication No: 5995452389 FRT18HB5DW6

10/05 6

SHELVES

FRT18HB5DW6 Publication No: 5995452389

# Functional Parts 7 10/05

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

10 215667501 Tray, ice cube, plastic

11 5303282284 Shelf-freezer, "table type"

12 241542001 Diffuser, air, top

13 240362601 Diffuser, air, bottom

14 # 241554901 Switch-light/lamp

15 241555401 Light Bulb

16 241559801 Socket-light

17 240352701 Control Box

17* 240568607 Seal

17*# 240388701 Wiring Harness, control box

18 240360801 Knob, temp control

21 # 5304421256 Control, temperature

22A 240468201 Tube, sensor sleeve, 31 inch, plastic, white

23 241621501 Timer-defrost

23* 5303001259 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360905 Shelf, sliding, wire

25 240364701 Cover-crisper pan, w/ beam, less insert

26 240337101 Pan-crisper, white, (2), no graphics

30 240361801 Cover, meat pan hanger, drop through

31 240530801 Pan-meat, w/o graphics, white

47 240350608 Insert-pan cover, 23.82" x 15.50", glass

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

Publication No: 5995452389 FRT18HB5DW6

10/05 8

SYSTEM

17 21

N05CAAAAA18

FRT18HB5DW6 Publication No: 5995452389

# Functional Parts 9 10/05

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 240444401 Condenser, dynamic

4 # 218944001 Drier-filter, R134a System

6 # 240496101 Wiring Harness, machine compt, w/electric cord

6* 241520701 Harness-wiring, freezer

6* # 240388701 Wiring Harness, control box

14 # 240356214 Heater-defrost

15 # 5303918274 Evaporator Kit

16 5308000110 Strap-evap/heater, aluminum, (2)

17 241551801 Trough-drain

20 241551901 Insulation Block

21 # 5303918202 Thermostat-defrost, kit

22 241602001 Base-compressor

22* 218252200 Screw, #8 truss hd, 10-32CA x 0.500

23 218513300 Grommet-compr mtg, (4)

25 240491501 Screw-compressor mtg, 1/4-28 x 1.16, shoulder, typ CF

26 240332608 Pan-defrost drain

29 # 5303918299 Compressor, w/electricals

30 # 241527802 Starter

32 241544101 Clamp, elec cont mtg, compressor, bale wire

34 240405201 Grommet, rubber, black, cond tube/wire

41 240433202 Screw, hex washer head, 8-18 x 5/16

44 5303001199 Clamp-wiring harness, strain relief, galv steel

45 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

55 218909915 Capacitor, run, 220 VAC, 15 microfarad

57 240542601 Clip-wiring harness

58 218897002 Screw, hex washer head, 8-32 x 0.375

59 5304430246 Bracket-cond motor assy

59* 240346701 Tape-foam seal, shroud

59* 240359401 Screw-fan shroud, (2)

60 240525402 Motor, condensor fan

61 # 240524101 Fan Blade, galv steel, condenser fan

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240500801 Tube-drain, rubber, lower

85 240553501 Tube-connector, suction

* 240396801 Clamp, tube/wiring, nylon, black/natural

* 5303918222 Hot Tube Repair Kit, service

* # 5303918263 Heat Exchanger Kit, suction line

Publication No: 5995452389 FRT18HB5DW6

10/05 10

WIRING SCHEMATIC
