Frigidaire FRT18FS5A Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT18FS5AQ4 FRT18FS5A R134a bisque 115

FRT18FS5AW4 FRT18FS5A R134a white 115

PRODUCT NO. WIRING DIAG MARKET INSTL INSTR ICE MAKER

FRT18FS5AQ4 240398801 USA 240379102 IM115

FRT18FS5AW4 240398801 USA 240379102 IM115

Publication number

5995359980

011017

-EN/SERVICE /DJH

390

TOP MOUNT

REFRIGERATOR

Model No.

FRT18FS5A

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - 240379007

OWNER’S GUIDE - 240400103

SERVICE DATA SHEET - 240379007

10/01 2

Publication No. FRT18FS5A

5995359980

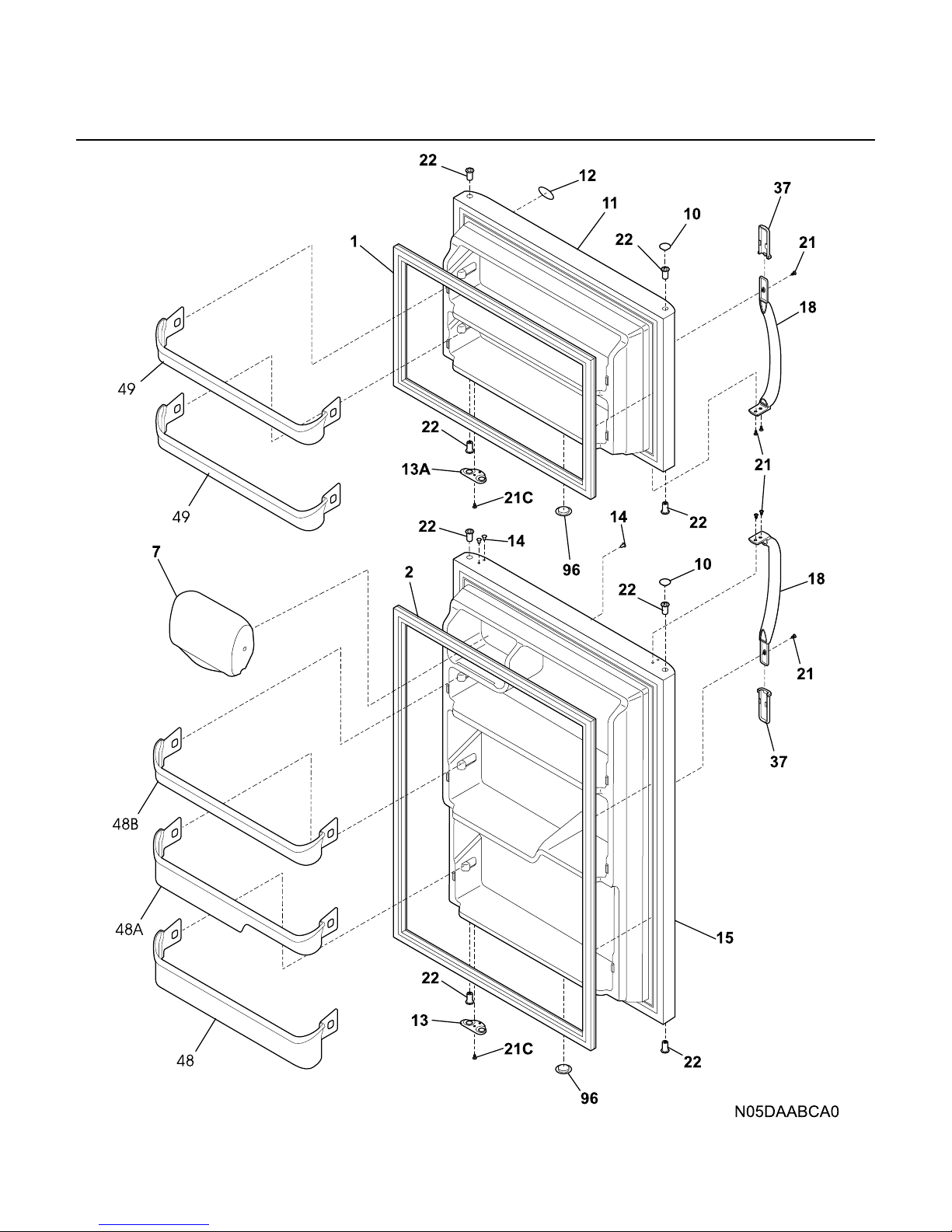

DOOR

# = Fast-moving Parts 3 10/01

* = Non-Illustrated Parts

FRT18FS5A Publication No.

5995359980

A = FRT18FS5A (FRT18FS5AQ4)

B = FRT18FS5A (FRT18FS5AW4)

POS. NO PART NO DESCRIPTION

1 # 240370905 A B Gasket-frzr door,white ,magnetic

2 # 240370906 A B Gasket-refr door,white ,magnetic

7 240337703 A B Door-dairy,w/o graphics ,clear

10 240381302 A - Plug-button,hinge brg hole ,bisque ,(2)

10 240381301 - B Plug-button,hinge brg hole ,white ,(2)

11 240410202 A - Door-frzr,bisque ,complete assy

11 240410201 - B Door-frzr,white ,complete assy

12 240415203 A - Label-nameplate,bisque

12 240415201 - B Label-nameplate,white

13 240312407 A - Door Stop,bisque ,ref

13 240312403 - B Door Stop,white ,ref

13A 240312408 A - Door Stop,bisque ,frzr

13A 240312404 - B Door Stop,white ,frzr

14 218915704 A - Plug-button,bisque

14 218915701 - B Plug-button,white

15 240410302 A - Door-refr,bisque ,complete assy

15 240410301 - B Door-refr,white ,complete assy

18 218668004 A - Handle-door,bisque

18 218668001 - B Handle-door,white

21 240383401 A B Screw,truss hd quad ,#10-16 x .500

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240311201 A B Bearing-hinge,natural color ,(8)

37 215870633 A - Trim-handle,2.47" ,bisque ,w/satin AL band

37 215870629 - B Trim-handle,2.47" ,white ,w/satin AL band

37* 218676004 A B Band-decorative,satin aluminum ,handle trim

48 240338101 A B Bin-door,Pseudo ,bottom

48A 240337901 A B Bin-door,ref

48B 240338001 A B Bin-door,Pseudo ,gallon ,refr

49 240337801 A B Bin-door,Pseudo ,frzr

96 240345503 A B Plug-foam hole,white

DOOR

10/01 4

Publication No. FRT18FS5A

5995359980

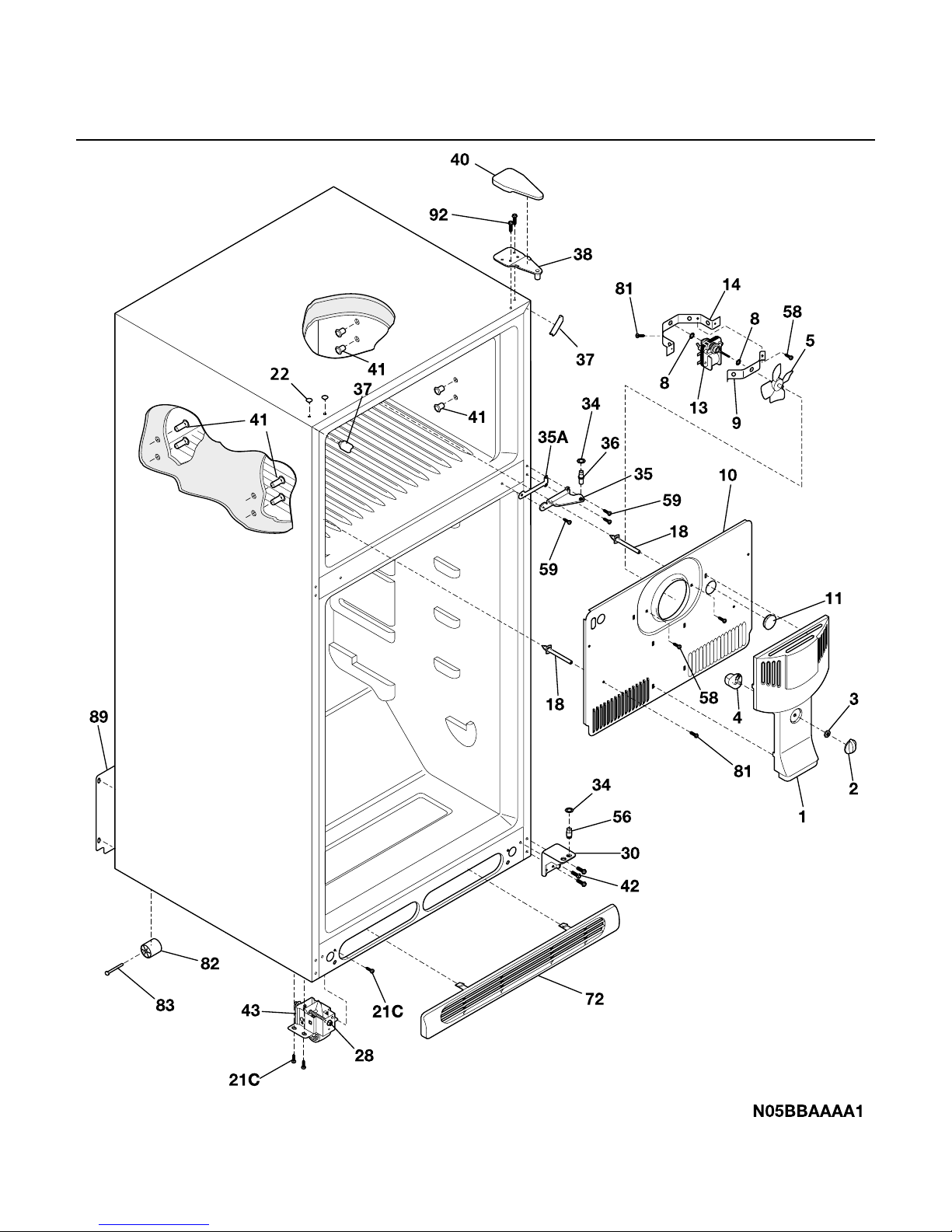

CABINET

# = Fast-moving Parts 5 10/01

* = Non-Illustrated Parts

FRT18FS5A Publication No.

5995359980

A = FRT18FS5A (FRT18FS5AQ4)

B = FRT18FS5A (FRT18FS5AW4)

POS. NO PART NO DESCRIPTION

1 240355401 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut,push-on

4 240367401 A B Damper-fan cover

5 # 5308000010 A B Fan Blade,red ,evaporator fan

8 5300157666 A B Bushing-motor mtg,(2)

9 5303292396 A B Bracket-motor mtg,front

10 240462005 A B Cover-evap coil

10* 240371302 A B Seal-coil cover

10*# 240385401 A B Wiring Harness,freezer section

11 5303208309 A B Plug-hole,factory test

13 # 240369701 A B Motor-evap fan

13* 218931001 A B Clamp-motor wiring,nylon ,w/adhesive tape

14 5303292397 A B Bracket-motor mtg,rear

14* 240433201 A B Screw-8-18 x 3/8,hex washer head ,8-18 x 0.375

18 240345801 A B Support-evap cover,(2)

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 215774901 A B Plug-button,white ,upr hinge holes

28 240335501 A B Bolt-roller adj,hex washer hd 1/4-20 x 4.020,(2) ,special

30 240314004 A - Bracket-lower hinge,bisque

30 240314002 - B Bracket-lower hinge,white

34 240311301 A B Washer,hinge ,nylon ,(2)

35 240313804 A - Bracket-ctr hinge,bisque

35 240313802 - B Bracket-ctr hinge,white

35A 240336801 A B Spacer-hinge,center

36 240313901 A B Pin-center hinge

37 240337604 A - Trim-cabinet corner,bisque ,(2)

37 240337601 - B Trim-cabinet corner,white ,(2)

38 240313701 A B Bracket-upper hinge

40 240354403 A - Cover-upper hinge,bisque

40 240354401 - B Cover-upper hinge,white

41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH

42 240423601 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B Roller Assy,front ,(2)

56 240314101 A B Pin-lower hinge

58 5308002748 A B Screw,hex wshr hd ,8-15A x 0.500 ,special

59 240442704 A - Screw-#10-32 X 3/4,bisque

59 240442702 - B Screw-#10-32 X 3/4,white

72 240368202 A - Grille/Kickplate,bisque

72 240368201 - B Grille/Kickplate,white

81 5308016566 A B Screw,hex washer hd ,8-15A x 0.625 ,low profile

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 215164200 A B Pin-roller,(2)

89 240326102 A B Cover-access,w/ label

89* 241500301 A B Screw,hex washer head ,8-18AB x 0.500

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500

* 5304414035 A - Paint,touch-up ,bisque

* 5303305324 - B Paint,touch-up ,white

CABINET

10/01 6

Publication No. FRT18FS5A

5995359980

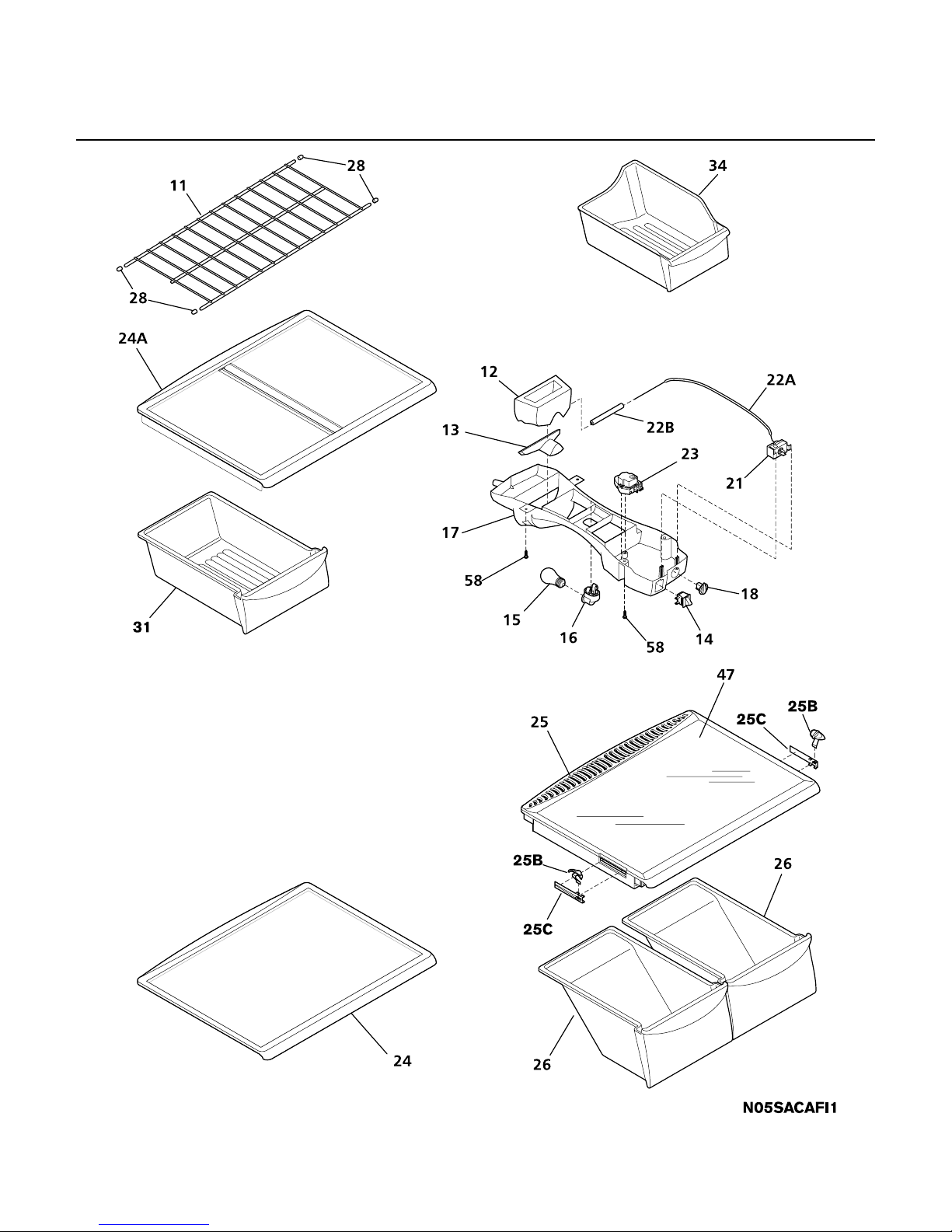

SHELVES

# = Fast-moving Parts 7 10/01

* = Non-Illustrated Parts

FRT18FS5A Publication No.

5995359980

A = FRT18FS5A (FRT18FS5AQ4)

B = FRT18FS5A (FRT18FS5AW4)

POS. NO PART NO DESCRIPTION

11 240358002 A B Shelf-freezer,full width

11* 5303299664 A B Spacer-shelf

12 240362502 A B Diffuser-air,top

13 240362601 A B Diffuser-air,bottom

13* 240392601 A B Seal-diffuser

14 # 240505801 A B Switch-light/lamp

15 240436701 A B Light Bulb/Lamp,A-15 ,40 W ,120 V ,miniature

16 241500701 A B Socket-light/lamp

17 240352701 A B Control Box

17*# 240388701 A B Wiring Harness,control box

17* 5308016567 A B Nut-anchor

18 240360801 A B Knob-control

21 # 5304421256 A B Control-temperature

22A 240468201 A B Tube,sensor sleeve ,31 inch ,plastic ,white

22B 218731105 A B Tube,PVC ,white ,@ air diffuser ,insulator

23 # 215846606 A B Timer-defrost,60 Hz ,120 V ,10 hour/30 min

23* 5303001259 A B Screw-timer mtg,pan hd ,6-20 x 0.438 ,(2)

24 240358905 A B Shelf-"Spill-Safe",sliding

24A 240358906 A B Shelf-"Spill-Safe",sliding

25 240364714 A B Cover-crisper pan

25B 240361201 A B Control-humidity

25C 240361301 A B Damper-humidity control

26 240337103 A B Pan-crisper,clear ,(2) ,no graphics

28 3201150 A B End Cap,freezer shelf ,protector

31 240354203 A B Pan-meat,w/o graphics ,clear

34 240385201 A B Container-ice

47 240350643 A B Insert-pan cover,glass

58 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

SHELVES

10/01 8

Publication No. FRT18FS5A

5995359980

SYSTEM

# = Fast-moving Parts 9 10/01

* = Non-Illustrated Parts

FRT18FS5A Publication No.

5995359980

A = FRT18FS5A (FRT18FS5AQ4)

B = FRT18FS5A (FRT18FS5AW4)

POS. NO PART NO DESCRIPTION

1 240444401 A B Condenser,dynamic

4 # 218944001 A B Drier-filter,R134a System

6 # 240375301 A B Wiring Harness,machine compt ,w/ service cord

6* # 240385401 A B Wiring Harness,freezer section

6* # 240388701 A B Wiring Harness,control box

14 # 5303918208 A B Defrost Heater Kit

15 # 5303918250 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater,aluminum ,(2)

17 240434002 A B Trough-drain

18 240362301 A B Insulation Block,RH

20 240362401 A B Insulation Block,LH

21 # 5303918202 A B Thermostat-defrost,kit

22 240330001 A B Plate-compr mtg

22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

23 218513300 A B Grommet-compr mtg,(4)

25 240491501 A B Screw-compr mtg,hex washer hd ,1/4-28 x 1.16,

26 240332603 A B Pan-defrost drain

29 5303918249 A B Compressor,w/electricals

30 218721113 A B Starter-PTC

32 218740800 A B Clamp,elec cont mtg ,compressor

34 240405201 A B Grommet,mounting ,rubber ,black ,holds tube/wire

41 218897001 A B Screw,hex washer head ,8-32 x 1/4

41* 5308000039 A B Screw,hex washer hd ,8-32CA x 0.500, serrated hd

44 5303001199 A B Clamp-wiring harness,strain relief ,galv steel

45 5308016566 A B Screw,hex washer head ,8-15A x 0.625 ,low profile

55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad

57 240403601 A B Clip-wiring harness

58 240453400 A B Screw-cond fan mtr,hx serr wshr hd ,8-36 x 7/16,(2)

59 240315501 A B Shroud-cond fan

59* 240346701 A B Tape-foam seal,shroud

59* 240359401 A B Screw-fan shroud,(2)

59A 240346501 A B Bracket-support,cond mtr ,(3)

59B 240346601 A B Grommet-bracket,(3)

60 # 240453600 A B Motor,condenser fan

61 # 240315401 A B Fan Blade,galv steel ,condenser fan

61A 240453300 A B Nut,speed

61B 240453500 A B Grommet-silencer

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 215164200 A B Pin-roller,(2)

83* 5303316859 A B Rivet,flat hd ,1/4 OD x 1-3/4 ,roller pin

84 240359601 A B Tube-drain,lower

85 240346201 A B Tube-connector,suction

86 240409302 A B Spacer-cond tube,black

* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500

* 240396801 A B Clamp,tube/wiring ,nylon ,black/natural

* # 5303918222 A B Hot Tube Repair Kit,Service

* # 5303918207 A B Heat Exchanger Kit,suction line

SYSTEM

10/01 10

Publication No. FRT18FS5A

5995359980

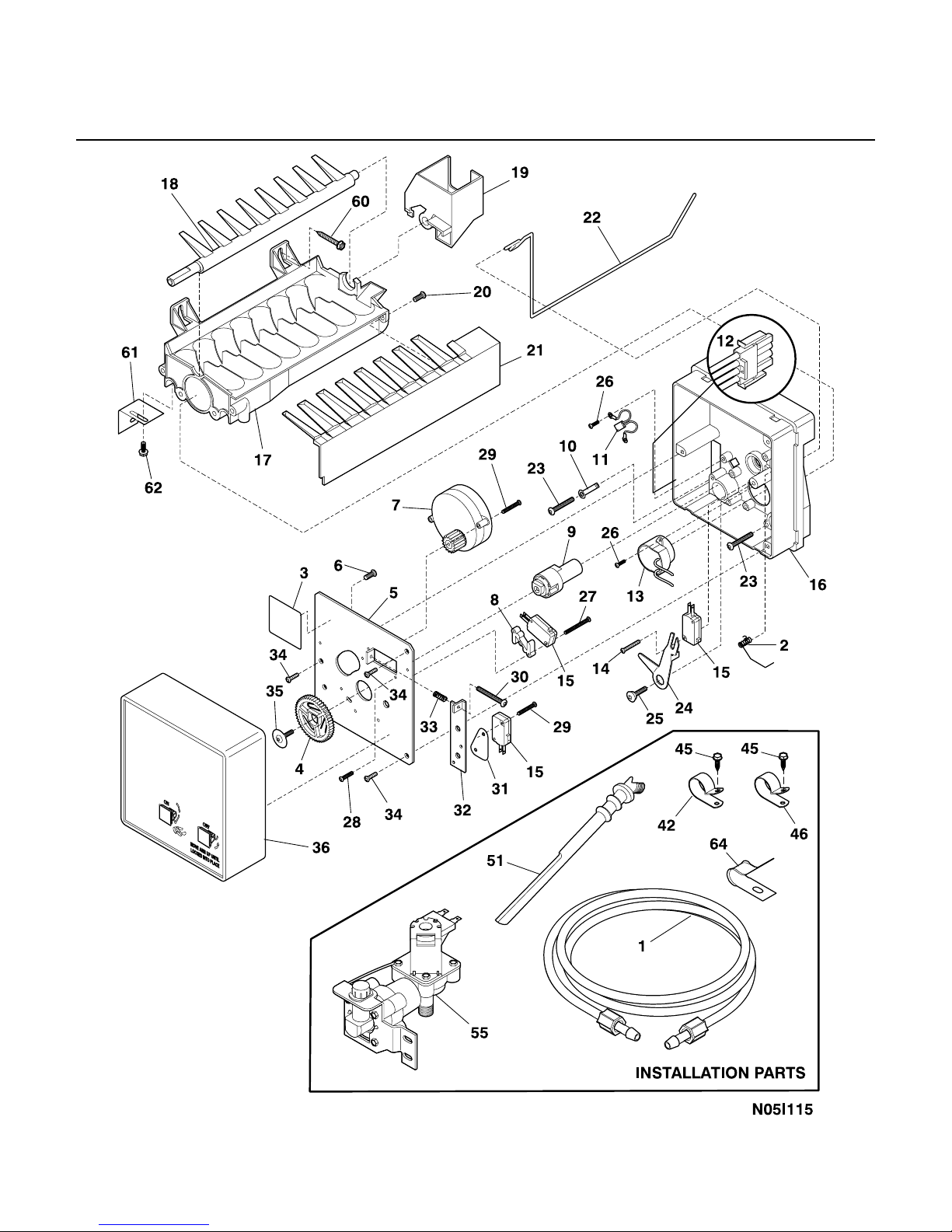

ICE MAKER
