Frigidaire FRT14A2A Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES COLOR VOLTS

FRT14A2AW0 FRT14A2A R134a white (right) 115

FRT14A2AZ0 FRT14A2A R134a white (left) 115

MARKET

North America

Publication No.

5995357844

010820

-EN/SERVICE/KHB

390

TOP MOUNT

REFRIGERATOR

Model No.

FRT14A2A

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

WIRING DIAGRAM - 240379007

OWNER’S GUIDE - 240400104

SERVICE DATA SHEET - 240379007

08/01 2

Publication No. FRT14A2A

5995357844

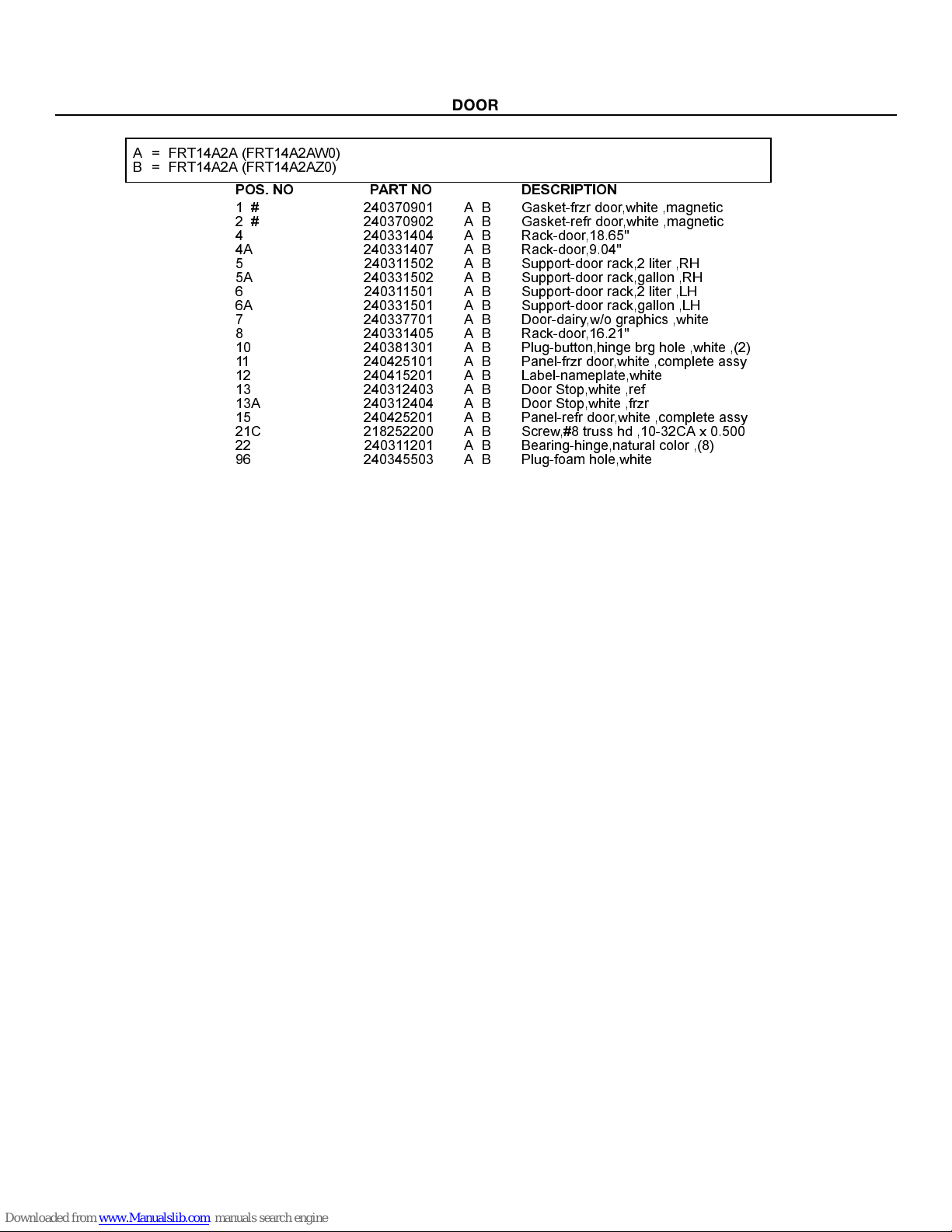

DOOR

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FRT14A2A Publication No.

5995357844

A = FRT14A2A (FRT14A2AW0)

B = FRT14A2A (FRT14A2AZ0)

POS. NO PART NO DESCRIPTION

1 # 240370901 A B Gasket-frzr door,white ,magnetic

2 # 240370902 A B Gasket-refr door,white ,magnetic

4 240331404 A B Rack-door,18.65"

4A 240331407 A B Rack-door,9.04"

5 240311502 A B Support-door rack,2 liter ,RH

5A 240331502 A B Support-door rack,gallon ,RH

6 240311501 A B Support-door rack,2 liter ,LH

6A 240331501 A B Support-door rack,gallon ,LH

7 240337701 A B Door-dairy,w/o graphics ,white

8 240331405 A B Rack-door,16.21"

10 240381301 A B Plug-button,hinge brg hole ,white ,(2)

11 240425101 A B Panel-frzr door,white ,complete assy

12 240415201 A B Label-nameplate,white

13 240312403 A B Door Stop,white ,ref

13A 240312404 A B Door Stop,white ,frzr

15 240425201 A B Panel-refr door,white ,complete assy

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 240311201 A B Bearing-hinge,natural color ,(8)

96 240345503 A B Plug-foam hole,white

DOOR

08/01 4

Publication No. FRT14A2A

5995357844

CABINET

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FRT14A2A Publication No.

5995357844

A = FRT14A2A (FRT14A2AW0)

B = FRT14A2A (FRT14A2AZ0)

POS. NO PART NO DESCRIPTION

1 240355401 A B Cover-fan

2 240367001 A B Knob-damper control

3 5303001028 A B Nut,push-on

4 240367401 A B Damper-fan cover

5 # 5308000010 A B Fan Blade,red ,evaporator fan

8 5300157666 A B Bushing-motor mtg,(2)

9 5303292396 A B Bracket-motor mtg,front

10 240462004 A B Cover-evap coil

10* 240371301 A B Seal-coil cover

10*# 240385401 A B Wiring Harness,freezer section

11 5303208309 A B Plug-hole,factory test

12 240366801 A B Plug-ice maker harness,rectangular

12A 240374401 A B Plug-wtr inlet tube,round ,1"

13 # 240369701 A B Motor-evap fan

13* 218931001 A B Clamp-motor wiring, nylon, w/adhesive tape

14 5303292397 A B Bracket-motor mtg,rear

14* 240433201 A B Screw-8-18 x 3/8, hex washer head

18 240411901 A B Support-evap cover,(2)

21C 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

22 215774901 A B Plug-button,white ,upr hinge holes

28 240335501 A B Bolt-roller adj, hex wshr hd, 1/4-20 x 4.020, (2),special

30 240357102 A B Bracket-hinge,white ,bottom

34 240311301 A B Washer,hinge ,nylon ,(2)

35 240357002 A B Bracket-ctr hinge,white

35A 240336801 A B Spacer-hinge,center

36 240516401 A B Pin-center hinge

37 240337601 A B Trim-cabinet corner,white ,(2)

38 240356901 A B Bracket-upper hinge

40 240354401 A B Cover-upper hinge,white

41 5303001609 A B Grommet,shelf mtg ,0.69" ,RH

41* 5308009759 A B Grommet,shelf mtg ,1.25" ,LH

42 240423601 A B Screw-hinge mtg,hex head ,1/4-20 x 0.75

43 240335003 A B Roller Assy,front ,(2)

56 240516501 A B Pin-lower hinge

58 5303001343 A B Screw,hex washer head ,8-15A x 0.500

59 240442702 A B Screw-#10-32 X 3/4,white

72 240368301 A B Grille/Kickplate,white

81 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet, flat head,1/4 OD x 1-3/4, roller pin

92 5303001479 A B Screw-hinge mtg,hex hd ,1/4-20 x 0.875

* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500

* 240479601 A B Plug,button ,cab liner holes

* 5303305324 A B Paint,touch-up ,white

CABINET

08/01 6

Publication No. FRT14A2A

5995357844

SHELVES

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FRT14A2A Publication No.

5995357844

A = FRT14A2A (FRT14A2AW0)

B = FRT14A2A (FRT14A2AZ0)

POS. NO PART NO DESCRIPTION

10 215667501 A B Tray-ice,plastic

12 240362502 A B Diffuser-air,top

13 240362601 A B Diffuser-air,bottom

13* 240392601 A B Seal-diffuser

14 240505801 A B Switch-light/lamp

15 240436701 A B Light Bulb/Lamp, A-15, 40 W, 120 V, miniature

16 241500701 A B Socket-light/lamp

17 240368001 A B Box-control

17*# 240388701 A B Wiring Harness,control box

18 240360801 A B Knob-control

21 # 5304421256 A B Control-temperature

22A 240468201 A B Tube, sensor sleeve, 31 inch, plastic, white

23 # 215846606 A B Timer-defrost, 60 Hz, 120 V, 10 hour/30 min

23* 5303001259 A B Screw-timer mtg, pan hd, 6-20 x 0.438, (2)

24 240360902 A B Shelf,sliding ,wire

25 240364706 A B Cover-crisper pan

25* 240494301 A B Retainer-crisper cover

26 240397701 A B Pan-crisper,full-width

81 5308016566 A B Screw, hex washer head, 8-15A x 0.625, low profile

SHELVES

08/01 8

Publication No. FRT14A2A

5995357844

SYSTEM

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FRT14A2A Publication No.

5995357844

A = FRT14A2A (FRT14A2AW0)

B = FRT14A2A (FRT14A2AZ0)

POS. NO PART NO DESCRIPTION

1 # 240406402 A B Condenser,static

1* 5303208866 A B Spacer-cond tube,black

1* 240405201 A B Grommet, mounting, rubber, black, holds tube/wire

2 5308000296 A B Bracket,condenser mtg ,(4)

2* 5308009617 A B Washer,ext tooth lock ,#10 ,grounding

4 # 218944001 A B Drier-filter,R134a System

6 # 240375401 A B Wiring Harness, machine compt, w/service cord

6* # 240385401 A B Wiring Harness,freezer section

6* # 240388701 A B Wiring Harness,control box

14 # 5303918203 A B Defrost Heater Kit

15 # 5303918257 A B Evaporator Kit

16 5308000110 A B Strap-evap/heater,aluminum ,(2)

17 240434001 A B Trough-drain

18 240362301 A B Insulation Block,RH

20 240362401 A B Insulation Block,LH

21 # 5303918202 A B Thermostat-defrost,kit

22 240330005 A B Base-compressor

22* 218252200 A B Screw,#8 truss hd ,10-32CA x 0.500

23 216498900 A B Grommet,compressor

25 240420301 A B Screw,shoulder typ CF, 1/4-28 x 0.965, hex wshr hd

26 240346901 A B Pan-defrost drain

27 5303001348 A B Nut,lock ,1/4-20 ,drain pan mtg

28 5303916001 A B Pan Retainer Kit,Service

29 # 5303918233 A B Compressor,R134a ,w/ electricals

30 # 218721113 A B Starter-PTC

32 218740800 A B Clamp,elec cont mtg ,compressor

41 5308000039 A B Screw, hex wshr hd,8-32CA x 0.500, (7), serrated hd

44 5303001199 A B Clamp-wiring harness, strain relief, galv steel

45 5308016566 A B Screw, hex wshr hd, 8-15A x 0.625, low profile

55 # 218909901 A B Capacitor-run,220 VAC ,15 microfarad

57 240403601 A B Clip-wiring harness

82 5304418225 A B Roller,compressor base ,rear ,(2)

83 5303316859 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

84 240367101 A B Tube-drain,lower

85 240346202 A B Tube-connector,suction

* 218843800 A B Screw,hex wshr hd ,8-15A x 0.500

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* # 5303918204 A B Heat Exchanger Kit, suction line, Service

* # 5303918234 A B Hot Tube Repair Kit,Service

SYSTEM

08/01 10

Publication No. FRT14A2A

5995357844

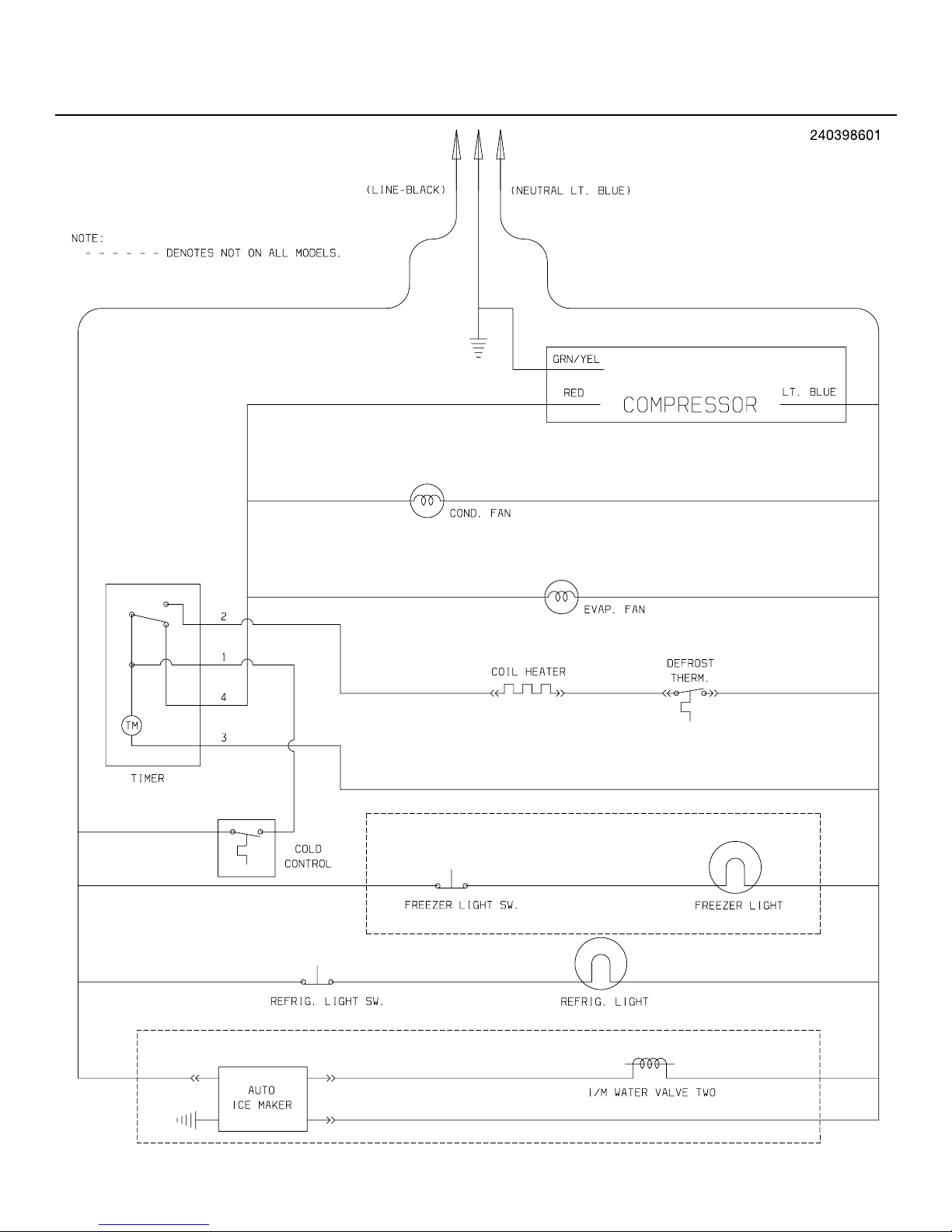

WIRING SCHEMATIC
