Frigidaire FRSHT5EF Manuel utilisateur

N58L00001.eps N58FCCBBC3.eps N58RCCBBB11.eps N58BAAAAB3.eps

N58SKBCBD1.eps N58TCAAAB4.eps N58CAAAAA10.eps N58XBAAAB0.eps

N58YAAAAA0.eps N58I115S.eps W241660401.eps S241660401.eps

Product No. FRSHT5EFB0 FRSHT5EFW0 FRSHT5EFSB0

Series R134a R134a R134a

Color black white stainless

Volts 115 115 115

Wiring Diagram 241660401 241660401 241660401

Owner's Guide 241695100 241695100 241695100

Market North America North America North America

Energy Guide 241649241 241649241 241649241

Service Data Sheet 240389624 240389624 240389624

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995458923

06/01/17

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRSHT5EF

Publication No: 5995458923 FRSHT5EF

01/06 2

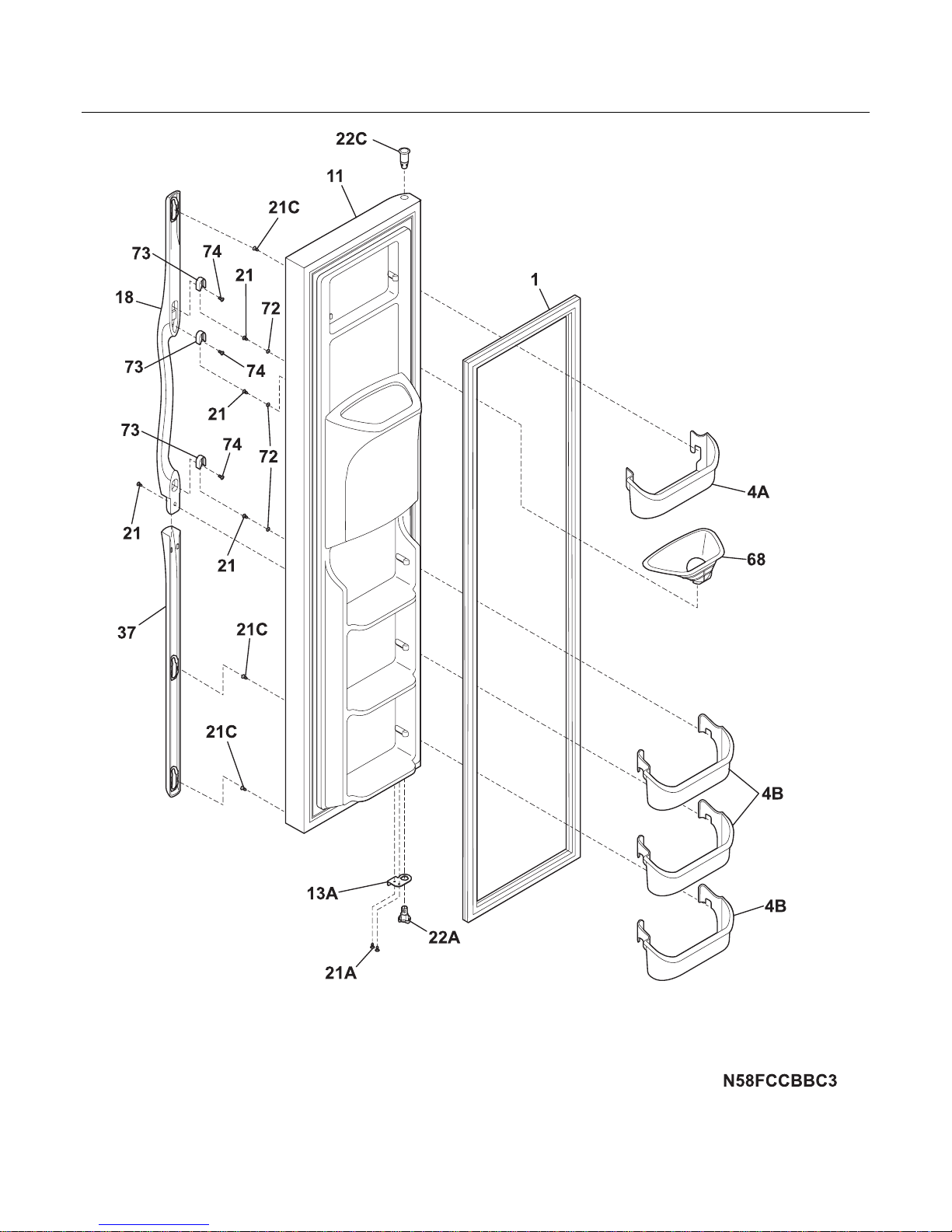

FREEZER DOOR

FRSHT5EF Publication No: 5995458923

# Functional Parts 3 01/06

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRSHT5EF (FRSHT5EFB0)

BFRSHT5EF (FRSHT5EFW0)

CFRSHT5EF (FRSHT5EFSB0)

POS. NO PART NO. DESCRIPTION

1 # 241674806 A - C Gasket-frzr door, black, magnetic

1 # 241674802 - B - Gasket-frzr door, white, magnetic

4A 240334201 A B C Bin-door, frzr-upper

4B 240351601 A B C Bin-door

11 241668151 A - - Door-frzr, black, complete assy

11 241668112 - B - Door-frzr, white, complete assy

11 241668195 - - C Door-frzr, stainless, complete assy

13A 240581906 A - C Door Stop, black, frzr

13A 240581902 - B - Door Stop, white, frzr

18 240359108 A - C Handle-door, black, LH

18 240359106 - B - Handle-door, white

21 218781100 A B C Screw, pan head, 8-18 x 0.625

21A 240598401 A B C Screw, 10-32 x 1/2

21C 240521302 A B C Screw, #8-18 x 3/4

22A 240328204 A - C Bearing-hinge(frz), black, closer

22A 240328202 - B - Bearing-hinge(frz), closer

22C 240328404 A - C Bearing-hinge, black, upper

22C 240328402 - B - Bearing-hinge, natural, upper

37 240359203 A - C Trim-handle, 30.13", black, lower

37 240359201 - B - Trim-handle, 30.13", white, lower

68 241525101 A B C Chute-ice

72 240421701 A B C Button-handle mtg, dovetail

73 218396700 A B C Block-handle mtg, dovetail

74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

* 240352102 A B C Connector-water, straight

* 240552102 A B C Harness-wiring, door

* 5303918256 A B C Dispenser heater kit

Publication No: 5995458923 FRSHT5EF

01/06 4

REFRIGERATOR DOOR

21C

21A

22B

N58RCCBBB11

FRSHT5EF Publication No: 5995458923

# Functional Parts 5 01/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRSHT5EF (FRSHT5EFB0)

BFRSHT5EF (FRSHT5EFW0)

CFRSHT5EF (FRSHT5EFSB0)

POS. NO PART NO. DESCRIPTION

2 # 241674805 A - C Gasket-refr door, black, magnetic

2 # 241674801 - B - Gasket-refr door, white, magnetic

4 240323002 A B C Bin-door, pseudo, bottom

7 240326203 A B C Door-dairy

13 240581905 A - C Door Stop, black, ref

13 240581901 - B - Door Stop, white, refr

15 240451908 A - - Door-refr, black, complete assy

15 240451900 - B - Door-refr, white, complete assy

15 241534543 - - C Door-refr, stainless, complete assy

18 240359103 A - C Handle-door, black, RH

18 240359101 - B - Handle-door, white

21 218781100 A B C Screw, pan head, 8-18 x 0.625

21A 240598401 A B C Screw, 10-32 x 1/2

21C 240521302 A B C Screw, #8-18 x 3/4

22 240328203 A - C Bearing-hinge, black, closer

22 240328201 - B - Bearing-hinge(ref), closer

22B 240328404 A - C Bearing-hinge, black, upper

22B 240328402 - B - Bearing-hinge, natural, upper

37 240359203 A - C Trim-handle, 30.13", black, lower

37 240359201 - B - Trim-handle, 30.13", white, lower

49 240356402 A B C Bin-door, gallon

72 240421701 A B C Button-handle mtg, dovetail

73 218396700 A B C Block-handle mtg, dovetail

74 215503200 A B C Screw, cr pan hd, 10-16 x 0.500

Publication No: 5995458923 FRSHT5EF

01/06 6

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB3

FRSHT5EF Publication No: 5995458923

# Functional Parts 7 01/06

* Non-Illustrated Parts

CABINET

Model Index: AFRSHT5EF (FRSHT5EFB0)

BFRSHT5EF (FRSHT5EFW0)

CFRSHT5EF (FRSHT5EFSB0)

POS. NO PART NO. DESCRIPTION

10 240435906 A B C Cover-air duct

10A 240475907 A B C Cover-evap coil, lower

11 5303208309 A B C Plug-hole, factory test

14 240505801 A B C Switch, light/lamp

14A 241547901 A B C Switch-light/lamp, frzr door

21C 218252200 A B C Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A - C Plate-door closer

22 240457701 - B - Plate-door closer

23 240402701 A B C Screw-#10-32 x 1/4 flat hd

28 240335501 A B C Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 A B C Bracket-lower hinge, ref

30A 241603702 A B C Bracket-lower hinge

37 240337603 A - C Trim-cabinet corner, black, (2)

37 240337601 - B - Trim-cabinet corner, white, (2)

38 240327201 A B C Bracket-upper hinge

40 240327007 A - C Cover-upper hinge, black

40 240327005 - B - Cover-upper hinge, white

41 241550801 A B C Grommet-shelf mtg, 1.40" long

41* 241550701 A B C Grommet-shelf mtg, .96" long

42 240578901 A B C Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 A B C Roller Assy, adjustable, front, (2)

45 241500301 A B C Screw, hex washer head, 8-18AB x 0.500

47 240349402 A B C Channel-shelf mtg, side, (2)

58 218781100 A B C Screw, pan head, 8-18 x 0.625

66 5304424968 A B C Damper Cover Assy

66* 240518802 A B C Pin-push, push-in, plastic

72 240324406 A - C Grille/Kickplate, black

72 240324402 - B - Grille/Kickplate, white

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B C Roller, compressor base, rear, (2)

83 5303316859 A B C Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574602 A B C Cover access

90 218249808 A B C Seal-coil cover

91 240380101 A B C Duct-ice maker

92 216850900 A B C Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B C Support, crisper cover, front, (4)

100* 240350802 A B C Support, crisper cover, rear, (4)

* 240479601 A B C Plug, button, cab liner holes, (2)

* 240481601 A B C Shim-lower hinge

* 5303321321 A - C Paint, touch-up, black

* 5303321319 - B - Paint, touch-up, white

Publication No: 5995458923 FRSHT5EF

01/06 8

SHELVES

24B

126

52 109

49B

101

N58SKBCBD1

100

25A

47A

15A

16A

26A

42A

123

24A

140

120

11C

11A

39A

FRSHT5EF Publication No: 5995458923

# Functional Parts 9 01/06

* Non-Illustrated Parts

SHELVES

Model Index: AFRSHT5EF (FRSHT5EFB0)

BFRSHT5EF (FRSHT5EFW0)

CFRSHT5EF (FRSHT5EFSB0)

POS. NO PART NO. DESCRIPTION

2 241510604 A B C Trim-basket

11 241657602 A B C Shelf, flip up, wire

11A 241657504 A B C Shelf, fixed, upper, freezer

11C 240324101 A B C Shelf-pizza

15A 241555401 A B C Light Bulb

16A# 241513901 A B C Socket-light

16A* 241537602 A B C Harness-wiring

21 5303001001 A B C Screw, hx wshr hd sems, 8-15A x 0.625

24 240355207 A B C Shelf-"Spill-Safe", cantilever, half width, fixed

24A 240355208 A B C Shelf-"Spill-Safe", fixed

24B 240350108 A B C Shelf-"Spill-Safe", cantilever, sliding

25 240350702 A B C Cover-crisper pan, upper

25* 240362101 A B C Clip-slide, cover-crisper

25A 240350902 A B C Cover-crisper pan, lower

26 240351005 A B C Pan-crisper, upper

26* 240349801 A B C Clip-slide, pan-crisper

26A 240362201 A B C Control-humidity

27 240351205 A B C Pan-crisper, lower

39 240430706 A B C Trim-shelf, 11.21", front

39A 240430702 A B C Trim-shelf, 12.39", front

42 240356501 A B C Track, meat pan hanger, RH

42A 240349701 A B C Hanger-meat pan, LH

42A* 240349901 A B C Block-meat pan rail, LH

42A* 240350001 A B C Spring-meat pan rail

47 240350602 A B C Insert-pan cover, glass

47A 240350603 A B C Insert-pan cover, glass

49 240564401 A B C Basket-sliding

49B 240530504 A B C Basket-sliding, upper, full

51 240343002 A B C Hanger-basket, RH

52 240343102 A B C Hanger-basket, LH

62 240342805 A B C Pan-meat

81 5308016566 A B C Screw, hex washer head, 8-15A x 0.625, low profile

97 240545303 A B C Water Tank Assy, coiled tubing, front filter

100 240326302 A B C Cover-water tank

101 218493100 A B C Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 A B C Base-crisper light socket

120 240342901 A B C Shelf-ice cream

123 215005100 A B C Screw, hanger/rlr mtg, 8-10 x 0.438

126 241674401 A B C Channel, auger mtg, LH

126 241674402 A B C Channel, auger mtg, RH

140 240430501 A B C Channel, wtr tube cover

Publication No: 5995458923 FRSHT5EF

01/06 10

CONTROLS

149

139

138

198

199

137

200

151

150

21A

115

101

N58TCAAAB4
