Frigidaire FRS3R5E Manuel utilisateur

Product No. FRS3R5EMBD FRS3R5ESB4

Series R134a R134a

Color silver mist stainless

Volts 115 115

Wiring Diagram 241708401 241708401

Owner's Guide 241856000 241856000

Market North America North America

Energy Guide 241585988 241615439

Service Data Sheet 240389629 240389629

N58L00001.eps N58FCCBBB2.eps N58RCCBBB11.eps N58BAAAAA0.eps

N58SJCAAB15.eps N58TAAAAA7.eps N58CAAAAA5.eps N58XDAAAA1.eps

N58YBAAAA4.eps N58I1151.eps W241708401.eps S241708401.eps

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995513818

08/05/09

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

FRS3R5E

Publication No: 5995513818 FRS3R5E

05/08 2

FREEZER DOOR

21C

22C

13A

22A

21A

N58FCCBBB2

FRS3R5E Publication No: 5995513818

# Functional Parts 3 05/08

* Non-Illustrated Parts

FREEZER DOOR

Model Index: AFRS3R5E (FRS3R5EMBD)

BFRS3R5E (FRS3R5ESB4)

POS. NO PART NO. DESCRIPTION

1 241786008 A B Gasket-frzr door, black, magnetic

4A 240367301 A B Bin-door, frzr-upper

4B 240359001 A B Bin-door

11 241668506 A - Door-frzr, silver mist, complete assy

11 241668186 - B Door-frzr, stainless, complete assy

13A 240581906 A B Door Stop, black, frzr

18 241934305 A B Handle-door, black

21 218781101 A B Screw, pan head, 8-18 x 0.625

21A 240598402 A B Screw, 10-32 x 1/2

21C 240521304 A B Screw, #8-18 x 3/4

22A 240328204 A B Bearing-hinge(frz), black, closer

22C 240328404 A B Bearing-hinge, black, upper

37 241927002 A B Trim-door handle, black, bottom

68 241525101 A B Chute-ice

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503204 A B Screw, cr pan hd, 10-16

* 240552101 A B Harness-wiring, door

* 241806601 A B Connector-water, straight

* 218490901 - B Cleaner, stainless steel

* 5303918256 A B Dispenser heater kit

Publication No: 5995513818 FRS3R5E

05/08 4

REFRIGERATOR DOOR

21C

21A

22B

N58RCCBBB11

FRS3R5E Publication No: 5995513818

# Functional Parts 5 05/08

* Non-Illustrated Parts

REFRIGERATOR DOOR

Model Index: AFRS3R5E (FRS3R5EMBD)

BFRS3R5E (FRS3R5ESB4)

POS. NO PART NO. DESCRIPTION

2 241786007 A B Gasket-refr door, black, magnetic

4 240363701 A B Bin-door, 2-liter

7 240338303 A B Door, dairy, clear

13 240581905 A B Door Stop, black, ref

15 241534554 A - Door-refr, silver mist, complete assy

15 241534529 - B Door-refr, stainless, complete assy

18 241934302 A B Handle-door, black

21 218781101 A B Screw, pan head, 8-18 x 0.625

21A 240598402 A B Screw, 10-32 x 1/2

21C 240521304 A B Screw, #8-18 x 3/4

22 240328203 A B Bearing-hinge, black, closer

22B 240328404 A B Bearing-hinge, black, upper

37 241927002 A B Trim-door handle, black, bottom

49 240324501 A B Bin-door, gallon

72 240421701 A B Button-handle mtg, dovetail

73 218396700 A B Block-handle mtg, dovetail

74 215503204 A B Screw, cr pan hd, 10-16

* 218490901 - B Cleaner, stainless steel

Publication No: 5995513818 FRS3R5E

05/08 6

CABINET

FRS3R5E Publication No: 5995513818

# Functional Parts 7 05/08

* Non-Illustrated Parts

CABINET

Model Index: AFRS3R5E (FRS3R5EMBD)

BFRS3R5E (FRS3R5ESB4)

POS. NO PART NO. DESCRIPTION

10 240435911 A B Cover-air duct

10A 240475910 A B Cover-evap coil, lower

11 5303208309 A B Plug-hole, factory test

14 # 240505801 A B Switch, light/lamp

14A 241547901 A B Switch-light/lamp, frzr door

21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 A B Plate-door closer

23 240402702 A B Screw-#10-32 x 1/4 flat hd

28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603703 A B Bracket-lower hinge, ref

30A 241603704 A B Bracket-lower hinge

37 240337610 A B Trim-cabinet corner, black, (2)

38 240327207 A B Bracket-upper hinge

40 240327007 A B Cover-upper hinge, black

41 241550801 A B Grommet-shelf mtg, 1.40" long

41* 241550701 A B Grommet-shelf mtg, .96" long

42 240578902 A B Screw, hex head, 1/4-20 x 5/8

43 240335006 A B Roller Assy, front, (2)

45 241500303 A B Screw, hex washer head, 8-18AB x 0.500

47 218659500 A B Channel-shelf mtg, side, (2)

58 218781101 A B Screw, pan head, 8-18 x 0.625

66B 240374301 A B Diffuser-air

66B* 240518802 A B Pin-push, push-in, plastic

72 240324405 A B Grille/Kickplate, black

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 A B Roller, compressor base, rear, (2)

83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241733901 A B Cover-access, w/label

90 218249807 A B Seal-coil cover

91 240380101 A B Duct-ice maker

92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 A B Support, crisper cover, front, (4)

100* 240350802 A B Support, crisper cover, rear, (4)

150 240368701 A B Guide-control bulb

* 240396801 A B Clamp, tube/wiring, nylon, black/natural

* 240479601 A B Plug, button, cab liner holes

* 5303321321 A B Paint, touch-up, black

Publication No: 5995513818 FRS3R5E

05/08 8

SHELVES

N58SJCAAB15

11B

11A

126

39B

123

25A

47A

101

26A

140

FRS3R5E Publication No: 5995513818

# Functional Parts 9 05/08

* Non-Illustrated Parts

SHELVES

Model Index: AFRS3R5E (FRS3R5EMBD)

BFRS3R5E (FRS3R5ESB4)

POS. NO PART NO. DESCRIPTION

11 241657601 A B Shelf, flip up, wire

11A 241657501 A B Shelf, fixed, freezer

11B 241657503 A B Shelf, fixed upper, freezer

21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625

24 240355211 A B Shelf-"Spill-Safe", fixed

25 240354502 A B Cover-crisper pan, upper

25* 240362101 A B Clip-slide, cover-crisper

25A 240354602 A B Cover-crisper pan, lower

26 240354705 A B Pan-crisper, upper

26* 240349801 A B Clip-slide, pan-crisper

26A 240351101 A B Control-humidity

27 240354807 A B Pan-crisper, lower

39 240430705 A B Trim-shelf, front

39B 240430701 A B Trim-shelf, front

42 240356501 A B Track, meat pan hanger, RH

42 240365401 A B Track, meat pan hanger, LH

47 240350635 A B Insert-pan cover, glass

47A 240350614 A B Insert-pan cover, glass

49 240564301 A B Basket-sliding

51 240343002 A B Hanger-basket, RH

52 240343102 A B Hanger-basket, LH

62 240355506 A B Pan-meat

81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, low profile

97 240545308 A B Water Tank

101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4

123 215005101 A B Screw, hanger/rlr mtg, 8-10 x 7/16

126 241674401 A B Channel, auger mtg, LH

126 241674402 A B Channel, auger mtg, RH

140 240430501 A B Channel, wtr tube cover

* 240389629 A B Service Data Sheet

* 241585988 A - Energy Guide

* 241615439 - B Energy Guide

Publication No: 5995513818 FRS3R5E

05/08 10

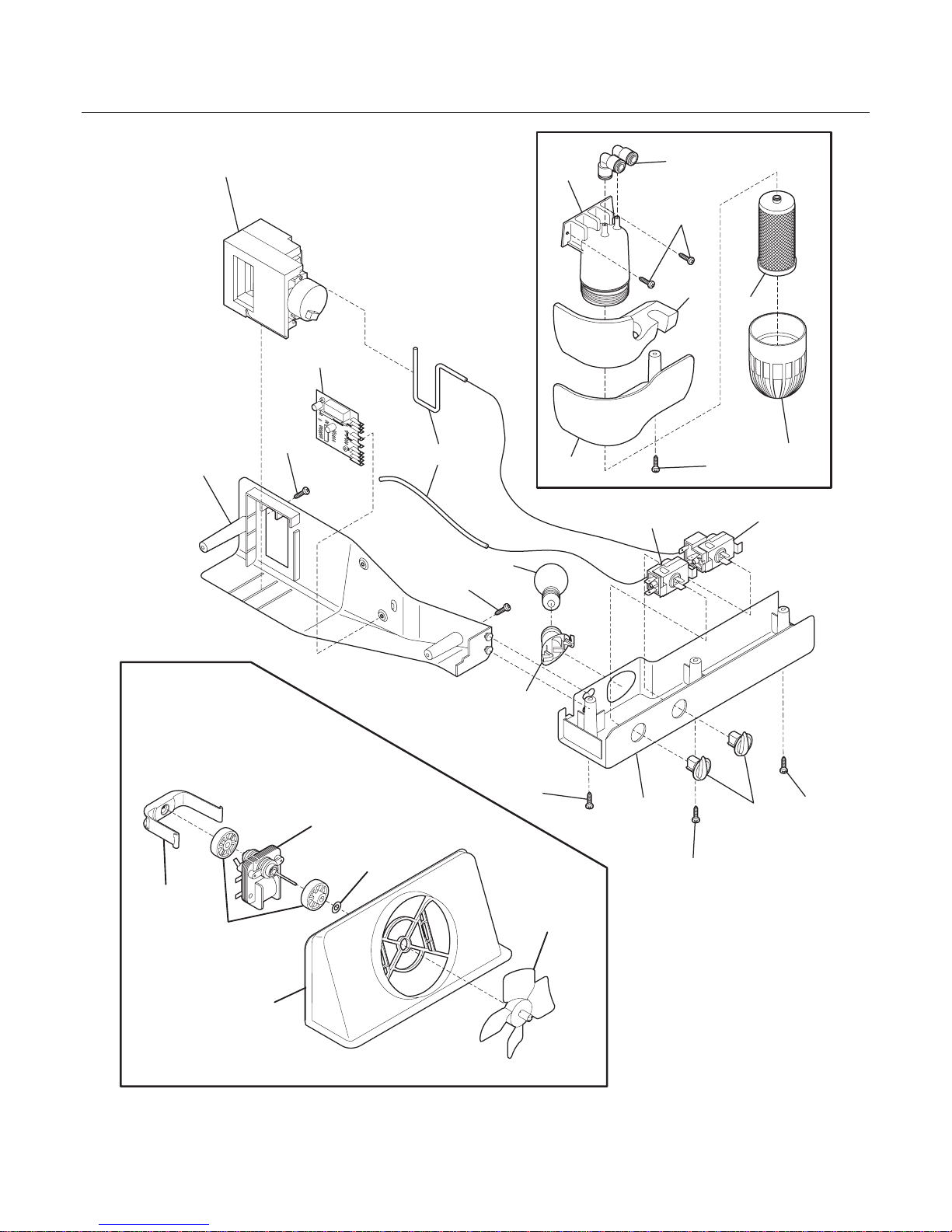

CONTROLS

140

139

138

137

151

150

115

101

21A 21

N58TAAAAA7

149
