Frigidaire FFHS2611L S Mode d’emploi
FFHS2611LW.jpg N58FTDEBC1.eps N58RTDACB1.eps N58BAAAAA4.eps
N58SJCAFB2.eps CTFFHS2611PF4.wmf N58CAAAAA14.eps IDFFHS2611LW4.wmf
N58YBAAAA7.eps IMFFHS2322MS7.wmf W242300701.wmf S242300701.wmf
Product No. FFHS2611LBB
FFHS2611LWB
Series R134a R134a
Color black white
Volts 115 115
Wiring Diagram 242300701 242300701
Owner's Guide Eng/Spn
808353502 808353502
Owner's Guide French 808353602 808353602
Market North America North America
Energy Guide 242028541 242028541
Service Data Sheet 242293200 242293200
Installation Instructions
241811505 241811505
Frigidaire
P.O. BOX 8020
CHARLOTTE, NC 28262
Publication No.
5995634655
13/07/19
(EN/SERVICE/ECL)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
FFHS2611L
Publication No: 5995634655 FFHS2611L
07/13 2

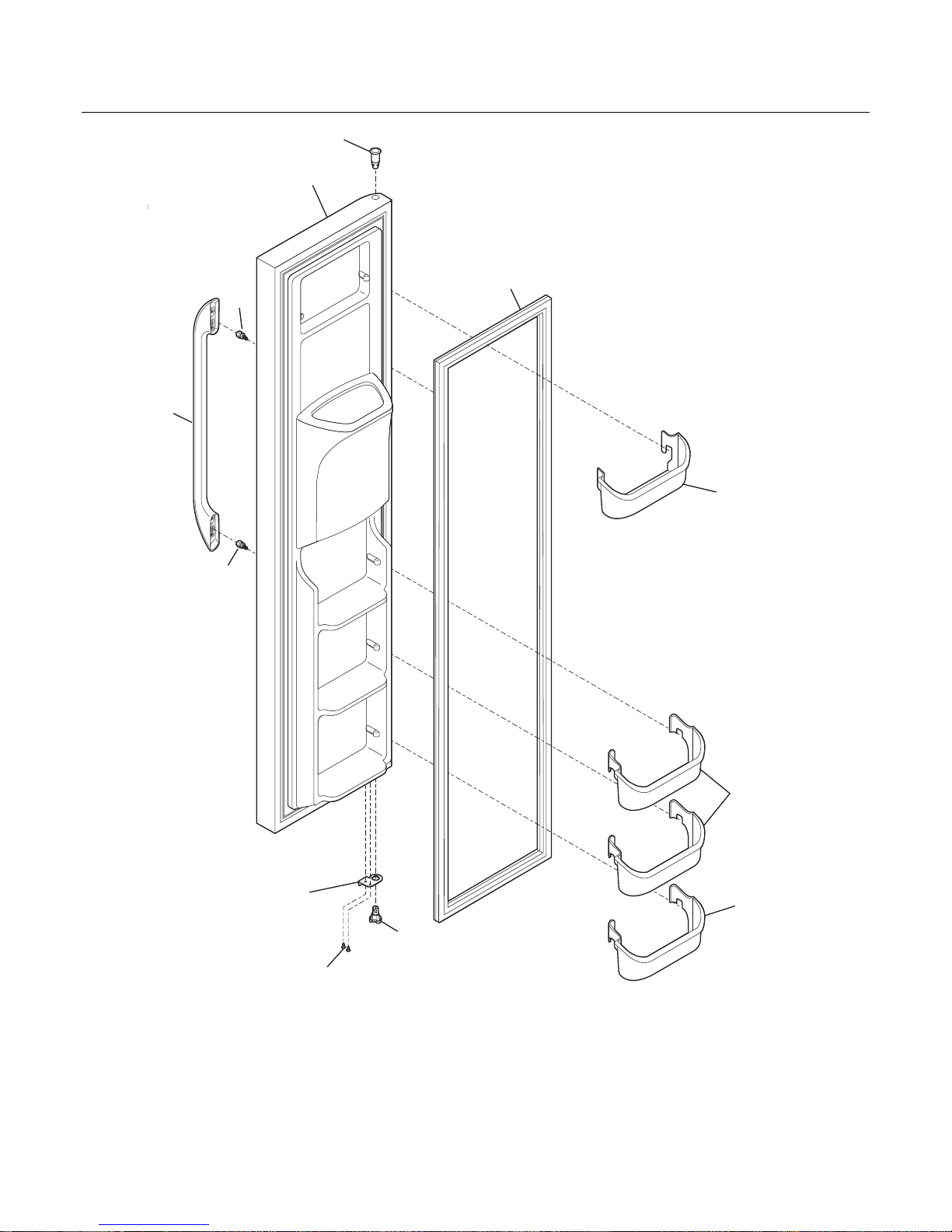

FREEZER DOOR
22C
11
1
4A
4B
4B
13A
22A
21A
N58FTDEBC1
18
21
21
FFHS2611L Publication No: 5995634655
# Functional Parts 3 07/13
* Non-Illustrated Parts
FREEZER DOOR
Model Index: AFFHS2611L (FFHS2611LBB)
BFFHS2611L (FFHS2611LWB)
POS. NO PART NO. DESCRIPTION
1 # 241786006 A - Gasket-frzr door, black, magnetic
1 # 241786002 - B Gasket-frzr door, white, magnetic
4A 240334201 A B Bin-door, frzr-upper
4B 240351601 A B Bin-door
11 242026468 A - Door-frzr, black, complete assy
11 242026415 - B Door-frzr, white, complete assy
13A 240581906 A - Door Stop, black, frzr
13A 240581902 - B Door Stop, white, frzr
18 242059104 A - Handle-door, black
18 242059103 - B Handle-door, white
21 241695904 A B Screw
21A 240442706 A B Screw-#10-32 X 3/4, zinc
22A 242000502 A - Bearing-hinge, black, lower
22A 242000501 - B Bearing-hinge, natural, lower
22C 240328404 A - Bearing-hinge, black, upper
22C 240328402 - B Bearing-hinge, natural, upper
* # 240552101 A B Harness-wiring, door
* 242103001 A B Connector-water, straight, 5/16 to 5/16
* 240451503 A B Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
Publication No: 5995634655 FFHS2611L
07/13 4

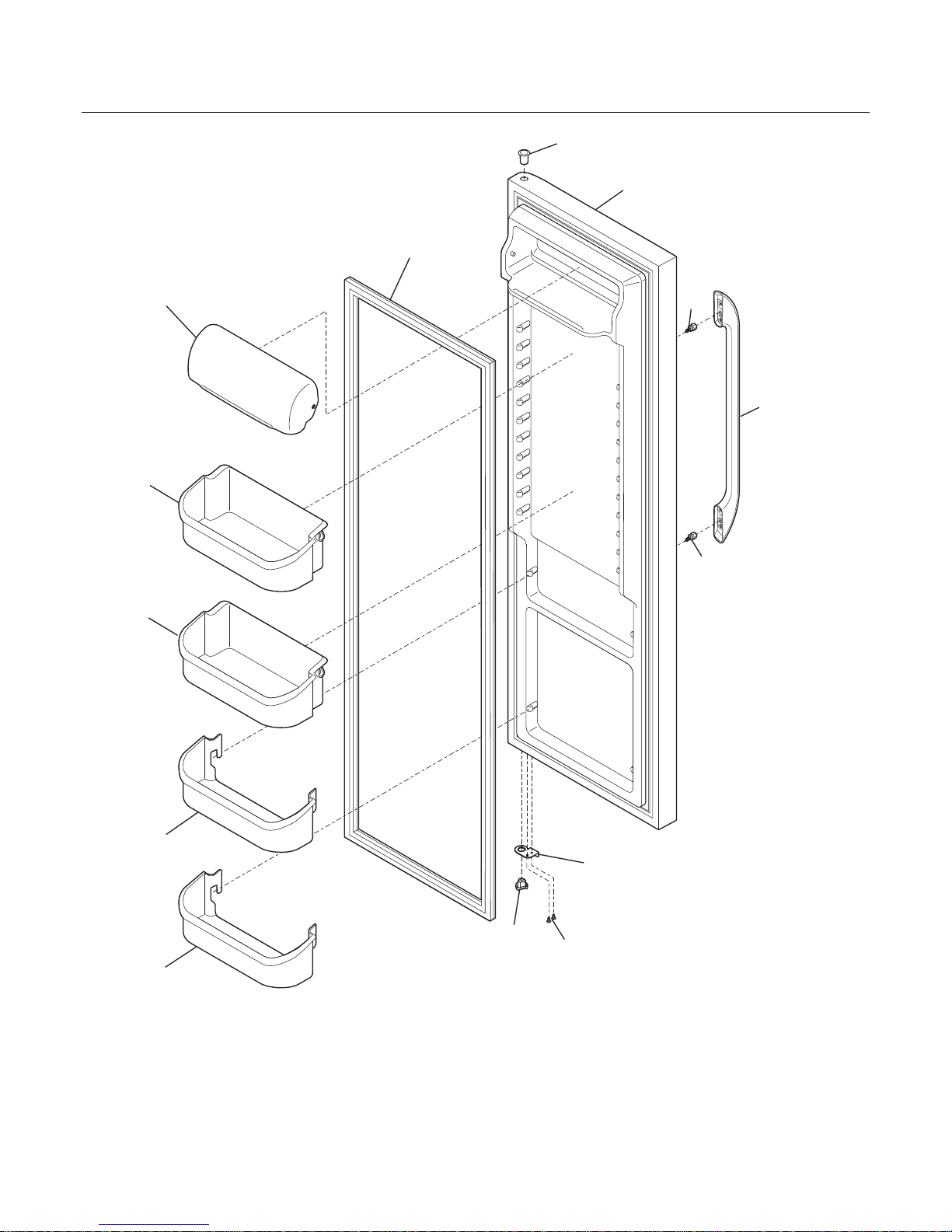

REFRIGERATOR DOOR
21A
22
13
15
22B
2
7
49
49
4
4
N58RTDACB1
18
21
21
FFHS2611L Publication No: 5995634655
# Functional Parts 5 07/13
* Non-Illustrated Parts
REFRIGERATOR DOOR
Model Index: AFFHS2611L (FFHS2611LBB)
BFFHS2611L (FFHS2611LWB)
POS. NO PART NO. DESCRIPTION
2 # 241786005 A - Gasket-refr door, black, magnetic
2 # 241786001 - B Gasket-refr door, white, magnetic
4 240323001 A B Bin-door, pseudo, bottom
7 240326203 A B Door-dairy
13 240581905 A - Door Stop, black, ref
13 240581901 - B Door Stop, white, refr
15 242038869 A - Door-refr, black, complete assy
15 242038810 - B Door-refr, white, complete assy
18 242059102 A - Handle-door, black
18 242059101 - B Handle-door, white
21 241695904 A B Screw
21A 240442706 A B Screw-#10-32 X 3/4, zinc
22 242015302 A - Bearing-hinge(ref), black, closer
22 242015301 - B Bearing-hinge(ref), natural, closer
22B 240328404 A - Bearing-hinge, black, upper
22B 240328402 - B Bearing-hinge, natural, upper
49 240356401 A B Bin-door, gallon
Publication No: 5995634655 FFHS2611L
07/13 6

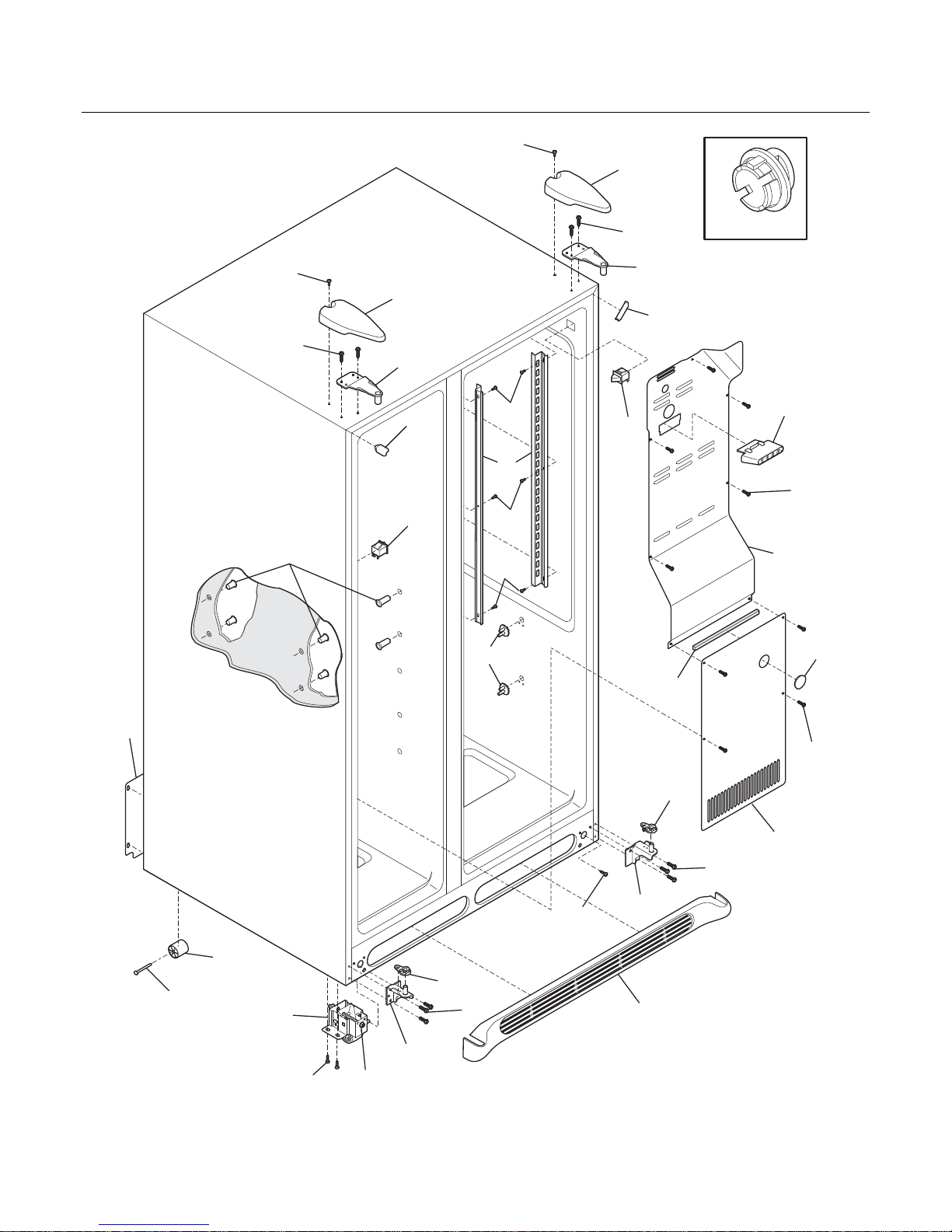

CABINET
58
58
40
40
92
92
38
38
37
37
14A
14
91
41
100
89
83
82
43
21C
21C
28
42
42
22
22
30A
30
72
10A
N58BAAAAA4
10
90
11
45
45
66B
81
81
81
47
FFHS2611L Publication No: 5995634655
# Functional Parts 7 07/13
* Non-Illustrated Parts
CABINET
Model Index: AFFHS2611L (FFHS2611LBB)
BFFHS2611L (FFHS2611LWB)
POS. NO PART NO. DESCRIPTION
10 240435912 A B Cover-air duct
10A 241719711 A B Cover-evap coil, lower
11 5303208309 A B Plug-hole, factory test
14 240505801 A B Switch, light/lamp
14A 241547901 A B Switch-light/lamp, frzr door
21C 218252201 A B Screw, #8 truss hd, 10-32CA x 0.500
22 241856502 A - Plate-door closer, black
22 241856501 - B Plate-door closer, natural
28 240335502 A B Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 242034601 A B Bracket-lower hinge
30A 242034604 A B Bracket-lower hinge
37 242161202 A - Trim-cabinet corner, black, (2)
37 242161201 - B Trim-cabinet corner, white, (2)
38 240327207 A B Bracket-upper hinge
40 240327007 A - Cover-upper hinge, black
40 240327005 - B Cover-upper hinge, white
41 241550801 A B Grommet-shelf mtg, 1.40" long
41* 241550701 A B Grommet-shelf mtg, .96" long
42 240578902 A B Screw, hex head, 1/4-20 x 5/8
43 240335006 A B Roller Assy, front, (2)
45 241500303 A B Screw, hex washer head, 8-18AB x 1/2
47 218659500 A B Channel-shelf mtg, side, (2)
58 218781101 A B Screw, pan head, 8-18 x 0.625
66B 240374301 A B Diffuser-air
66B* 240518802 A B Pin-push, push-in, plastic
72 240324411 A - Grille/Kickplate, black
72 240324409 - B Grille/Kickplate, white
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, Low Profile
82 5304418225 A B Roller, compressor base, rear, (2)
83 5304455655 A B Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 A B Cover-access, w/label
90 218249808 A B Seal-coil cover
91 240380101 A B Duct-ice maker
92 241710601 A B Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 241993101 A B Support-crisper cvr
100* 241993001 A B Support-crisper cvr
* 240494001 A B Plug-button, white, cab liner holes
* 240396801 A B Clamp, tube/wiring, nylon, black/natural
* 5303321321 A - Paint, touch-up, black
* 5303321319 - B Paint, touch-up, white
Publication No: 5995634655 FFHS2611L
07/13 8

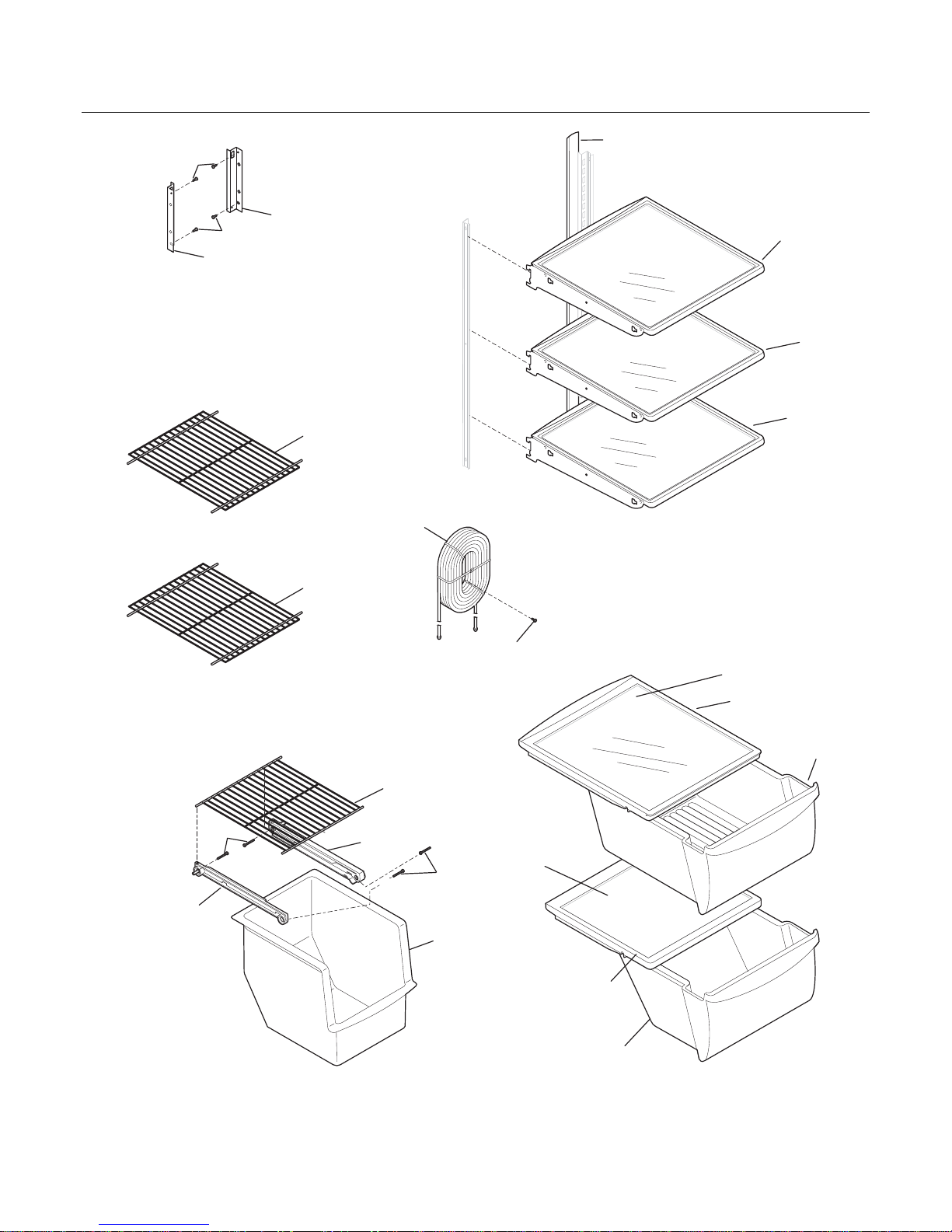

SHELVES
N58SJCAFB2
11B
11A
126
81
81
126
97
21
24
24
24
51
25
26
47
No glass in the
lower crisper cover
for this model.
25A
27
52
101
101
49
11
140
FFHS2611L Publication No: 5995634655
# Functional Parts 9 07/13
* Non-Illustrated Parts
SHELVES
Model Index: AFFHS2611L (FFHS2611LBB)
BFFHS2611L (FFHS2611LWB)
POS. NO PART NO. DESCRIPTION
11 241657602 A B Shelf, flip up, wire
11A 241657502 A B Shelf, fixed, freezer
11B 241657504 A B Shelf, fixed, upper, freezer
21 5304455658 A B Screw, hx wshr hd sems, 8-15A x 0.625
24 240355270 A B Shelf-"Spill-Safe", fixed
25 240350702 A B Cover-crisper pan, upper
25* 240362101 A B Clip-slide, cover
25A 240350903 A B Cover-crisper pan, lower
26 240351007 A B Pan-crisper, upper
26* 240349801 A B Clip-slide, pan
27 240351207 A B Pan-crisper, lower
47 240350649 A B Insert-pan cover, glass
49 240564401 A B Basket-sliding
51 240343002 A B Hanger-basket, RH
52 240343102 A B Hanger-basket, LH
81 5304455650 A B Screw, hex washer head, 8-15A x 0.625, Low Profile
97 240545310 A B Water Tank
97* 242200101 A B Clip, tubing, 90 deg elbow
101 218493101 A B Screw, hex washer head, 8-18AB x 1-3/4
126 241674401 A B Channel, auger mtg, LH
126 241674402 A B Channel, auger mtg, RH
140 240430501 A B Channel, wtr tube cover
* 242028541 A B Energy Guide
Publication No: 5995634655 FFHS2611L
07/13 10

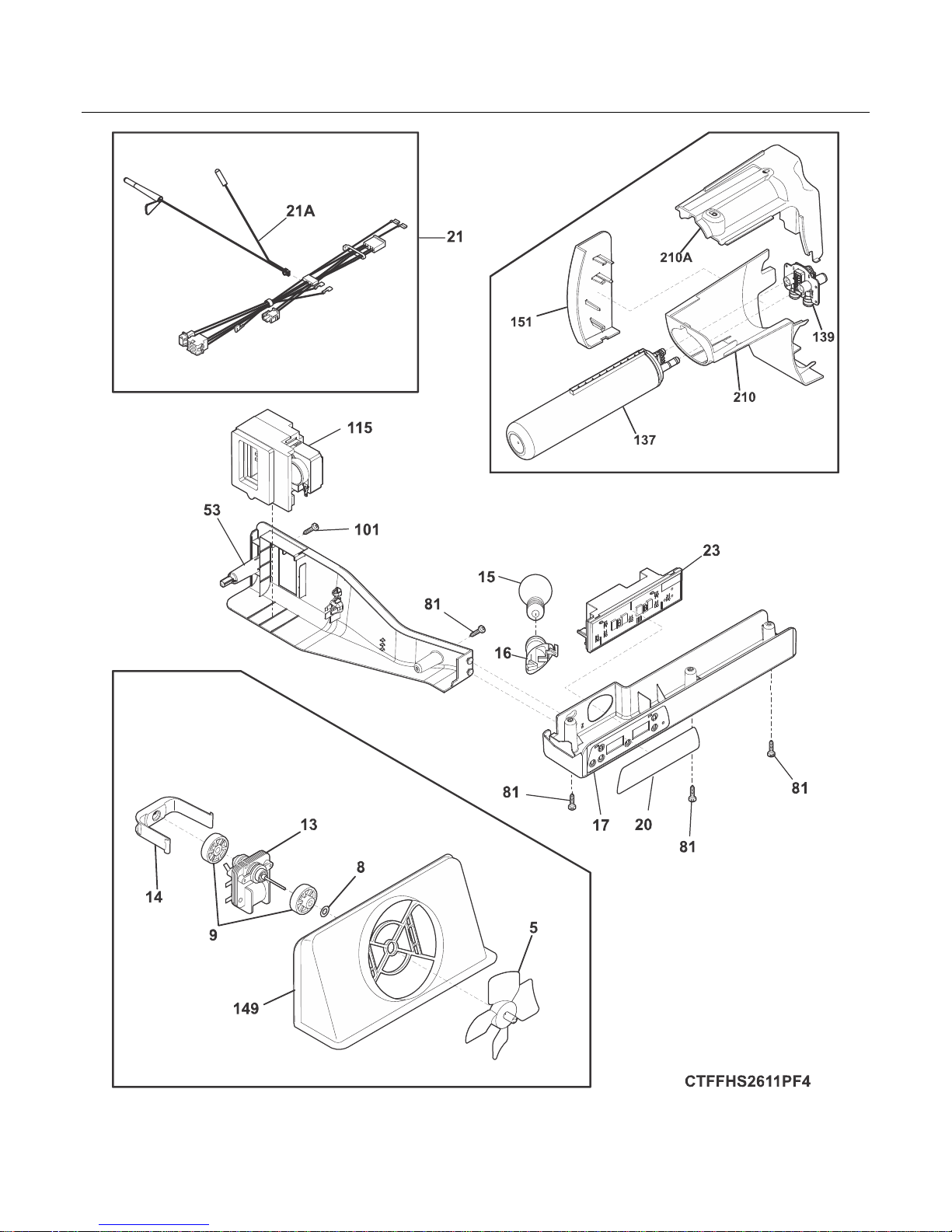

CONTROLS
