Frigidaire PLHS69EF Manuel utilisateur

N58L00001.eps N58FFDEEA2.eps N58RFCBBC7.eps N58BAAAAB2.eps

N58SLDJBE11.eps N58TCAAAB4.eps N58CAAAAC9.eps N58XEAAAA0.eps

N58YDAAACO.eps N58I115T.eps W2416897A01.eps S241689701.eps

Product No. PLHS69EFSS0

Series R134a Gal Pro

Color stain/nickeloid

Volts 115

Wiring Diagram 241636300

Owner's Guide 241695100

Market North America

Energy Guide 241649235

Service Data Sheet 241636602

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995459681

06/01/27

(EN/SERVICE/KHB)

137

SIDE-BY-SIDE

REFRIGERATOR

Model No.

PLHS69EF

Publication No: 5995459681 PLHS69EFSS0

01/06 2

FREEZER DOOR

22C

22A

21A

13A

N58FFDEEA2

79 80

PLHS69EFSS0 Publication No: 5995459681

# Functional Parts 3 01/06

* Non-Illustrated Parts

FREEZER DOOR

POS. NO PART NO. DESCRIPTION

1 # 241674806 Gasket-frzr door, black, magnetic

4B 240334202 Bin-door, frzr-upper

4C 240351702 Bin-door, frzr-dispenser

5 241545005 Bin-tilt out, tilt-out

11 241668500 Door-frzr, stainless, complete assy

13A 240581906 Door Stop, black, frzr

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22A 240328204 Bearing-hinge(frz), black, closer

22C 240328404 Bearing-hinge, black, upper

68 241525101 Chute-ice

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

* 240352102 Connector-water, straight

* 240552102 Harness-wiring, door

* 5303918256 Dispenser heater kit

Publication No: 5995459681 PLHS69EFSS0

01/06 4

REFRIGERATOR DOOR

PLHS69EFSS0 Publication No: 5995459681

# Functional Parts 5 01/06

* Non-Illustrated Parts

REFRIGERATOR DOOR

POS. NO PART NO. DESCRIPTION

2 # 241674805 Gasket-refr door, black, magnetic

4 240323002 Bin-door, pseudo, bottom

7 240326203 Door-dairy

12 240558802 Label-nameplate

13 240581905 Door Stop, black, ref

15 241534541 Door-refr, stainless steel, complete assy

18 240536801 Handle-door, stainless steel, with insert

21A 240598401 Screw, 10-32 x 1/2

22 240328203 Bearing-hinge, black, closer

22B 240328404 Bearing-hinge, black, upper

27A 240396102 Retainer, tall bottle

49 240430312 Bin-door, gallon

79 218755402 Screw-set, 10-32 x 0.375

80 218755503 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995459681 PLHS69EFSS0

01/06 6

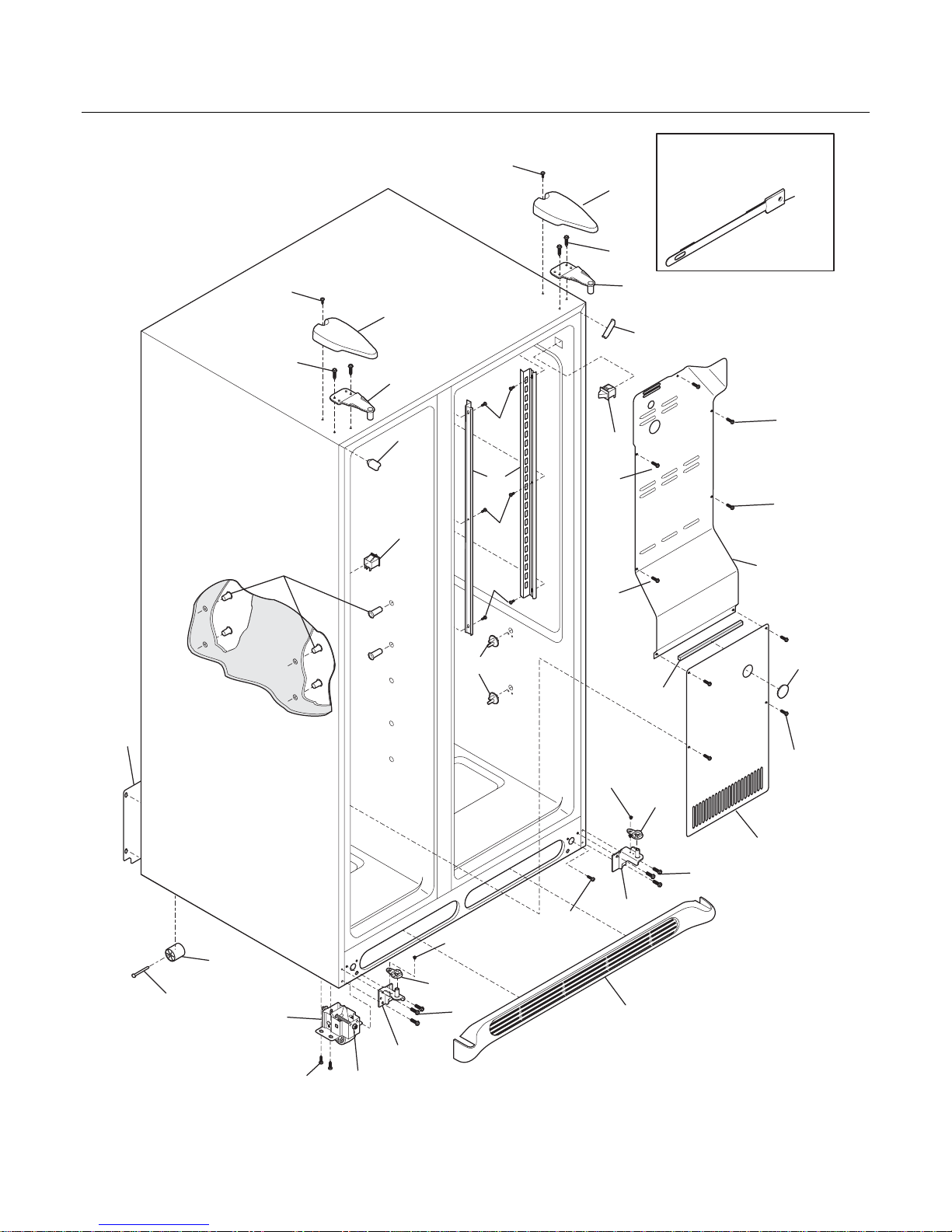

CABINET

40 66

14A

100

21C

30A

10A

N58BAAAAB2

PLHS69EFSS0 Publication No: 5995459681

# Functional Parts 7 01/06

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

10 240435908 Cover-air duct

10A 240475907 Cover-evap coil, lower

11 5303208309 Plug-hole, factory test

14 240505801 Switch, light/lamp

14A 241547901 Switch-light/lamp, frzr door

21C 218252200 Screw, #8 truss hd, 10-32CA x 0.500

22 240457702 Plate-door closer

23 240402701 Screw-#10-32 x 1/4 flat hd

28 240335501 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special

30 241603701 Bracket-lower hinge, ref

30A 241603702 Bracket-lower hinge

37 240337605 Trim-cabinet corner, silver, (2)

38 240327201 Bracket-upper hinge

40 241555103 Cover-hinge, black

41 241550801 Grommet-shelf mtg, 1.40" long

41* 241550701 Grommet-shelf mtg, .96" long

42 240578901 Screw-hinge mtg, hex head, 1/4-20 x 5/8

43 240335003 Roller Assy, adjustable, front, (2)

45 241500301 Screw, hex washer head, 8-18AB x 0.500

47 240349402 Channel-shelf mtg, side, (2)

58 241595401 Screw-#10-32 X 3/4

66 5304424968 Damper Cover Assy

66* 240518802 Pin-push, push-in, plastic

72 240324406 Grille/Kickplate, black

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

82 5304418225 Roller, compressor base, rear, (2)

83 5303316859 Rivet, flat head, 1/4 OD x 1-3/4, roller pin

89 241574605 Cover-access, w/label

90 218249808 Seal-coil cover

92 216850900 Screw, hex washer hd, 1/4 x 7/8, hinge mtg

100 240423701 Support, crisper cover, front, (4)

100* 240350802 Support, crisper cover, rear, (4)

* 240479601 Plug, button, cab liner holes, (2)

Publication No: 5995459681 PLHS69EFSS0

01/06 8

SHELVES

120

122

121

11A

141

142

140A

126

52A

109

51A

49B

49A

52B

51B

101

N58SLDJBE11

100

25A

47A

15A

16A

26A

27A

42A

123

24A

140

11C

24B

136

PLHS69EFSS0 Publication No: 5995459681

# Functional Parts 9 01/06

* Non-Illustrated Parts

SHELVES

POS. NO PART NO. DESCRIPTION

2 241510604 Trim-basket

11 240350668 Shelf-freezer, glass, lower

11A 240350667 Shelf-freezer, glass, upper

11C 240324101 Shelf-pizza

15 241552801 Light Bulb

15A 241555401 Light Bulb

16 240590401 Socket-light

16* 241537504 Harness-wiring

16A 241513901 Socket-light

24 240355203 Shelf-"Spill-Safe", fixed

24A 240350106 Shelf-"Spill-Safe", cantilever, sliding

24B 240424602 Shelf-"Spill-Safe", sliding, "Aspect", complete

25 240350702 Cover-crisper pan, upper

25* 240362101 Clip-slide, cover-crisper

25A 240350902 Cover-crisper pan, lower

26 240351022 Pan-crisper, upper

26* 240349801 Clip-slide, pan-crisper

26* 240423101 Channel-divider

26* 240423201 Retainer

26* 240423301 Divider-crisper pan

26* 241595202 Clip-slide, pan-crisper

26A 241638201 Control-humidity

26A* 241638101 Frame-humidity control

27 240351219 Pan-crisper, lower

27A 240362201 Control-humidity

39 240367602 Trim-shelf, front

42 240356501 Track, meat pan hanger, RH

42A 240349701 Hanger-meat pan, LH

42A* 240349901 Block-meat pan rail, LH

42A* 240350001 Spring-meat pan rail

47 240350602 Insert-pan cover, glass

47A 240350603 Insert-pan cover, glass

49 240564401 Basket-sliding

49A 240530502 Basket-sliding, upper, half

49B 240530504 Basket-sliding, upper, full

51 240343002 Hanger-basket, RH

51A 240395502 Hanger-basket, RH

51B 240579801 Hanger-basket, RH

52 240343102 Hanger-basket, LH

52A 240395602 Hanger-basket, LH

52B 240579802 Hanger-basket, LH

60 218362500 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)

62 240342818 Pan-meat

81 5308016566 Screw, hex washer head, 8-15A x 0.625, low profile

97 240545306 Water Tank

100 240326302 Cover-water tank

101 218493100 Screw, hex washer head, 8-18AB x 1-3/4

109 240351301 Base-crisper light socket

120 241559001 Shelf-ice cream

121 241561001 Rail-ice cream shelf, LH

122 241561201 Rail-ice cream shelf, RH

123 215005100 Screw, hanger/rlr mtg, 8-10 x 0.438

126 241674401 Channel, auger mtg, LH

126 241674402 Channel, auger mtg, RH

136 240424501 Dispenser-can, white

140 240430501 Channel, wtr tube cover

140A 240430503 Channel, wtr tube cover

141 240585404 Bracket-light socket

142 240582701 Shield-light, deli pan

Publication No: 5995459681 PLHS69EFSS0

01/06 10

CONTROLS

149

139

138

198

199

137

200

151

150

21A

115

101

N58TCAAAB4
