Frigidaire Gallery FGEF3056K Manuel
frigidaire.com
Signature Features
30" Electric
Product Dimensions
Height (Max.) 47-1/2"
Width 29-7/8"
Depth (Including Handle) 28-1/2"
More Easy-To-Use Features
Express-Select® Controls
Easily go from warm to boil with
just a touch.
One-Touch Options
Our ovens feature easy-to-use one-touch
buttons so you can cook pizza or chicken
nuggets — or even add a minute to the
timer — with the touch of a button.
SpaceWise® Half Rack
Flexible rack system that adjusts to cook
multiple dishes at once. Remove the
half rack and you’ll have extra height for
tall dishes.
Fits-More™ Cooktop
The Fits-More™ cooktop features five
elements so you can cook more at once.
Eortless™ Oven Rack
Bottom rack extends when you open
the door for easy access.
Smudge-Proof Stainless Steel
Protective coating reduces fingerprints
and smudges so it’s easy to clean.
Eortless™ Convection
Takes the guesswork out of convection
cooking — our oven does the converting
for you.
Sabbath Mode (Star-K® Certified)
Available in:
Quick Boil
Boils water faster.
Fits-More™ Oven
A unique rack configuration creates
more cooking space.
Quick Preheat
Preheat in less than six minutes.
1
True Convection
With True Convection, you can easily
and evenly bake 200 chicken nuggets
in 10 minutes.
2
Freestanding Range
FGEF3056K F
Stainless
(F)
1Based on single rack cooking performance,
not set temperature, using Quick Preheat.
2
Does not include preheat time.
Elements
Right Front
Right Rear
Left Front
Left Rear
Center
Size
6" / 9"
Expandable
6"
9" / 12"
Expandable
6"
Keep Warm
Zone
Watts
1,200 /3,000
1,200
1,700 /2,700
1,200
100
Specifications
subject to change.
Accessories information available
on the web at frigidaire.com
Cutout Dimensions
Height (Standard)
Width (Min.)
Depth (Min.)
36"
30"
24"
Product Dimensions
A - Height (Max.)
B - Width
C - Depth (Including Handle)
Depth with Door Open 90˚
47-1/2"
29-7/8"
28-1/2"
48-3/8"
NOTE: For planning purposes only. Always consult local and national electric codes.
Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
30" Electric Freestanding Ranges
Frigidaire Baseline
C
A
36"
(Adjustable)
B
Features
Oven Control / Timing System
Surface Type
Window
Exterior Door Finish
Handle Design
Exterior Finish (Side Panels)
Convection System
Oven Cleaning System
Drawer Functionality
Oven Controls
Bake / Broil
Eortless™ Convection Conversion
Convection Bake / Broil / Roast
Quick Bake Convection
Quick Preheat
My Favorite
Chicken Nugget Button
Pizza Button
Keep Warm
Add-a-Minute
Delay Bake
Self Clean
Quick Clean Option
Delay Clean
Kitchen Timer / Timed Cook Option
Auto Oven Shut-O
Oven Lock-Out
Lower Drawer Control
Cooktop Features
Right Front Element (Watts)
Right Rear Element (Watts)
Left Front Element (Watts)
Left Rear Element (Watts)
Bridge Element (Watts)
Center Element (Watts)
Oven Features
Capacity (Cu. Ft.)
Oven Light
Hidden Bake Element
Rack Configuration
Baking System
Broiling System
Bake Element / Broil Element (Watts)
Drawer Racks
Certifications
Sabbath Mode (Star-K® Cert.)
Specifications
Oven Interior ( H x W x D )
Power Supply Connection Location
Voltage Rating
Connected Load (kW Rating)
@ 240 / 208 Volts
Minimum Circuit Required (Amps)
Shipping Weight (Approx.)
Express-Select® Controls
Black Ceramic Glass
Wide-View
Smudge-Proof
Stainless Steel
Stainless Steel
Black
True Convection
Self Clean
Storage
Yes / Variable
(400 - 500 °F)
Yes
Yes / No / Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
2, 3, 4 Hours
Yes / Yes
6 Hours
Yes
SpaceWise® Expandable
6" / 9" – 1,200 / 3,000
6" – 1,200
SpaceWise® Expandable
9" / 12" – 1,700 / 2,700
6" – 1,200
Keep Warm Zone – 100
6.0
1
Yes
1 Heavy-Duty,
1 SpaceWise® Half Rack,
1 Eortless™, 1 Deep-Sump
Even Baking Technology
Power Broil
3,500 / 3,900
Yes
22-1/4" x 24-3/8" x 19-1/8"
Middle Bottom Rear
240V / 208V / 60 Hz
13.5 / 10.0
40
210 Lbs.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGEF3056K 10/11 © 2011 Electrolux Home Products, Inc.
Freestanding Range
FGEF3056K F 30" Electric
30" Electric Freestanding Ranges
Gallery
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
FGEF3056K 10/11 © 2011 Electrolux Home Products, Inc.

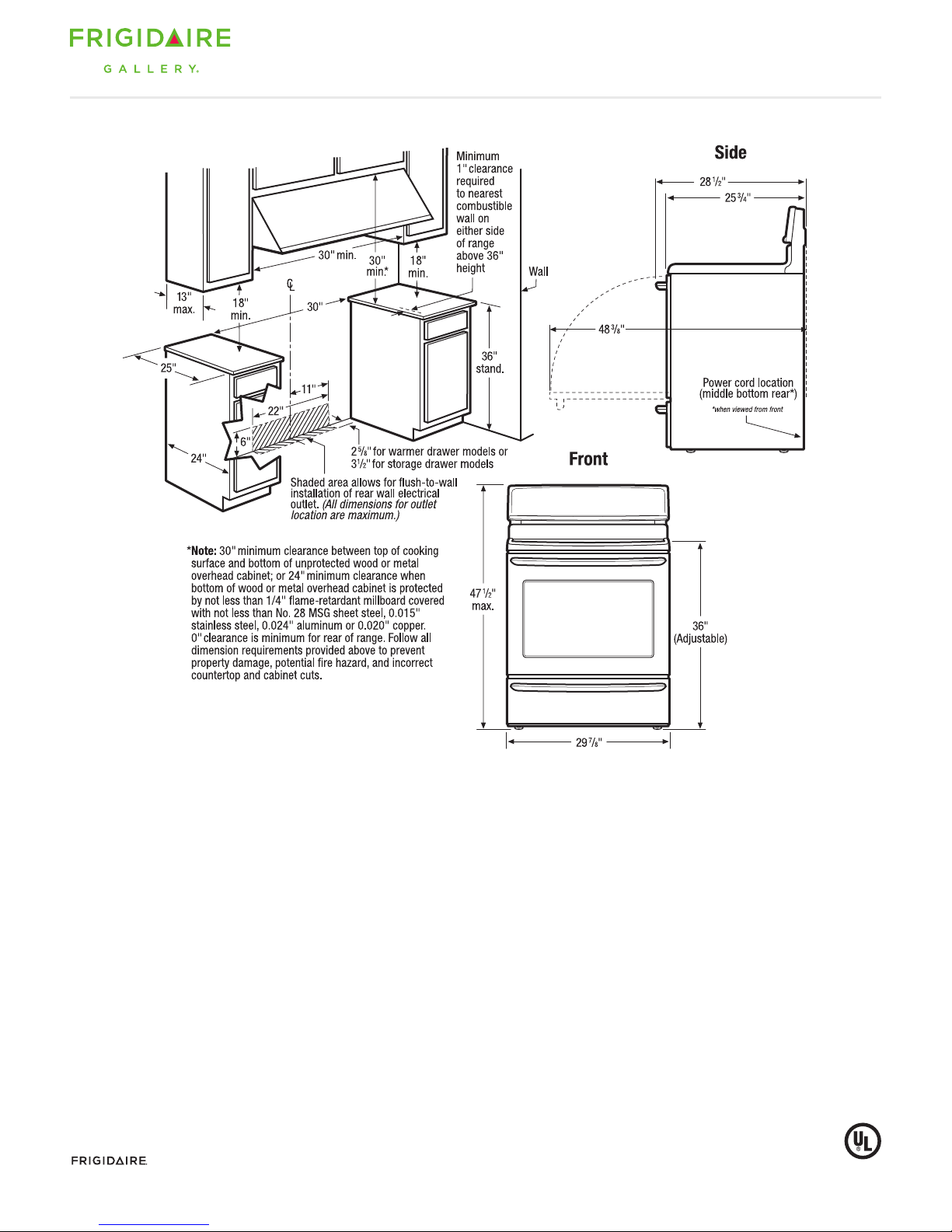

Freestanding Range Specifications
•Product Shipping Weight (approx.) – 210 Lbs.
•Single phase 3- or 4-wire cable, 120 / 240 or 120 / 208 Volt, 60 Hertz,
fused on both sides of line with ground.
•Connected Load (kW Rating) @ 240 / 208 Volts = 13.5 / 10.0 kW
•Recommended Circuit Breaker – 40 Amps
•Always consult local and national electric codes.
•Make sure wall coverings around range can withstand heat generated
by range.
•Floor beneath range MUST be solid and level.
•Overhead cabinetry should not exceed a 13" maximum depth.
•Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum
width of appliance.
•Range can be installed flush to wall with 0" minimum rear clearance.
•Minimum 1" clearance required from edge of rangetop to nearest
combustible wall on either side of range above 36" height.
•Allow 30" minimum clearance between top of cooking surface and
bottom of unprotected wood or metal overhead cabinet; or 24"
minimum clearance when bottom of wood or metal overhead cabinet
is protected by not less than 1/4" flame retardant millboard covered
with not less than No. 28 MSG sheet steel, 0.015" stainless steel,
0.024" aluminum or 0.020" copper.
•To reduce risk of fire when using overhead cabinetry, install
range hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
•Follow all dimension requirements provided to prevent property
damage, potential fire hazard, and incorrect countertop and
cabinet cuts.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.
Freestanding Range
FGEF3056K F 30" Electric
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_SSR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
General Installation Guidelines
with Side-by-Side Refrigerator
Top
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Specifications
subject to change.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-800-FRIGIDAIRE
•
frigidaire.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
frigidaire.ca
INSTGDLNS_TMR FR 10/10 © 2010 Electrolux Home Products, Inc. Printed in the U.S.A.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.
Front
Top
Front
Top
General Installation Guidelines
with Top Mount Refrigerator
