PLES399EC.eps LA20BG0050.eps BCPLES399EC9.eps TPLES399ECH.eps

DPLES389ECH.eps 318271978-1.eps 318271978-2.eps

Product No. CPLES399ECA CPLES399EC9

37652366J53SA 37652366J53S9

Series 30" slide-in 30" slide-in

Color stainless stainless

Market Canada Canada

Wiring Diagram 318271978 318271978

Owner's Guide 318203825 318203825

Installation Instructions 318201611 318201611

Timer Guide 318204126 318204126

Electrolux Major Appliances

North & Latin America

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V

3E4 Publication No.

5995533246

09/02/12

(EN/SERVICE/ECL)

377

30-INCH SLIDE-IN

ELECTRIC RANGE

Model No.

CPLES399E

Publication No: 5995533246 CPLES399E

02/09 2

BACKGUARD

CPLES399E Publication No: 5995533246

# Functional Parts 3 02/09

* Non-Illustrated Parts

BACKGUARD

Model Index: ACPLES399E (CPLES399EC9)

BCPLES399E (CPLES399ECA)

POS. NO PART NO. DESCRIPTION

16 318299102 A B Console, assy., black

16* 5304447071 A B Clip, console, (2)

17 318306900 A B Bracket, bushing, (2)

19 318313832 A B Control Panel Assembly, steel/glass, stainless/black, w/touch pad

19A 318224405 A B Panel, control mtg.

20 # 316462841 A B Controller, electronic, ES510X

20* 5304453707 A B Screw, 8-18 X 1/2

35 318233720 A B Retainer, control panel, black

36 318319301 A B Knob, control, black, (4)

42 318298001 A B Trim, vent, black, upper

54 # 316441800 A B Control, electronic, single element, (2)

54A# 316441801 A B Control, electronic, dual element, (3), w/potentiometer

54B# 316441804 A B Control, electronic, left front, dual element, w/potentiometer

55 316247700 A B Nut, mounting

55A 316247800 A B Washer, lock, mtg

69 5303323134 A B Screw, 8-32 x 3/16, (4)

99 # 316435703 A B Board, power supply

99A 318223900 A B Gasket, dark grey

101 318233400 A B Bushing, retainer

* # 318228859 A B Harness, wiring, main, backguard

* # 318224849 A B Harness, wiring, timer

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303300265 A B Screw, 8-18 X 1/2, (4)

* 5303311333 A B Screw, 8-32 x 3/8

Publication No: 5995533246 CPLES399E

02/09 4

BODY

CPLES399E Publication No: 5995533246

# Functional Parts 5 02/09

* Non-Illustrated Parts

BODY

Model Index: ACPLES399E (CPLES399EC9)

BCPLES399E (CPLES399ECA)

POS. NO PART NO. DESCRIPTION

1 318259220 A B Back, main

1A 318225110 A B Panel, main back, upper

2 318258902 A B Shield, insulation, upper

3 318225210 A B Panel, bodyside, upper RH

3A 318225211 A B Panel, bodyside, upper LH

5 318175508 A B Screw, leveling

6 318345214 A B Rack, oven, (3)

8 318262001 A B Cover, element

8A 318318600 A B Bracket, element, hidden bake

9 316081900 A B Pan, broilerOPTIONAL ACCESS0RY

10 316082000 A B Insert, broiler panOPTIONAL ACCESS0RY

12 316445501 A B Switch, oven light, door frame

* # 318231869 A B Harness, wiring, door switch

14 318224000 A B Receptacle, oven light

15 5303013071 A B Bulb/Lamp, light

16 318406100 A B Lens, oven light, glass

17 5304400195 A B Retainer, light cover

29 316517600 A B Spacer, oven door

37 # 316217002 A B Probe, oven temp

39 # 318113111 A B Cord, electric

41 5303310526 A - Cover, hinge cutout

54 318222400 A B Housing, oven light

58A 318386100 A B Insulation, oven wrapper

58B 318133791 A B Insulation, oven back, back/bottom

59 318072560 A B Duct, oven vent

59A 318261600 A B Bracket, vent tube

62 5303935061 A B Terminal Block Kit

62* 5303323139 A B Screw, 10-24 x 0.906

66 # 318255600 A B Element, broil, 2750W

67 # 318254906 A B Element, bake, 3400W, 8 pass

68 5304403015 A B Support, hanger, (4), broil element

70 318259100 A B Shield, insulation, sides, (2)

71 318260007 A B Panel, rear box

76 318056217 A - Front, oven

76 318056292 - B Front, oven

80 5303320846 A B Plate, oven mtg

81 318192400 A B Spring, oven

82 318258708 A B Shield, insulation, lower

83 318261400 A B Liner, oven assy

86 318328010 A - Receptacle, hinge

86 318561100 - B Receptacle, hinge, (2)

86* 5304461333 - B Screw, 10-32 x 17/32

87 318260605 A B Bracket, cable mtg.

89 # 318261215 A B Motor, latch assy

90 318296904 A B Panel, filler, black, RH

90A 318296905 A B Panel, filler, black, LH

107 318219405 A B Cover, fan

108# 318073028 A B Motor, blower

108A 318251300 A B Bracket, fan support

Publication No: 5995533246 CPLES399E

02/09 6

BODY

CPLES399E Publication No: 5995533246

# Functional Parts 7 02/09

* Non-Illustrated Parts

BODY

Model Index: ACPLES399E (CPLES399EC9)

BCPLES399E (CPLES399ECA)

POS. NO PART NO. DESCRIPTION

109 318398300 A B Fan Blade

111 318399800 A B Nut, fan retainer

119# 318004900 A B Switch, thermal

125# 5304463302 A B Motor-convection

125* 318142100 A B Washer, motor, convection

127 318317100 A B Adapter Assembly, vent tube, w/converter

131 318272901 A B Box, vent

132 318003000 A B Plate, shield

161# 318255503 A B Element, convection, 350 W

166 318298410 A B Bracket, base support, (2)

166A 318298403 A B Bracket, base support, lower, (2)

170 318335500 A B Anti-tip & accessories

185 318165800 A B Spacer

200 318298221 A B Frame, drawer, front

201 318298210 A B Frame, drawer

219# 318003634 A B Thermostat, safety

272 318249403 A B Tube, protector

* # 318224998 A B Harness, wiring, main

* 3051050 A B Screw, shoulder

* 3201861 A B Screw, 6 x 0.375, (4)

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303211311 A B Screw, 8 x 0.500

* 5303307980 A B Screw, 8-32 x 0.437, (8)

* 5303323129 A B Screw, 8 X 0.750

* 5304415832 A B Screw, 8-18 x 0.406

* 5304436875 A B Screw, 8-18 X 1/2, black

Publication No: 5995533246 CPLES399E

02/09 8

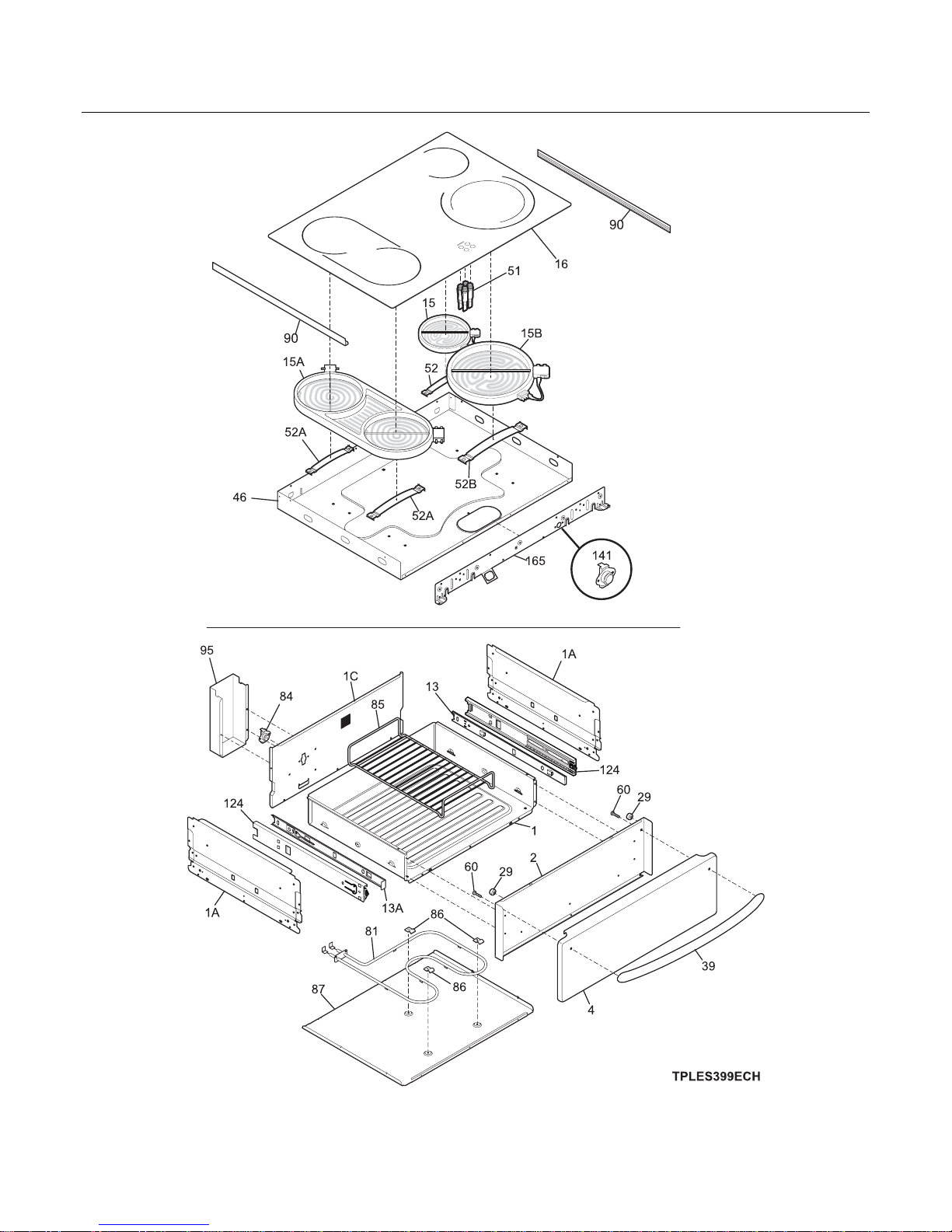

TOP/DRAWER

CPLES399E Publication No: 5995533246

# Functional Parts 9 02/09

* Non-Illustrated Parts

TOP/DRAWER

Model Index: ACPLES399E (CPLES399EC9)

BCPLES399E (CPLES399ECA)

POS. NO PART NO. DESCRIPTION

1 318304401 A B Drawer, body assembly

1A 318300002 A B Panel, warmer drawer, side, (2)

1C 318300301 A B Panel, warmer drawer, rear

2 318303901 A B Panel, drawer, black, inner

4 318298825 A B Panel, drawer, stainless, front

13 318259507 A B Glide, warmer, inner RH

13A 318259506 A B Glide, warmer, inner LH

15 # 318198830 A B Element, surface, 6", 1200 W, (2)

15A# 318258203 A B Element, bridge, 1800/2600

15B# 318198934 A B Element, surface, 6/9, 1700/2700W, dual radiant

16 318223647 A B Main Top, glass assy., black

29 318147430 A B Bumper, (2)

39 316246100 A B Handle, door/drawer, stainless

46 318225429 A B Box, burner

51 # 318044827 A B Light, indicator, clear

52 318122006 A B Spring, element mtg, small

52A 318122008 A B Spring, element mtg, 1800W/3000W

52B 318122011 A B Spring, element mtg, 1200W/1800W

60 5303308458 A B Screw, 10-24, (4)

81 # 318255301 A B Element, warmer drawer

84 # 318005108 A B Thermostat

85 318345601 A B Rack, warmer drawer

86 316095800 A B Clip, hold down, warmer element

87 318300102 A B Panel, warmer drawer, lower

90 318368001 A B Channel, glass protector, (2)

95 318303800 A B Shield, wire

124 316105501 A B Glide, outer/RH & LH, (2)

141# 318003634 A B Thermostat, safety

165 318227503 A B Plate, mounting

* # 318228930 A B Harness, wiring, cooktop

* # 318231848 A B Harness, wiring, pilot light

* 318531701 A B Spacer, (2)

* 08016432 A B Screw, truss head, 8-18 x 0.375

* 5303211311 A B Screw, 8 x 0.500

* 5303300265 A B Screw, 8-18 X 1/2, (4)

* 5303311333 A B Screw, 8-32 x 3/8

Publication No: 5995533246 CPLES399E

02/09 10

DOOR
