Frigidaire FGF378A Manuel utilisateur

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF378ACA FGF378A stainless North America

Publication No.

5995358388

010831

-EN/SERVICE /ECL

369

GAS

RANGE

Model No.

FGF378A

FACTORY

PARTS CATALOG

ELECTROLUX HOME PRODUCTS NORTH AMERICA

P.O. Box 212378, Augusta, GA 30917

SERVICE DATA SHEET - # 316259139

WIRING DIAGRAM - #316255206

OWNER’S GUIDE - # 316257503

INSTALLATION INSTRUCTIONS -# 316259305

08/01 2

Publication No. FGF378ACA

5995358388

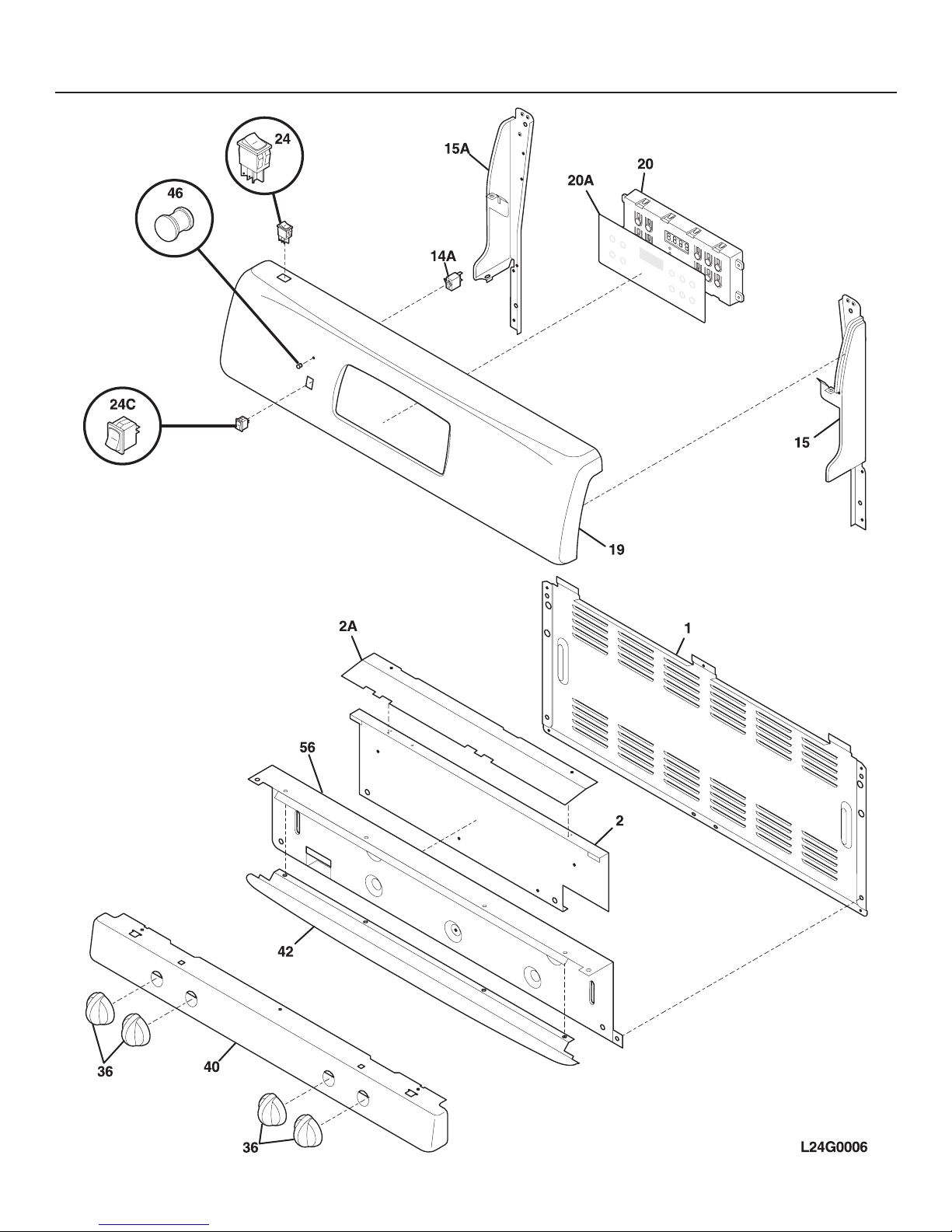

BACKGUARD

# = Fast-moving Parts 3 08/01

* = Non-Illustrated Parts

FGF378ACA Publication No.

5995358388

POS. NO PART NO DESCRIPTION

1 316239900 Shield,backguard ,rear wall

2 316051600 Shield,backguard ,inner

2A 316235100 Shield,top ,inner

14A 316022500 Light/Lamp,warmer,indicator ,drawer/zone,125 V

15 316220204 Support,backguard ,black ,RH

15A 316220205 Support,backguard ,black ,LH

19 316232653 Panel,backguard ,black

20 # 316222901 Clock/Timer,electronic

20A 316220805 Overlay,clock ,black

24 # 316246001 Switch,rocker ,black ,oven light

24C# 316114002 Switch-Speed Bake,black

36 316220002 Knob,top valve ,black ,(4)

40 316204918 Panel,manifold ,black

42 316236600 Trim,extrusion ,black

46 316040201 Lens,indicator light ,red

56 316230701 Shield,backguard ,inner

* 218490900 Cleaner,stainless steel

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021109 Screw,8-18 x 0.5 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

BACKGUARD

08/01 4

Publication No. FGF378ACA

5995358388

BURNER

# = Fast-moving Parts 5 08/01

* = Non-Illustrated Parts

FGF378ACA Publication No.

5995358388

POS. NO PART NO DESCRIPTION

1 # 316204000 Pipe,manifold

2 # 5303935210 Valve,12K top burner ,w/ mtg screw

2B # 5303935212 Valve,5K top burner ,w/ mtg screw

2C # 5303935213 Valve,9.5K top burner ,w/ mtg screw

* 316134300 • Screw,10-24 ,valve mounting

3 # 316219000 Wiring Harness,w/igntr switch

8 # 316135701 Module,spark

10 # 316212300 Burner,sealed ,12K

10B# 316212600 Burner,sealed ,5K

10C# 316212400 Burner,sealed ,9.5K

11 # 316237701 Ignitor/orifice assy.,top burner ,rear ,9.5K,w/holder ,tube

11A# 316237801 Ignitor/orifice assy.,top burner ,front ,12K,w/holder ,tube

11B# 316237700 Ignitor/orifice assy.,top burner ,rear ,5K,w/holder ,tube

11C# 316237800 Ignitor/orifice assy.,top burner ,front ,9.5K,w/holder ,tube

13 # 316207000 Tube,3/8 ,aluminum ,rgltr to manf ,with fittings

14 # 316091706 Regulator,pressure

14* 316021104 Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt

15 316091600 Bracket,regulator

16 # 316065003 Tube,valve to regul. ,3/8

17 # 5303208499 Valve,safety ,dual

17* 08068018 Shield,wire ,safety valve

18 # 3131290 Burner,oven

19 # 5303935066 Ignitor,oven kit ,w/nut & instr

20 3131284 Baffle,oven burner

21 5303013272 Nut,hex head sems

22 # 316065002 Tube,valve to mixer

23 # 08067935 Burner,broiler

24 # 316070400 Elbow,mixer

24* 316113400 Spacer,mixer elbow

25 5303210379 Baffle,broiler

26 # 316119302 Ignitor,broiler

37 316240600 Screw,assy mtg ,ignitor/orifice

44 316237901 Orifice,top burner ,12K

44B 316237903 Orifice,top burner ,5K

44C 316237902 Orifice,top burner ,9.5K

47 GRLP1 LP kit,w/instructions

47* 316248105 • Instructions,LP kit

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

BURNER

08/01 6

Publication No. FGF378ACA

5995358388

BODY

# = Fast-moving Parts 7 08/01

* = Non-Illustrated Parts

FGF378ACA Publication No.

5995358388

POS. NO PART NO DESCRIPTION

1 316029416 Panel,main back

2 3131314 Shield,oven top

3 316230104 Panel,bodyside ,black ,RH

3 316230105 Panel,bodyside ,black ,LH

4 316201402 Burner Box

5 316129200 Screw,leveling ,plastic ,with stop

6 316083800 Rack,oven

7 316205000 Hinge,oven door ,RH

7A 316205001 Hinge,oven door ,LH

8 5303300701 Panel,oven bottom

9 316081900 Pan,broiler

10 316082000 Insert,broiler pan

12 # 316027701 Switch,oven light

13 316238800 Rod,light switch

14 316116400 Receptacle,oven light

15 5303013071 Bulb/Lamp,oven light

16 08011086 Lens,oven light ,glass

17 316087500 Retainer,lens

18 # 316213900 Latch,oven door

21 3014099 Spacer,bodyside

25A 5303288580 Shield,heat ,lower

28 3011813 Clip,wire ,bodyside

29 3051162 Glide,drawer ,front

30 316217700 Bracket,hinge ,RH ,main top

30A 316217701 Bracket,hinge ,LH ,main top

33 316232800 Shield,rear wall

35 316116600 Gasket,flue

36 316133002 Flue

37 # 316233900 Probe,oven temp

38 316051700 Shield,heat

39 3202006 Cord,electric power

40 3200836 Shield,heat baffle

40* 5303288570 Screw,hd shldr sqdr ,8-18 X 1/2 ,heat shield

41 316233400 Cover,hinge cutout ,RH

41A 316233500 Cover,hinge cutout ,LH

42 5303288578 Shield,bake burner

43 3131732 Screw,8-18 x 1.438 ,oven bottom

44 316246500 Spacer,oven door

49 316234200 Clip,maintop mtg ,(2)

53 5303288579 Shield,main front

53A 08067992 Shield,insulation ,front frame

53B 316211100 Bracket,air dam

55 316107800 Shield,flue

58A 316047708 Insulation,2" ,oven wrapper

58B 316218302 Insulation,oven back

58G 08067973 Insulation,main front

72 316234500 Cover,rod end ,light switch

88 316232700 Rod,auto latch

89 # 316135202 Motor,latch/lock

106 316026600 Bracket,motor mtg

107 316026701 Cover,fan

108# 316234601 Motor,fan

109 316136400 Blade,fan

110 316136500 Washer,fan motor

111 316136600 Nut,fan retainer

151 316239300 Shield,bodyside

170 5303935180 Anti-tip Kit,w/bracket,screw

170* 316107200 Bracket,anti-tip

170* 316112500 Template,anti-tip

170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt

* # 316253401 Wiring Harness,main

* 316231800 Cover,hole ,conv. element

* 5303305345 Paint,touch-up ,black

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021123 Screw,8-18 X 3/8-8 ,TRUSS HD BLACK

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black

* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5

BODY

08/01 8

Publication No. FGF378ACA

5995358388

TOP/DRAWER

# = Fast-moving Parts 9 08/01

* = Non-Illustrated Parts

FGF378ACA Publication No.

5995358388

POS. NO PART NO DESCRIPTION

1 316011503 Drawer

2 316231400 Liner,drawer

4 316238900 Panel,drawer ,stainless

7 3051163 Glide,drawer ,rear

16 316202321 Main Top,black

20 316202400 Grate,black

22 316213600 Cap,12K burner ,black

22B 316213400 Cap,5K burner ,black

22C 316213500 Cap,9.5K burner ,black

39 316203000 Handle,door ,black

88 316099500 Pin,guide ,(2)

* 218490900 Cleaner,stainless steel

* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome

* 316021110 Screw,8-18 x 0.5 ,black

* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312

TOP/DRAWER

08/01 10

Publication No. FGF378ACA

5995358388

DOOR
