FACTORY PARTS CATALOG

GAS RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FGF376CEBH FGF376CEBH BLACK/BLACK USA

FGF376CEBJ FGF376CEBJ BLACK/BLACK USA

FGF376CEBK FGF376CEBK BLACK/BLACK USA

FGF376CESJ FGF376CESJ WHITE/WHITE USA

FGF376CESK FGF376CESK WHITE/WHITE USA

FGF376CESL FGF376CESL WHITE/WHITE USA

Publication No.

5995310959

980731

-EN/SERVICE /VLM

369

WIRING DIAGRAM # - 316002165

OWNER’S GUIDE # - 316000251

INSTALLATION GUIDE # - 316102979 GAS - RANGE

FGF376CEBH

FGF376CEBJ

FGF376CEBK

FGF376CESJ

FGF376CESK

FGF376CESL

6/98 2

Publication number

5995310959 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

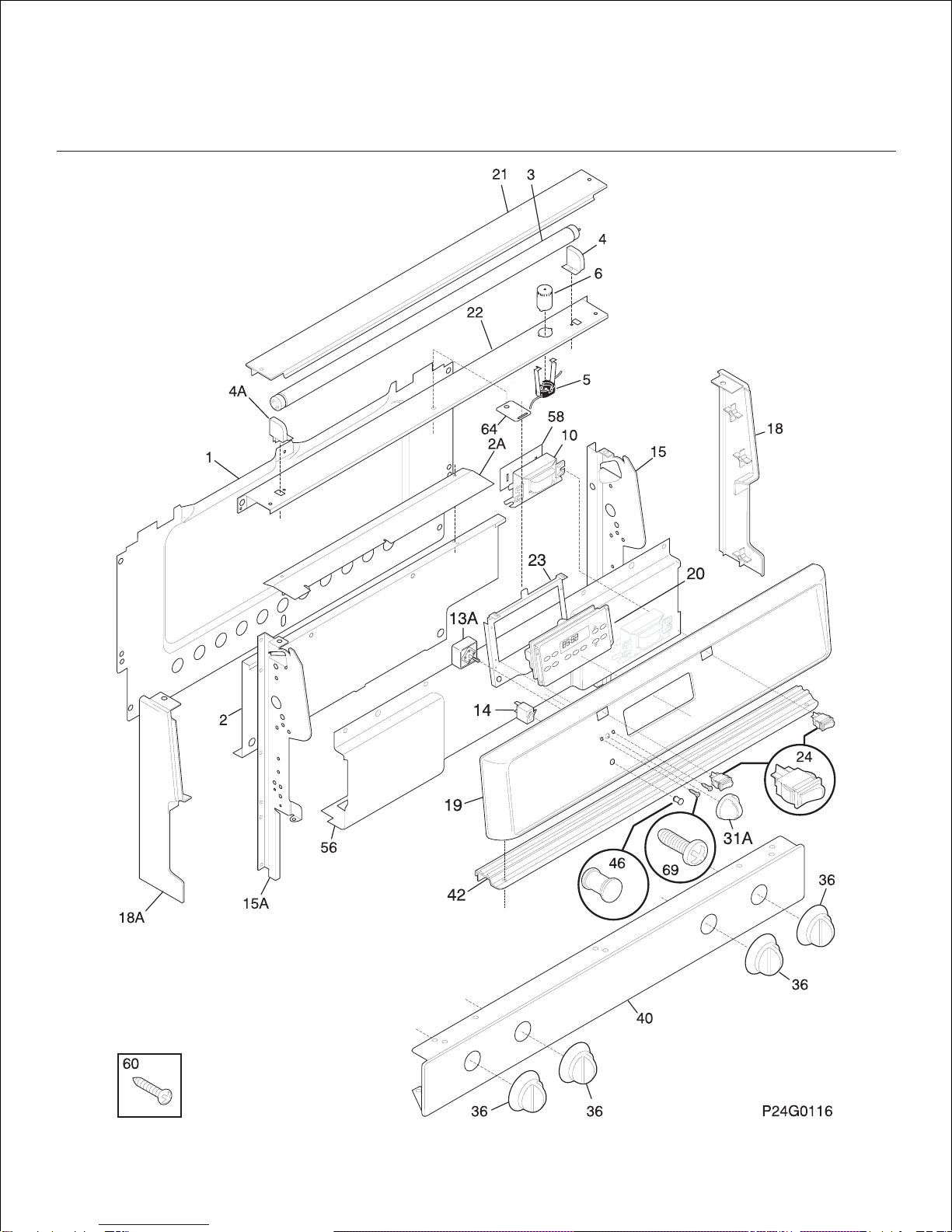

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FGF376CE 5995310959

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FGF376CE (FGF376CEBH)

B = FGF376CE (FGF376CEBJ)

C = FGF376CE (FGF376CEBK)

D = FGF376CE (FGF376CESJ)

E = FGF376CE (FGF376CESK)

F = FGF376CE (FGF376CESL)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D E F Screw-8-18x1/2 Tr Sqd black

* # 316001420 A B C D E F Harness-wiring,backguard

1 316028701 A B C D E F Shield-backguard,rear wall

2 316051600 A B C D E F Shield-backguard, inner

2A 316053800 A B C D E F Shield-backguard,inner top

3 3131275 A B C D E F Lamp-fluorescent,backguard

4 3051222 A B C D E F Receptacle-lamp,RH

4A 3051223 A B C D E F Receptacle-lamp,LH

5 # 316053200 A B C D E F Receptacle-starter

6 # 3206218 A B C D E F Starter-lamp

10 # 316099800 A B C D E F Ballast-lamp

13A 316095500 A B C D E F Switch-warmer,infinite ,drawer/zone ,

14 316022500 A B C D E F Light/Lamp,indicator ,125 V

15 316049104 A B C D E F Support-backguard,RH

15A 316049105 A B C D E F Support-backguard,LH

18 316026900 A B C - - - End Cap,black ,RH

18 316026904 ---DEF EndCap,white ,RH

18A 316026901 A B C - - - End Cap,black ,LH

18A 316026905 ---DEF EndCap,white ,LH

19 316024534 ---DEF Panel-control,metal

19 316024536 A B C - - - Panel-control,metal

20 # 316080011 A B C D E F Clock/Timer,slew

20* 316089306 ---DEF Overlay-clock

20* 316089307 A B C - - - Overlay-clock

21 316024900 A B C - - - Trim-canopy/shield,black

21 316024902 ---DEF Trim-canopy/shield,white

22 316059903 A B C D E F Support-receptacle

23 316060002 A B C D E F Bracket-clock mtg

24 # 316005607 ---DEF Switch-rocker,oven light ,white

24 # 316005612 A B C - - - Switch-rocker,oven light ,gray

31A 316095600 A B C - - - Knob-warmer,black

31A 316095601 ---DEF Knob-warmer,white

36 316109502 A B C - - - Knob-top valve black

36 316109503 ---DEF Knob-top valve white

40 316086821 A B C - - - Panel-manifold

40 316086822 ---DEF Panel-manifold

42 316055300 ---DEF Trim-vent

42 316055301 A B C - - - Trim-vent

46 316040201 A B C D E F Lens-light/lamp,indicator ,red

56 316074907 A B C D E F Deflector-flue,black

58 316043400 A B C D E F Insulator-ballast,(2)

60 316021105 A B C D E F Screw,hex ,8-18 x 3/8 ,back\bodyside

60 5303288574 A B C D E F Screw,truss head ,8-10 x 0.375 ,handle ,

64 316062400 A B C D E F Retainer plate

69 5303292005 A B C D E F Screw, switch mounting

6/98 4

Publication number

5995310959 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

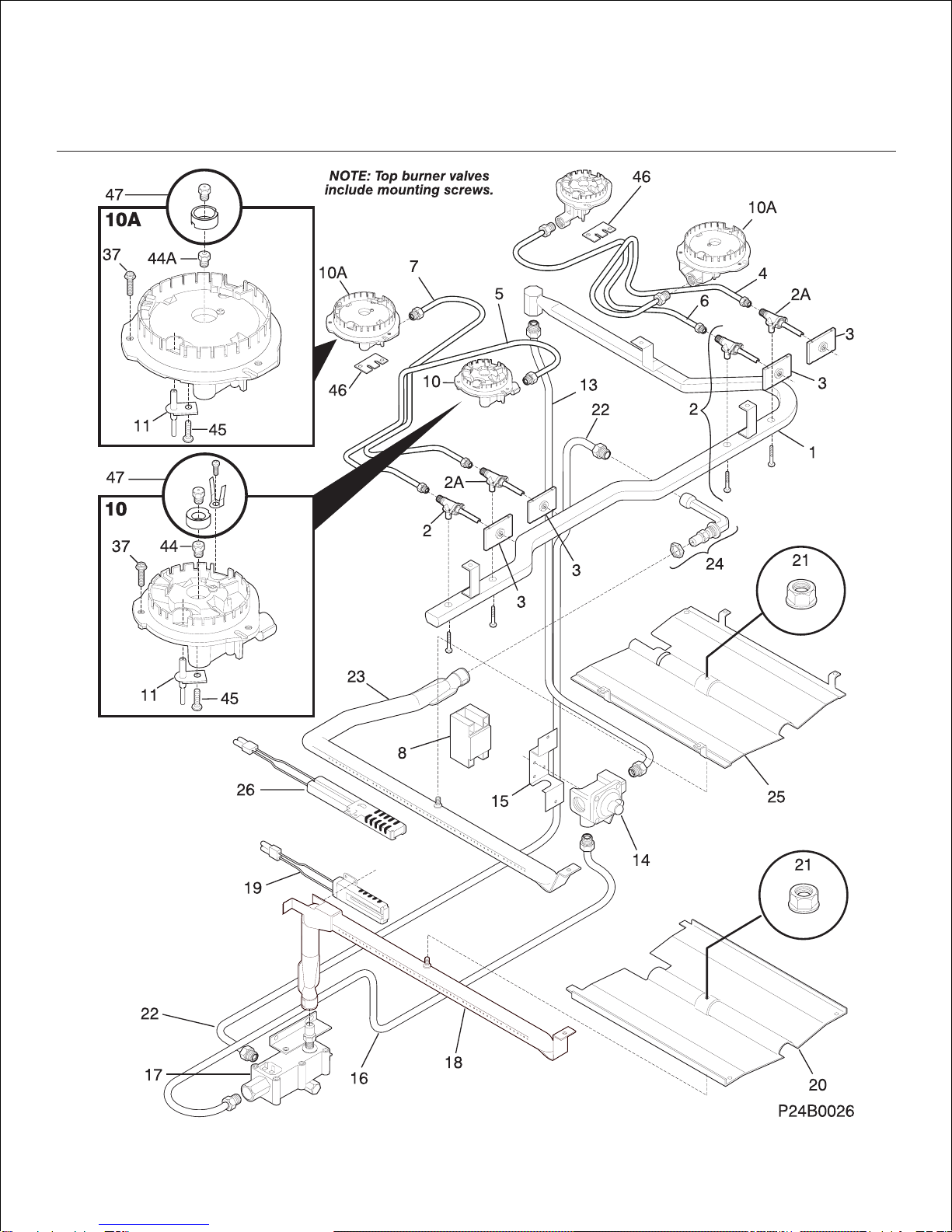

BURNER

# - Fast Moving Parts

* - Non Illustrated Parts 5 6/98

Publication number

FGF376CE 5995310959

CAUTION: Use the part number on all orders, not the position number.

A = FGF376CE (FGF376CEBH)

B = FGF376CE (FGF376CEBJ)

C = FGF376CE (FGF376CEBK)

D = FGF376CE (FGF376CESJ)

E = FGF376CE (FGF376CESK)

F = FGF376CE (FGF376CESL)

POS. NO PART NO DESCRIPTION

* 5303271648 A B C D E F Screw,wafer hd sq dr ,8-18AB x 1/2

1 # 316066201 A B C D E F Manifold Pipe

2 # 5303935130 A B C D E F Valve-top burner, small, (2)

2* 316048200 A B C D E F Screw-top valve mtg,hex washer head ,

1/4-20 x 0.31,w/gasket

2A # 5303935132 A B C D E F Valve-top burner,large ,(2)

3 # 316103600 A B C D E F Switch-ignitor,(4)

4 # 316059612 A B C D E F Tube-burner,red ,RF

5 # 316059613 A B C D E F Tube-burner,green ,LF

6 # 316059614 A B C D E F Tube-burner,nat. ,RR

7 # 316059615 A B C D E F Tube-burner,black ,LR

8 # 5303280394 A B C D E F Spark Module

8* 5303289034 A B C D E F Harness-wiring,module/igniter

10 # 5303935025 A B C D E F Burner Assy-top,sealed ,small ,9000 BTU

10A 5303935075 A B C D E F Burner Assy-top,sealed ,large ,

11,100 BTU,(2), includes ,

11,37,44,45,&50

11 # 316011200 A B C D E F Ignitor-top burner,(4) ,w/mtg bracket

13 # 316065005 A B C D E F Tube,aluminum ,rgltr to manf ,

with fittings

14 # 316091706 A B C D E F Regulator-pressure

14* 316021104 A B C D E F Screw-regulator/brkt,hex ,8-18 x 3/8 ,

nick, 3

15 316091600 A B C D E F Bracket-regulator

16 # 316065003 A B C D E F Tube-valve to rgltr,3/8

17 # 5303208499 A B C D E F Valve-safety,dual

18 # 3131290 A B C D E F Burner-oven

19 # 5303935066 A B C D E F Ignitor-oven

20 3131284 A B C D E F Baffle-oven burner

21 5303013272 A B C D E F Nut,hex head sems

22 # 316065002 A B C D E F Tube-valve to mixer

23 # 316087900 A B C D E F Burner-broiler

24 # 316070400 A B C D E F Mixer Elbow

25 5303210379 A B C D E F Baffle-broiler

26 # 5308067970 A B C D E F Ignitor-broiler

37 316069301 A B C D E F Screw-burner mtg

44 5303210090 A B C D E F Orifice-top burner,small

44 A 316010804 A B C D E F Orifice-top burner,large

45 316011100 A B C D E F Screw-ignitor mtg,self-tapping ,M3x5.8

46 316074700 A B C D E F Plate-burner tube

47 5303307190 A B C D E F LP Conversion Kit

BURNER

6/98 6

Publication number

5995310959 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 6/98

Publication number

FGF376CE 5995310959

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGF376CE (FGF376CEBH)

B = FGF376CE (FGF376CEBJ)

C = FGF376CE (FGF376CEBK)

D = FGF376CE (FGF376CESJ)

E = FGF376CE (FGF376CESK)

F = FGF376CE (FGF376CESL)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D E F Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

1 316029412 A B C D E F Back-main

2 3131314 A B C D E F Shield-oven top

3 316081026 A B C - - - Panel-bodyside,black ,RH

3 316081028 ---DEF Panel-bodyside,white ,RH

3* 316081027 A B C - - - Panel-bodyside,black ,LH

3* 316081029 ---DEF Panel-bodyside,white ,LH

4 316011914 A B C D E F Burner Box

5 5303203397 A B C D E F Screw-leveling

5* 3934058 A B C D E F Anti-tip Kit

5* 316078600 A B C D E F Screw,anti-tip ,(4)

5A 5303288460 A B C D E F Nut,T-type ,leveling screw

6 316067902 A B C D E F Rack-oven

7 316007002 A B C D E F Hinge-oven door,(2)

8 5303212540 A B C D E F Panel-oven bottom

8* 316064600 A B C D E F Support-oven bottom

9 316073800 A B C D E F Pan-broiler

10 3205234 A B C D E F Insert-broiler pan

12 # 316027701 A B C D E F Switch-oven light

13 316026800 A B C D E F Rod-light switch /door

14 3014073 A B C D E F Socket-light/lamp,oven

15 5303013071 A B C D E F Light Bulb/Lamp

16 08011086 A B C D E F Lens-light/lamp,glass ,oven

17 316087500 A B C D E F Retainer-lens

18 # 316036300 A B C D E F Latch-door

21 3014099 A B C D E F Spacer-bodyside,(8)

25A 316092300 A B C D E F Shield-warmer,upper

28 3011813 A B C D E F Clip-wire,bodyside

30 316059200 A B C D E F Bracket-main top,RH

30A 316059201 A B C D E F Bracket-main top,LH

33 316014401 A B C D E F Shield,rear wall

35 08067965 A B C D E F Gasket-flue

36 5303272844 A B C D E F Flue

37 # 316111200 A B C D E F Probe-oven temp

38 316051700 A B C D E F Shield-heat

38A 316097100 A B C D E F Insulator,shield

39 # 3131425 A B C D E F Cord-electric power

39* 316001003 A B C D E F Screw, ground

39* 08067961 A B C D E F Fastener-power cord

40 3200836 A B C D E F Shield-heat baffle

40* 5303288570 A B C D E F Screw-heat shield,hd shldr sqdr ,

8-18 X 1/2

41 3131570 A B C D E F Cover-hinge cutout

42 5303288578 A B C D E F Shield-bake burner

43 3131732 A B C D E F Screw-oven bottom,8-18 x 1.438

44 3131903 A B C D E F Bumper-door/drawer,rubber

49 3051124 A B C D E F Clip-spring mtg

53 5303288579 A B C D E F Shield-main front

53A 08067992 A B C D E F Shield-insulation

6/98 8

Publication number

5995310959 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 9 6/98

Publication number

FGF376CE 5995310959

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FGF376CE (FGF376CEBH)

B = FGF376CE (FGF376CEBJ)

C = FGF376CE (FGF376CEBK)

D = FGF376CE (FGF376CESJ)

E = FGF376CE (FGF376CESK)

F = FGF376CE (FGF376CESL)

POS. NO PART NO DESCRIPTION

55 316107800 A B C D E F Shield-flue

58A 316047705 A B C D E F Insulation,oven wrapper

58B 316054200 A B C D E F Insulation,oven back

58C 3131304 A ----- Insulation,oven top

58G 08067973 A B C D E F Insulation,main front

60 316021105 A B C D E F Screw,hex ,8-18 x 3/8 ,back\bodyside

72 5303285692 A B C D E F Cover-light/switch rod

77 316094900 A B C D E F Rail-drawer RH,outer

77A 316094901 A B C D E F Rail-drawer,LH, outter

88 316026400 A B C D E F Rod-latch,auto

89 # 316028103 A B C D E F Motor-latch/lock

155 316095201 A B C D E F Shield-drawer,front warmer

6/98 10

Publication number

5995310959 FGF376CE

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frigidaire Gamme

Frigidaire

Frigidaire LFGF3022LW Manuel du propriétaire

Frigidaire

Frigidaire GLCS376ABA Guide de l'utilisateur

Frigidaire

Frigidaire FPDS3085KF - 30" Slide-In Dual-Fuel Range Manuel utilisateur

Frigidaire

Frigidaire Professional FPCS3085LF Manuel utilisateur

Frigidaire

Frigidaire FEF336ASB Manuel utilisateur

Frigidaire

Frigidaire CGEF3036UD Manuel du propriétaire

Frigidaire

Frigidaire CFEF3012LWA Manuel utilisateur

Frigidaire

Frigidaire FEF364BXA Manuel utilisateur

Frigidaire

Frigidaire FGF355GWC Manuel utilisateur

Frigidaire

Frigidaire FPGF3685L S Feuille d'instructions

Frigidaire

Frigidaire CGGF3032MWA Manuel du propriétaire

Frigidaire

Frigidaire PLCF489GC - 40 Inch Dual Fuel Range Manuel utilisateur

Frigidaire

Frigidaire FPDS3085KF - 30" Slide-In Dual-Fuel Range Guide de démarrage rapide

Frigidaire

Frigidaire FEF362MXE Manuel utilisateur

Frigidaire

Frigidaire FGFL87GSE Manuel utilisateur

Frigidaire

Frigidaire FEF326A Manuel utilisateur

Frigidaire

Frigidaire FGGF3059TF Manuel du propriétaire

Frigidaire

Frigidaire Gallery GCRG3038AF Manuel utilisateur

Frigidaire

Frigidaire FED300D Manuel utilisateur

Frigidaire

Frigidaire FEF356CHTD Guide de démarrage rapide

Frigidaire

Frigidaire FGF351SG Manuel utilisateur

Frigidaire

Frigidaire Gas Range Guide de l'utilisateur

Frigidaire

Frigidaire FFEF4015LW Instructions d'installation

Frigidaire

Frigidaire FEF366A Manuel utilisateur

Manuels Gamme populaires d'autres marques

Samsung

Samsung FCQ321HTUW Manuel utilisateur

Kenmore

Kenmore 790.45712 Manuel utilisateur

Wolf

Wolf CHR CHSSR Manuel utilisateur

Smeg

Smeg Built-in Microwave Oven Mode d’emploi

Zanussi

Zanussi ZCG054G Manuel utilisateur

Whirlpool

Whirlpool 8575985-W Manuel de la liste des pièces

GE JCSS630 Manuel utilisateur

Samsung

Samsung NX58M9960P series Manuel utilisateur

Hotpoint

Hotpoint RB524R Guide d'installation

Whirlpool

Whirlpool Roper FGP305KW3 Manuel utilisateur

Amana

Amana ART6610 SERIES Manuel utilisateur

Maytag

Maytag MERH770WB Manuel utilisateur

Fulgor Milano

Fulgor Milano SOFIA Manuel utilisateur

Premier

Premier EF-4358GH Manuel utilisateur

Kenmore

Kenmore 790.9010 Series Manuel utilisateur

KitchenAid

KitchenAid KESC300 Manuel utilisateur

Diamond

Diamond G65/2F4T Manuel utilisateur

Samsung

Samsung NX58*565 Series Manuel utilisateur
