Frigidaire FGF312A Manuel utilisateur
PRODUCT NO. BASE MODEL NO. COLOR MARKET
FGF312ASA FGF312A white North America
Publication No.
5995357893
010820
-EN/SERVICE /ECL
369
GAS
RANGE
Model No.
FGF312A
©2001 White Consolidated Industries, Inc.
All rights reserved
FACTORY
PARTS CATALOG
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O. Box 212378, Augusta, GA 30917
WIRING DIAGRAM - # 316002153
OWNER’S GUIDE - # 316257501
INSTALLATION INSTRUCTIONS -# 316259300
08/01 2
Publication No. FGF312ASA
5995357893
BACKGUARD
# = Fast-moving Parts 3 08/01
* = Non-Illustrated Parts
FGF312ASA Publication No.
5995357893
BACKGUARD
POS. NO PART NO DESCRIPTION
9 316133501 Trim,splasher ,white ,lower
11 316057003 Trim,wrapper ,white
12 # 316032404 Thermostat
12* 316097602 Insulator
19 316034156 Panel,backguard ,white
30A 316064300 Nut,nylon
32 316102303 Knob,thermostat ,white
36 316009009 Knob,top valve ,white ,(4)
40 316201805 Panel,manifold ,white
44 3131468 Bracket,backguard
45A 316056903 Bolt,fastener ,nylon ,white ,(2)
94 316111300 Stiffener,backguard
* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome
* 316021109 Screw,8-18 x 0.5 ,chrome
* 316021110 Screw,8-18 x 0.5 ,black
08/01 4
Publication No. FGF312ASA
5995357893

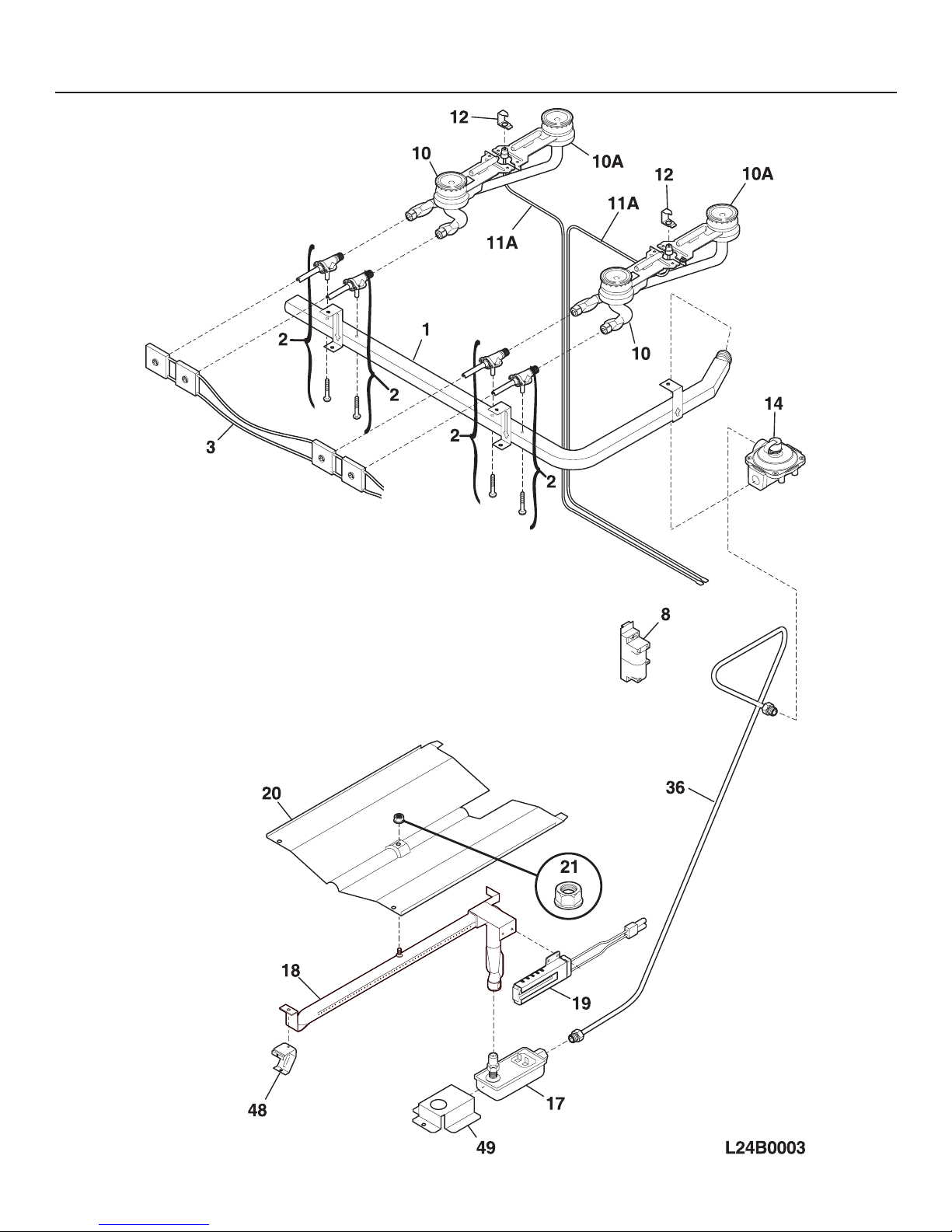

BURNER
# = Fast-moving Parts 5 08/01
* = Non-Illustrated Parts
FGF312ASA Publication No.
5995357893
BURNER
POS. NO PART NO DESCRIPTION
1 # 316134400 Pipe,manifold
2 # 5303935189 Valve,top burner ,2 position ,w/ mtg screw
* 316134300 • Screw,10-24 ,valve mounting
3 316001828 Wiring Harness,ignitor ,with switches
8 # 316135700 Module,spark
10 # 316103800 Burner,top ,front ,venturi ring
10A# 316103801 Burner,top ,rear ,venturi ring
11A# 316081705 Ignitor,top burner ,50"
12 3016993 Retainer,ignitor
14 # 316091705 Regulator,pressure
14* 316021104 Screw,hex ,8-18 x 3/8 ,nick ,(3) ,regulator brkt
17 # 3203459 Valve,safety
18 # 316114300 Burner,oven
19 # 5303935066 Ignitor,oven kit ,w/nut & instr
20 3203265 Baffle,oven burner
21 5303013272 Nut,hex head sems
36 316065004 Tubing,3/8 ,alum
48 3018603 Bracket,support ,oven burner
49 3131438 Bracket,safety valve
* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5
08/01 6
Publication No. FGF312ASA
5995357893
BODY
# = Fast-moving Parts 7 08/01
* = Non-Illustrated Parts
FGF312ASA Publication No.
5995357893
BODY
POS. NO PART NO DESCRIPTION
1 316029416 Panel,main back
3 316230102 Panel,bodyside ,white ,RH
3 316230103 Panel,bodyside ,white ,LH
4 316067206 Burner Box
5 316129200 Screw,leveling ,plastic ,with stop
6 316067902 Rack,oven
7 316205012 Hinge,oven door ,RH
7A 316205013 Hinge,oven door ,LH
8 5303300701 Panel,oven bottom
8* 316064600 Support,oven bottom
21 3014099 Spacer,bodyside
27 5303284616 Clip,thermo bulb mtg
32 316107501 Channel,burner support
32* 5303289684 Fastener,tanden wire ,(2)
33 316055601 Shield,spark module
34 3018607 Plate,cover
35 316116600 Gasket,flue
36 316103901 Flue,black
39 3202006 Cord,electric power
41 316233400 Cover,hinge cutout ,RH
41A 316233500 Cover,hinge cutout ,LH
43 3131732 Screw,8-18 x 1.438 ,oven bottom
58A 3017142 Insulation,oven wrapper
58B 3203541 Insulation,oven back
69 3051218 Plate,oven light
73 316109902 Base,low broil
93 316110000 Shield,ignitor ,metal
170 5303935180 Anti-tip Kit,w/bracket,screw
170* 316107200 Bracket,anti-tip
170* 316112500 Template,anti-tip
170* 316116000 Screw,concrete tpg ,1.75 inch ,anti-tip brkt
185 316112900 Shield,thermo bulb
* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome
* 316246400 Plug,button ,oven probe
* 316249200 Plate,weight
* 5303305324 Paint,touch-up ,white
* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312
* 5303285179 Screw,wafer head ,8-32T x 0.500 ,black
* 5303271648 Screw,wafer hd sq dr ,8-18AB x 0.5
08/01 8
Publication No. FGF312ASA
5995357893
TOP/DRAWER
# = Fast-moving Parts 9 08/01
* = Non-Illustrated Parts
FGF312ASA Publication No.
5995357893
TOP/DRAWER
POS. NO PART NO DESCRIPTION
1 316110201 Carriage,low broil
2 316236401 Liner,low broil
2A 316110800 Shield,broiler
2B 316237600 Shield,low broil ,top
4 316231211 Panel,drawer ,white
5 316129100 Fastener,push-in nut ,nylon ,spacer
9 316081900 Pan,broiler
10 316082000 Insert,broiler pan
13 316111502 Glide,low broil ,chassis
13A 316111600 Glide,low broil ,inner
13B 316111501 Glide,low broil ,outer
16 316104401 Main Top,white
17 316066900 Rod,maintop support
18 08067747 Bracket,hinge ,main top RH
18A 08067746 Bracket,hinge ,main top LH
20 # 316088900 Grate,black ,(4)
25 316104500 Cover,vent ,chrome
39 316019511 Handle,drawer ,white
85 316115600 Rack,low broil
* 316021108 Screw,cup pt ,8-18 x 0.375 ,chrome
* 316021110 Screw,8-18 x 0.5 ,black
* 316021120 Screw,shoulder head ,8-18 x 5/8 ,(2) ,square drive
* 5303280311 Screw,wafer hd sq dr ,10-32 x 0.312
08/01 10
Publication No. FGF312ASA
5995357893
DOOR
