Frigidaire FEF365BGDC Manuel utilisateur

FACTORY PARTS CATALOG

ELECTRIC RANGE

P.O. Box 212378

Augusta, Georgia 30917

PRODUCT NO. BASE MODEL NO. COLOR MARKET

FEF365BGWC FEF365BG WHITE USA

FEF365BGDC FEF365BG ALMOND USA

FEF365CGSC FEF365CG WHITE/WHITE USA

FEF365CGBC FEF365CG BLACK/BLACK USA

Publication No.

5995315404

980731

-EN/SERVICE /VLM

369

WIRING DIAGRAM # - 316002662

OWNER’S GUIDE # - 316000268

INSTALLATION GUIDE # - 316003025 ELECTRIC - RANGE

FEF365BGWC

FEF365BGDC

FEF365CGSC

FEF365CGBC

01/98 2

Publication number

5995315404 FEF365BGDC, FEF365BGWC, FEF365CGSC, FEF365CGBC

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

# - Fast Moving Parts

* - Non Illustrated Parts 3 6/98

Publication number

FEF365BGDC, FEF365BGWC, FEF365CGSC, FEF365CGBC 5995315404

CAUTION: Use the part number on all orders, not the position number.

BACKGUARD

A = FEF365BG (FEF365BGWC)

B = FEF365BG (FEF365BGDC)

C = FEF365CG (FEF365CGSC)

D = FEF365CG (FEF365CGBC)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D Screw-8-18x1/2 Tr Sqd black

* 316071902 A B C D Gasket-edge

* 316085600 A B C D Insulator-shield thermostt

* 316112500 A B C D Template, Anti-tip bracket

1 316081601 A B C D Shield-backguard,rear wall

2 316015905 A B C D Shield-backguard,inner

11 316061851 A B - D Trim-wrapper,textured ,black

11 316061852 - - C - Trim-wrapper,textured ,white

11 316083719 A B - D Trim-wrapper,textured ,black

11 316083721 - - C - Trim-wrapper,, textured , white

14 316022504 A B C D Light-indicator

15 316023108 A B C D Support-backguard,RH

15A 316023109 A B C D Support-backguard,LH

19 316100534 A B - D Panel-control,metal ,black

19 316100535 - - C - Panel-backguard, white,white

20 # 316101001 A B C D Clock/Timer,electronic

20* 316101502 - - C - Overlay-clock

20* 316101503 A B - D Overlay-clock

23 316100300 A B C D Bracket-clock mtg

24 # 316005602 A B - D Switch-rocker,oven light ,black

24 # 316005607 - - C - Switch-rocker,oven light ,white

36 316025106 - - C - Knob-control,infinite sw ,white

36 316025108 A B - D Knob-control, infinite sw, black

40 316025800 A B - D Panel-manifold

40 316025808 - - C - Panel-manifold,white

46 316040201 A B C D Lens-light/lamp,indicator ,red

54 # 316021500 A B C D Switch-infinite, 6" element

54A# 316021501 A B C D Switch-infinite, 8" element

69 5303292005 A B C D Screw-switch mtg,8-32 x 5/32

01/98 4

Publication number

5995315404 FEF365BGDC, FEF365BGWC, FEF365CGSC, FEF365CGBC

CAUTION: Use the part number on all orders, not the position number.

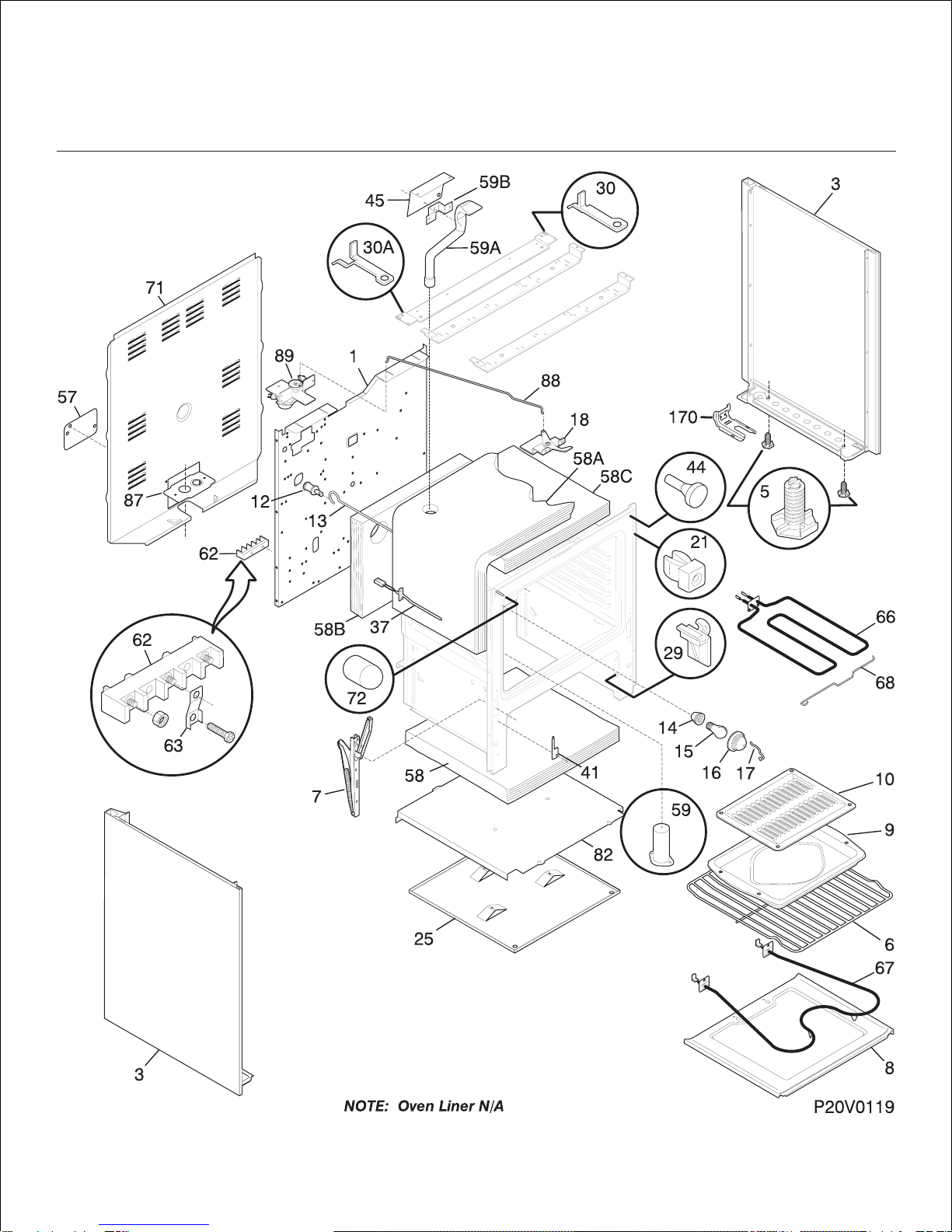

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 5 01/98

Publication number

FEF365BGDC, FEF365BGWC, FEF365CGSC, FEF365CGBC 5995315404

CAUTION: Use the part number on all orders, not the position number.

BODY

A = FEF365BG (FEF365BGWC)

B = FEF365BG (FEF365BGDC)

C = FEF365CG (FEF365CGSC)

D = FEF365CG (FEF365CGBC)

POS. NO PART NO DESCRIPTION

* 3203550 A B C D Plug-button

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316045000 A B C D Clip-wire,harness ,main top

* 316101600 A B C D Shield-vent,smoothtop

* 5303051099 A B C D Nut,hex ,#10-32

1 316080804 A B C D Back-main, short,dipped ,black

3 316081034 A - C - Panel-bodyside,white ,RH

3 316081035 A - C - Panel-bodyside,white ,LH

3 316081036 - B - - Panel-bodyside,almond ,RH

3 316081037 - B - - Panel-bodyside,almond ,LH

3 316081038 ---D Bodyside-Panel RH, textured

3 316081039 ---D Bodyside-Panel LH, textured

5 316107300 A B C D Screw-leveling

6 316067902 A B C D Rack-oven

7 316007002 A B C D Hinge-oven door,(2)

8 3203540 A B C D Panel-oven bottom

9 316073800 A B C D Pan-broiler

10 3205234 A B C D Insert-broiler pan

12 # 316027701 A B C D Switch-oven light

13 316026800 A B C D Rod-light switch /door

14 316116400 A B C D Socket-light

15 5303013071 A B C D Light Bulb/Lamp

16 08011086 A B C D Lens-light/lamp,glass ,oven

17 316087500 A B C D Retainer-lens

18 # 316036300 A B C D Latch-door

21 3014099 A B C D Spacer-bodyside,(8)

25 3200848 A B C D Shield-heat,lower

29 3051162 A B C D Glide-drawer,front

30 5303283574 A B C D Bracket-hinge,main top RH

30A 5303283575 A B C D Bracket-hinge,main top LH

37 # 316111200 A B C D Probe-oven temp

41 3131570 A B C D Cover-hinge cutout

44 3131903 A B C D Bumper-door/drawer,rubber

45 316066100 A B C D Shield-wire, s/t vent

57 316081101 A B C D Cover-access

58 3200847 A B C D Insulation,oven bottom

58A 316047708 A B C D Insulation,oven wrapper

58B 316054200 A B C D Insulation,oven back

59 316073602 A B C D Tube-oven vent

59A 316023601 A B C D Tube-oven vent,upper

59B 316040100 A B C D Bracket-mounting,vent tube

62 # 5303935061 A B C D Terminal Block

63 5301145190 A B C D Plate-ground strap

66 # 5303051140 A B C D Element-broil

67 # 316075102 A B C D Element-bake,lower oven

68 316075300 A B C D Support-element, broil

71 316015805 A B C D Shield-rear wall

72 5303285692 A B C D Cover-light/switch rod

82 5303289913 A B C D Shield-insulation

01/98 6

Publication number

5995315404 FEF365BGDC, FEF365BGWC, FEF365CGSC, FEF365CGBC

CAUTION: Use the part number on all orders, not the position number.

BODY

# - Fast Moving Parts

* - Non Illustrated Parts 7 01/98

Publication number

FEF365BGDC, FEF365BGWC, FEF365CGSC, FEF365CGBC 5995315404

CAUTION: Use the part number on all orders, not the position number.

BODY

87 316081200 A B C D Bracket-cable mtg

88 316026400 A B C D Rod-latch,auto

89 # 316028101 A B C D Motor-latch/lock

170 316107200 A B C D Anti-tip bracket

170* 316116000 A B C D Screw-Anti tip, 1.75" concrete

01/98 8

Publication number

5995315404 FEF365BGDC, FEF365BGWC, FEF365CGSC, FEF365CGBC

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

# - Fast Moving Parts

* - Non Illustrated Parts 9 01/98

Publication number

FEF365BGDC, FEF365BGWC, FEF365CGSC, FEF365CGBC 5995315404

CAUTION: Use the part number on all orders, not the position number.

TOP/DRAWER

A = FEF365BG (FEF365BGWC)

B = FEF365BG (FEF365BGDC)

C = FEF365CG (FEF365CGSC)

D = FEF365CG (FEF365CGBC)

POS. NO PART NO DESCRIPTION

* 316021108 A B C D Screw,cup pt ,#8-18 x 3/8 ,hinge ,

ind lght brkt,manifold pnl

* 316021110 A B C D Screw-8-18x1/2 Tr Sqd black

* 316021112 A - C - Screw-8-18x1/2 Tr Sqd White

* 316021113 - B - - Screw-8-18x1/2 Tr Sqd Almond

* 316045000 A B C D Clip-wire,harness ,main top

* 316089600 A B C D Spacer-drawer,(2)

* 5303280311 A B C D Screw,waf hd sdr ,10-32 x 5/16 ,(2)

* 5309951550 A B C D Cleaner-cooktop

1 316011501 A B C D Drawer-utility

2 3131975 A B C D Shield-panel

4 316084405 A - C - Panel-drawer,white

4 316084406 - B - - Panel-drawer,almond

4 316084407 ---D Panel-drawer,black

4* 08067785 - B - - Screw,hex washer head ,8-18AB x 1/2

7 3051163 A B C D Glide-drawer,rear

10 5303280308 A B C D Screw-handle mtg,wafer head ,10-24T x 2

15 316010204 A B C D Element-surface,radiant ,

large/8 inch/RF,2100W ,(2) ,

limit sw incl

15B# 316010203 A B C D Element-surface,radiant ,small/6 inch ,

1200W,(2) ,limit sw incl

16 316098103 A - - - Main Top,white

16 316098104 - B - - Main Top,smooth top ,almond

16 316098105 - - C - Main Top,white

16 316098137 ---D Maintop, smoothtop,black

18 5303273062 A B C D Hinge-main top,RH

18A 5303273063 A B C D Hinge-main top,LH

26 316099101 A B C D Channel-support,element ,(2)

26A 316099201 A B C D Bracket-support, chassis

44 3131903 A B C D Bumper-door/drawer,rubber

48 316100200 A B C D Shield-wire,main top

51 80142193 A B C D Indicator light

52 316099400 A B C D Clip-spring, element mtg,(8)

53 316099300 A B C D Bracket-indicator light,hot surface ,

4 hole

60 316021105 A B C D Screw,hex ,8-18 x 3/8 ,back\bodyside

88 316099500 A B C D Pin-guide,(2)

01/98 10

Publication number

5995315404 FEF365BGDC, FEF365BGWC, FEF365CGSC, FEF365CGBC

CAUTION: Use the part number on all orders, not the position number.

DOOR
