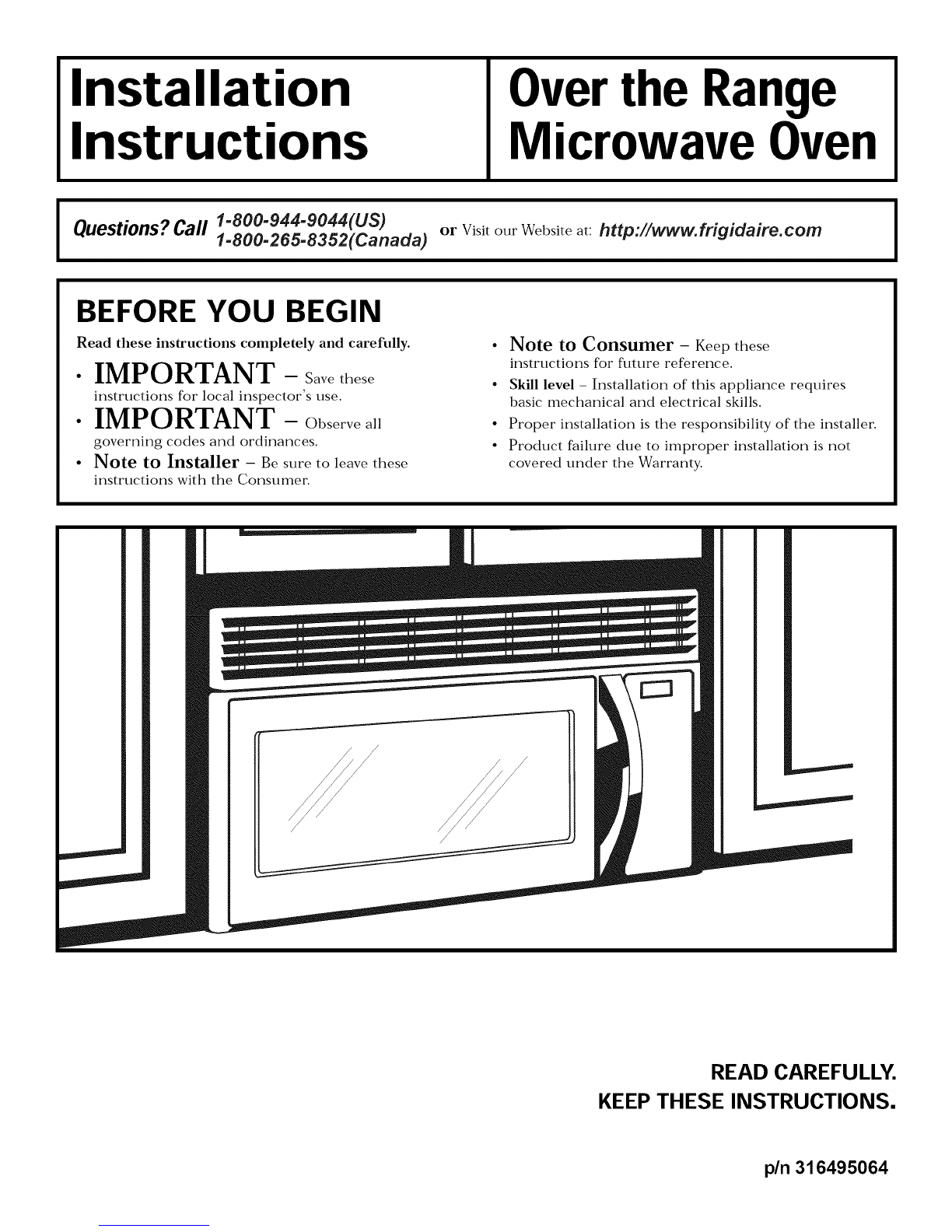

Installation

Instructions Overthe Range

Microwave Oven

IQuestions? Carl 1-800-944-9044(us)

1-800-265-8352(Canada) or Visit our Website at: http://www.frigidaire.com I

BEFORE YOU BEGIN

Read these instructions completely and carefully.

• IMPORTANT -Savethese

instructions for local inspector's use.

• IMPORTANT - Observoall

governing codes and ordinances.

•Note to Installer -Be sure to leave these

instructions with the Consumer.

•Note to Consumer -Keep these

instructions for future reference.

•Skill level - Installation of this appliance requires

basic mechanical and electrical skills.

•Proper installation is the responsibility of the installer.

•Product failure due to improper installation is not

covered under the Warranty.

READ CAREFU LLY.

KEEP THESE INSTRUCTIONS.

pin 316495064

Installation Instructions

CONTENTS

General information

Important Safety Instructions .................................. 3

Electrical Requirements .......................................... 3

Damage - Shipment/Installation .............................. 4

Parts Included .......................................................... 4

Tools You Will Need ................................................ 5

Mounting Space ...................................................... 5

Step-by-step installation guide

Placement of The Mounting Plate ...................... 6-8

Removing the Mounting Plate ...................... 6

Finding the Wall Studs .................................. 6

Determining Wall Plate Location .................. 7

Aligning the Wall Plate ................................ 8

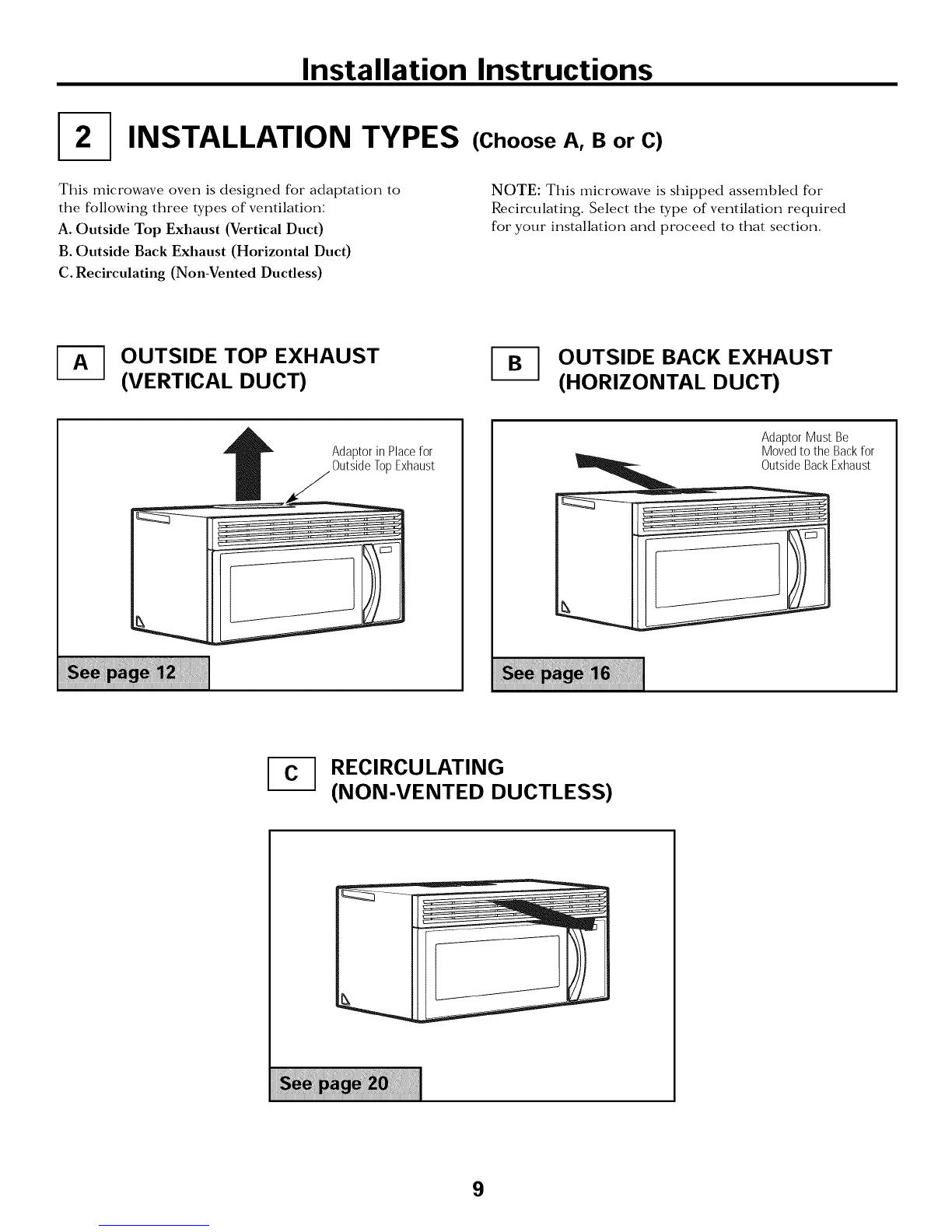

Installation Types ................................................ 9-22

Hood Exhaust .................................................. 10-11

_ Outside Top ............................

Exhaust 12-15

Attach Mounting Plate to Wall ............ 12

Preparation of Top Cabinet ................ 13

Adapting Microwave Blower for

Outside top Exhaust .................. 13-14

Checking for Proper Damper

Operation ............................................ 14

Mount the Microwave Oven .......... 14-15

Adjust the Exhaust Adaptor ................ 15

Connecting Ductwork .......................... 15

1_ Outside Back Exhaust 16-19

Preparing Rear Wall for

Outside Back Exhaust .......................... 16

Remove Blower Plate .............................. 16

Attach Mounting Plate to Wall ............ 17

Preparation of Top Cabinet ................ 17

[]

Adapting Microwave Blower

for Outside Back Exhaust ................ 17-18

Mount the Microwave Oven ................ 19

Recirculating ........................................ 20 -22

Attach Mounting Plate to Wall ............ 20

Preparation of Top Cabinet ................ 20

Check Blower Plate ............................ 21

Mount the Microwave Oven .......... 21-22

Before You Use Your Microwave .......................... 23

Installation Instructions

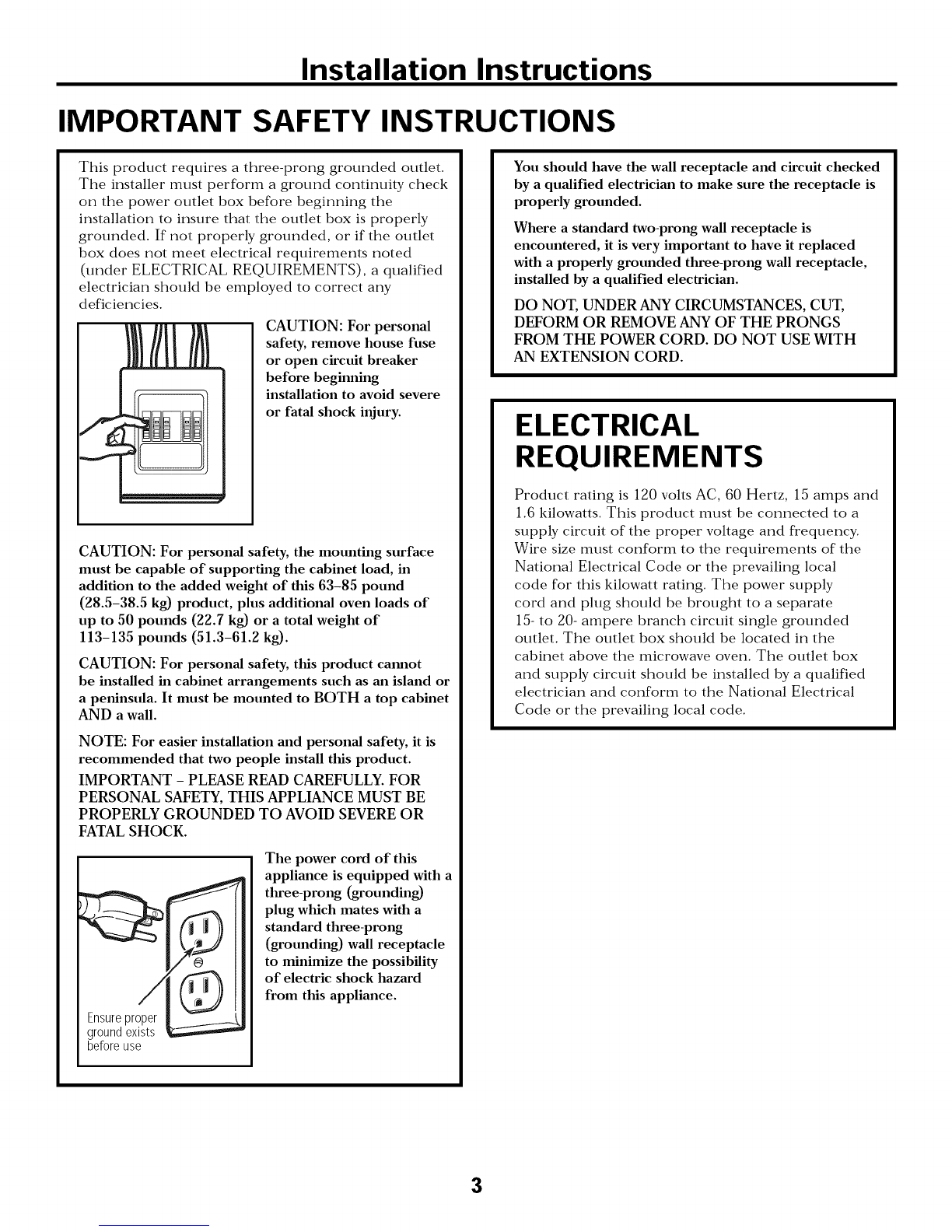

IMPORTANT SAFETY INSTRUCTIONS

This product requires a three-prong grounded outlet.

The installer" must perform a ground continuity check

on the power" outlet box before beginning the

installation to insure that the outlet box is properly

grounded. If not properly grounded, or" if the outlet

box does not meet electrical requirements noted

(under ELECTRICAL REQUIREMENTS), a qualified

electrician should be employed to correct any

deficiencies.

CAUTION: For personal

safety, remove house fuse

or open circuit breaker

before beginning

installation to avoid severe

or fatal shock injury.

CAUTION: For personal safety, the mounting surface

must be capable of supporting the cabinet load, in

addition to the added weight of this 63-85 pound

(28.5-38.5 kg) product, plus additional oven loads of

up to 50 pounds (22.7 kg) or a total weight of

113-135 pounds (51.3-61.2 kg).

CAUTION: For personal safety, this product cannot

be installed in cabinet arrangements such as an island or

a peninsula. It must be mounted to BOTH a top cabinet

AND a wall.

NOTE: For easier installation and personal safety, it is

recommended that two people install this product.

IMPORTANT - PLEASE READ CAREFULLY. FOR

PERSONAL SAFETY, THIS APPLIANCE MUST BE

PROPERLY GROUNDED TO AVOID SEVERE OR

FATAL SHOCK.

Ensureproper

groundexists

beforeuse

The power cord of this

appliance is equipped with a

three-prong (grounding)

plug which mates with a

standard three-prong

(grounding) wall receptacle

to minimize the possibility

of electric shock hazard

from this appliance.

You should have the wall receptacle and circuit checked

by a qualified electrician to make sure the receptacle is

properly grounded.

Where a standard two-prong wall receptacle is

encountered, it is very important to have it replaced

with a properly grounded three-prong wall receptacle,

installed by a qualified electrician.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT,

DEFORM OR REMOVE ANY OF THE PRONGS

FROM THE POWER CORD. DO NOT USE WITH

AN EXTENSION CORD.

ELECTRICAL

REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 15 amps and

1.6 kilowatts. This product must be connected to a

supply circuit of the proper voltage and frequency.

Wire size must conform to the requirements of the

National Electrical Code or the prevailing local

code for this kilowatt rating. The power supply

cord and plug should be brought to a separate

15- to 20- ampere branch circuit single grounded

outlet. The outlet box should be located in the

cabinet above the microwave oven. The outlet box

and supply circtfit should be installed by a qualified

electrician and conform to the National Electrical

Code or the prevailing local code.

Installation Instructions

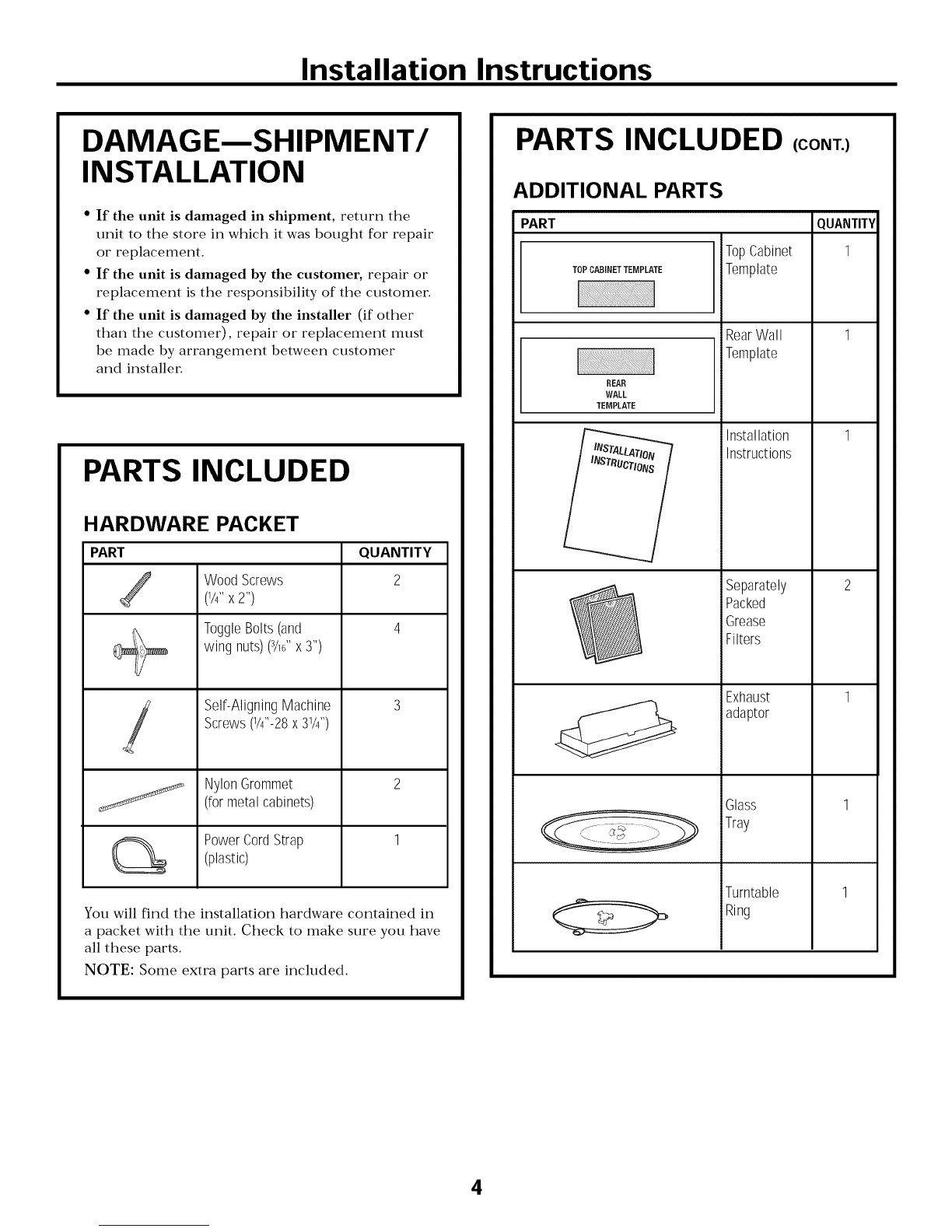

DAMAGE--SHIPMENT/

INSTALLATION

• If the unit is damaged in shipment, return the

unit to the store in which it was bought for repair

or replacement.

•If the unit is damaged by the customer, repair or

replacement is the responsibility of the customer.

•If the unit is damaged by the installer (if other

than the customer), repair or replacement must

be made by arrangement between customer

and installer

PARTS INCLUDED

HARDWARE PACKET

PART

Wood Screws

(1/4" X 2")

ToggleBolts(and

wingnuts)(3/16"x3")

Self-AligningMachine

Screws(1/4"-28x 31/4'')

NylonGrommet

(formetalcabinets)

PowerCordStrap

(plastic)

QUANTITY

You will find the installation hardware contained in

a packet with the unit. Check to make sure you have

all these parts.

NOTE: Some extra parts are included.

PARTS INCLUDED (CONT.)

ADDITIONAL PARTS

PART

TOPCABINETTEMPLATE

REAR

WALL

TEMPLATE

TopCabinet

Template

RearWall

Template

Installation

Instructions

Separately

Packed

Grease

Filters

Exhaust

adaptor

Glass

Tray

Turntable

Ring

QUANTITY

Installation Instructions

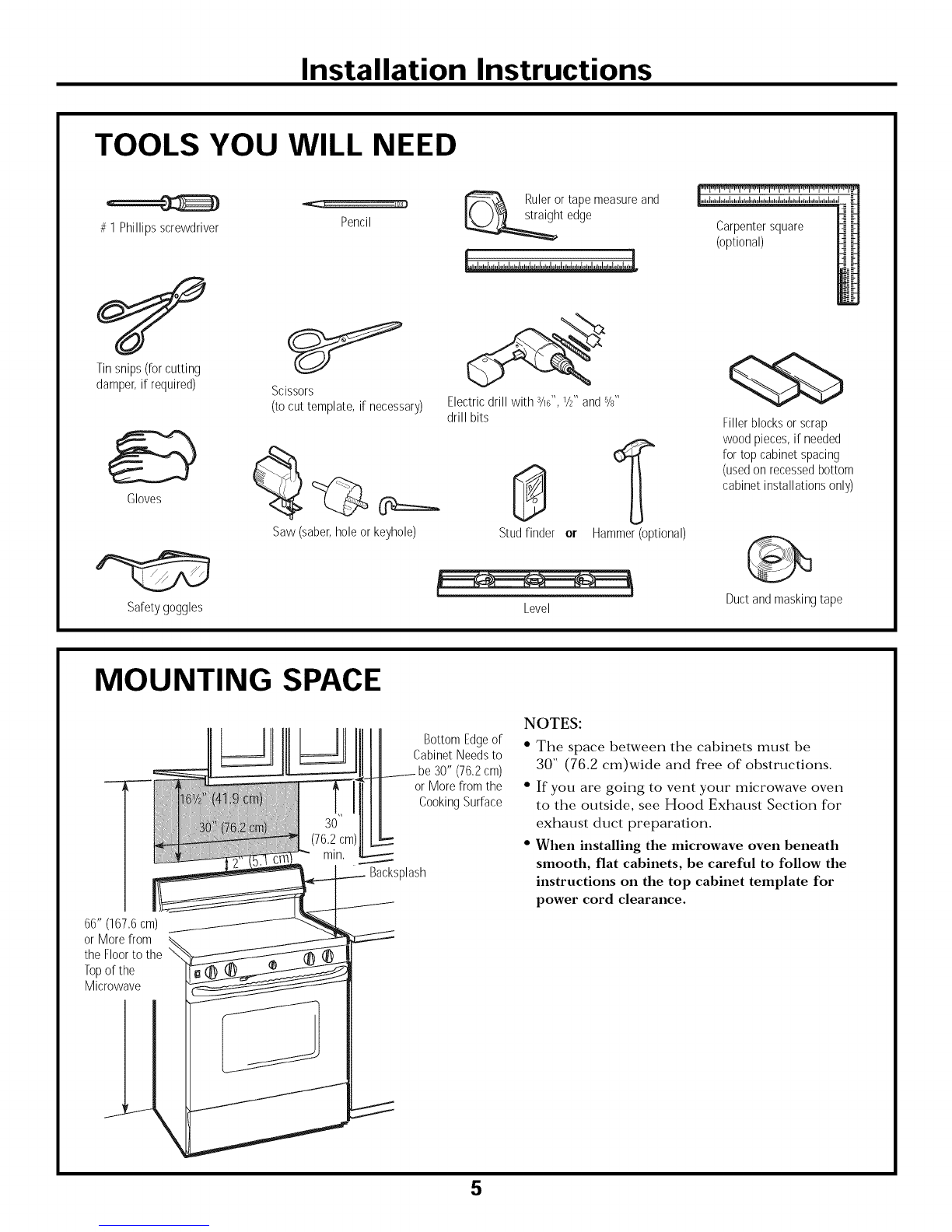

TOOLS YOU WILL NEED

# 1Phillipsscrewdriver

Tin snips (for cutting

damper, if required)

Gloves

Safetygoggles

Pencil Ruler or tape measure and

t edge

Scissors

(to cut template, if necessary)

Saw (saber,hole or keyhole)

Electric drill with 3/16",1/2"and %"

drill bits 0

Stud finder or Hammer (optional)

Level

Carpentersquare

(optional)

Fillerblocksor scrap

woodpieces,if needed

for top cabinetspacing

(usedonrecessedbottom

cabinetinstallationsonly)

Duct and masking tape

MOUNTING SPACE

66" (167,6cm)

or Morefrom

the Floorto the

Topof the

Microwave

_lash

BottomEdgeof

CabinetNeedsto

be30" (76,2cm)

or Morefrom the

CookingSurface

NOTES:

• The space between the cabinets must be

30" (76.2 cm)wide and free of obstructions.

• If you are going to vent your microwave oven

to the outside, see Hood Exhaust Section for

exhaust duct preparation.

•When installing the microwave oven beneath

smooth, flat cabinets, be careful to follow the

instructions on the top cabinet template for

power cord clearance.

Installation Instructions

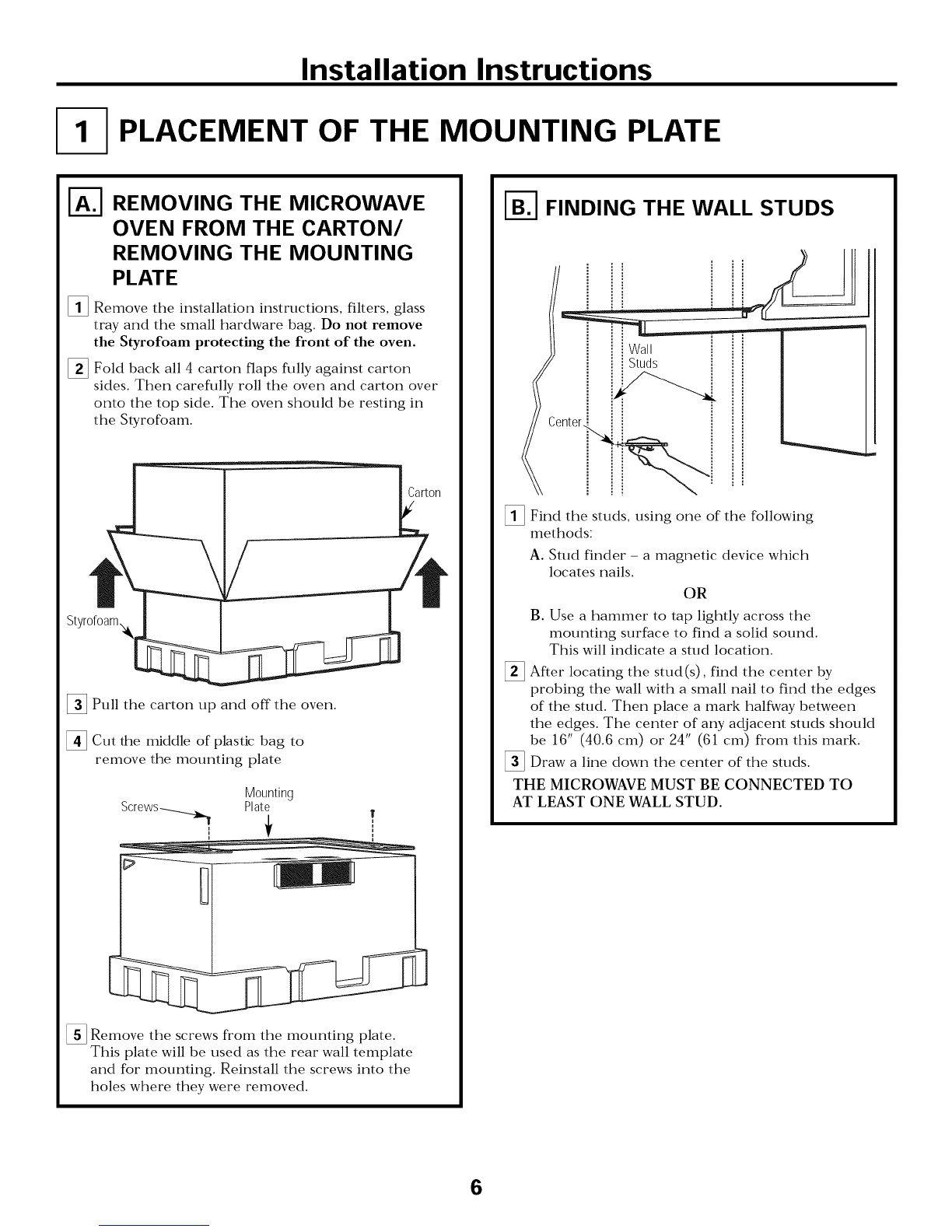

PLACEMENT OF THE MOUNTING PLATE

I-_ REMOVING THE MICROWAVE

OVEN FROM THE CARTON/

REMOVING THE MOUNTING

PLATE

[]Remove the installation instructions, filters, glass

tray and the small hardware bag. Do not remove

the Styrofoam protecting the front of the oven.

[] Fold back all 4 carton flaps fully against carton

sides. Then carefully roll the oven and carton over

onto the top side The oven should be resting in

the Styrofoam.

Styrofoam_

[]Pull the carton up and off the oven

[]Cut the middle of plastic bag to

remove the mounting plate

Mounting

Screws-_ Plate f

[]Remove the screws from the mounting plate.

This plate will be used as the rear wall template

and for mounting. Reinstall the screws into the

holes where they were removed.

I-_ FINDING THE WALL STUDS

[]Find the studs, using one of the following

methods:

A. Stud finder - a magnetic device which

locates nails.

B. Use a hammer to tap lightly across the

mounting surface to find a solid sound.

This will indicate a stud location

[] After locating the stud(s), find the center by

probing the wall with a small nail to find the edges

of the stud. Then place a mark halfway between

the edges. The center of any adjacent studs should

be 16" (40.6 cm) or 24" (61 cm) from this mark.

[]Draw a line down the center of the studs.

THE MICROWAVE MUST BE CONNECTED TO

AT LEAST ONE WALL STUD.

Installation Instructions

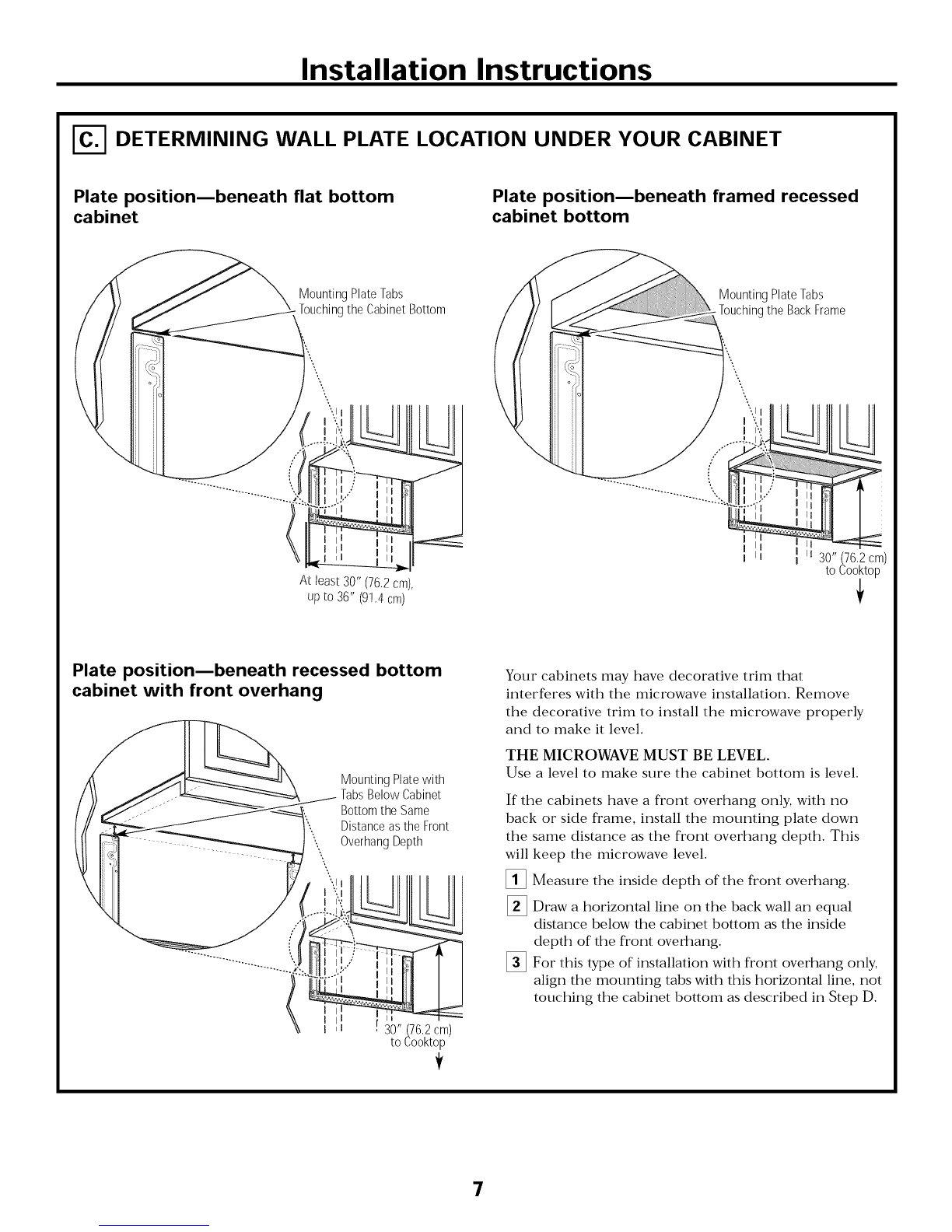

DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

Plate positionmbeneath flat bottom

cabinet Plate positionmbeneath framed recessed

cabinet bottom

MountingPlateTabs

Touchingthe CabinetBottom

At least30" (76.2cm),

upto 36" (9!.4 cm)

MountingPlateTabs

.Touchingthe BackFrame

I ii 30" (76,2 cm)

to Cooktop

Plate position_beneath recessed bottom

cabinet with front overhang

Mounting Plate with

Tabs Below Cabinet

Bottom the Same

Distance as the Front

Overhang Depth

30" (76,2 cm)

to Cooktop

Your cabinets may have decorative trim that

interferes with the microwave installation. Remove

the decorative trim to install the microwave properly

and to make it level.

THE MICROWAVE MUST BE LEVEL.

Use a level to make sure the cabinet bottom is level.

If the cabinets have a front overhang only, with no

back or side frame, install the mounting plate down

the same distance as the front overhang depth. This

will

[]

keep the microwave level.

Measure the inside depth of the front overhang.

Draw a horizontal line on the back wall an equal

distance below the cabinet bottom as the inside

depth of the front overhang.

For this type of installation with front overhang only,

align the mounting tabs with this horizontal line, not

touching the cabinet bottom as described in Step D.

Installation Instructions

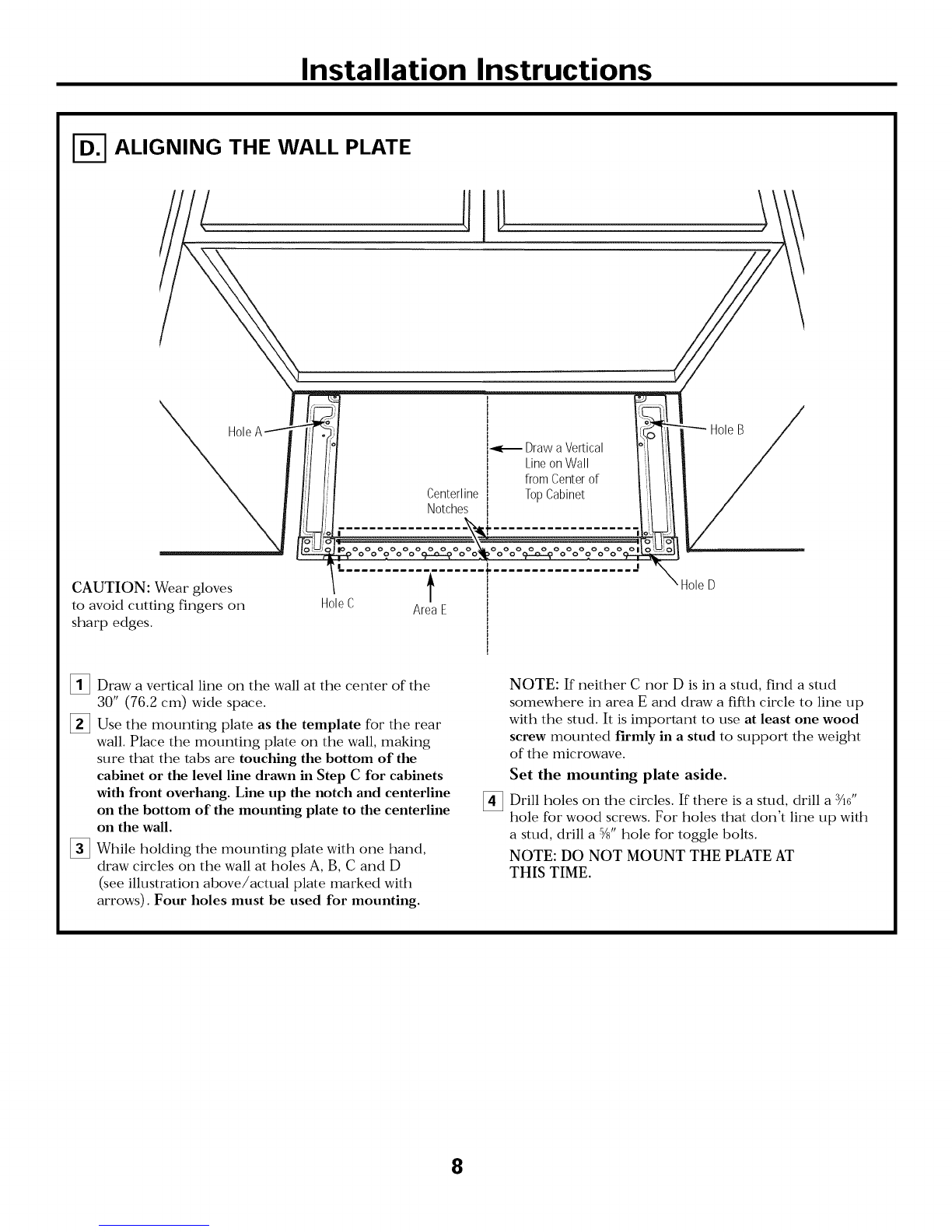

ALIGNING THE WALL PLATE

CAUTION: Wear gloves

to avoid cutting fingers on

sharp edges.

. s

[_-_ Draw a Vertical °:t

[ Line on Wall _I

l from Center of ,:1

Centerline [ Top Cabinet i!t

Notches [ J:l

-_? o o ?o o cF--o---_o c _ o oOr---o-_o o o_

I ,

Hole C Area E

\ HoleD

[]Draw a vertical line on the wall at the center of the

30" (76.2 cm) wide space.

[]Use the mounting plate as the template for the rear

wall. Place the mounting plate on the wall, making

sure that the tabs are touching the bottom of the

cabinet or the level line drawn in Step C for cabinets

with front overhang. Line up the notch and centerline

on the bottom of the mounting plate to the centerline

on the wall.

[]While holding the mounting plate with one hand,

draw circles on the wall at holes A, B, C and D

(see illustration above/actual plate marked with

arrows). Four holes must be used for mounting.

[]

NOTE: If neither Cnor Dis in a stud, find a stud

somewhere in area Eand draw a fifth circle to line up

with the stud. It is important to use at least one wood

screw mounted firmly in a stud to support the weight

of the microwave.

Set the mounting plate aside.

Drill holes on the circles. If there is a stud, drill a 3/16'1

hole for wood screws. For holes that don't line up with

a stud, drill a 5/8" hole for toggle bolts.

NOTE: DO NOT MOUNT THE PLATE AT

THIS TIME.

Installation Instructions

INSTALLATION TYPES

This microwave oven is designed for adaptation to

the following three types of ventilation:

A. Outside Top Exhaust (Vertical Duct)

B. Outside Back Exhaust (Horizontal Duct)

C. Recirculating (Non-Vented Ductless)

(Choose A, B or C)

NOTE: This microwave is shipped assembled for

Recirculating. Select the type of ventilation required

for your installation and proceed to that section.

-_ OUTSIDE TOP EXHAUST

(VERTICAL DUCT) OUTSIDE BACK EXHAUST

(HORIZONTAL DUCT)

Adaptorin Placefor

OutsideTopExhaust

AdaptorMust Be

Movedto the Backfor

OutsideBackExhaust

[_ RECIRCULATING

(NON-VENTED DUCTLESS)

Installation Instructions

HOOD EXHAUST

NOTE: Read these next two pages only if you plan to vent your exhaust to the

outside. If you plan to recircnlate the air back into the room, proceed to page 6.

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible

ductwork installation.

DUCT PIECES

[]

Roof Cap

12Ft,(3,6m)StraightDuct

(6'715,2cmRound)

EQUIVALENT NUMBER EQUIVALENT

LENGTH x USED = LENGTH

Rectangular-to-Round

TransitionAdaptor*

24 Ft,(7,3m) x (1)

12Ft,(3,6m) x (1)

[]

5 Ft,(1,5m) x

Equivalentlengthsof ductpiecesare basedon actualtests and

reflectrequirementsfor goodventingperformancewith anyventhood,

(1)

24 Ft,(7,3m)

12Ft,(3,6m)

5 Ft,(1,5m)

Total Length = 41 Ft. (12.5 m)

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper

will have to be cut to fit, using the tin snips, ira order to allow fi'ee movement of the damper'.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible

ductwork installation.

EQUIVALENT

DUCT PIECES LENGTH* x

_[_ Cap (12,2m) x

Wall 40Ft,

3 Ft,StraightDuct 3 Ft,(0,9m) x

(31/g'x 10'78,2x25,4cm

_- Rectangular)

90° Elbow 10Ft,(3m) x

NUMBER

USED

(1)

(1) =

(2) =

EQUIVALENT

LENGTH

40Ft,(12,2m)

3 Ft,(0,9m)

20Ft,(3m)

Equivalentlengthsof ductpiecesarebasedonactualtestsand

reflectrequirementsforgoodventingperformancewith anyvent hood, Total Length = 63 Ft. (19.2 m)

NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared

at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frigidaire Four à micro-ondes

Frigidaire

Frigidaire GLMV168C Manuel utilisateur

Frigidaire

Frigidaire FFCE1431LB Manuel de service

Frigidaire

Frigidaire FFCE1638L S Manuel utilisateur

Frigidaire

Frigidaire FFMV152CLB Manuel utilisateur

Frigidaire

Frigidaire FGBM187K Manuel utilisateur

Frigidaire

Frigidaire FGMO3067UD Manuel du propriétaire

Frigidaire

Frigidaire FGMV185KB - Gallery 1.8 cu. Ft. Microwave Manuel utilisateur

Frigidaire

Frigidaire LEVM30FE Manuel utilisateur

Frigidaire

Frigidaire FGMV185KB - Gallery 1.8 cu. Ft. Microwave Guide de démarrage rapide

Frigidaire

Frigidaire MWV150KB - 1.5 cu. Ft. Microwave Manuel utilisateur

Frigidaire

Frigidaire CFMV145 Manuel utilisateur

Frigidaire

Frigidaire FFCE2238L B Manuel utilisateur

Frigidaire

Frigidaire MWV150KB - 1.5 cu. Ft. Microwave Manuel de service

Frigidaire

Frigidaire M044K Series Manuel du propriétaire

Frigidaire

Frigidaire Oven Guide de démarrage rapide

Frigidaire

Frigidaire FFCE2238LB Manuel utilisateur

Frigidaire

Frigidaire PLMBZ209GC - 2.0 cu. Ft. Microwave Oven Manuel utilisateur

Frigidaire

Frigidaire FMV152KB - 1.5 Cu Ft Microwave Manuel utilisateur

Frigidaire

Frigidaire CGBM185KBB Manuel du propriétaire

Frigidaire

Frigidaire FGMV173KQ - Gallery Series Microwave Guide de démarrage rapide

Frigidaire

Frigidaire FGBM205KB Manuel du propriétaire

Frigidaire

Frigidaire FFCT1278LS Manuel utilisateur

Frigidaire

Frigidaire CFMV145BC Manuel utilisateur

Frigidaire

Frigidaire Oven circuit Guide de démarrage rapide

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
