Frigidaire FMV156D Manuel utilisateur

FMV156D.tif FMV156D Cabinet.eps FMV156D Controls.eps FMV156 wiring

schematic.eps

Product No. FMV156DBA FMV156DCA FMV156DQA FMV156DSA

Market North America North America North America North America

Color black stainless steel bisque white

Volts 120 120 120 120

Watts 950 950 950 950

Wiring Diagram 5995415998 5995415998 5995415998 5995415998

Owner's Guide 316137230 316137230 316137230 316137230

Installation Instructions 316137333 316137333 316137333 316137333

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995415998

04/09/08

(EN/SERVICE/KC)

099

OVER-RANGE

MICROWAVE

Model No.

FMV156D

Publication No: 5995415998 FMV156D

09/04 2

OVEN, CABINET

FMV156D Publication No: 5995415998

# Functional Parts 3 09/04

* Non-Illustrated Parts

OVEN, CABINET

Model Index: AFMV156D (FMV156DBA)

BFMV156D (FMV156DCA)

CFMV156D (FMV156DQA)

DFMV156D (FMV156DSA)

POS. NO PART NO. DESCRIPTION

1 # 5304441844 A B C D Rectifier, high voltage

2 # 5304440342 A B C D Capacitor, high voltage

3 # 5304440021 A B C D Motor, turntable

4 # 5304440032 A B C D Thermal Cutout, oven cavity, N.C. 145 deg C

5 # 5304440023 A B C D Thermal Cutout, hood, N.O.60 deg C

6 # 5304441845 A B C D Transformer, power

7 # 5304441846 A B C D Magnetron

8 # 5304440026 A B C D Relay/Switch Assy, sec. interlock, door sense sw.

9 # 5304440027 A B C D Switch Kit, monitor, with CT fuse

10 # 5304440028 A B C D Power Cord, electric

11 # 5303319561 A B C D Receptacle, lamp socket, oven

12 # 5304441847 A B C D Motor, hood fan

13 # 5304441848 A B C D Motor, cooling fan

14 5304440031 A B C D Lamp, incandescent, 20 W, (3)

15 5304441849 A B C D Plate, rear stay

16 5304441850 A B - - Grille, exhaust louver, black

16 5304441851 - - C - Grille, exhaust louver, bisque

16 5304441852 - - - D Grille, exhaust louver, white

17 5304441853 A B C D Base, transformer mtg, right side

18 5304441854 A - - - Panel, front trim, black, left side

18 5304441855 - B - - Panel, front trim, stainless steel, left side

18 5304441856 - - C - Panel, front trim, bisque, left side

18 5304441857 - - - D Panel, front trim, white, left side

19 5304441858 A B - - Casing, wrapper, black, outer cabinet

19 5304441859 - - C - Casing, wrapper, bisque, outer cabinet

19 5304441860 - - - D Casing, wrapper, white, outer cabinet

20 5304441861 A B C D Wiring Diagram, schematic

21 5304440242 A B C D Lens/Frame Assy, oven lamp

22 5304441862 A B C D Cover, unit base, cab bottom

30 5304440284 A B C D Support Assy, turntable

31 5304441872 A B C D Tray, turntable, glass

32 5304441873 A B C D Retainer, capacitor strap

33 5304441874 A B C D Duct, magnetron

34 5304440841 A B C D Lever, door release

36 5304440288 A B C D Bushing, motor shaft, turntable

37 5304440289 A B C D Latch Hook

38 5304441833 A B C D Bracket, unit mtg plate, rear

39 # 5304440843 A B C D Fan Blade, cooling fan

40 5303319605 A B C D Bushing, power cord

41 5304441875 A B C D Lever, unit mounting, release

42 5304441876 A B C D Duct, hood intake, right side

43 5304440845 A B C D Cover, waveguide

44 5304440316 A B C D Spring, door latch

45 5304441877 A B C D Support, chassis

46 5304441878 A B C D Duct, hood intake, right side

47 5304441879 A B C D Duct, exhaust hood, left side

48 5304441880 A B C D Duct, cooling fan

Publication No: 5995415998 FMV156D

09/04 4

OVEN, CABINET

FMV156D Publication No: 5995415998

# Functional Parts 5 09/04

* Non-Illustrated Parts

OVEN, CABINET

Model Index: AFMV156D (FMV156DBA)

BFMV156D (FMV156DCA)

CFMV156D (FMV156DQA)

DFMV156D (FMV156DSA)

POS. NO PART NO. DESCRIPTION

49 5304441881 A B C D Ring, fan orifice

50 5304441882 A B C D Cushion, transformer pad

74 5304441900 A B C D Label, Caution-DHHS

75 5304440334 A B C D Label, Caution-monitor

76 5304440333 A B C D Label, Caution-DHHS

77 5304441901 A B C D Filter, inside exhaust, charcoal

78 5303319568 A B C D Filter, grease, (2)

79 5304440283 A B C D Damper Assy, exhaust

80 5303319640 A B - - Screw, vent grille, black, (3)

80 5303319652 - - C - Screw, vent grille, bisque, (3)

80 5304441902 - - - D Screw, vent grille, white, (3)

81 5304440340 A B C D Screw, 4mm x 12mm

82 5303318767 A B C D Screw, 4mm x 12mm

83 5304440872 A B C D Screw, 4mm x 8mm

84 5303319641 A B C D Screw

85 5303319636 A B C D Screw

86 5303319633 A B C D Screw, 3mm x 8mm

Publication No: 5995415998 FMV156D

09/04 6

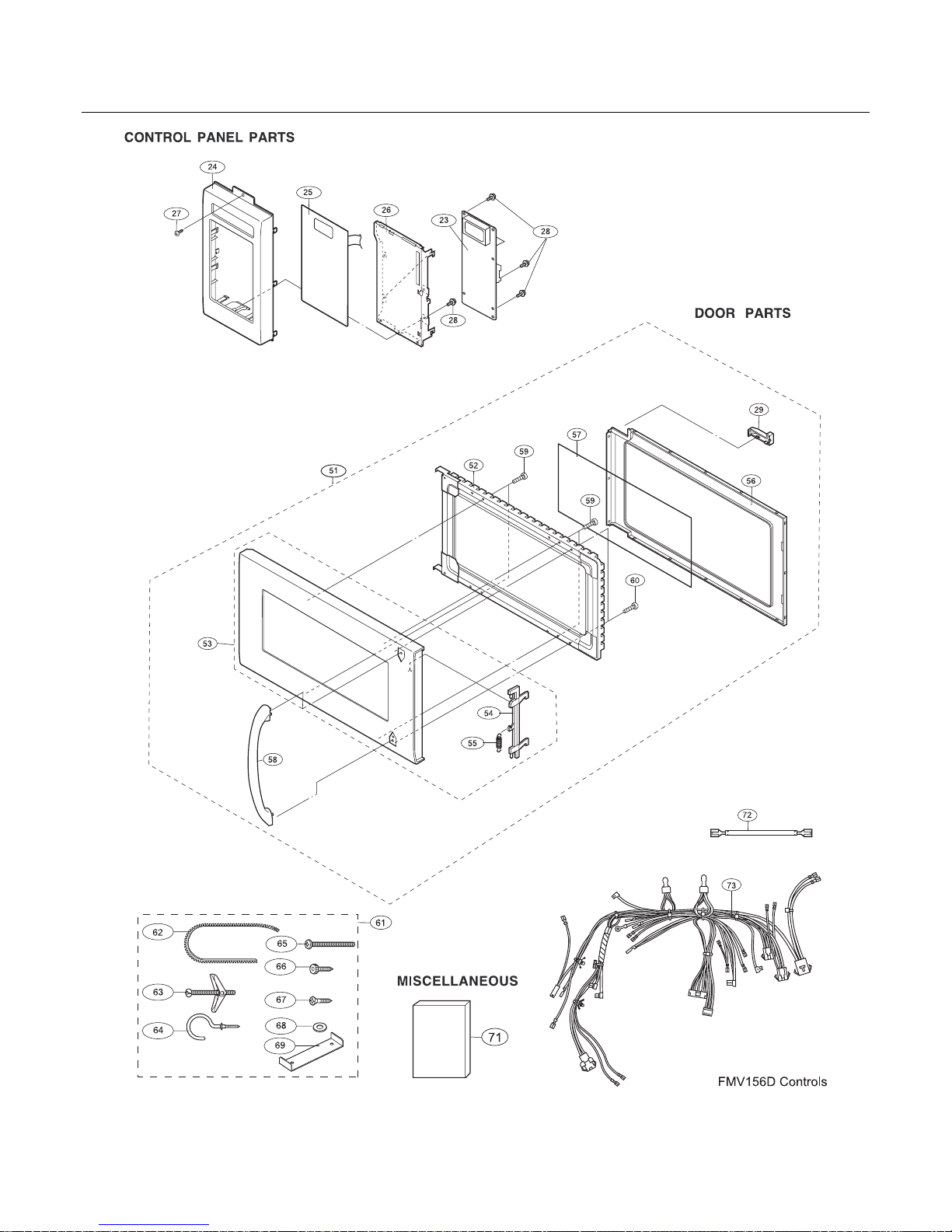

CONTROL PANEL, DOOR, MISC.

FMV156D Publication No: 5995415998

# Functional Parts 7 09/04

* Non-Illustrated Parts

CONTROL PANEL, DOOR, MISC.

Model Index: AFMV156D (FMV156DBA)

BFMV156D (FMV156DCA)

CFMV156D (FMV156DQA)

DFMV156D (FMV156DSA)

POS. NO PART NO. DESCRIPTION

23 # 5304441863 A B C D Control Board, printed circuit

24 5304441864 A - - - Frame, control panel, black

24 5304441865 - B - - Frame, control panel, stainless steel

24 5304441866 - - C - Frame, control panel, bisque

24 5304441867 - - - D Frame, control panel, white

25 # 5304441868 A B - - Switch, touch pad, membrane, black

25 # 5304441869 - - C - Switch, touch pad, membrane, bisque

25 # 5304441870 - - - D Switch, touch pad, membrane, white

26 5304440281 A B C D Panel, control mount

27 5303319584 A B C D Screw, control panel, 3mm x 10mm

28 5304440282 A B C D Screw, control board, 3mm x 10mm

29 5304441871 A B C D Door Stop

51 5304441883 A - - - Door Assembly, complete, black

51 5304441884 - B - - Door Assembly, complete, stainless steel

51 5304441885 - - C - Door Assembly, complete, bisque

51 5304441886 - - - D Door Assembly, complete, white

52 5304441887 A B - - Panel, inner door, black

52 5304441888 - - C - Panel, inner door, bisque

52 5304441889 - - - D Panel, inner door, white

53 5304441890 A B - - Frame, outer door, black

53 5304441891 - - C - Frame, outer door, bisque

53 5304441892 - - - D Frame, outer door, white

54 5304441893 A B C D Latch, door

55 5304440316 A B C D Spring, door latch

56 5304441894 A B C D Frame, choke cover, inner door

57 5304440860 A B C D Seal, door, film

58 5304440323 A B - - Handle, door, black

58 5304440325 - - C - Handle, door, bisque

58 5304440324 - - - D Handle, door, white

59 5303319634 A B C D Screw, 4mm x 8mm

60 5304441895 A B C D Screw

61 5304441832 A B C D Hardware, installation, kit

62 5303318761 A B C D Sleeve, power cord, grommet

63 5303318762 A B C D Screw, toggle

64 5303322979 A B C D Hook, screw-in, cord holder

65 5303318764 A B C D Screw, 5mm x 60mm

66 5303318767 A B C D Screw, 4mm x 12mm

67 5303318765 A B C D Screw, wood, 5mm x 35 mm, (6)

68 5303318766 A B C D Washer, flat, 30mm, (2)

69 5304441896 A B C D Bracket, scale plate

71 5304441897 A B C D Template, installation, top

72 # 5304441898 A B C D Wire, high voltage-A

73 # 5304441899 A B C D Wiring Harness, main

Publication No: 5995415998 FMV156D

09/04 8

WIRING SCHEMATIC
