Frigidaire GLEB27M9E Manuel utilisateur

GLEB27M9E.eps CGLEB27M9ESA.eps MGLEB27M9ESA.eps BGLEB27M9ESA.eps

DGLEB27M9ESA.eps 318046238.eps

”

Even-Cook Convection Oven

Timer

On/Off

Oven

light

Controls

Speed

clean

Clean

Maxx

clean

STAR T

Clear

/O ff

Broil

Pre

Heat

Keep

Warm

Bake

Conv

roa st

Start

tim e

Bake

tim e

Clock

Conv

bake

Conv

con vert

789

456

123

Product No. GLEB27M9EBA GLEB27M9EQA GLEB27M9ESA

39256791G5061 39256791G5041 39256791G5011

Series 27" elec 27" elec 27" elec

Color black bisque white

Market North America North America North America

Wiring Diagram 318046238 318046238 318046238

Owner's Guide 318200941 318200941 318200941

Installation Instructions 318201521 318201521 318201521

Service Data Sheet 318047418 318047418 318047418

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995430690

05/10/21

(EN/SERVICE/ECL)

377

WALL OVEN /

MICROWAVE COMBO

Model No.

GLEB27M9E

Publication No: 5995430690 GLEB27M9E

10/05 2

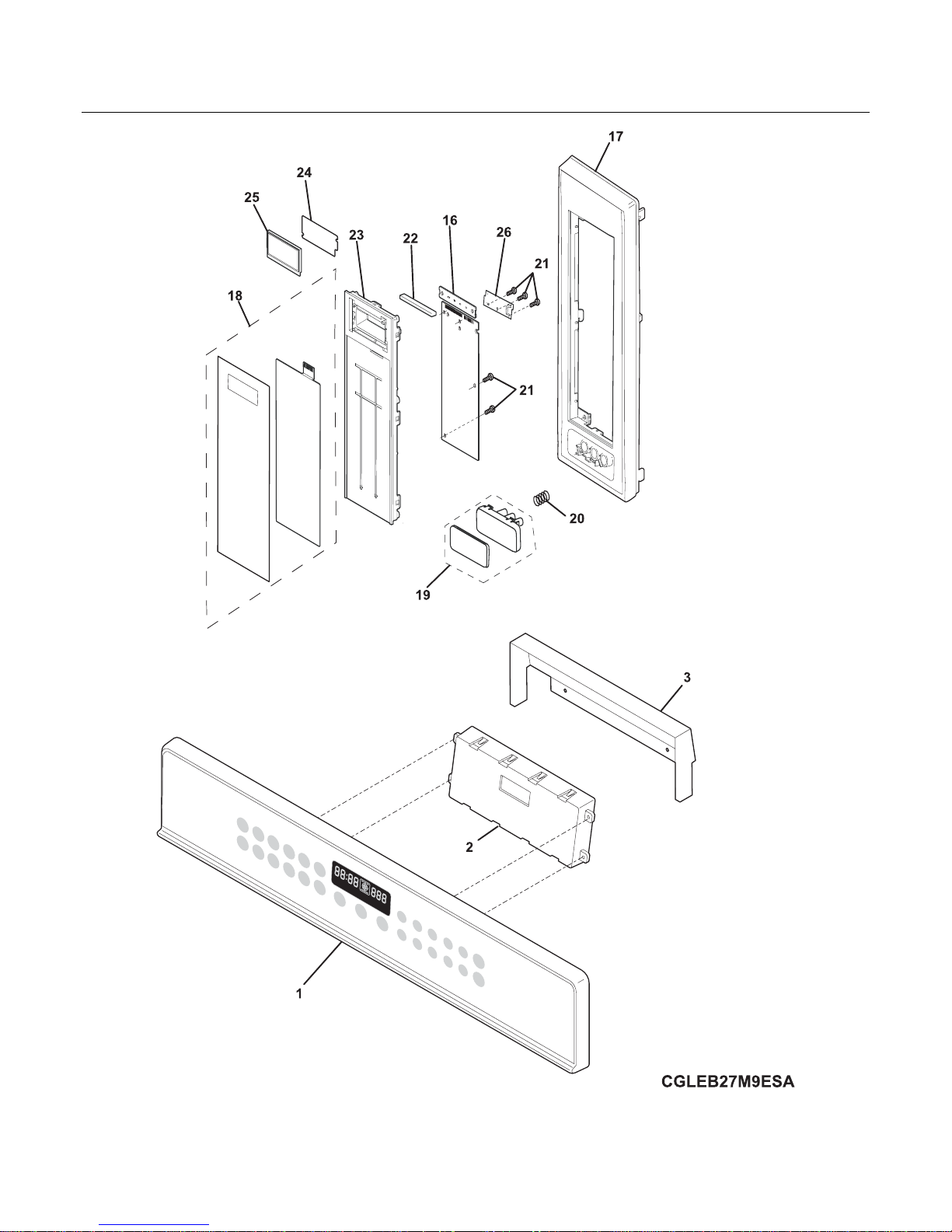

CONTROL PANEL

GLEB27M9E Publication No: 5995430690

# Functional Parts 3 10/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLEB27M9E (GLEB27M9ESA)

BGLEB27M9E (GLEB27M9EBA)

CGLEB27M9E (GLEB27M9EQA)

POS. NO PART NO. DESCRIPTION

1 318331301 A - - Control Panel Assembly, glass, white, w/touch pad

1 318331300 - B - Control Panel Assembly, glass, black, w/touch pad

1 318331302 - - C Control Panel Assembly, glass, bisque, w/touch pad

2 # 316418721 A B C Clock/Timer, electronic, ES510W1

* 316021107 A B C Screw, hex head, 8-32, silver

3 318295701 A B C Deflector, timer

16 # 5304440820 A B C Control Board, printed circuit

17 5304442127 A - - Frame, control panel, white

17 5304440821 - B - Frame, control panel, black

17 5304440823 - - C Frame, control panel, bisque

18 # 5304452254 A - - Switch Assy, touch control, white, w/touch pad

18 # 5304440824 - B - Switch Assy, touch control, black

18 # 5304440826 - - C Switch Assy, touch control, bisque

19 5304442133 A - - Push Button, door opener, white

19 5304440827 - B - Push Button, door opener, black

19 5304440829 - - C Push Button, door opener, bisque

20 5304442134 A B C Spring, button

21 5304440282 A B C Screw, control board, 3mm x 10mm

22 5304440832 A B C Connector, rubber, control board

23 5304440833 A B C Panel, touch pad mount

24 # 5304440834 A B C LED Sheet, backlight

25 # 5304440835 A B C LCD, display

26 5304440836 A B C Bracket, PCB support

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995430690 GLEB27M9E

10/05 4

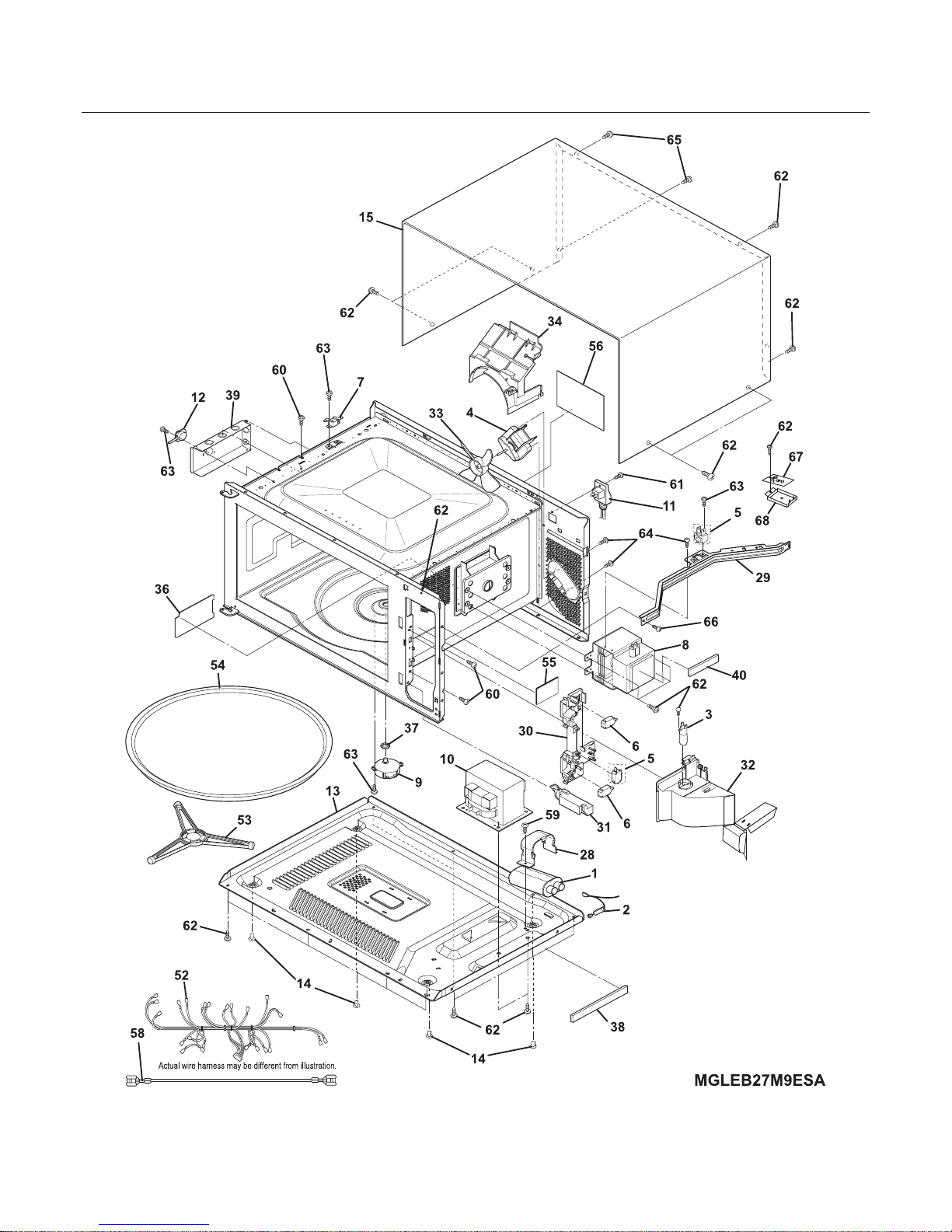

UPPER OVEN

GLEB27M9E Publication No: 5995430690

# Functional Parts 5 10/05

* Non-Illustrated Parts

UPPER OVEN

Model Index: AGLEB27M9E (GLEB27M9ESA)

BGLEB27M9E (GLEB27M9EBA)

CGLEB27M9E (GLEB27M9EQA)

POS. NO PART NO. DESCRIPTION

1 # 5304440777 A B C Capacitor, high voltage

2 # 5304440778 A B C Rectifier, high voltage

3 # 5304440779 A B C Lamp Assy, with socket

4 # 5304448490 A B C Motor, cooling fan

5 # 5303319559 A B C Switch, monitor, with CT fuse

6 # 5304440026 A B C Switch, sec. interlock, door

7 # 5304440780 A B C Fuse, cavity temp, 20 Amp, 250 V

8 # 5304440781 A B C Magnetron

9 # 5304448832 A B C Motor, turntable

10 # 5304440783 A B C Transformer, power

11 # 5304440784 A B C Power Cord, electric

12 # 5304440785 A B C Sensor, abs. humidity, cook control

13 5304440814 A B C Base, unit chassis

14 5304442125 A B C Insert, threaded, (4)

15 5304440817 A - - Cabinet, outer casing, white

15 5304440816 - B - Cabinet, outer casing, black

15 5304440818 - - C Cabinet, outer casing, bisque

28 5304440838 A B C Retainer, capacitor strap

29 5304440839 A B C Bracket, chassis support

30 5304440840 A B C Latch Hook

31 5304440841 A B C Lever, door release

32 5304442135 A B C Duct, magnetron

33 # 5304440843 A B C Fan Blade, cooling fan

34 5304440844 A B C Duct, cooling fan

36 5304440845 A B C Cover, waveguide

37 5304440288 A B C Bushing, motor shaft, turntable

38 5304441909 A B C Cushion, base plate pad

39 5304440847 A B C Duct, AH sensor

40 5304441910 A B C Cushion, magnetron pad

52 5304452260 A B C Harness, wiring

53 5304440284 A B C Support Assy, turntable

54 5304440868 A B C Tray, turntable, glass

55 5304440334 A B C Label, Caution-monitor

56 5304440333 A B C Label, Caution-DHHS

58 # 5304440870 A B C Wire, high voltage-A

59 5303319636 A B C Screw

60 5303319641 A B C Screw

61 5304440871 A B C Screw, 4mm x 12mm, ground

62 5304440340 A B C Screw, 4mm x 12mm

62 5304452261 A B C Screw, outer casing

63 5303319633 A B C Screw, 3mm x 8mm

64 5304440872 A B C Screw, 4mm x 8mm

65 5304440873 A B C Screw, torx head, tamper proof

66 5304440874 A B C Screw

67 # 5304451818 A B C Filter, noise, electronic

68 5303322975 A B C Bracket, noise filter, angle

Publication No: 5995430690 GLEB27M9E

10/05 6

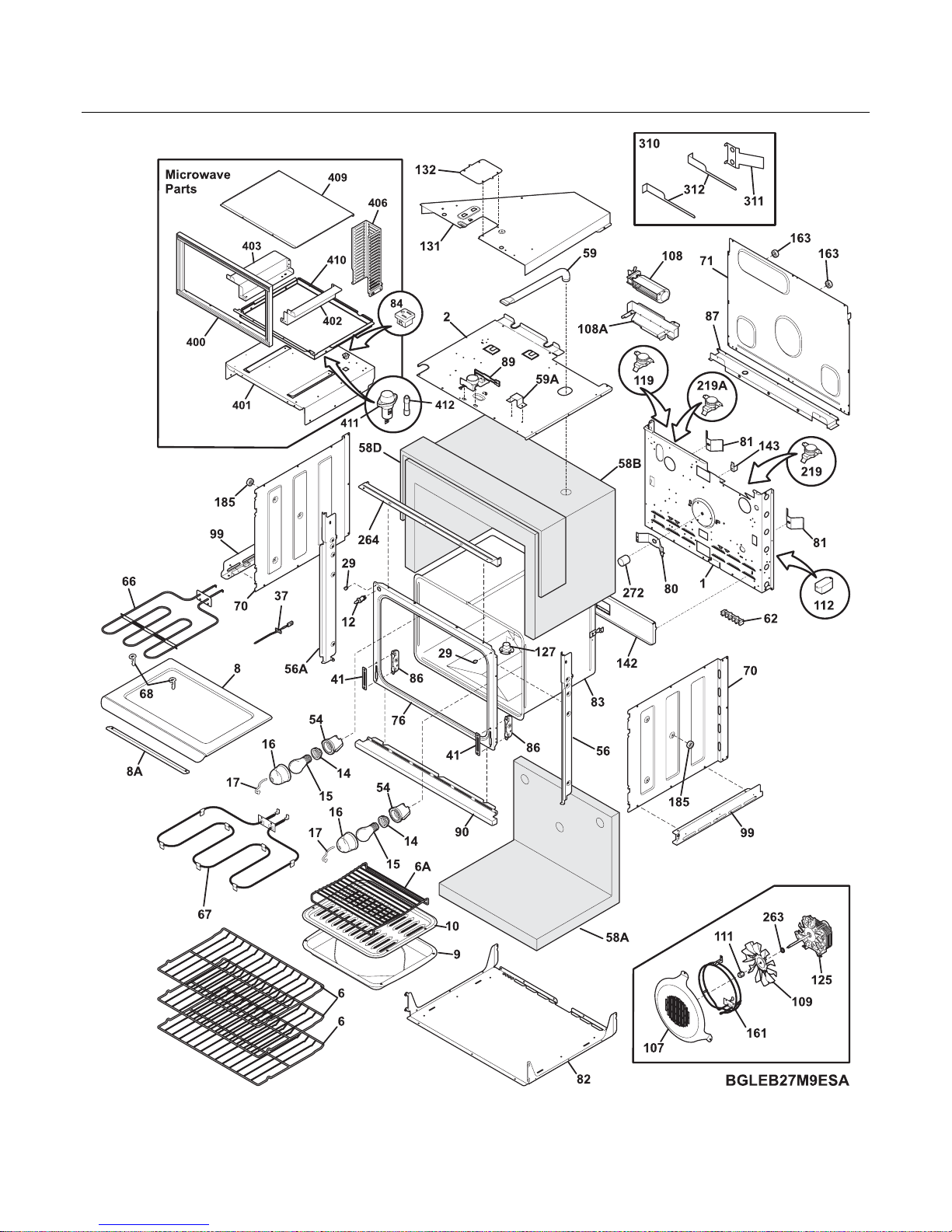

LOWER OVEN

GLEB27M9E Publication No: 5995430690

# Functional Parts 7 10/05

* Non-Illustrated Parts

LOWER OVEN

Model Index: AGLEB27M9E (GLEB27M9ESA)

BGLEB27M9E (GLEB27M9EBA)

CGLEB27M9E (GLEB27M9EQA)

POS. NO PART NO. DESCRIPTION

1 318259210 A B C Back, main

2 318258910 A B C Shield, insulation, upper

6 318262603 A B C Rack, oven, (3)

6A 318219500 A B C Rack, broiler pan

8 318262011 A B C Cover, element

8A 318318600 A B C Bracket, element, hidden bake

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

* 5303325980 A B C Screw, 10-32 x 0.437

54 318222400 A B C Housing, oven light

56 318276302 A - - Trim, side filler, white, RH

56 318276304 - B - Trim, side filler, black, RH

56 318276306 - - C Trim, side filler, bisque, RH

56A 318276303 A - - Trim, side filler, white, LH

56A 318276305 - B - Trim, side filler, black, LH

56A 318276307 - - C Trim, side filler, bisque, LH

58A 318285060 A B C Insulation, rear & bottom, oven wrapper

58B 318285059 A B C Insulation, top & sides, oven wrapper

58D 318285058 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255601 A B C Element, broil, 3400W

67 318254902 A B C Element, bake, 2700W, 6 pass

68 5304403015 A B C Support, hanger, (2), broil element

70 318259100 A B C Shield, insulation, sides, (2)

71 318260001 A B C Panel, rear box

76 318056222 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258710 A B C Shield, insulation, lower

83 318261500 A B C Liner, oven assy

84 # 318146828 A B C Outlet-electrical, miniature, black-glossy

86 5303310524 A B C Receptacle, hinge

87 318260601 A B C Bracket, cable mtg.

89# 318261202 A B C Motor, latchassy

90 318259710 A - - Trim, oven front, white, bottom

Publication No: 5995430690 GLEB27M9E

10/05 8

LOWER OVEN

GLEB27M9E Publication No: 5995430690

# Functional Parts 9 10/05

* Non-Illustrated Parts

LOWER OVEN

Model Index: AGLEB27M9E (GLEB27M9ESA)

BGLEB27M9E (GLEB27M9EBA)

CGLEB27M9E (GLEB27M9EQA)

POS. NO PART NO. DESCRIPTION

90 318259711 - B - Trim, oven front, black, bottom

90 318259712 - - C Trim, oven front, bisque, bottom

99 318256200 A B C Bracket, side, bottom, (2)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112701 A B C Relay

119# 318004900 A B C Switch, thermal

125# 316415800 A B C Motor, fan

125* 5303316994 A B C Insulation, 3.81 x 3.13

127 318317100 A B C Adapter Assembly, vent tube, w/converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

143 318172904 A B C Support, wire

161# 318255503 A B C Element, convection, 350 W

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003614 A B C Thermostat, safety

* 3201861 A B C Screw, 6 x 0.375, (4)

219A 318003613 A B C Thermostat, safety

263 316136500 A B C Washer, flat

264 318257711 A B C Trim, oven, black, front

272 318249401 A B C Tube, protector

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

400 318275601 A - - Trim Assembly, microwave, 27", white

400 318275600 - B - Trim Assembly, microwave, 27", black

400 318275602 - - C Trim Assembly, microwave, 27", bisque

401 318297200 A B C Plate, support, microwave, 27"

402 318276202 A B C Bracket, base pad, RH

403 318276203 A B C Bracket, base pad, LH

406 318277200 A B C Shield, microwave rear

409 318295300 A B C Bracket, top trim

410 318297101 A B C Flue, black

411# 5304442354 A B C Holder, fuse

412# 5304442353 A B C Fuse, 20 Amp

* # 318078543 A B C Box & wires assy

* 318231737 A B C Harness, wiring, main

* 5303323136 A B C Screw ground

* 5303211311 A B C Screw, 8 x 0.500

* 5303323277 A B C Screw, 8-18 X 13/32

* 5303324184 A B C Screw, 8-18 x 5/16, black, (4)

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995430690 GLEB27M9E

10/05 10

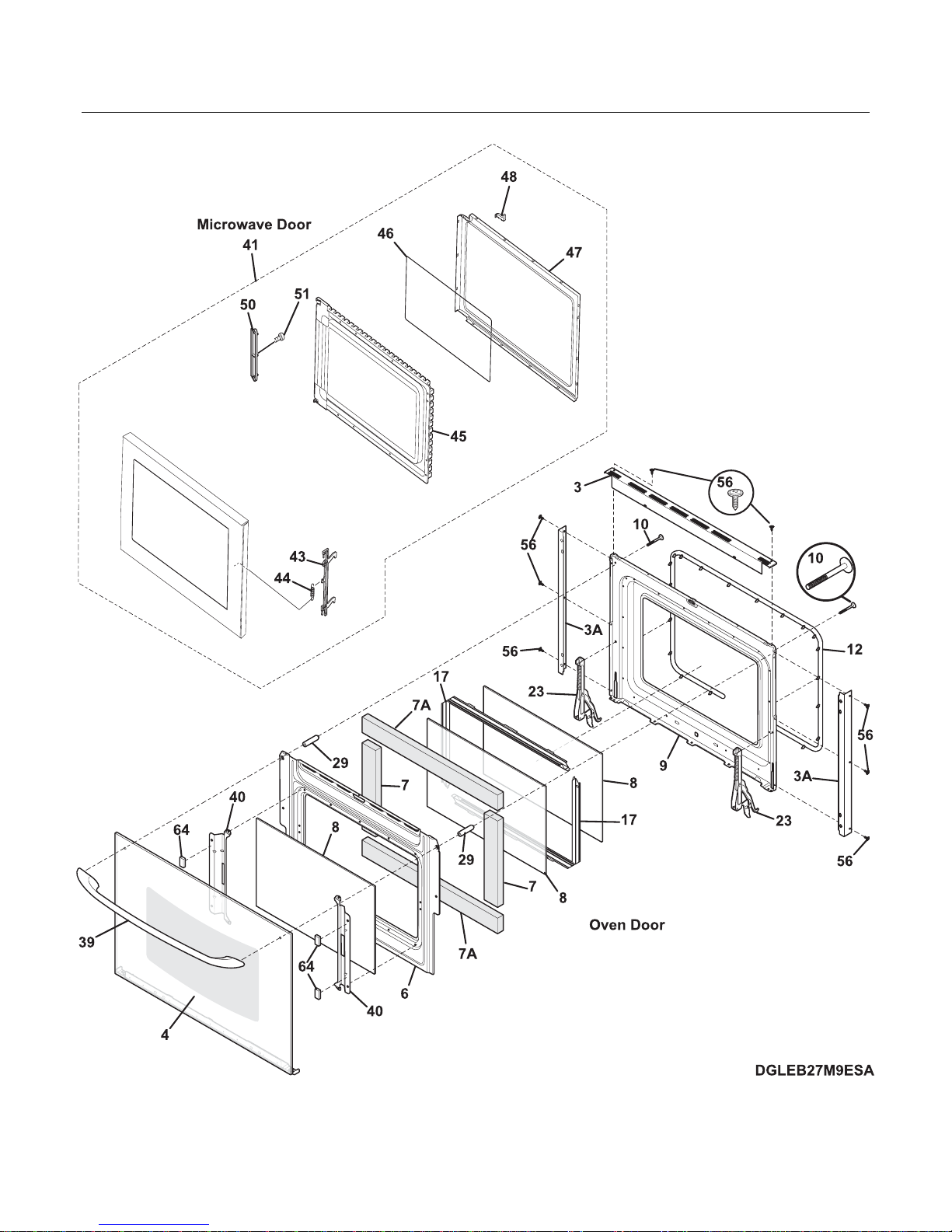

DOORS

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Frigidaire Four à micro-ondes

Frigidaire

Frigidaire FFMV152CLB Manuel utilisateur

Frigidaire

Frigidaire PLBMV188HC - Microwave Manuel utilisateur

Frigidaire

Frigidaire 316495097 Manuel utilisateur

Frigidaire

Frigidaire MWV150KB Manuel utilisateur

Frigidaire

Frigidaire PLMVZ169HC - 1.6 cu. Ft. Microwave Oven Manuel utilisateur

Frigidaire

Frigidaire FMT139E1B Manuel utilisateur

Frigidaire

Frigidaire Microwave / Wall Oven Combination Manuel du propriétaire

Frigidaire

Frigidaire FPBM189KF - Professional Series... Manuel utilisateur

Frigidaire

Frigidaire Gallery FGMV173K Manuel utilisateur

Frigidaire

Frigidaire LEVM30FE Manuel utilisateur

Frigidaire

Frigidaire FGMV174KFC Manuel du propriétaire

Frigidaire

Frigidaire CFMV1647SA Manuel du propriétaire

Frigidaire

Frigidaire GLMV168K Manuel utilisateur

Frigidaire

Frigidaire FFCE2238L B Manuel utilisateur

Frigidaire

Frigidaire CGLMV169 Manuel utilisateur

Frigidaire

Frigidaire PLMBZ209GC - 2.0 cu. Ft. Microwave Oven Manuel utilisateur

Frigidaire

Frigidaire 16495056 Manuel utilisateur

Frigidaire

Frigidaire FGMV185KB - Gallery 1.8 cu. Ft. Microwave Manuel utilisateur

Frigidaire

Frigidaire FMT116U1B Manuel utilisateur

Frigidaire

Frigidaire FFMV162LSA Manuel utilisateur

Frigidaire

Frigidaire MC-700M Guide de référence rapide

Frigidaire

Frigidaire Gallery FGMC2765K Manuel utilisateur

Frigidaire

Frigidaire GLMV169D Manuel utilisateur

Frigidaire

Frigidaire FGMV174KF - Gallery 1.7 cu. Ft. Microwave Manuel utilisateur

Manuels Four à micro-ondes populaires d'autres marques

Daewoo

Daewoo KOG-574R0S Manuel utilisateur

LG MH7040SS Manuel utilisateur

Sharp

Sharp R-895(AL)M Manuel utilisateur

Dometic

Dometic DOTRM13W Manuel utilisateur

Sanyo

Sanyo EM-X680 Manuel utilisateur

Sharp

Sharp R-393M Manuel utilisateur

KitchenAid

KitchenAid KMCX4510 Instructions d'installation

Smeg

Smeg S45MCX1 Manuel utilisateur

Russell Hobbs

Russell Hobbs RHM2044 Manuel utilisateur

Sunbeam

Sunbeam SMW759 Manuel utilisateur

Gallet

Gallet FMOE230S Manuel utilisateur

Bosch

Bosch CEG732X.1B Manuel utilisateur

Dometic

Dometic Roadmate 230 Manuel utilisateur

Samsung

Samsung SJ0396W Manuel utilisateur

Sanyo

Sanyo EM-P494WS Manuel utilisateur

Sharp

Sharp R-240 Manuel utilisateur

Electrolux

Electrolux EMS2840 Manuel utilisateur

Daewoo

Daewoo KOC-984T2S13 Manuel utilisateur
