Frigidaire FMV145K Manuel utilisateur
FMV145K.eps L937D0002.eps L937C0002.eps L937F0002.eps L937B0002.eps
L937I0001.eps FMV145-3s.eps FMV145-3d.eps
Product No. FMV145KB2 FMV145KS2
Color black white
Market North America North America
Owner's Guide 316137205 316137205
Installation Instructions 316137211 316137211
Mini Service Manual 5304409006 5304409006
Wiring Diagram 5304409006 5304409006
Volts 120 120
Watts 950 950
ELECTROLUX HOME PRODUCTS, INC.
P.O. Box 212378, Augusta, GA 30917
Publication No.
5995416566
04/09/17
(EN/SERVICE/KC)
099
OVER-RANGE
MICROWAVE
Model No.
FMV145K
Copyright ©2004 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995416566 FMV145K
09/04 2

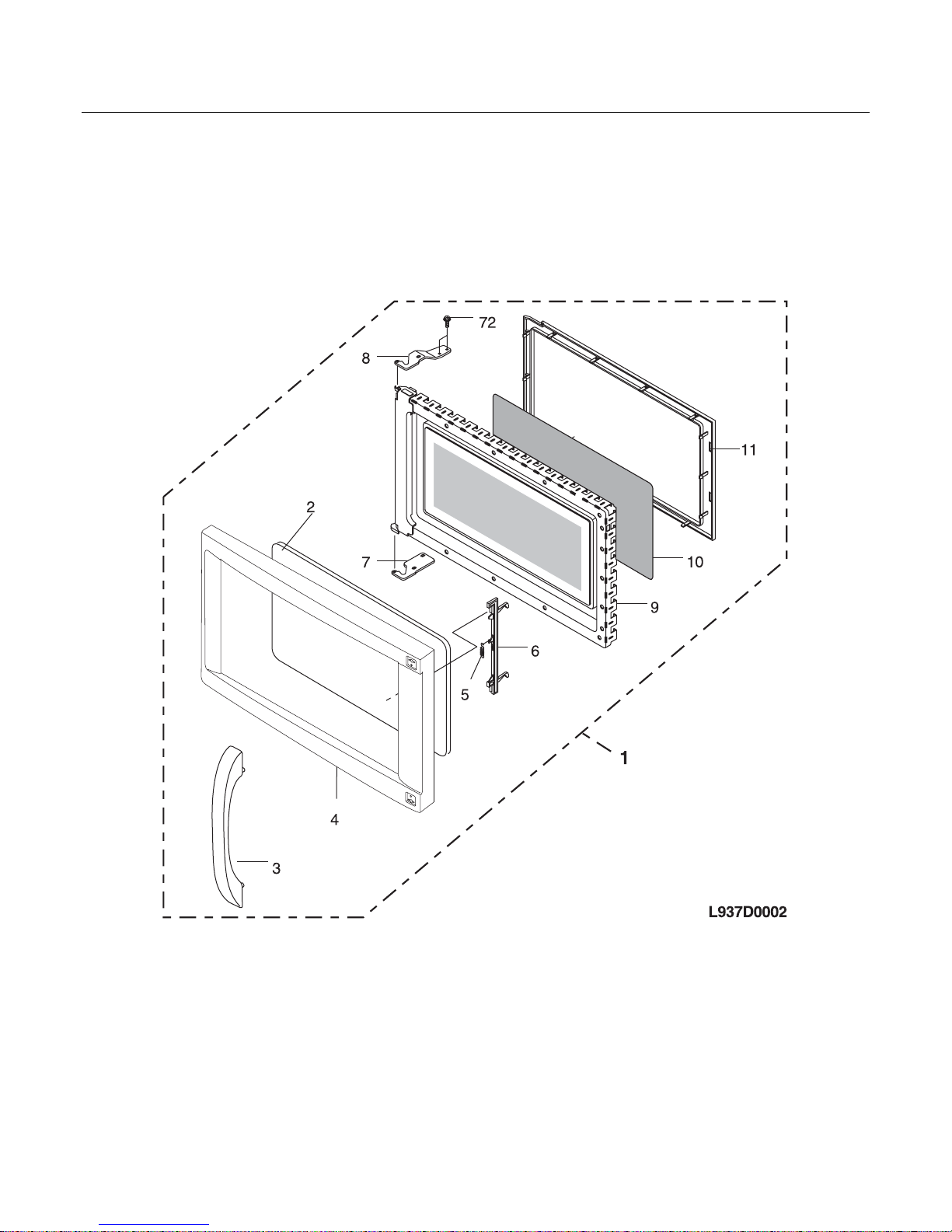

DOOR
FMV145K Publication No: 5995416566
# Functional Parts 3 09/04
* Non-Illustrated Parts
DOOR
Model Index: AFMV145K (FMV145KB2)
BFMV145K (FMV145KS2)
POS. NO PART NO. DESCRIPTION
1 5304424542 A - Door, black, complete assy
1 5304424543 - B Door, white, complete assy
2 5304408529 A B Screen, door, glass, front
3 5304408523 A - Handle, door, black
3 5304408524 - B Handle, door, white
4 5304423509 A - Frame, door, black, outer
4 5304423510 - B Frame, door, white, outer
5 5304423440 A B Spring, door latch
6 5304409137 A - Latch, door
6 5304409138 - B Latch, door
7 5304408579 A B Hinge, door, lower
8 5304408578 A B Hinge, door, upper
9 5304423511 A - Panel, door, black, inner
9 5304409133 - B Panel, door, white, inner
10 5304409136 A B Seal, door, film
11 5304408575 A - Frame, choke cover, black, inner door
11 5304408576 - B Frame, choke cover, white, inner door
72 5304408958 A B Bolt, flange
Publication No: 5995416566 FMV145K
09/04 4

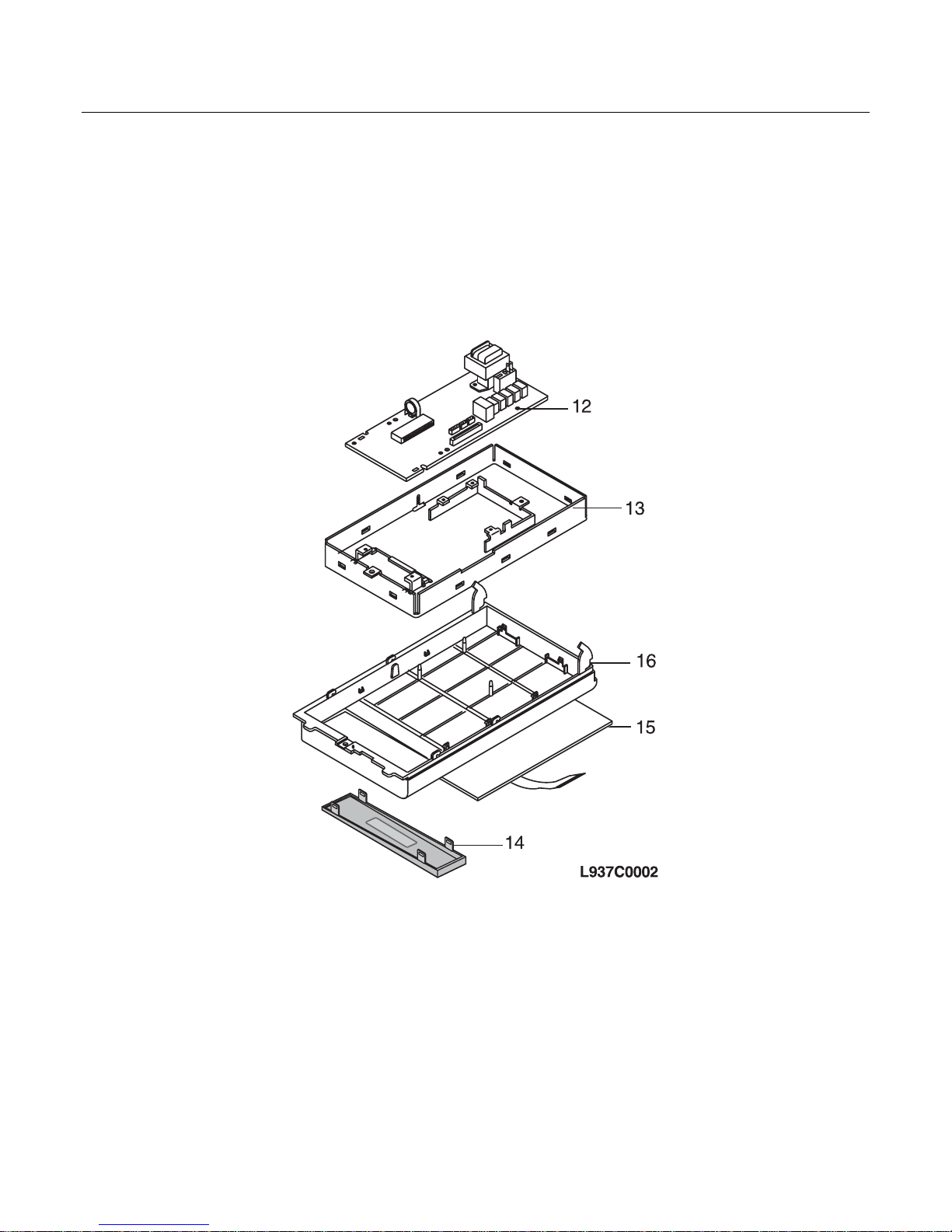

CONTROL PANEL
FMV145K Publication No: 5995416566
# Functional Parts 5 09/04
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AFMV145K (FMV145KB2)
BFMV145K (FMV145KS2)
POS. NO PART NO. DESCRIPTION
12 # 5304423362 A B Control Board, printed circuit
13 5304408514 A B Bracket, control mtg
14 5304408512 A B Window, control display
15 # 5304423515 A - Switch, touch control, membrane, black
15 # 5304423516 - B Switch, touch control, membrane, white
16 5304423517 A - Frame, control panel, black
16 5304423518 - B Frame, control panel, white
Publication No: 5995416566 FMV145K
09/04 6

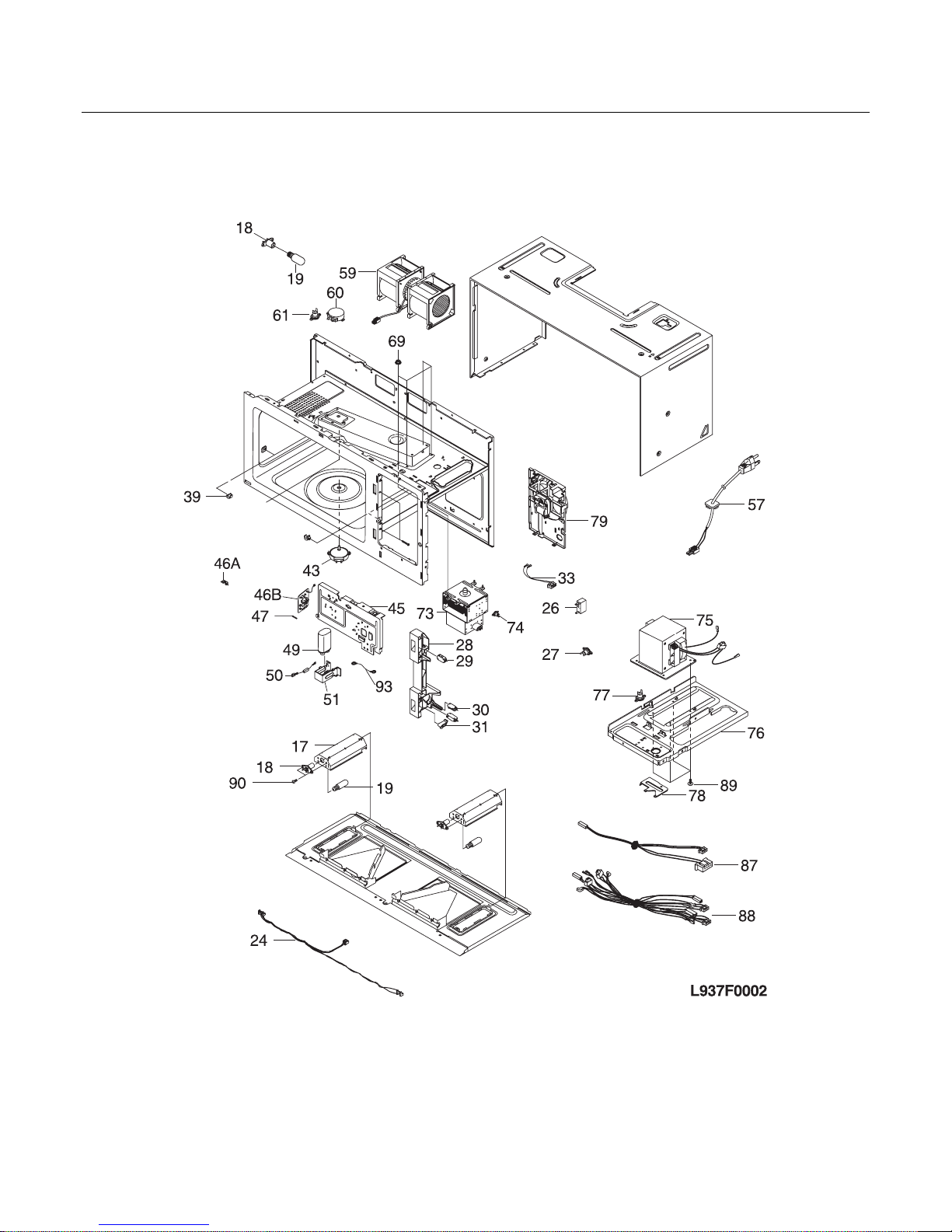

FUNCTIONAL PARTS
FMV145K Publication No: 5995416566
# Functional Parts 7 09/04
* Non-Illustrated Parts
FUNCTIONAL PARTS
Model Index: AFMV145K (FMV145KB2)
BFMV145K (FMV145KS2)
POS. NO PART NO. DESCRIPTION
17 5304408954 A B Bracket, lamp mtg, bottom
18 # 5304408948 A B Receptacle, lamp
19 5304408949 A B Lamp, incandescent
24 # 5304436713 A B Wiring Harness, D
26 # 5304408941 A B Capacitor, motor
27 # 5304417433 A B Thermostat, thermal cutout, hood, 40/70 deg C
28 5304408960 A B Latch Hook
29 # 5304408938 A B Switch, interlock, door/primary
30 # 5304408937 A B Switch, interlock, monitor
31 5304408963 A B Lever, switch, bottom
33 # 5304408952 A B Wiring Harness
39 5304408965 A B Support, rack
43 # 5304408980 A B Motor, turntable
45 5304408961 A B Bracket, air guide
46A# 5304423382 A B Receptacle, fuse
47 # 5304423383 A B Fuse, cartridge, 20 Amp
49 # 5304423521 A B Capacitor, high voltage
50 # 5304417430 A B Diode, high voltage
51 5304408946 A B Bracket, capacitor mtg
57 # 5304408947 A B Power Cord, electric
59 # 5304408943 A B Fan Assy, ventilator, with motor
60 # 5304408944 A B Motor, stirrer fan
61 # 5304423690 A B Thermostat, thermal cutout, oven cavity
69 5304408962 A B Nut, flange
73 # 5304423374 A B Magnetron
74 # 5304408936 A B Thermostat, thermal cutout, magnetron
75 # 5304408933 A B Transformer, high voltage
76 5304423523 A B Plate, xfmr base
77 # 5304408935 A B Thermostat, thermal cutout, bottom, 120/0 deg C
78 5304423384 A B End Cap, xfmr base, bottom
79 # 5304408942 A B Fan Assy, cooling, includes motor
87 # 5304423386 A B Wiring Harness, C
88 # 5304423525 A B Wiring Harness, A
89 5304423527 A B Screw, washer head
90 5304408964 A B Screw, special
Publication No: 5995416566 FMV145K
09/04 8

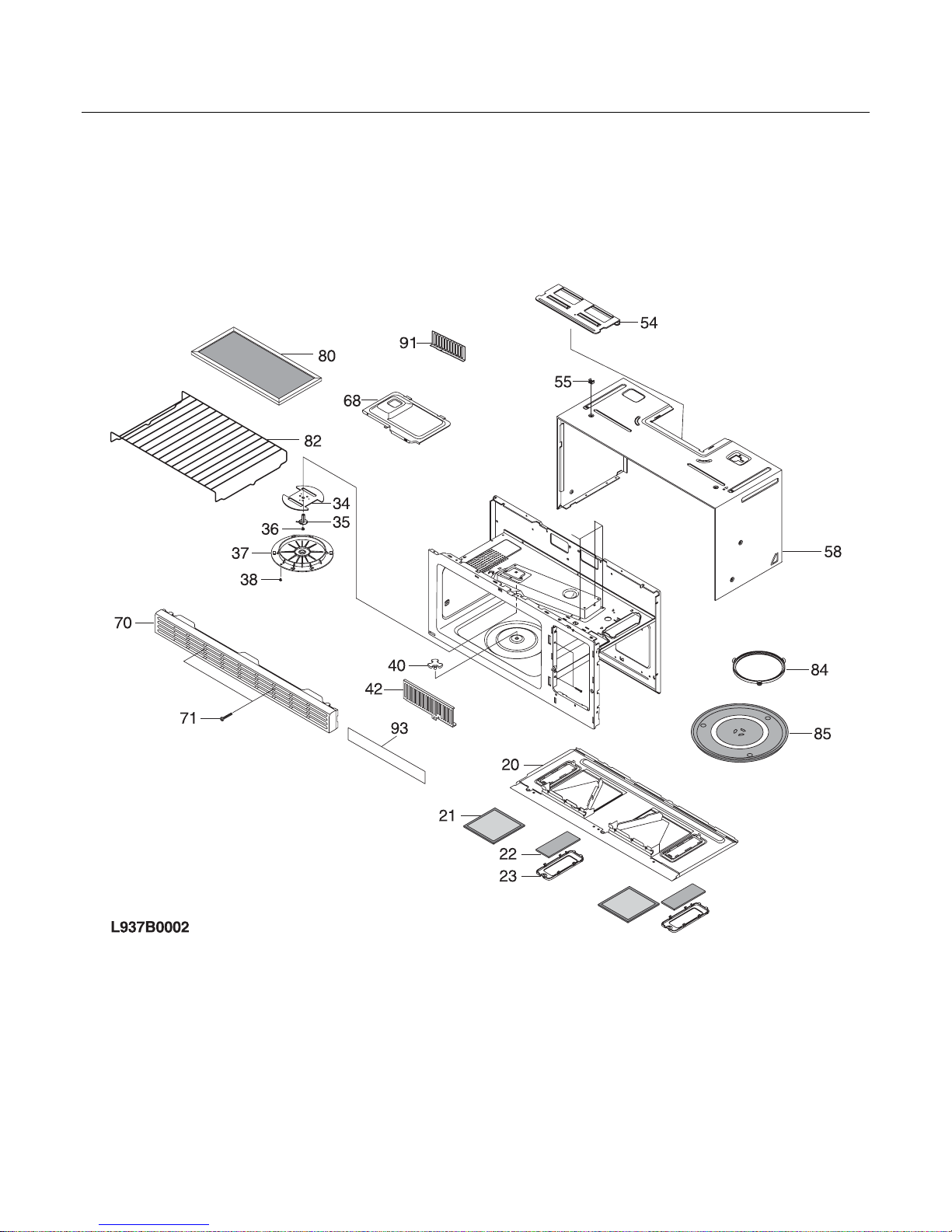

BODY
FMV145K Publication No: 5995416566
# Functional Parts 9 09/04
* Non-Illustrated Parts
BODY
Model Index: AFMV145K (FMV145KB2)
BFMV145K (FMV145KS2)
POS. NO PART NO. DESCRIPTION
20 5304408972 A - Plate, oven base, black, bottom cover
20 5304417436 - B Plate, oven base, white, bottom cover
21 5304408977 A B Filter, air, (2)
22 5304408988 A B Lens, cooktop lamp, glass, (2)
23 5304408973 A - Cover, lens frame, black, lamp
23 5304408974 - B Cover, lens frame, white, lamp
34 # 5304408950 A B Fan Blade, stirrer/antenna
35 5304423487 A B Collar, motor shaft, stirrer fan
36 5304408992 A B Pivot Tip, shaft collar, stirrer motor
37 5304408986 A B Cover, stirrer/antenna
38 5304408979 A B Rivet, push mount, plastic, stirrer cover
40 5304417415 A B Bushing, motor shaft, turntable
42 5304408990 A B Cover, front
54 5304417437 A B Bracket, motor mtg, turntable/vent, wrpr top plate
55 5304423504 A B Holder Nut, assy
58 5304408975 A - Casing, wrapper, black, outer panel
58 5304423528 - B Casing, wrapper, white, outer panel
68 5304408982 A B Bracket, duct assy, upper
70 5304423529 A - Grille, exhaust, black
70 5304423530 - B Grille, exhaust, white
71 5304408994 A - Screw, grille mtg, black, (2)
71 5304408993 - B Screw, grille mtg, white, (2)
80 5304409641 A B Filter, air, charcoal
82 5304408995 A B Rack, microwave oven, wire
84 5304417414 A B Support, turntable tray, with rollers
85 5304417435 A B Tray, turntable, glass
91 5304423522 A B Bracket, filter
93 5304423531 A B Label, cooking guide
Publication No: 5995416566 FMV145K
09/04 10

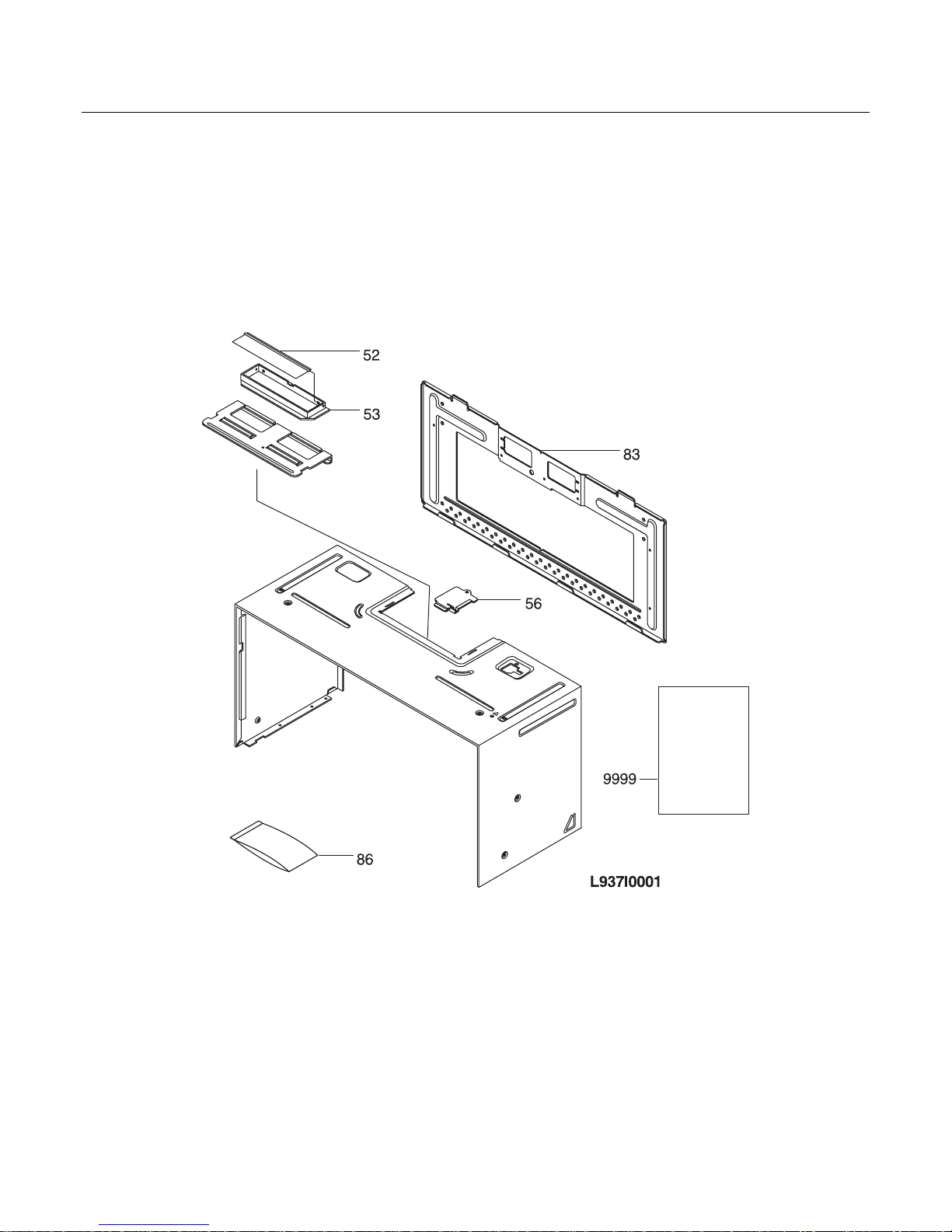

INSTALLATION
