Frigidaire GLFH21F8HW Manuel utilisateur

P08F0138.eps P08D0578.eps P08C1123.wmf P08S0485.eps

Product No. GLFH21F8HWB

Series Precision

Color white

Volts 115

Wiring Diagram 297246001

Owner's Guide 297245700

Market North America

Energy Guide 297089301

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995525010

08/09/29

(EN/SERVICE/MLR)

365

UPRIGHT FREEZER

Model No.

GLFH21F8HW

Publication No: 5995525010 GLFH21F8HWB

09/08 2

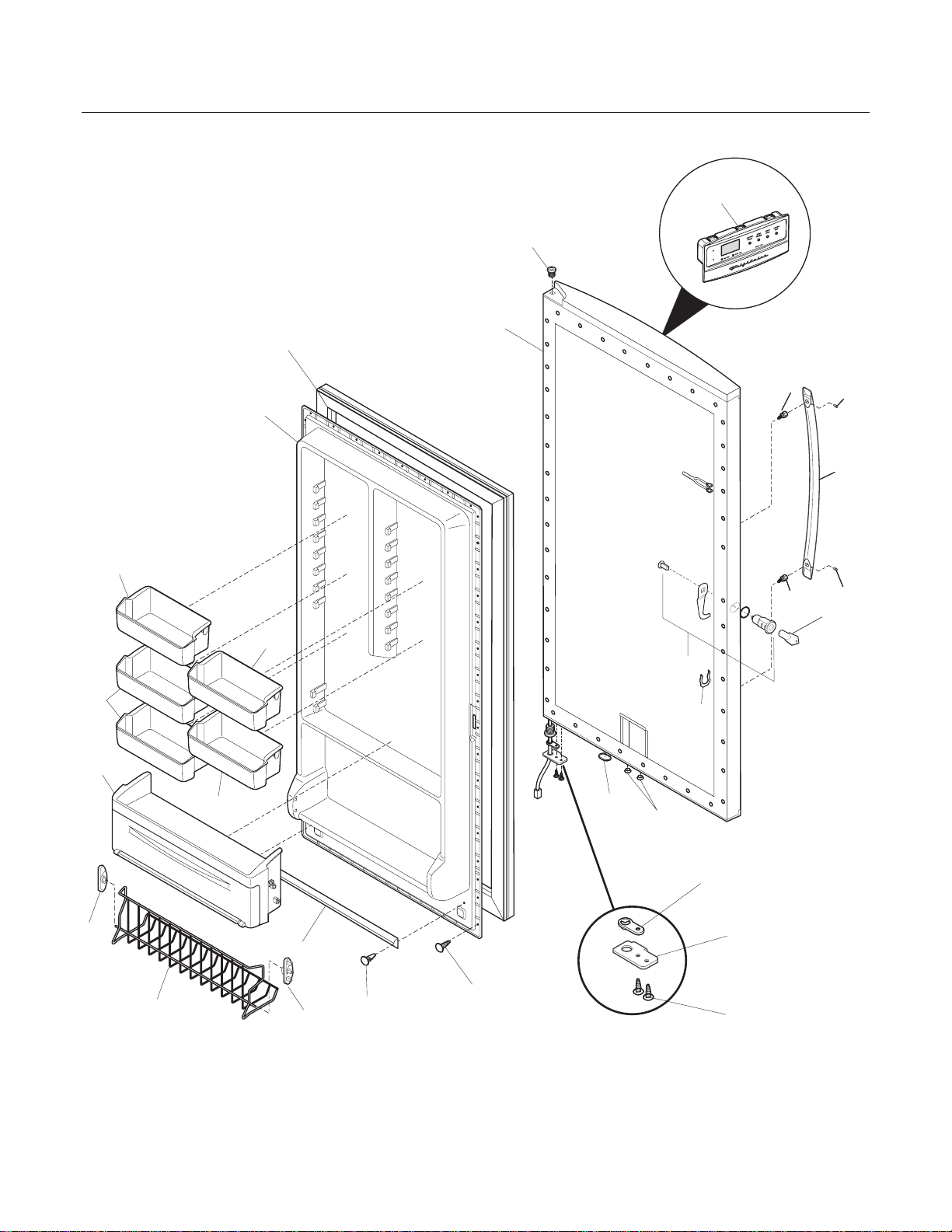

DOOR

21A

48C

P08D0578

151

GLFH21F8HWB Publication No: 5995525010

# Functional Parts 3 09/08

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 216522312 Gasket-door, white

2 # 297090000 Lock Assy

2A 297090900 Clip, spring

5 297147700 Key, lock

9 297185900 Panel-inner door, frzr

11 297203901 Panel-outer door, white

13 297154800 Door Stop, RH

18 241930102 Handle-door, white

* 240537301 Nut-anchor, door hdl screw

21A 216850900 Screw, hex washer hd, 1/4 x 7/8, door stop/hng

22 216970800 Bearing, hinge w/o'ring, top

26 216524200 Gasket, secondary

27 5303212828 Clip, panel mtg

27* 5304406520 Clip, panel mtg kit, (40)

32 5309950074 Valve, breather

48C 297186400 Bin-door, w/lid

49 297187201 Bin-door, 2-liter

59 216974500 Bearing, door closer

64 216403700 Plug-button, hole filler, door base

72 297186700 Shelf, tilt out, wire

73 216513900 End Cap, shelf, LH, tilt-out

74 216514000 End Cap, shelf, RH, tilt-out

79 218755402 Screw-set, 10-32 x 0.375

80 218755504 Screw-shoulder, #10 AB, handle mounting

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

151# 297241906 Control-electronic, assy, white/chrome, 115V

Publication No: 5995525010 GLFH21F8HWB

09/08 4

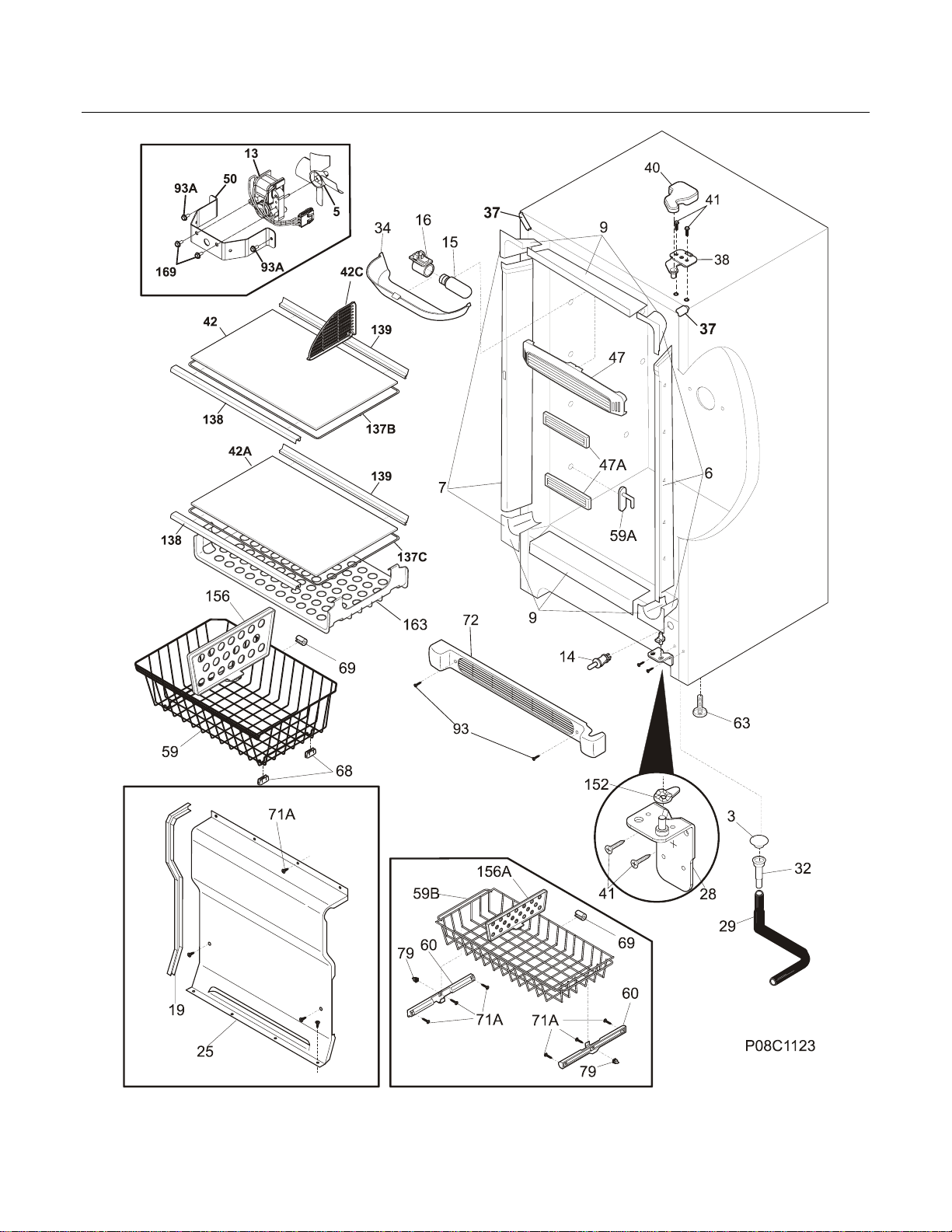

CABINET

GLFH21F8HWB Publication No: 5995525010

# Functional Parts 5 09/08

* Non-Illustrated Parts

CABINET

POS. NO PART NO. DESCRIPTION

3 216503100 Screen-drain

5 # 216325600 Fan Blade

6 297200900 Breaker Kit w/corners

7 297201100 Breaker Kit w/corners, lock catch

9 297200100 Breaker Kit w/corners, 32", top and bottom

13 # 297250000 Motor, fan, 115 V

14 297243800 Switch, light/lamp, plunger

15 297114000 Light Bulb, short, blue tint, 40W

16 216817601 Socket, light/lamp, 25 W

19 216204902 Gasket-evap cover

25 297099251 Cover-evaporator

28 297179300 Hinge, bottom/RH

29 216313501 Hose-drain

32 5308005500 Drain

34 297184400 Shield-light

37 241611301 Trim-cabinet corner, white, (2)

38 297154600 Hinge-upper

40 297154701 Cover-upper hinge, white

41 297236200 Screw, tamper proof, 1/4-20 x 5/8

42 297166802 Glass-shelf, (2)

42A 297166800 Glass-shelf

* 216502400 Grommet-shelf mtg

42C 297183802 Divider, blue, glass shelf

47 297192902 Baffle, air, blue

47A 297205802 Diffuser, air, blue, (2)

50 216394050 Bracket, fan motor mount

59 297210900 Basket

59A 216486500 Stop-basket, (2)

59B 297209600 Basket

60 297013500 Slide, basket

63 216396900 Screw, leveling foot, plastic, adjustable

63* 297164600 Bracket, LH leg levelor

63* 297164601 Bracket, RH leg levelor

68 08009560 Glide-basket

69 5305878546 Bumper-basket

71A 297146800 Screw, 8-18AB x 0.470

72 297198900 Grille/Kickplate, 32", white

79 3017666 Nut-insert

93 5304460605 Screw, ph truss head, 8-18AB x 0.500

93A 216629601 Screw, hex washer head, 10-16 x 0.500, tapping

137B 297166902 Frame, (2)

137C 297166900 Frame

138 297203602 Trim-shelf, front

139 297218202 Trim-shelf, rear

152 216974600 Bearing, hinge closer

156 297202402 Divider, basket, btm

156A 297183602 Divider, basket, (2)

163 297185302 Shelf, pizza

169 216912401 Screw, hex washer head, 8-32 x 0.500, bracket fan mtr, (2)

* 297001704 Insulation, 24", drain tube

* 5303305324 Paint, touch-up, white

* 297089301 Energy Guide

* 297249900 Instructions, elect guide, Precision

* 297257400 Label, start guide

Publication No: 5995525010 GLFH21F8HWB

09/08 6

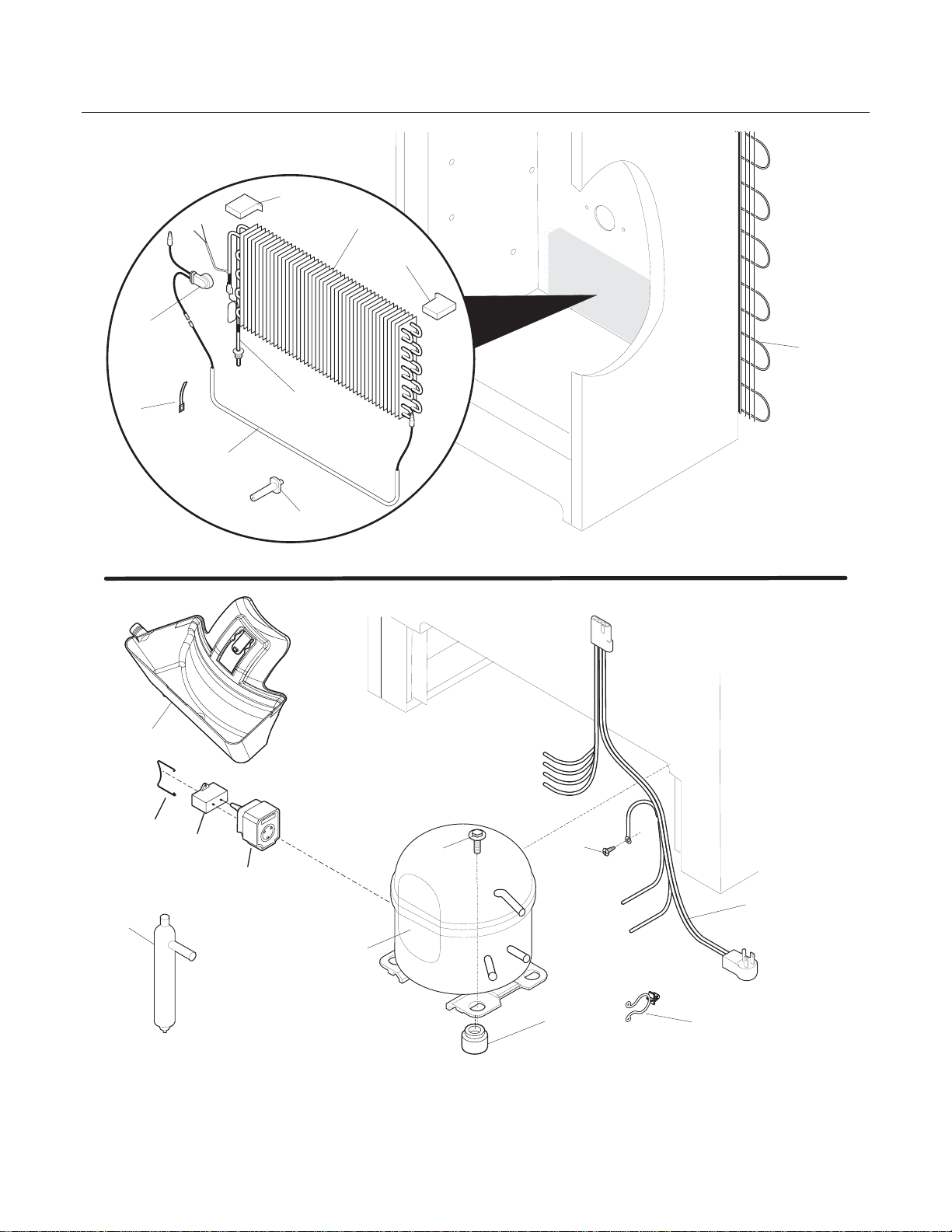

SYSTEM

FRONT

BACK

130

15A

P08S0485

31A

43B

GLFH21F8HWB Publication No: 5995525010

# Functional Parts 7 09/08

* Non-Illustrated Parts

SYSTEM

POS. NO PART NO. DESCRIPTION

1 # 5300083897 Condenser

2 5308000110 Strap-evap/heater, aluminum, (2)

4 216987500 Drier-filter

5 # 297237602 Harness-main

14 297216100 Heater-defrost

15 # 216997300 Evaporator

15A 297217900 Heat Exchanger, suct/cap tube

18 297078700 Insulator-evap, styrofoam

19 297078800 Insulator-evap, styrofoam

20 216872200 Thermostat, defrost

27 5308002681 Grommet, compressor

29 # 297223500 Compressor, w/o electricals

30 216954218 Controller

31A 297217000 Pan-drain

32 216954300 Clip, controller

35 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)

43B 297048400 Clip

55 216985001 Capacitor-run, 15 MF

86 216036601 Screw, RWHD, 8-32A x 0.500, GX-CA

130 297244700 Support, evaporator mtg

* 216502500 Sleeve, suction line

* 240555002 Screw-#8-32 X 3/8

* 297014500 Plug-suction line

* 297018400 Thermistor

* 297102800 Spacer-tube

* # 297169900 Cord-power, flat
