Frigidaire FGR311FS - 27" Gas Dryer Manuel utilisateur

Product No. FGR311FS0

Series Frigidaire

Market North America

Color white

Volts 120

Wiring Diagram 131518600

Owner's Guide 134672000

Installation Instructions 134296400

Operating Instructions 134516800

P16L0001.eps P16V0100.eps P16D0042.eps P16C0095.eps P16M0024.eps P16b0015.eps

131518600.eps

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995482014

07/01/10

(EN/SERVICE/WC)

361

GAS DRYER

Model No.

FGR311F

Publication No: 5995482014 FGR311FS0

01/07 2

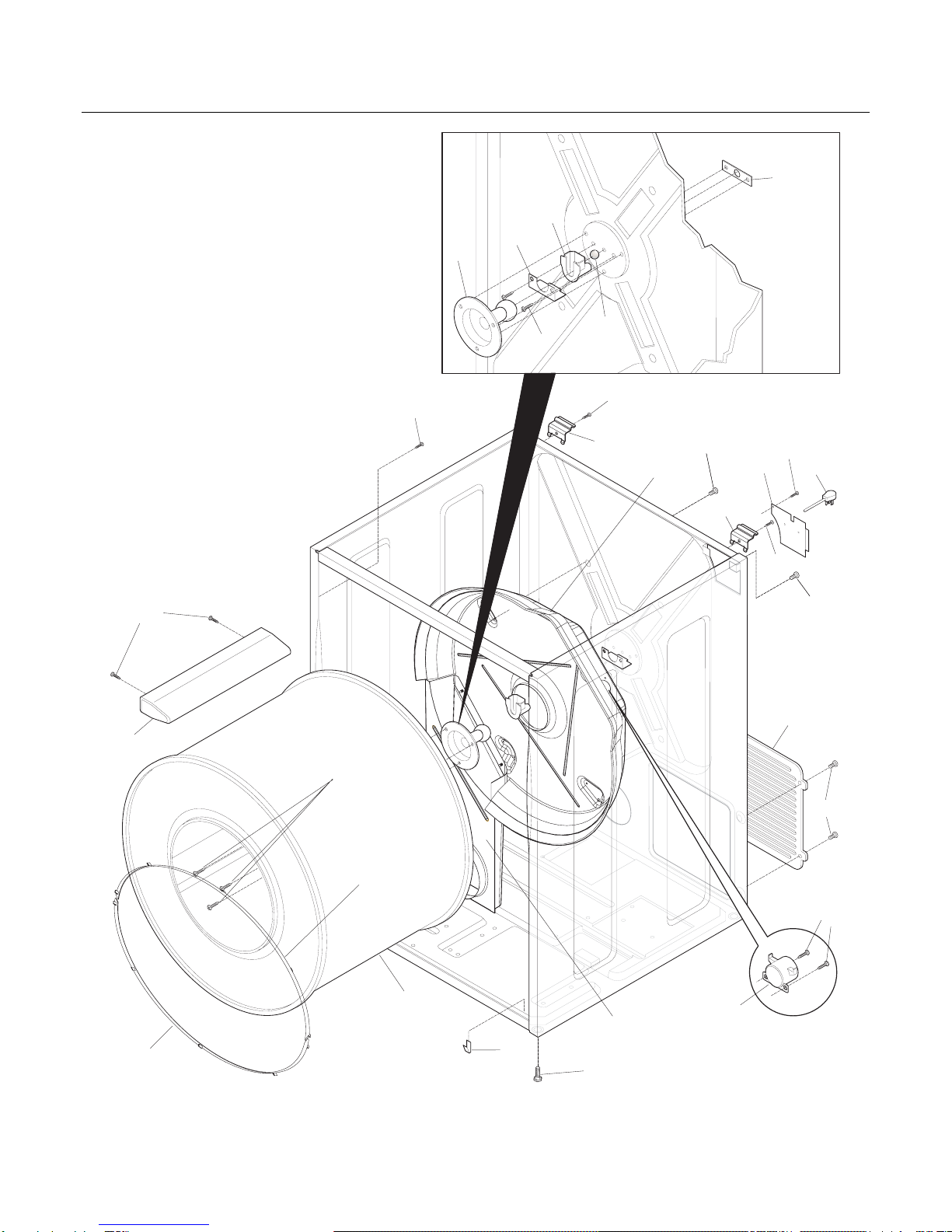

CABINET/DRUM

P16V0100

24 64

FGR311FS0 Publication No: 5995482014

# Functional Parts 3 01/07

* Non-Illustrated Parts

CABINET/DRUM

POS. NO PART NO. DESCRIPTION

2 131168200 Screw, pan head, 8-18B x 0.31

5 5303281019 Ball, grounding

6 5303281020 Clip, ball, steel, flat nut

9 131793200 Panel, service access, rear

11 131363200 Cover, terminal block

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 # 131600500 Housing, gas heater assy, w/seal

18 131477000 Screw, 10-16AB x 0.375

20 131469100 Bracket, hinge, rear, top panel mtg.

21 134122532 Drum, dryer, galvanized stl., service kit

24 131963900 Glide, drum

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5303201200 Vane, straight

31 # 134501200 Power Cord, electric svce

32 131777700 Shaft, drum support, ballhitch

32* 5303307893 Lubricant, high temp

33 # 5308015399 Thermostat, safety

34 131243700 Screw, pan head, 8-18AB x 0.375

37 131952100 Duct, heat

42 134154100 Screw, hex washer head, 10-32 x 0.375, ground

44 134158000 Leveling Leg, screw

64 131704600 Clip, front, cabinet bottom

* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32

Publication No: 5995482014 FGR311FS0

01/07 4

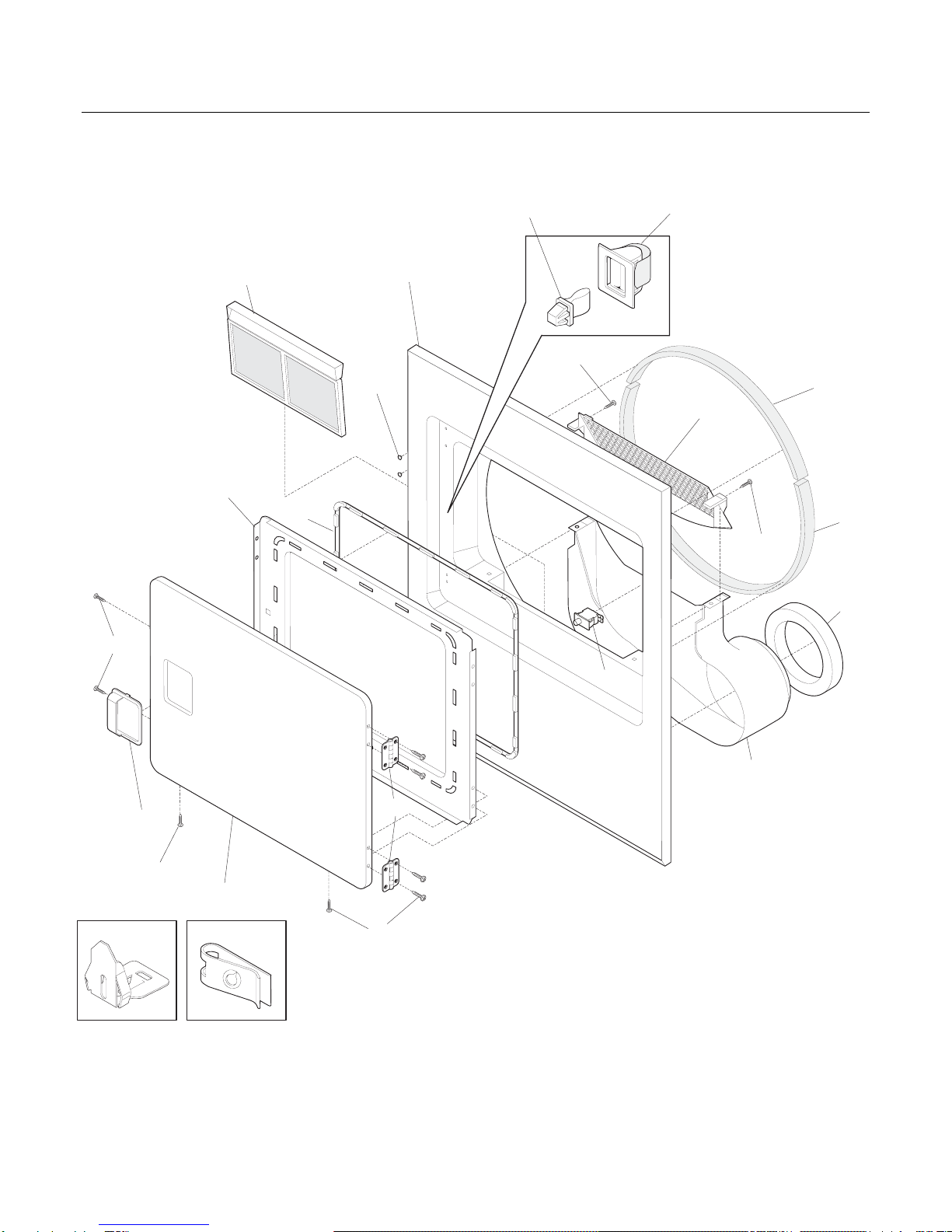

FRONT PANEL/LINT FILTER

P16D0042

28 16

FGR311FS0 Publication No: 5995482014

# Functional Parts 5 01/07

* Non-Illustrated Parts

FRONT PANEL/LINT FILTER

POS. NO PART NO. DESCRIPTION

1 134417000 Seal, air duct

2 131397000 Plug, dome, white

6 131621900 Duct, air

8 131622202 Cover, lint housing

9 131633200 Plug, white

16 134440100 Clip, U-nut

20 134440200 Seal, felt, upper

20* 5308027429 •Adhesive, high temp

21 134134700 Seal, felt, lower

22 131845912 Panel, front, white, w/lamp hole

22* 131474700 Insulation

22* 131870700 Plug, light hole

25 131658800 Door Catch

26 # 131843100 Switch, door

27 131450300 Trap, lint blade assy

28 134440000 Clip, guide

41 134222900 Hinge, dryer door

42 134156200 Screw, flat head, 8-18AB x 0.44, quad drive

44 131129900 Gasket, door seal

46 131644700 Handle, door, white

47 131844104 Panel, inner door, white

48 131789303 Panel, outer door, white

49 5303211430 Door Strike

50 131303300 Screw, pan head, 10-16AB x 0.500, locking

Publication No: 5995482014 FGR311FS0

01/07 6

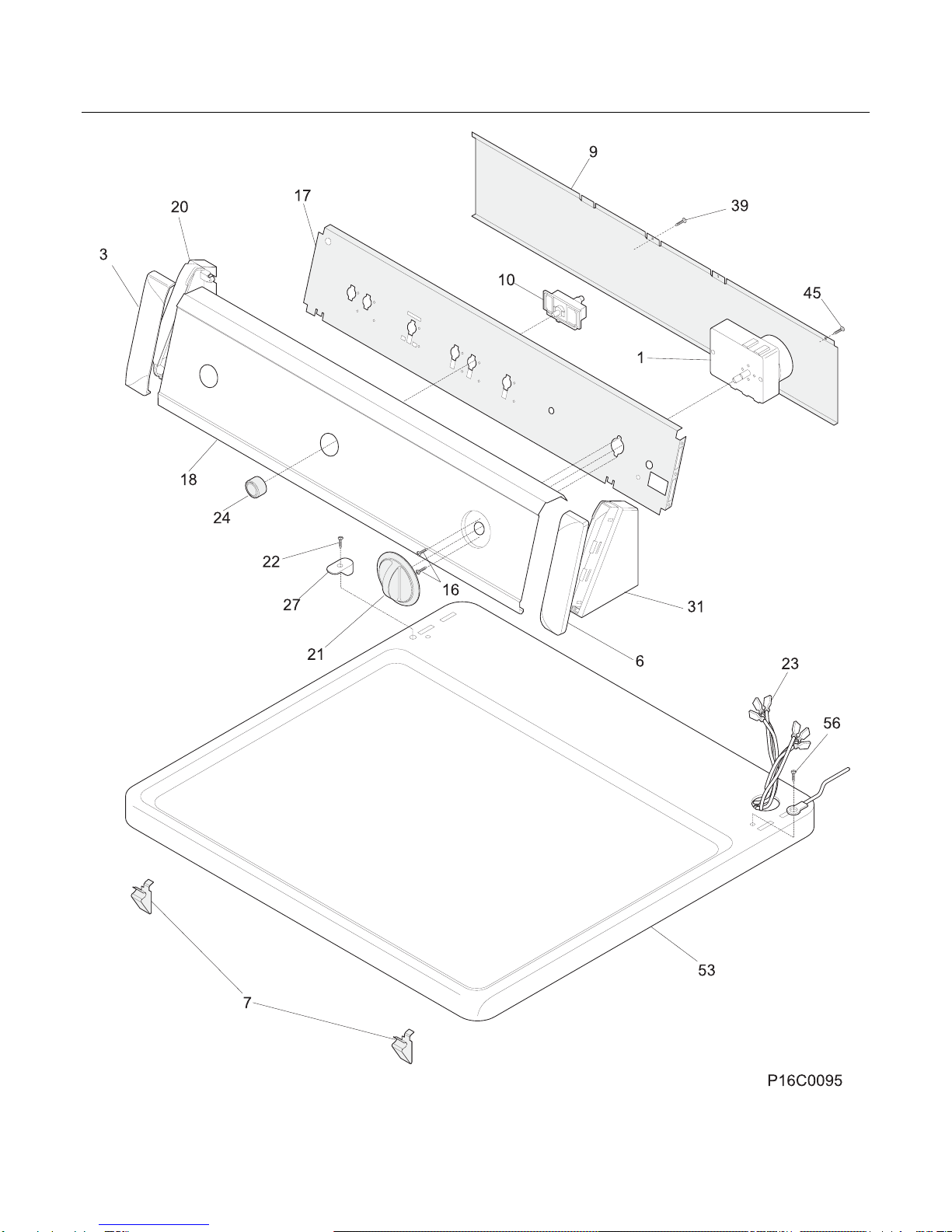

CONTROLS/TOP PANEL

FGR311FS0 Publication No: 5995482014

# Functional Parts 7 01/07

* Non-Illustrated Parts

CONTROLS/TOP PANEL

POS. NO PART NO. DESCRIPTION

1 # 5303297139 Timer, dryer

3 131122611 Cover, end cap, white, LH

6 131122601 Cover, end cap, white, RH

7 3205821 Clip, top-to-front

9 134088700 Panel, console back

10 # 131469000 Switch, push/start

16 134034300 Screw, pan hd phillips, 8-18B x 0.250

17 134487900 Bracket, control mtg

18 134069700 Panel, trimplate, console front

20 131122714 End Cap, white, LH

21 134011703 Knob, timer, white/gray

22 131266330 Screw, 8-18 x 1.250

23 134004700 Wiring Harness

24 131111501 Button, start switch, white, push type

27 131197000 Clip, console mtg

31 131122701 End Cap, white, RH

39 131243700 Screw, pan head, 8-18AB x 0.375

45 131205100 Screw, #8 pan head, 10-10B x 0.500, cr/sq drive

53 134086802 Panel, dryer top, white, console mtg

56 131243800 Screw, pan hd locking, 8-32CA x 0.375, cup point

* # 134101400 •Terminal Block, main

Publication No: 5995482014 FGR311FS0

01/07 8

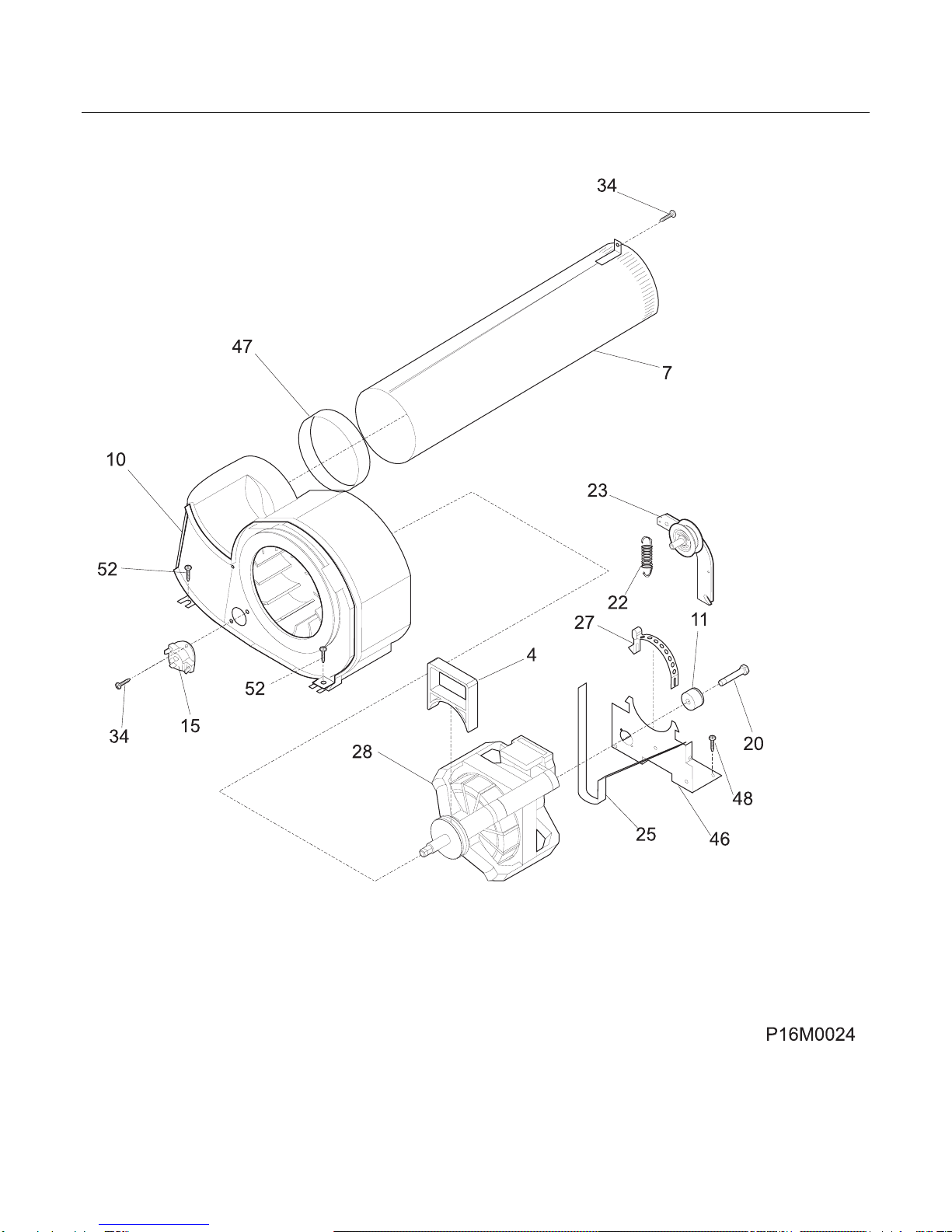

MOTOR

FGR311FS0 Publication No: 5995482014

# Functional Parts 9 01/07

* Non-Illustrated Parts

MOTOR

POS. NO PART NO. DESCRIPTION

4 131435200 Lock, blower housing

7 131451600 Tube, exhaust, rear, w/mtg bracket

7* 131456800 Tube, exhaust, side/bottom, Optional Kit

10 # 131775600 Blower Assy, housing, w/cover & wheel

11 131749800 Spacer, idler

15 # 5308015398 Thermostat, temp control

20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting

22 131601000 Spring, idler arm

23 # 131863007 Idler Arm Assy, w/pulley

25 # 134503600 Belt, dryer

27 134242400 Clamp, motor mtg.

28 # 131560100 Motor & Pulley Assy

34 131243700 Screw, pan head, 8-18AB x 0.375

46 134203400 Bracket, motor mtg

47 131633300 Seal, exhaust tube

48 131168200 Screw, pan head, 8-18B x 0.31

52 131202300 Screw, 10-16AB x 0.625

Publication No: 5995482014 FGR311FS0

01/07 10

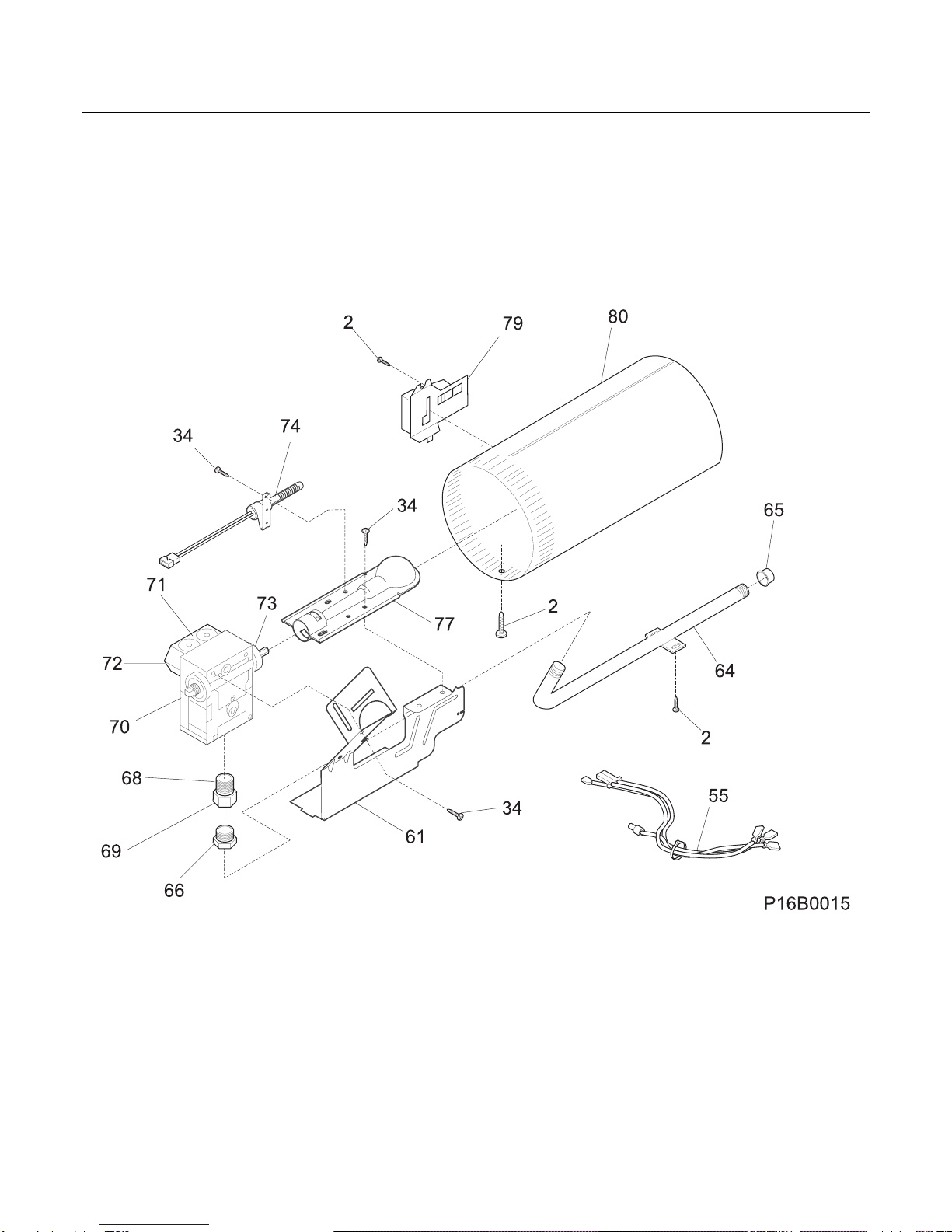

BURNER
