Frigidaire FEQBB30D Manuel utilisateur

P16L0037.eps P16V0075.eps P16d0028.eps P16C0165.eps P16M0024.eps

134289000e.wmf

Product No. FEQBB30DS0

Series Frigidaire

Market Best Buy

Color white

Volts 230

Wiring Diagram 134289000

Owner's Guide 134306300

Installation Instructions 134306200

Operating Instructions 134306100

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995405460

04/03/08

(EN/SERVICE/KC)

361

ELECTRIC DRYER

Model No.

FEQBB30D

Publication No: 5995405460 FEQBB30DS0

03/04 2

CABINET/DRUM

FEQBB30DS0 Publication No: 5995405460

# Functional Parts 3 03/04

* Non-Ilustrated Parts

CABINET/DRUM

POS. NO PART NO. DESCRIPTION

2 131168200 Screw, pan head, 8-18B x 0.31

4 131785200 Bracket, elec power cord, knock out

5 5303281019 Ball

6 5303281020 Clip, ball, steel, flat nut

7 134121200 Rack, drying

9 131793201 Panel, access, rear

11 5303211428 Cover, terminal block

12 131825900 Bearing, drum support

13 131724300 Bracket, bearing support

14 131205400 Screw, bracket mtg., 10-16B x 1.375, cr/sq drive

15 # 131553900 HeaterAssy, w/housing/felt

17 3204254 Baffle, heater shield

18 131477000 Screw, 10-16AB x 0.375

19 131205300 Screw, 10-16 x 0.750

20 134166500 Bracket, top panel mtg., rear

21 134122532 Drum, dryer, galvanized stl., service kit

24 131963900 Glide, drum

25 5303015671 Screw, hex washer head, 8-18 x 0 .375, cup point

29 131382300 Screw, quadrex head, 10-14 x 1.00, vane mtg., special

30 5303201200 Vane, straight

32 131777700 Shaft, drum support, ballhitch

32* 5303307893 Lubricant, high temp

33 # 3204267 Thermostat, safety

34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

35 131892100 Screw, 6-20B x 0.230

36 # 134120900 Thermal Limiter

42 134154100 Screw, hex washer head, 10-32 x 0.375, ground

44 134158000 Leveling Leg, screw

51 131472100 Insulator, heater housing

52 # 134101400 Terminal Block, main

* # 134198900 Wiring Harness, main

52A# 3202786 Terminal Block, heater housing

64 131704600 Clip

* # 5303281153 Rear Bearing Kit, includes 5, 6, 12, 13, 14, 18, 32

* 134258400 Stacking Kit, dryer/washer

Publication No: 5995405460 FEQBB30DS0

03/04 4

FRONT PANEL/LINT FILTER

P16D0028

28 16

FEQBB30DS0 Publication No: 5995405460

# Functional Parts 5 03/04

* Non-Ilustrated Parts

FRONT PANEL/LINT FILTER

POS. NO PART NO. DESCRIPTION

1 134063300 Seal, air duct

2 131397000 Plug, dome, white

6 131621900 Duct, air

8 # 131845801 Cover, lint housing, w/moist sensor

8* # 131657500 •Wiring Harness, moisture sensor

9 131633200 Plug, white

16 131063700 Clip, wiring

20 134036400 Seal, felt, upper

20* 5308027429 Adhesive, high temp

21 134134700 Seal, felt, lower

22 131845902 Panel, front, white, with lamp hole

22* 131474700 Insulation

25 131658800 Door Catch

26 # 131843101 Switch, door, with drum light

27 131450300 Trap, lint blade assy

28 5303281074 Clip, guide, (3)

41 134222900 Hinge, dryer door

42 131209600 Screw, flat head, 8-18AB x 0.44, cr/sq drive

44 131129900 Gasket, door seal

45 134207300 Screw, pan head, 8-18AB x 0.250

46 134213800 Handle, door, white

47 131844104 Panel, inner door, white

48 131789303 Panel, outer door, white

49 5303211430 Door Strike

50 131303300 Screw, pan head, 10-16AB x 0.500, locking

58 # 131843500 Lamp Assy, drum light, w/mtg bracket

58*# 131862800 •Lamp

Publication No: 5995405460 FEQBB30DS0

03/04 6

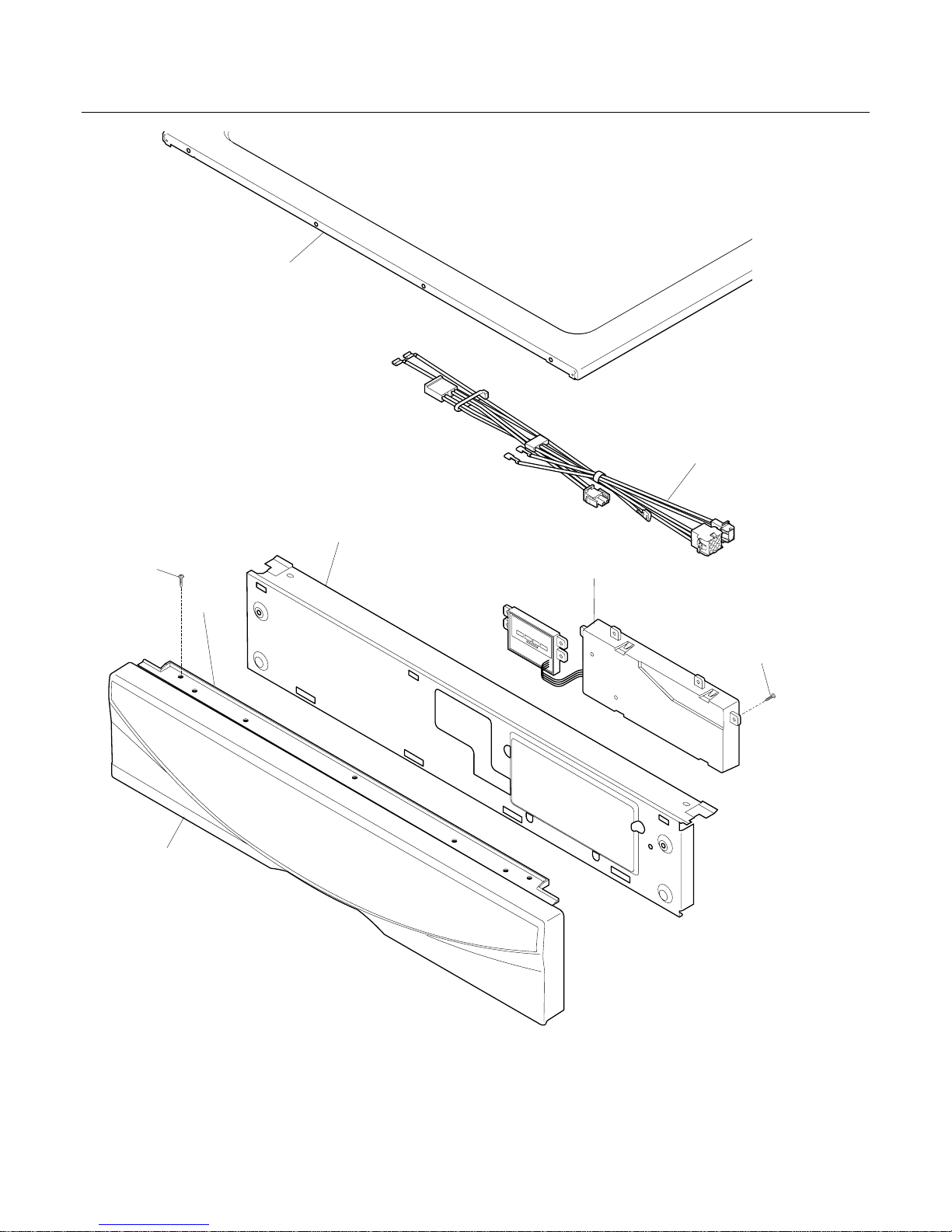

CONTROLS/TOP PANEL

10:00

P16C0165

39 1

FEQBB30DS0 Publication No: 5995405460

# Functional Parts 7 03/04

* Non-Ilustrated Parts

CONTROLS/TOP PANEL

POS. NO PART NO. DESCRIPTION

1 # 134208151 Control Board, printed circuit, with display

17 134195700 Bracket, control mtg.

19 134205400 Screw, pan head, 6-19 x 0.500, type p

23 # 134199000 Wiring Harness, controls

23*# 134198900 Wiring Harness, main

29 # 134208360 Frame, control console, with membrane

39 134178900 Screw, Quad, 8-18AB x 0.455

53 134164202 Panel, dryer top, white, top

61 134167300 Drip Rail, dryer console

Publication No: 5995405460 FEQBB30DS0

03/04 8

MOTOR

FEQBB30DS0 Publication No: 5995405460

# Functional Parts 9 03/04

* Non-Ilustrated Parts

MOTOR

POS. NO PART NO. DESCRIPTION

4 131435200 Lock, blower housing

7 131451600 Tube, exhaust, rear, w/mtg bracket

7* 131456800 Tube, exhaust, side/bottom, Optional Kit

10 # 131775600 Housing, blower assy, cover & wheel

11 131749800 Spacer, idler

15 # 134216500 Thermistor, control

20 131017900 Screw, hex head, 1/4-20T x 1.25, spacer mtg., thread cutting

22 131601000 Spring, idler arm

23 # 131863000 Idler Arm

25 # 134163400 Belt, dryer

27 134242400 Clamp, motor mtg.

28 # 131560100 Motor, main drive, w/pulley

34 131243700 Screw, pan head, 8-18AB x 0.375, cr/sq drive

46 134203400 Bracket, motor mtg

47 131633300 Seal, exhaust tube

48 131168200 Screw, pan head, 8-18B x 0.31

52 131303100 Screw, hex washer head, 10-16AB x 0.625

Publication No: 5995405460 FEQBB30DS0

03/04 10

WIRING DIAGRAM
