Frigidaire GLD2870RF Manuel utilisateur
P30L0060.eps P30C0144.eps P30B0037.eps P30U0021.eps P30M0036.eps P30F0022.eps
P30R0099.eps
Product No. GLD2870RFB0 GLD2870RFS0
Series Built-in 24" Built-in 24"
Color black white
Owner's Guide English 154575801 154575801
Owner's Guide Spanish 154575803 154575803
Owner's Guide French 154575802 154575802
Service Data Sheet 154495501 154495501
Energy Guide 154540025 154540025
Installation Instructions 154427301 154427301
Market North America North America
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995463402
06/03/16
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
GLD2870RF
Copyright ©2006 Electrolux Home Products, Inc.
All rights reserved.
Publication No: 5995463402 GLD2870RF
03/06 2

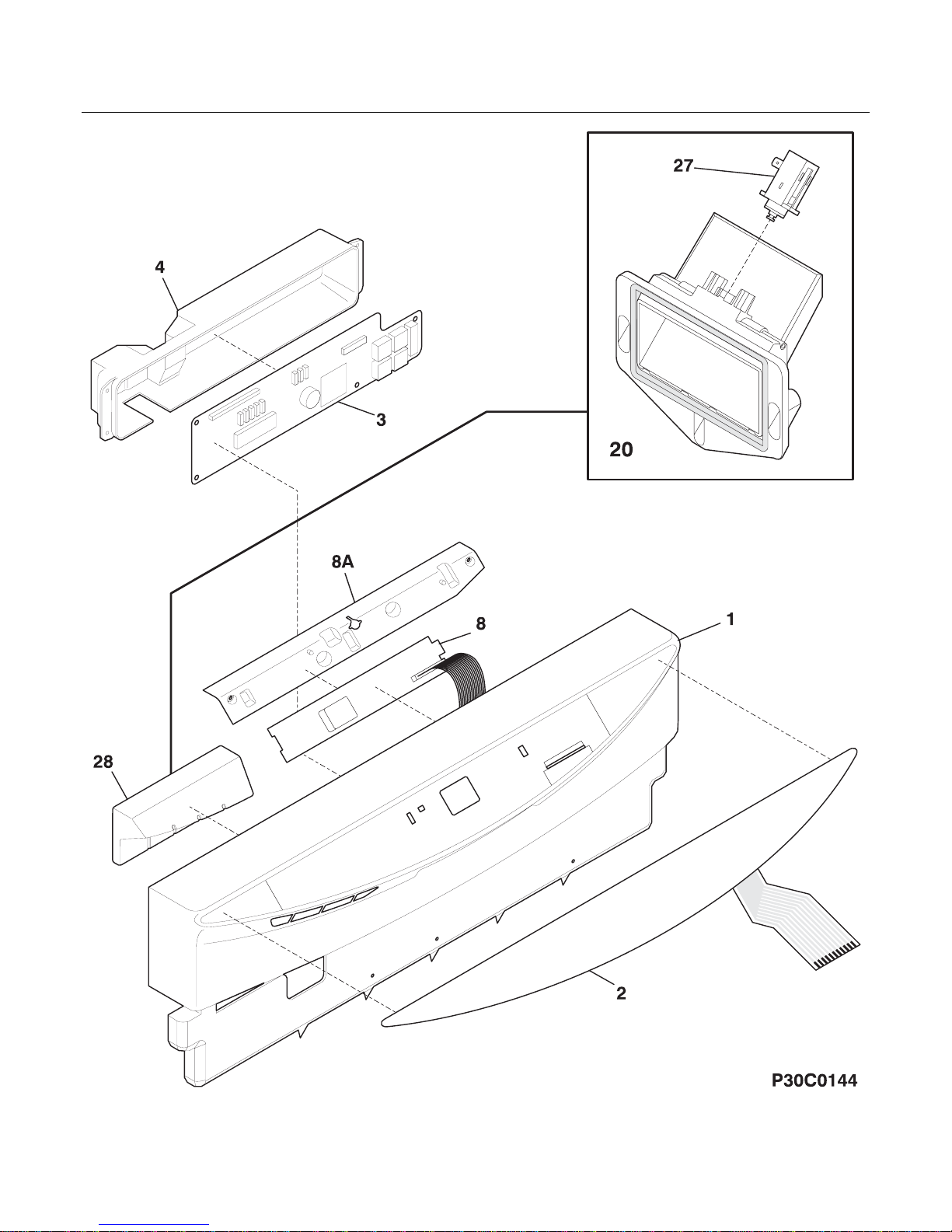

CONTROL PANEL
GLD2870RF Publication No: 5995463402
# Functional Parts 3 03/06
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AGLD2870RF (GLD2870RFS0)
BGLD2870RF (GLD2870RFB0)
POS. NO PART NO. DESCRIPTION
1 # 154486101 A - Panel, control, white
1 # 154486103 - B Panel, control, black
2 154525701 A - Insert, control panel, white, w/switch memb.
2 154525703 - B Insert, control panel, black, w/switch memb.
3 154520901 A B Board, control
3* 154200401 A B Screw, 6-10 x 3/8, pan plask
4 154554601 A B Cover, control
4* 154478901 A B Gasket, cover
8 154474801 A B Board, segment display
8* 5303318719 A B Screw, mtg.
8A 154486201 A B Shield, tactile switch
20 154423601 A B Vent assy, active dry, w/actuator
20* 154436201 A B Screw, dry duct, (3)
27 154433501 A B Actuator, active dry vent
28 154474401 A B Adapter, vent
* 154496001 A B Harness, wiring, main
* 154540025 A B Energy guide label
* 154283901 A B Screw, #8-10, 3/8 phillips
Publication No: 5995463402 GLD2870RF
03/06 4

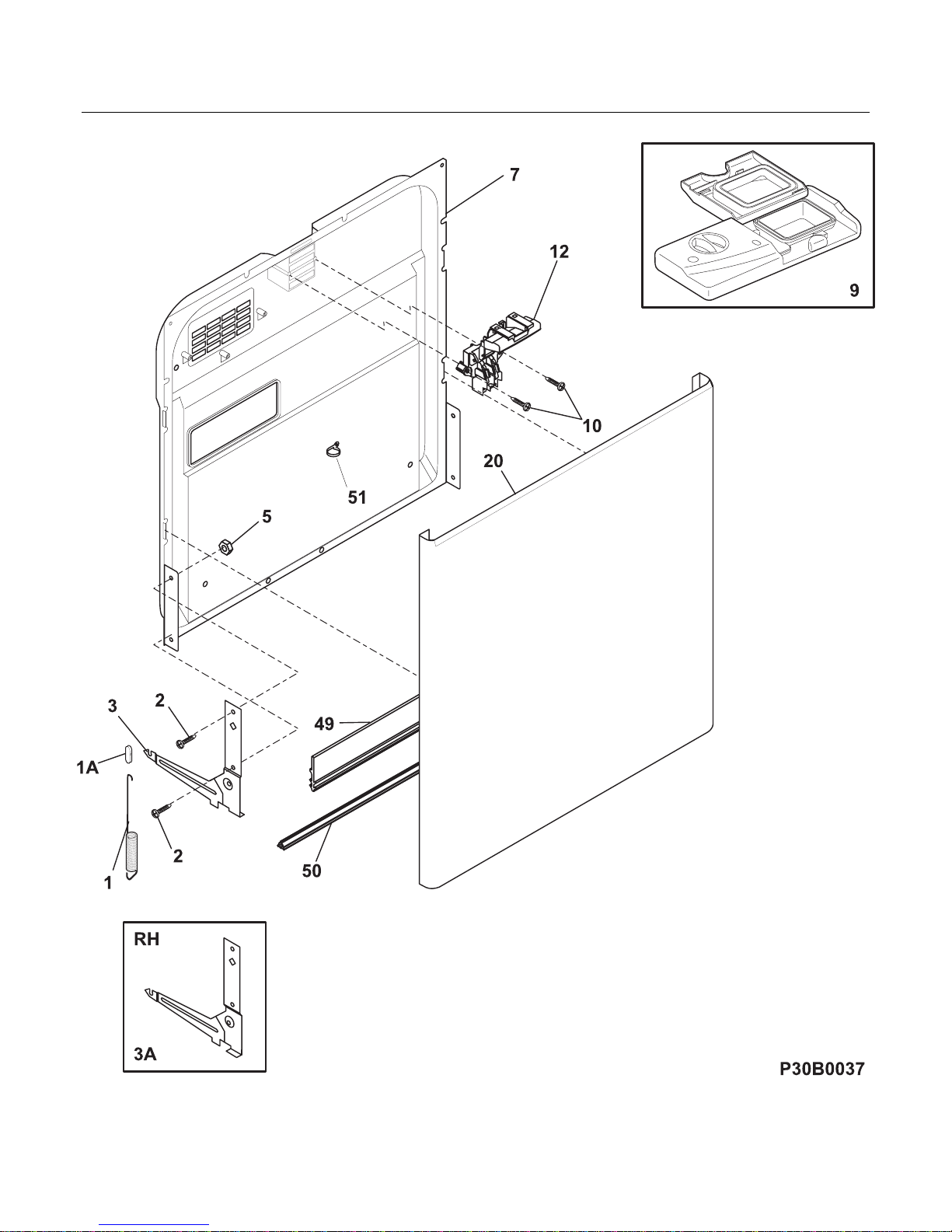

DOOR
GLD2870RF Publication No: 5995463402
# Functional Parts 5 03/06
* Non-Illustrated Parts
DOOR
Model Index: AGLD2870RF (GLD2870RFS0)
BGLD2870RF (GLD2870RFB0)
POS. NO PART NO. DESCRIPTION
1 154430501 A B Spring, door, (2)
1A 154325201 A B Linkage, door spring, (2)
2 154093301 A B Screw, arm assy, (4)
3 154558103 A B Arm Assy, LH
3A 154558503 A B Arm Assy, RH
* 154529101 A B Pin, arm assy
5 154079601 A B Nut, arm assy, and handle mtg.
7 154494601 A B Liner, door assy.
9 154542104 A B Dispenser, det/rinse aid, w/reed
9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.
10 154103702 A B Screw, latch mtg, (2)
12 154529401 A - Latch assy, white
12 154529403 - B Latch assy, black
20 154436801 A - Door Assy, white, outer
20 154436803 - B Door Assy, black, outer
20* 154253201 A B Insulation, door
20* 5304428306 A B Screw, door mtg., (2)
49 154297603 A B Gasket, door, bottom
50 154211401 A B Support, door hinge
51 154320301 A B Clamp, drip loop, wire
* 154200601 A B Screw, #10-16 x 3/8
Publication No: 5995463402 GLD2870RF
03/06 6
TUB
GLD2870RF Publication No: 5995463402
# Functional Parts 7 03/06
* Non-Illustrated Parts
TUB
Model Index: AGLD2870RF (GLD2870RFS0)
BGLD2870RF (GLD2870RFB0)
POS. NO PART NO. DESCRIPTION
1 # 154534701 A B Tub assy, w/frame parts
2 154429101 A B Strike, door
3 # 154561001 A B Gasket, tub
4 154200602 A B Screw, 10-16 x 3/8, hex
5 154333902 A B Roller, tub
6 5303943103 A B Screw, w/washer, (8)
22 154446002 A B Tubing, water inlet
23 5303318539 A B Clamp, tubing, (2)
24 # 154525301 A B Hose, drain
25 # 154209701 A B Float
28 154408701 A B Switch Assy, float
29 # 154290204 A B Thermostat, re-settable
30 154241101 A B Retainer, thermostat
30* 154297701 A B Screw, retainer-thermo
* 154447102 A B Insulation, blanket
* 154447301 A B Insulation, tub back
* 154041001 A B Screw, plask #1, 10-10 x 9/16
* 5300807270 A B Screw, (2), countertop mtg.
Publication No: 5995463402 GLD2870RF
03/06 8
MOTOR & PUMP
GLD2870RF Publication No: 5995463402
# Functional Parts 9 03/06
* Non-Illustrated Parts
MOTOR & PUMP
Model Index: AGLD2870RF (GLD2870RFS0)
BGLD2870RF (GLD2870RFB0)
POS. NO PART NO. DESCRIPTION
1 # 154482901 A B Heater, round
1* 154106201 A B Nut, heater, (2)
1* 154289801 A B Shield, heater terminal
2 154465101 A B Bracket, heater, (2)
10 154245501 A B Cover, volute
13 154246801 A B Gasket, sump
14 154461902 A B Housing, sump
16 154246502 A B Retainer, sump
24 154467702 A B Spray arm, grey, lower
24A 154468502 A B Spray arm, grey, center
24B 154478201 A B Spray arm, 3rd level
32 154464101 A B Tube, delivery
32* 154491101 A B Screw, delivery tube
32A 154406401 A B Gasket, delivery tube
40 154348401 A B Clamp, red, pump
40 154348502 A B Clamp, red, pump
40* 154106801 A B Clamp, hose, worm/drain
40* 154380601 A B Clamp, hose, worm/gear
54 154234401 A B Hose, connector
55 154362301 A B Bracket, motor
55* 5303316032 A B Screw, truss ss, 8 .625
58 154246402 A B Check ball
59 154246901 A B O-ring, rear
59A 154247001 A B O-ring, front
60 154491301 A B Pump, drain
60* 5303318719 A B Screw, mtg.
61 154463402 A B Grommet, delivery tube
62 154294102 A B Support, spray arm, grey, lower
63 154252201 A B Base, soil director
64 154252302 A B Filter, soil director, grey
65 154283005 A B Filter Assy, grey
66 154252702 A B Trap, glass, grey
70 # 154483001 A B Motor & Pump Assy, variable speed
71 # 154473901 A B Sensor, turbidity
71* 154376001 A B O-ring, turbidity
* 154200601 A B Screw, #10-16 x 3/8
Publication No: 5995463402 GLD2870RF
03/06 10
FRAME
