Frigidaire FDB510CG Mode d’emploi

P30L0055.eps P30C0140.eps P30B0041.eps P30U0018.eps P30M0041.eps P30F0022.eps

P30R0089.eps

Product No. FDB510CGC0

Series 24" Built-in

Color stainless

Owner's Guide English 154590901

Owner's Guide Spanish 154590903

Owner's Guide French 154590902

Service Data Sheet 154465801

Energy Guide 154540043

Installation Instructions 154427301

Market Canada

North & Latin America

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V

3E4 Publication No.

5995490181

07/05/04

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB510CG

Publication No: 5995490181 FDB510CGC0

05/07 2

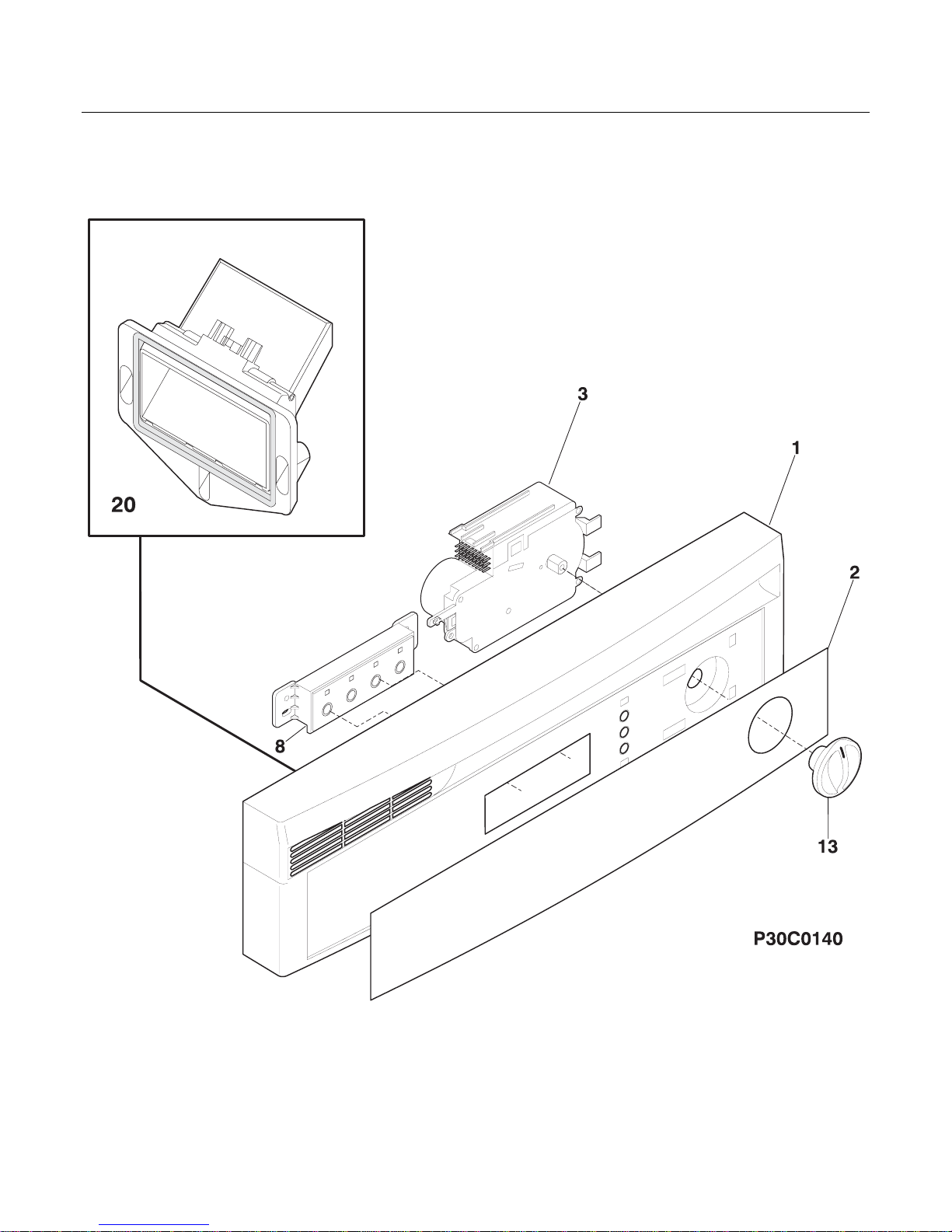

CONTROL PANEL

FDB510CGC0 Publication No: 5995490181

# Functional Parts 3 05/07

* Non-Illustrated Parts

CONTROL PANEL

POS. NO PART NO. DESCRIPTION

1 154454203 Panel, control, black

2 154465303 Insert, control panel, black

3 # 154465901 Timer

3* 154131203 Shield, timer

3* 154095701 Screw, thread rolling, (2), timer

8 # 154466001 Switch, selector, 4 button

8* 154248601 Shield, switch

8* 5303318719 Screw, mtg.

13 154426903 Knob, timer, black

20 154433001 Vent assy, static dry

20* 154436201 Screw, dry duct, (3)

* 154546201 Wiring Harness

* 154540043 Energy guide label

Publication No: 5995490181 FDB510CGC0

05/07 4

DOOR

FDB510CGC0 Publication No: 5995490181

# Functional Parts 5 05/07

* Non-Illustrated Parts

DOOR

POS. NO PART NO. DESCRIPTION

1 154430501 Spring, door, (2)

1A 154325201 Linkage, door spring, (2)

2 154093301 Screw, armassy, (4)

3 154597502 Arm Assy, LH

3A 154596102 Arm Assy, RH

* 154529101 Pin, arm assy

5 154079601 Nut, arm assy, and handle mtg.

7 154494601 Liner, door assy.

9 154574401 Dispenser, det/rinse aid, w/o reed

9* 154294701 Screw, #7 plas .375, (6), disp. assy.

10 154103702 Screw, latch mtg, (2)

12 # 154537303 Latch assy, black

20 154533901 Door, stainless

20* 5304428306 Screw, door mtg., (2)

22 154388801 Cap, Rinse aid

49 154576501 Gasket, door, bottom

50 154211401 Support, door hinge

51 154320301 Clamp, drip loop, wire

* # 154227806 Thermostat, temp boost, hi temp rinse

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995490181 FDB510CGC0

05/07 6

TUB

FDB510CGC0 Publication No: 5995490181

# Functional Parts 7 05/07

* Non-Illustrated Parts

TUB

POS. NO PART NO. DESCRIPTION

1 # 154209301 Tub assy, w/frame parts

2 154429101 Strike, door

3 # 154561001 Gasket, tub

4 154200602 Screw, 10-16 x 3/8, hex

5 154333902 Roller, tub

6 5303943103 Screw, w/washer, (8)

22 154577401 Tubing, water inlet

23 5303318539 Clamp, tubing, (2)

24 # 154525301 Hose, drain

25 # 154209701 Float

28 154408701 Switch Assy, float

29 # 154290204 Thermostat, re-settable

30 154241101 Retainer, thermostat

30* 154297701 Screw, retainer-thermo

* 154457002 Insulation, blanket

* 154041001 Screw, plask #1, 10-10 x 9/16

* 154200601 Screw, #10-16 x 3/8

* 5300807270 Screw, (2), countertop mtg.

Publication No: 5995490181 FDB510CGC0

05/07 8

MOTOR & PUMP

FDB510CGC0 Publication No: 5995490181

# Functional Parts 9 05/07

* Non-Illustrated Parts

MOTOR & PUMP

POS. NO PART NO. DESCRIPTION

1 # 154247601 Heater

1* 154106202 Nut, heater, (2)

1* 154289801 Shield, heater terminal

2 154479601 Bracket, heater, (2)

10 154245501 Cover, volute

13 154246801 Gasket, sump

14 154365902 Housing, sump

16 154246502 Retainer, sump

24 154568001 Spray arm, white, lower, w/heat shield

24A 154313601 Spray arm, center

24A* 154252001 Nut, spray arm, center

32 154406601 Tube, delivery

32A 154406401 Gasket, delivery tube

40 154348401 Clamp, red, pump

40 154348502 Clamp, red, pump

40* 154106801 Clamp, hose, worm/drain

40* 154380601 Clamp, hose, worm/gear

54 154234401 Hose, connector

55 154595901 Bracket, motor

55* 5303316032 Screw, truss ss, 8 .625

58 154246402 Check ball

59 154246901 O-ring, rear

59A 154247001 O-ring, front

60 154474101 Drain Pump Assy

60* 154426201 Bracket, motor, drain

60* 154581501 Screw, drain motor, (3)

61 154406701 Nozzle, 2nd level, spray arm

62 154294101 Support, spray arm, lower

63 154252201 Base, soil director

64 154252301 Filter, soil director, white

65 154252401 Filter, polypro

66 154252701 Trap, glass

70 # 154594201 Motor & Pump Assy

* 154200601 Screw, #10-16 x 3/8

Publication No: 5995490181 FDB510CGC0

05/07 10

FRAME
