Frigidaire FFBD1821M S Manuel utilisateur

frigidaire.com

Signature Features

Dishwashers

FFBD1821M S / W/ B

18" Built-In

Product Dimensions

Height (Adjustable) 32-1/2" – 34-7/8"

Width 17-5/8"

Depth (Including Door) 23"

More Easy-To-Use Features

Attractive Stainless Steel Exterior1

Multiple Cycle Options

Features easy-to-use cleaning cycle

options including China & Crystal and

Heavy Wash.

Ready-Select® Controls

Easily select options with the touch of

a button.

High Temperature Wash

Control Lock Option

A.D.A. Compliant

When properly installed, this model

is A.D.A.-qualified based on the United

States Access Board’s A.D.A./A.B.A.

Accessibility Guidelines and the

Department of Justice’s 2010 A.D.A.

Standards for Accessible Design.

ENERGY STAR®

A.D.A. Compliant

Available in:

1 Select model only.

White

(W)

Stainless

(S)

Black

(B)

Energy Saver Dry Option

No heat dry option.

Delay Start

Set your dishwasher to run on your

schedule.

Stainless Steel Interior

Premium stainless steel interior

for maximum durability.

Energy Saver Plus Cycle

Eco-friendly cycle uses less energy

without compromising cleaning

performance.

Specifications

subject to change.

Accessories information available

on the web at frigidaire.com

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Dishwashers

FFBD1821M S / W / B 18" Built-In

Features

Control Design

Digital Display

Door Latch

Stay-Put Door Hinge Design

Low Rinse-Aid Indicator Light

Interior Design

Interior Color

Wash System

Wash Levels /Wash Speeds

Sound Package

Filter

Filter Trap

Soft Food Disposer

dB Level

Drying System

Cycles

Number of Cycles

Heavy

Normal

Light

Delicate

Favorite

China / Crystal

Rinse Only

Energy Saver

Upper Rack Wash Only

Cycle Indicator Light

Control Lock

Options

Heat / No Heat Dry

Hi-Temp Wash

NSF® Certiﬁed Sanitize Rinse

Delay Start

Rack System

Rack Design / Rack Coating

Upper Rack –

Stemware / Champagne Glass Holders

Fold-Down Tines

Cup Shelves

Lower Rack –

Silverware Basket

Fold-Down Tines

Small Items Cover

Certiﬁcations

ENERGY STAR®

A.D.A. Compliant1

Speciﬁcations

Water Inlet Location

Water Usage (Gallons)

Water Pressure (PSI)

Integral Air Gap on Supply

Leveling Legs

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating) @ 120 Volts2

Amps @ 120 Volts

Shipping Weight (Approx.)

Ready-Select®

Pull Latch

Standard

Stainless Steel

Direct Feed

4/1

UltraQuiet™ III

Manual Clean

Removable

Static Vent

Yes

2 or 4 Hour

Deluxe / Nylon

Standard

Yes

Left Bottom Front

3.96

20 – 120

Yes

Right Bottom Front

120V / 60 Hz / 15A

1.44

8.5

71 Lbs.

1 When properly installed, this model is A.D.A.-qualiﬁed based on the

United States Access Board’s A.D.A./A.B.A. Accessibility Guidelines and

the Department of Justice’s 2010 A.D.A. Standards for Accessible Design.

2 For use on adequately wired 120V, dedicated circuit having 2-wire service

with a separate ground wire. Appliance must be grounded for safe operation.

Product Dimensions

A - Height (Adjustable)

B - Width

C - Depth (Including Door)

D - Depth (To Tub Flange)

Depth with Door Open 90°

32-1/2" – 34-7/8"

17-5/8"

23"

22-1/2"

46"

Cutout Dimensions

Height (Min.)

Height (Max.)

Width (Min.-Max.)

Depth (Min.)

32-1/2" (A.D.A.1)

35-1/4"

17-5/8"–18"

24"

NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

18" Built-In Dishwasher w/Ready-Select Controls (RSC)

Baseline

Meets requirements

of ASSE 1006

Specifications

subject to change.

Meets

requirements of

ASSE 1006

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Dishwasher Specifications

• Product Shipping Weight (approx.) – 71 Lbs.

• Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if

connected with disposer)

• Connected Load (kW Rating) @ 120 Volts = 1.44 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

• Amps @ 120V = 8.5 Amps

• Always consult local and national electric & plumbing codes.

Meets requirements of ASSE 1006 — integral air gap on supply.

• Water Pressure – Hot water line to dishwasher must provide

between 20 and 120 pounds per square inch (psi).

• Make sure location has right drain, water and electrical outlets

to make connections.

• Keep back free of drain, water & electrical supply.

• Electrical and water supplies should enter cabinet opening on floor,

or through back or side walls, as shown in shaded areas.

• Connections preferably located toward left side of dishwasher. Do not

cross drain, water or electrical lines in front of motor, blower or frame.

• When installing adjacent to wall, cabinet or other obstruction that

extends beyond front edge of unit, allow 2" minimum clearance

between opened door and obstruction.

• When installing at end of cabinet line, sides must be fully enclosed.

• Do not install unit under a cooktop, damage will occur.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

Dishwashers

FFBD1821M S / W / B 24" Built-In

18" Built-In Dishwasher w/Ready-Select Controls (RSC)

Baseline (FFBD1821M - A.D.A. Compliant Model)

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

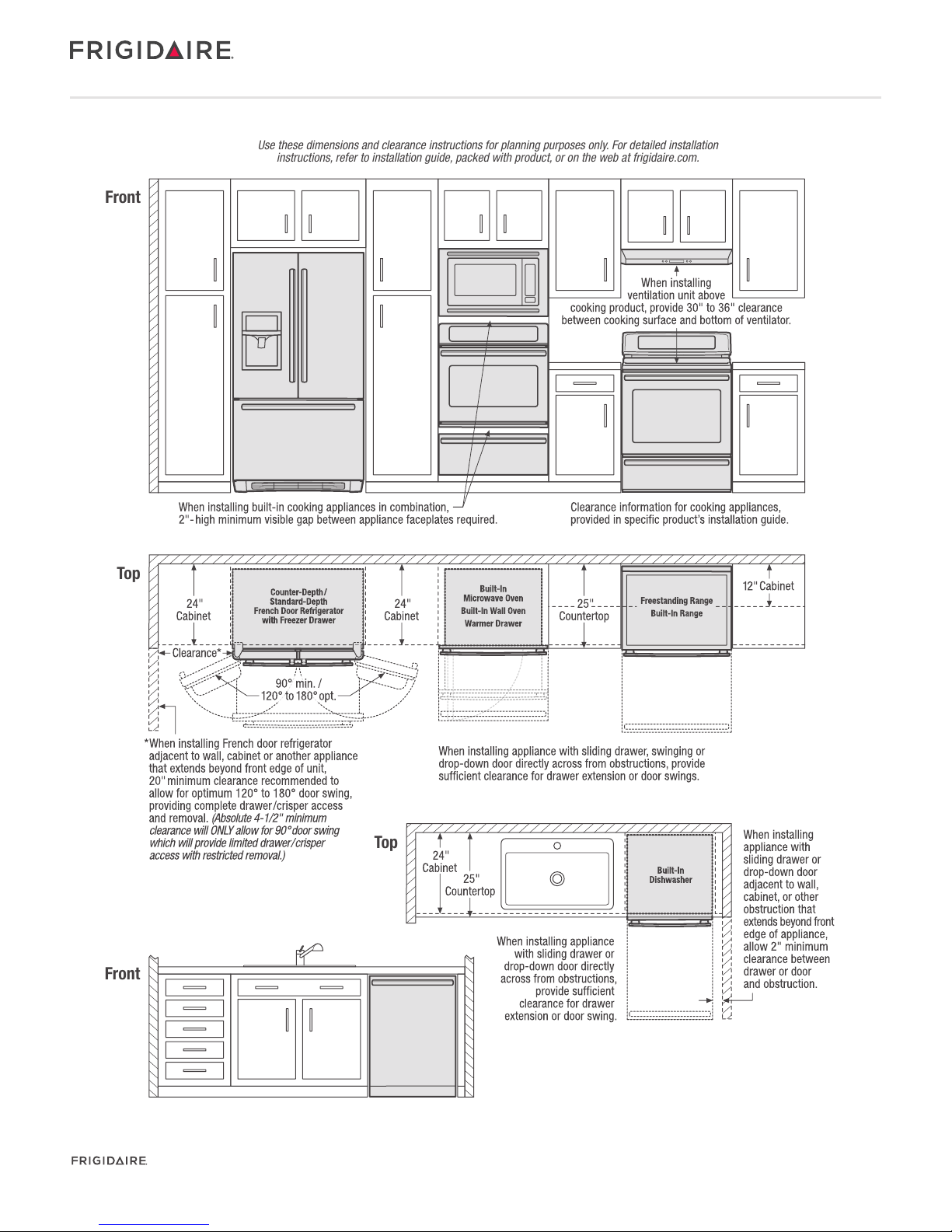

General Installation Guidelines

with French Door Refrigerator

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with All Refrigerator or All Freezer
