Frigidaire FDB750RC Manuel utilisateur

P30L0053.eps P30C0138.eps P30B0032.eps P30U0018.eps P30M0033.eps P30F0022.eps

P30R0025.EPS

Product No. FDB750RCB1 FDB750RCC2 FDB750RCQ1 FDB750RCS1

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide English 154466101 154466101 154466101 154466101

Owner's Guide Spanish 154466201 154466201 154466201 154466201

Owner's Guide French 154466301 154466301 154466301 154466301

Service Data Sheet 154457601 154457601 154457601 154457601

Energy Guide 154540012 154540012 154540012 154540012

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995440947

05/07/06

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB750RC

Publication No: 5995440947 FDB750RC

07/05 2

CONTROL PANEL

FDB750RC Publication No: 5995440947

# Functional Parts 3 07/05

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB750RC (FDB750RCB1)

BFDB750RC (FDB750RCC2)

CFDB750RC (FDB750RCQ1)

DFDB750RC (FDB750RCS1)

POS. NO PART NO. DESCRIPTION

1 154454203 A B - - Panel, control, black

1 154454204 - - C - Panel, control, bisque

1 154454201 - - - D Panel, control, white

2 154458203 A B - - Insert, control panel, black

2 154458204 - - C - Insert, control panel, bisque

2 154458201 - - - D Insert, control panel, white

3 # 154412901 A B C D Timer

3* 154131203 A B C D Shield, timer

3* 154095701 A B C D Screw, thread rolling, (2), timer

8 # 154470001 A B C D Switch, selector, 6 button

8* 154248601 A B C D Shield, switch

8* 5303318719 A B C D Screw, mtg.

13 154426903 A B - - Knob, timer, black

13 154426904 - - C - Knob, timer, bisque

13 154426901 - - - D Knob, timer, white

20 154433001 A B C D Vent assy, static dry

20* 154436201 A B C D Screw, dry duct, (3)

* 154545501 A B C D Wiring Harness

* 154540012 A B C D Energy guide label

Publication No: 5995440947 FDB750RC

07/05 4

DOOR

FDB750RC Publication No: 5995440947

# Functional Parts 5 07/05

* Non-Illustrated Parts

DOOR

Model Index: AFDB750RC (FDB750RCB1)

BFDB750RC (FDB750RCC2)

CFDB750RC (FDB750RCQ1)

DFDB750RC (FDB750RCS1)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154558102 A B C D Arm Assy, LH

3A 154558502 A B C D Arm Assy, RH

* 154529101 A B C D Pin, arm assy

5 154079601 A B C D Nut, arm assy, and handle mtg.

7 154299004 A B C D Door, inner assy

9 154230103 A B C D Dispenser, det/rinse aid, includes #22

9* 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B C D Screw, latch mtg, (2)

12 # 154537303 A B - - Latch assy, black

12 # 154537304 - - C - Latch assy, bisque

12 # 154537301 - - - D Latch assy, white

20 154359107 A - - - Door, black

20 154533901 - B - - Door, stainless

20 154359110 - - C - Door, bisque

20 154359105 - - - D Door, white

20* 5304428306 A B C D Screw, door mtg., (2)

22 154388801 A B C D Cap, Rinse aid

49 154297603 A B C D Gasket, door, bottom

50 154211401 A B C D Support, door hinge

51 154320301 A B C D Clamp, drip loop, wire

* # 154227805 A B C D Thermostat, temp assure

* # 154227808 A B C D Thermostat, temp boost, hi temp wash

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995440947 FDB750RC

07/05 6

TUB

FDB750RC Publication No: 5995440947

# Functional Parts 7 07/05

* Non-Illustrated Parts

TUB

Model Index: AFDB750RC (FDB750RCB1)

BFDB750RC (FDB750RCC2)

CFDB750RC (FDB750RCQ1)

DFDB750RC (FDB750RCS1)

POS. NO PART NO. DESCRIPTION

1 # 154209301 A B C D Tub assy, w/frame parts

2 154429101 A B C D Strike, door

3 # 154561001 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 154333902 A B C D Roller, tub

6 5303943103 A B C D Screw, w/washer, (8)

22 154446001 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154525301 A B C D Hose, drain

25 # 154209701 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154447102 A B C D Insulation,blanket

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 5300807270 A B C D Screw, (2), countertop mtg.

Publication No: 5995440947 FDB750RC

07/05 8

MOTOR & PUMP

FDB750RC Publication No: 5995440947

# Functional Parts 9 07/05

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB750RC (FDB750RCB1)

BFDB750RC (FDB750RCC2)

CFDB750RC (FDB750RCQ1)

DFDB750RC (FDB750RCS1)

POS. NO PART NO. DESCRIPTION

1 # 154247601 A B C D Heater

1* 154106201 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154479601 A B C D Bracket, heater, (2)

10 154245501 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154365902 A B C D Housing, sump

16 154246502 A B C D Retainer, sump

24 154414101 A B C D Spray arm, lower, w/heat shield

24A 154313601 A B C D Spray arm, center

24A* 154252001 A B C D Nut, spray arm, center

32 154406601 A B C D Tube, delivery

32A 154406401 A B C D Gasket, delivery tube

40 154348401 A B C D Clamp, red, pump

40 154348502 A B C D Clamp, red, pump

40* 154106801 A B C D Clamp, hose, (2)

40* 154380601 A B C D Clamp, hose, (1)

54 154234401 A B C D Hose, connector

55 154362301 A B C D Bracket, motor, askoll

55* 5303316032 A B C D Screw, truss ss, 8 .625

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 154474101 A B C D Drain Pump Assy

60* 154426201 A B C D Bracket, motor, drain

61 154406501 A B C D Nozzle, 3rd level, spray arm

62 154294101 A B C D Support, spray arm, lower

63 154252201 A B C D Base, soil director

64 154252301 A B C D Filter, soil director, white

65 154252401 A B C D Filter, polypro

66 154252701 A B C D Trap, glass

70 # 154520501 A B C D Motor assembly, circulation, w/o o'rings

* 154200601 A B C D Screw, #10-16 x 3/8

Publication No: 5995440947 FDB750RC

07/05 10

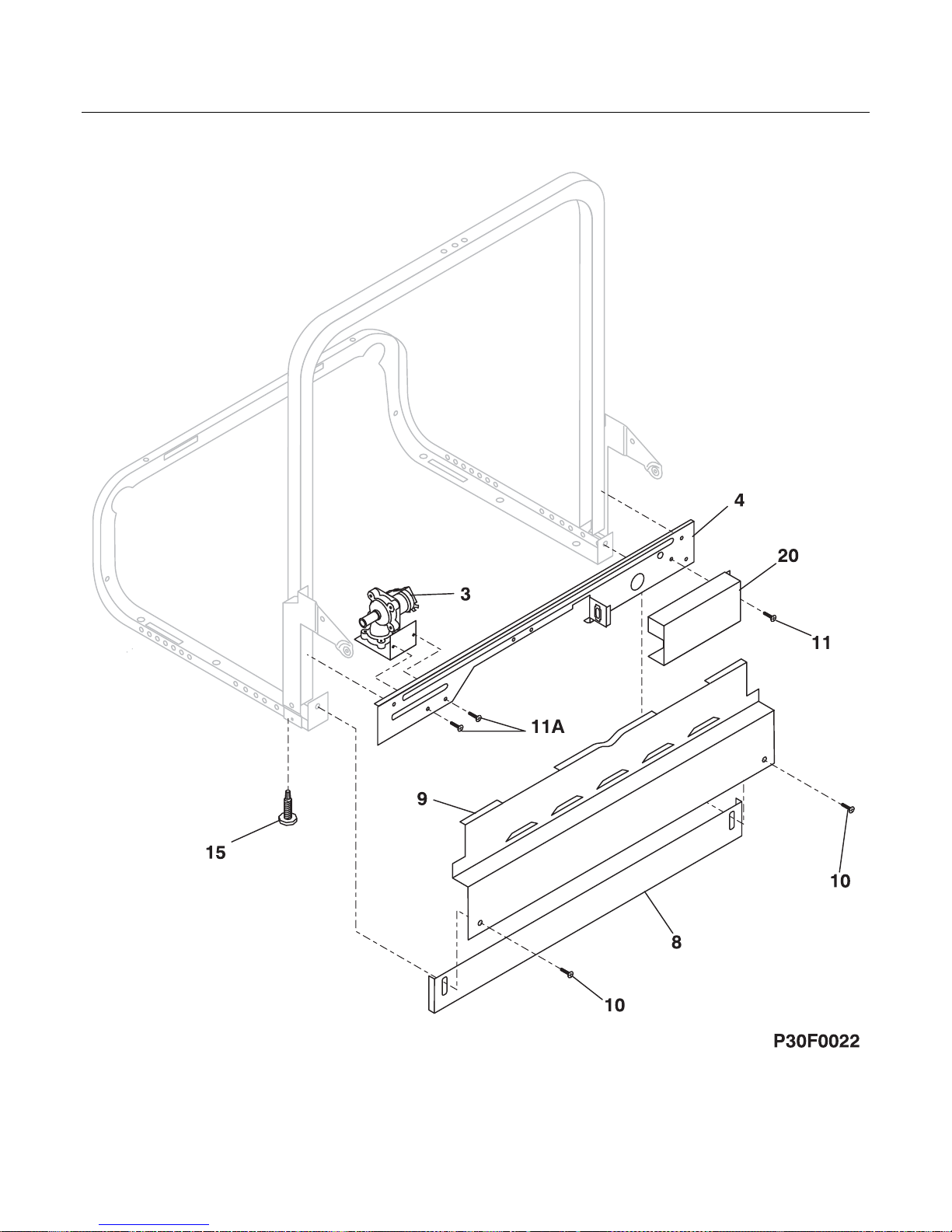

FRAME
