Frigidaire FFBD2411NB Instructions d'installation

frigidaire.com

Drop-In Cooktop

FPEC3085K S

30" Electric

Signature Features

24" Built-In

Dishwashers

FFBD2411N S / M / W / B / Q

Eco-Friendly

ENERGY STAR® qualified dishwasher also

features an Energy Saver Plus Cycle that

uses less energy without compromising

cleaning performance.

Quiet Dishwasher

A quiet performance every time so it

won’t interrupt your time at home.

Energy Saver Dry Option

No heat dry option.

Built With American Pride

Appliances that are high-performing,

more accessible, and more innovative

than ever — designed, built and

engineered in the U.S. A.

Product Dimensions

Height (Adjustable) 33-1/2" – 35"

Width 24"

Depth (Including Door) 25"

More Easy-To-Use Features

NSF® Certiﬁed

Sanitize cycle removes 99.9% of

common household bacteria.

Delay Start

2-4-6-hour Delay Start Option. Set your

dishwasher to run on your schedule.

Fits-More™ Capacity

Our large capacity, tall-tub dishwwasher

fits up to 14 place settings so you can

wash even more at once.

SpaceWise® Silverware Basket

There’s a place for all of your silverware

in our multicompartment, removable

basket.

Ready-Select® Controls

Easily select options with the touch

of a button.

5 Wash Cycle Options

High Temperature Wash

Control Lock Option

Attractive Stainless Steel Exterior1

ENERGY STAR®

NSF® International

Certiﬁcation

Available in:

1 Select model only.

Stainless

(S)

Bisque

(Q)

Black

(B)

White

(W)

Silver Mist

(M)

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Features

Control Design

Digital Display

Door Latch

Stay-Put Door Hinge Design

Low Rinse-Aid Indicator Light

Interior Design

Interior Color

Wash System

Wash Levels / Wash Speeds

Sound Package

Filter

Filter Trap

Soft Food Disposer

dB Level

Drying System

Cycles

Number of Cycles

Heavy

Normal

Light

Delicate

Favorite

China / Crystal

Rinse Only

Energy Saver Plus

Upper Rack Wash Only

Cycle Indicator Light

Control Lock

Options

Heat / No Heat Dry

Hi-Temp Wash

NSF® Certiﬁed Sanitize Rinse

Delay Start

Rack System

Rack Design / Rack Coating

Upper Rack –

Stemware / Champagne Glass Holders

Fold-Down Tines

Cup Shelves

Lower Rack –

SpaceWise® Silverware Basket

Fold-Down Tines

Small Items Cover

Certiﬁcations

ENERGY STAR®

NSF® International Certiﬁcation

Speciﬁcations

Water Inlet Location

Water Usage (Gallons)

Water Pressure (PSI)

Integral Air Gap on Supply

Leveling Legs

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating) @ 120 Volts 1

Amps @ 120 Volts

Shipping Weight (Approx.)

Ready-Select®

Yes

Tall Tub

White

Direct

5 / 1

UltraQuiet™ 3

Plastic

Removable

Yes

Active Vent

Yes

Yes / Yes

Yes

2-4-6 Hour

Deluxe / PVC

Ultra 1

Yes

Left Bottom Front

6.0

20 – 120

Yes

Right Bottom Front

120V / 60 Hz / 15A

1.44

64 Lbs.

1 For use on adequately wired 120V, dedicated circuit having

2-wire service with a separate ground wire. Appliance must be

grounded for safe operation.

Dishwashers

FFBD2411N S / M / W/ B / Q 24" Built-In

Product Dimensions

A - Height (Adjustable)

B - Width

C - Depth (Including Door)

D - Depth (To Tub Flange)

Depth with Door Open 90˚

33-1/2" – 35"

24"

25"

22-1/2"

49-1/4"

Cutout Dimensions

Height (Min.)

Height (Max.)

Width (Min.)

Depth (Min.)

34-1/4"

35-1/4"

24"

NOTE: For planning purposes only. Always consult local and national electric and plumbing codes.

Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.

24" Built-In Dishwashers

Frigidaire Baseline

Meets requirements

of ASSE 1006

Accessories information available

on the web at frigidaire.com

Specifications

subject to change.

Meets

requirements of

ASSE 1006

24" Built-In Dishwasher w/Ready-Select Controls (RSC)

Baseline

Dishwasher Specifications

•Product Shipping Weight (approx.) – 64 Lbs.

•Voltage Rating – 120V / 60 Hz / 15 Amps (maximum 20 Amps if

connected with disposer)

•Connected Load (kW Rating) @ 120 Volts = 1.44 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

•Amps @ 120V = 10 Amps

•Always consult local and national electric & plumbing codes.

Meets requirements of ASSE 1006 — integral air gap on supply.

•Water Pressure – Hot water line to dishwasher must provide

between 20 and 120 pounds per square inch (psi).

•Make sure location has right drain, water and electrical outlets

to make connections.

•Keep back free of drain, water & electrical supply.

•Electrical and water supplies should enter cabinet opening on floor,

or through back or side walls, as shown in shaded areas.

•Connections preferably located toward left side of dishwasher. Do not

cross drain, water or electrical lines in front of motor, blower or frame.

•When installing adjacent to wall, cabinet or other obstruction that

extends beyond front edge of unit, allow 2" minimum clearance

between opened door and obstruction.

•When installing at end of cabinet line, sides must be fully enclosed.

•Do not install unit under a cooktop, damage will occur.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at frigidaire.com for detailed instructions.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Dishwashers

FFBD2411N S / M / W/ B / Q 24" Built-In

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

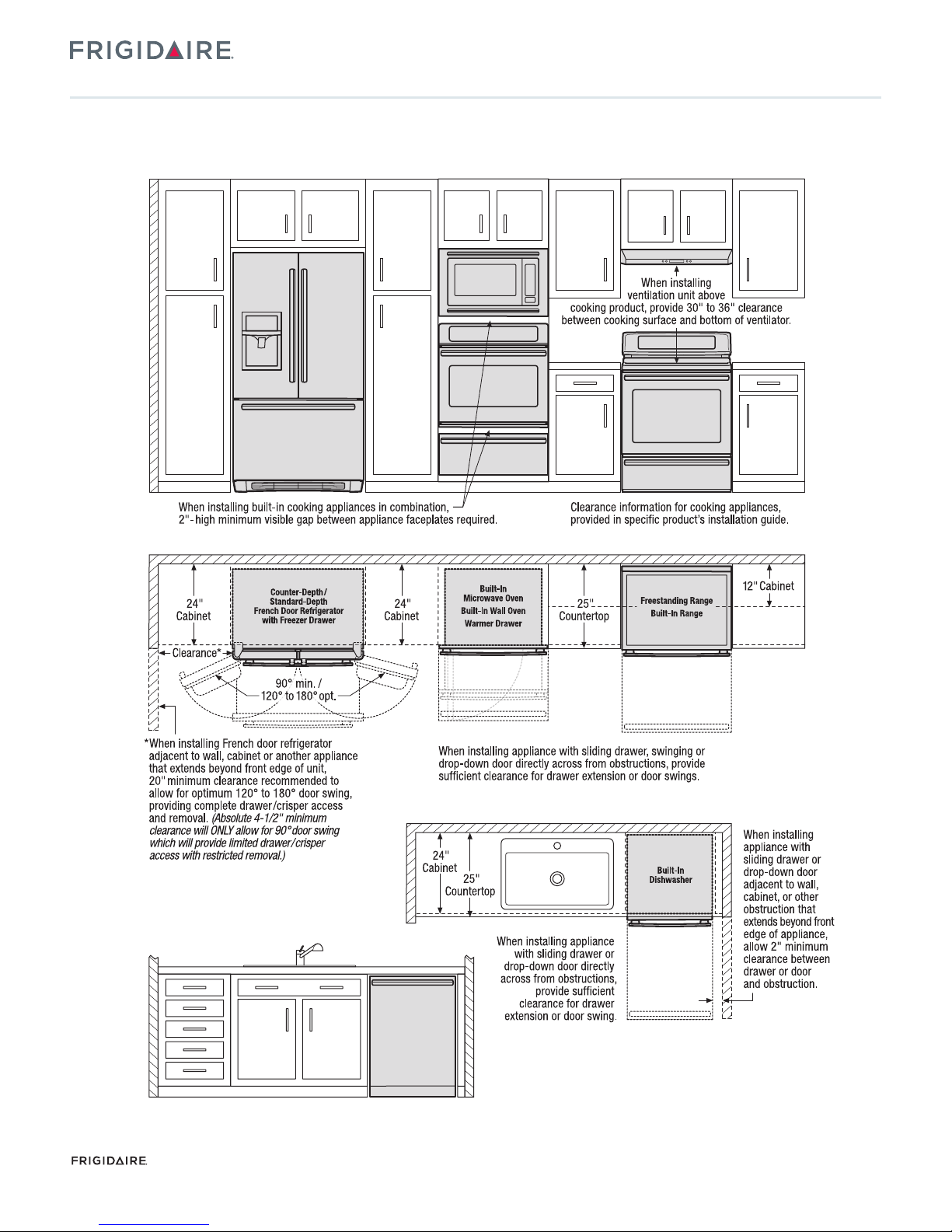

General Installation Guidelines

with Side-by-Side Refrigerator

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

Top

General Installation Guidelines

with Top Mount Refrigerator

Specifications

subject to change.

USA

•

10200 David Taylor Drive

•

Charlotte, NC 28262

•

1-800-FRIGIDAIRE

•

frigidaire.com

CANADA

•

5855 Terry Fox Way

•

Mississauga, ON L5V 3E4

•

1-800-265-8352

•

frigidaire.ca

Top

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at frigidaire.com.

Front

Top

Front

General Installation Guidelines

with French Door Refrigerator
