Frigidaire FGBD2431KB1 Manuel utilisateur

FGBD2431KB0.eps CFGBD2431KB1.eps BFGBD2432KB1.eps UFGBD2431KB0.eps

MFGBD2431KB0.eps P30F0022.eps RFGBD2431KB0.eps

Product No. FGBD2431KB1 FGBD2431KF1 FGBD2431KQ1 FGBD2431KW1

Series Built-in 24" Built-in 24" Built-in 24" Built-in 24"

Color black stainless bisque white

Owner's Guide English 154768601 154768601 154768601 154768601

Owner's Guide Spanish 154768603 154768603 154768603 154768603

Owner's Guide French 154768602 154768602 154768602 154768602

Service Data Sheet 154768301 154768301 154768301 154768301

Energy Guide 154758430 154758430 154758430 154758430

Installation Instructions 154427301 154427301 154427301 154427301

Market North America North America North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995554960

09/10/29

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FGBD2431K

Publication No: 5995554960 FGBD2431K

10/09 2

CONTROL PANEL

FGBD2431K Publication No: 5995554960

# Functional Parts 3 10/09

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFGBD2431K (FGBD2431KB1)

BFGBD2431K (FGBD2431KF1)

CFGBD2431K (FGBD2431KQ1)

DFGBD2431K (FGBD2431KW1)

POS. NO PART NO. DESCRIPTION

1 154752603 A B - - Console Assembly, w/pocket handle, black

1 154752604 - - C - Console Assembly, w/pocket handle, bisque

1 154752601 - - - D Console Assembly, w/pocket handle, white

2 # 154731703 A B - - Insert, control panel, black

2 # 154731704 - - C - Insert, control panel, bisque

2 # 154731701 - - - D Insert, control panel, white

3 # 154752701 A B C D Control Assembly, electronic

4 154718801 A B C D Cover, control

9 154282901 A B C D Screw, Phillips, 8-10 x .7

10 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

33 154478901 A B C D Gasket, cover

* # 154791401 A B C D Harness, wiring, main

* 154758430 A B C D Energy Guide

* 154409401 A B C D Screw, ground, #8-18 x .375

Publication No: 5995554960 FGBD2431K

10/09 4

DOOR

FGBD2431K Publication No: 5995554960

# Functional Parts 5 10/09

* Non-Illustrated Parts

DOOR

Model Index: AFGBD2431K (FGBD2431KB1)

BFGBD2431K (FGBD2431KF1)

CFGBD2431K (FGBD2431KQ1)

DFGBD2431K (FGBD2431KW1)

POS. NO PART NO. DESCRIPTION

1 154430501 A B C D Spring, door, (2)

1A 154325201 A B C D Linkage, door spring, (2)

2 154093301 A B C D Screw, arm assy, (4)

3 154691201 A B C D Arm Assy, LH

3A 154691101 A B C D Arm Assy, RH

* 154647101 A B C D Hinge Pin, arm assy

* 154686401 A B C D Bearing, hinge pin

4 154409401 A B C D Screw, ground, #8-18 x .375

5 154079601 A B C D Nut, arm assy, and handle mtg.

6 154282901 A B C D Screw, Phillips, 8-10 x .7

7 154494601 A B C D Liner, door assy.

8 154294701 A B C D Screw, #7 plas .375, (6), disp. assy.

9 154574401 A B C D Dispenser, det/rinse aid, w/o reed

9* 154388801 A B C D Cap, Rinse aid

9* 154719301 A B C D Shield, dispenser assy

10 154103702 A B C D Screw, latch mtg, (2)

12 # 154758101 A B C D Latch Assembly, door

13 154755801 A B C D Duct Assembly, vent, w/tape

14 154733701 A B C D Vent assy, dry, w/gaskets

14* 154436201 A B C D Screw, dry duct, (3)

20 154741003 A - - - Door Assembly, w/insullation, black, w/badge

20 154729605 - B - - Door Assembly, w/insullation, stainless, w/badge

20 154741004 - - C - Door Assembly, w/insullation, bisque, w/badge

20 154741001 - - - D Door Assembly, w/insullation, white, w/badge

20* 154253201 A B C D Insulation, door

21 5304428306 A B C D Screw, door mtg., (2)

49 154576501 A B C D Gasket, door, bottom

51 154320301 A B C D Clamp, drip loop, wire

Publication No: 5995554960 FGBD2431K

10/09 6

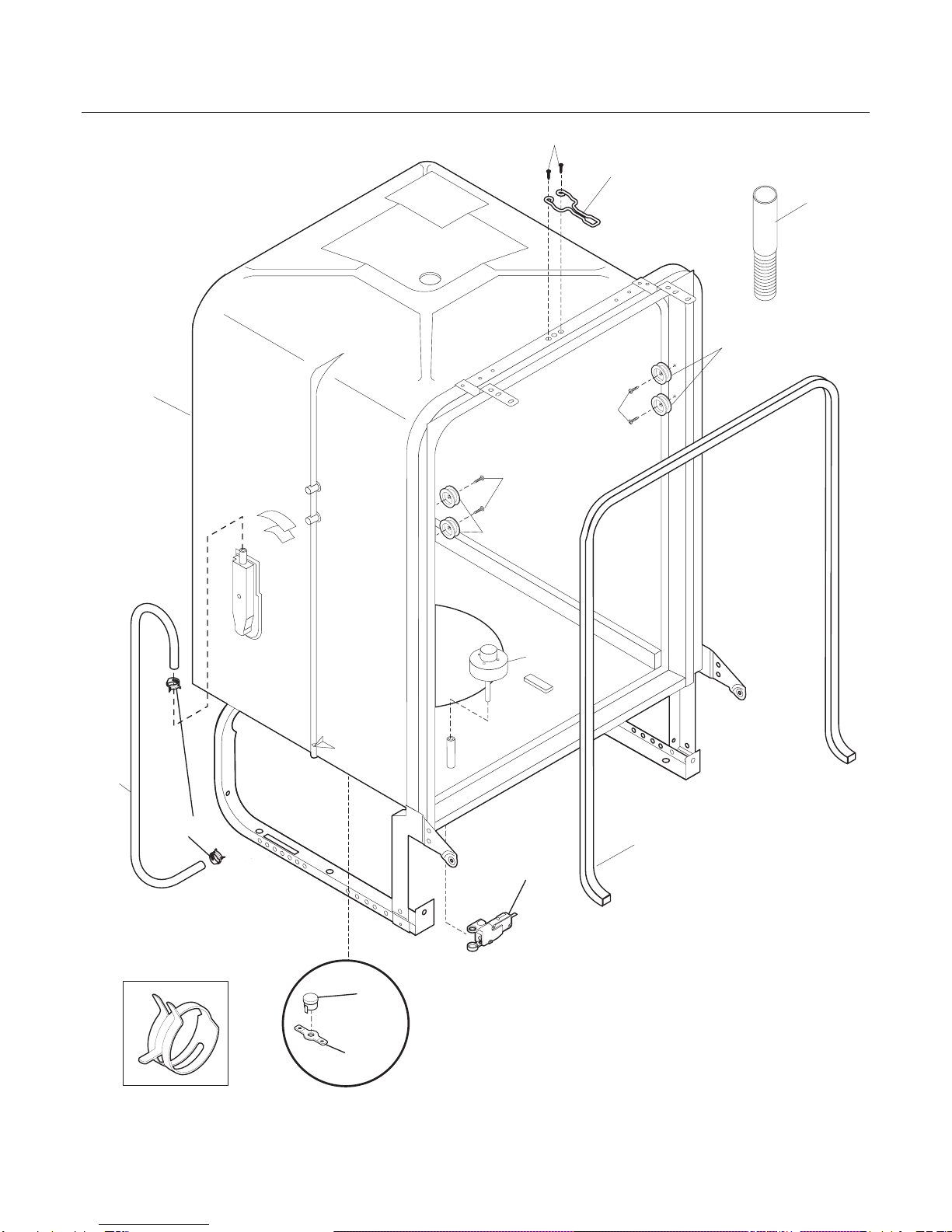

TUB

UFGBD2431KB0

FGBD2431K Publication No: 5995554960

# Functional Parts 7 10/09

* Non-Illustrated Parts

TUB

Model Index: AFGBD2431K (FGBD2431KB1)

BFGBD2431K (FGBD2431KF1)

CFGBD2431K (FGBD2431KQ1)

DFGBD2431K (FGBD2431KW1)

POS. NO PART NO. DESCRIPTION

1 154729401 A B C D Tub assy, w/frame parts, white, DF

* 154685101 A B C D Gasket, tub, corner, (2)

2 154544601 A B C D Strike, door

3 # 154561001 A B C D Gasket, tub

4 154200602 A B C D Screw, 10-16 x 3/8, hex

5 5304456938 A B C D Roller, tub, grey, (8), w/screw+washer

6 5303943103 A B C D Screw, w/washer, (8)

22 154446002 A B C D Tubing, water inlet

23 5303318539 A B C D Clamp, tubing, (2)

24 # 154753201 A B C D Hose, drain

* 154380601 A B C D Clamp, hose, 1.5" open, worm gear, (5)

25 # 154767801 A B C D Float

28 154408701 A B C D Switch Assy, float

29 # 154290204 A B C D Thermostat, re-settable

30 154241101 A B C D Retainer, thermostat

30* 154297701 A B C D Screw, retainer-thermo

* 154227501 A B C D Thermistor

* 154456901 A B C D Insulation,blanket

* 154580801 A B C D Insulation, back

* 5300807270 A B C D Screw, (2), countertop mtg.

* 154041001 A B C D Screw, plask #1, 10-10 x 9/16

* 154200601 A B C D Screw, #10-16 x 3/8

* 154200701 A B C D Screw, #10-32 x 3/8

Publication No: 5995554960 FGBD2431K

10/09 8

MOTOR & PUMP

TUB

24B

TUB

24A

32A

MFGBD2431KB0

59A

FGBD2431K Publication No: 5995554960

# Functional Parts 9 10/09

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFGBD2431K (FGBD2431KB1)

BFGBD2431K (FGBD2431KF1)

CFGBD2431K (FGBD2431KQ1)

DFGBD2431K (FGBD2431KW1)

POS. NO PART NO. DESCRIPTION

1 # 154663801 A B C D Heater, round

1* 154106202 A B C D Nut, heater, (2)

1* 154289801 A B C D Shield, heater terminal

2 154465101 A B C D Bracket, heater, (2)

10 154724001 A B C D Cover, volute

13 154246801 A B C D Gasket, sump

14 154728201 A B C D Sump Assembly

16 154246502 A B C D Retainer, sump

16* 154754901 A B C D Screw, sump mtg, 8-16, (4)

24 154568002 A B C D Spray arm, grey, lower, w/heat shield

24A 154792602 A B C D Spray arm, center

24B 154607802 A B C D Spray arm, assembly, upper

32 154464101 A B C D Tube, delivery

32* 154106801 A B C D Clamp, hose, 1.29" open, worm gear, (2)

32* 154491101 A B C D Screw, delivery tube

32A 154406401 A B C D Gasket, delivery tube

55 154595901 A B C D Bracket, motor

55* 5303316032 A B C D Screw, truss ss, 8 .625, (7)

58 154246402 A B C D Check ball

59 154246901 A B C D O-ring, rear

59A 154247001 A B C D O-ring, front

60 # 154736201 A B C D Pump Assembly, drain, w/seal-impeller

60* 154617301 A B C D Flapper, valve, drain pump

60* 154741501 A B C D Screw, drain motor mtg, (3)

61 154463402 A B C D Grommet, delivery tube

62 154294102 A B C D Support, spray arm, grey, lower

63 154776101 A B C D Base, soil director

64 154252302 A B C D Filter, soil director, grey

65 154283005 A B C D Filter Assy, grey

66 154252702 A B C D Trap, glass, grey

70 # 154594201 A B C D Motor & Pump Assy

* 154200601 A B C D Screw, #10-16 x 3/8

* 154297701 A B C D Screw, retainer-thermo

Publication No: 5995554960 FGBD2431K

10/09 10

FRAME
