Frigidaire FDB520RH S Manuel utilisateur

P30L0081.eps P30C0162.eps P30B0045.eps P30U0024.eps P30M0041.eps P30F0022.eps

P30R0111.eps

Product No. FDB520RHB0 FDB520RHS0

Series Built-in 24" Built-in 24"

Color black white

Owner's Guide English 154659801 154659801

Owner's Guide Spanish 154659803 154659803

Owner's Guide French 154659802 154659802

Service Data Sheet 154737301 154737301

Energy Guide 154678526 154678526

Installation Instructions 154427301 154427301

Market North America North America

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995529012

08/11/18

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDB520RH

Publication No: 5995529012 FDB520RH

11/08 2

CONTROL PANEL

FDB520RH Publication No: 5995529012

# Functional Parts 3 11/08

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDB520RH (FDB520RHS0)

BFDB520RH (FDB520RHB0)

POS. NO PART NO. DESCRIPTION

1 154645201 A - Panel, control, white

1 154645203 - B Panel, control, black

2 154737601 A - Overlay, control panel, white

2 154737603 - B Overlay, control panel, black

3 # 154718501 A B Control, board

4 154552101 A B Cover, control

8 # 154737701 A B Switch Assembly, 7 button

20 154433001 A B Vent assy, static dry

20* 154436201 A B Screw, dry duct, (3)

33 154553501 A B Gasket, cover

* # 154646301 A B Harness, wiring, main

* # 154738201 A B Harness, wiring, switch, to main harness

* 154227501 A B Thermistor

* 154678526 A B Energy guide label

* 154294701 A B Screw, #7 plas .375, (6), disp. assy.

* 154409401 A B Screw, #8-18 x .375

Publication No: 5995529012 FDB520RH

11/08 4

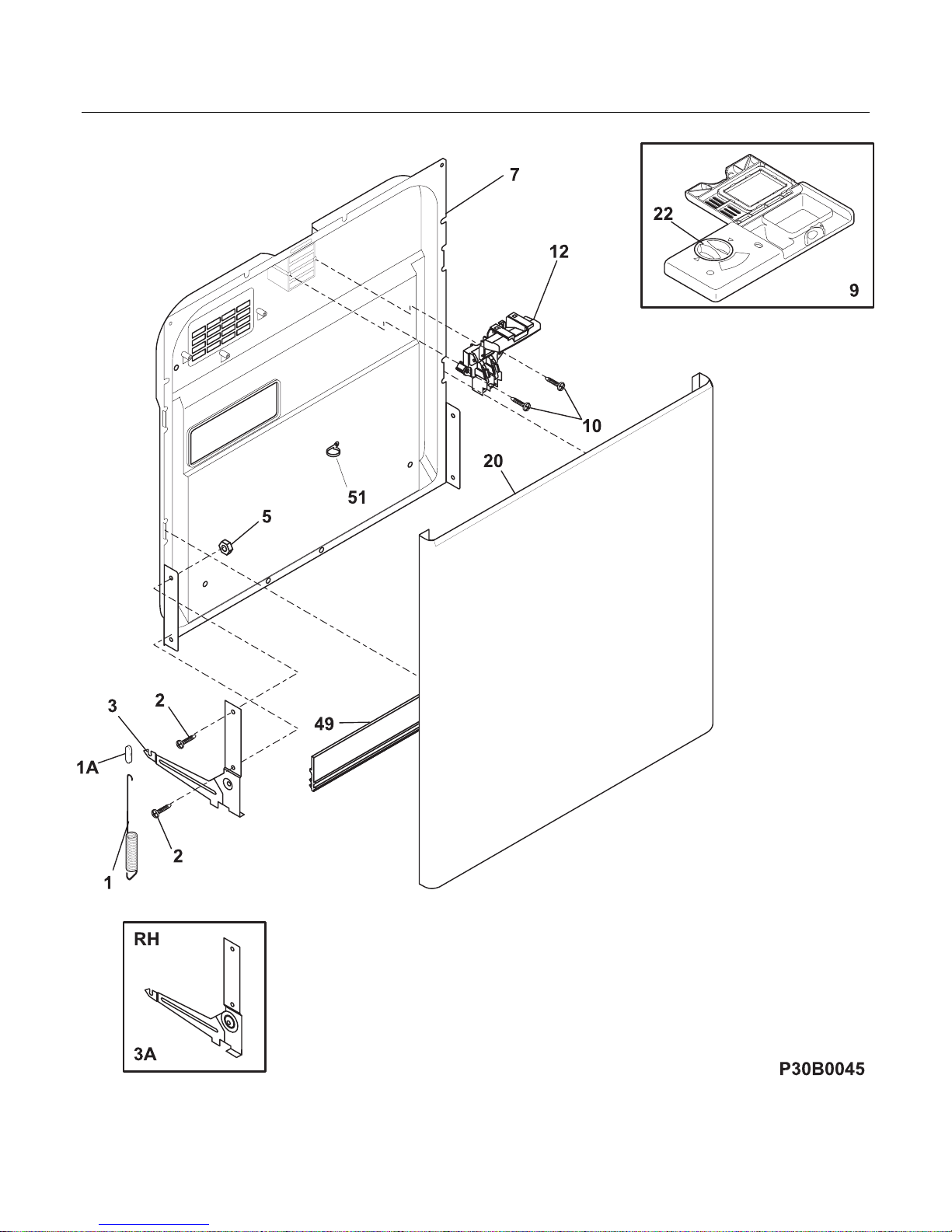

DOOR

FDB520RH Publication No: 5995529012

# Functional Parts 5 11/08

* Non-Illustrated Parts

DOOR

Model Index: AFDB520RH (FDB520RHS0)

BFDB520RH (FDB520RHB0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B Spring, door, (2)

1A 154325201 A B Linkage, door spring, (2)

2 154093301 A B Screw, arm assy, (4)

3 154691401 A B Arm Assy, LH

3A 154691301 A B Arm Assy, RH

* 154647101 A B Hinge Pin, arm assy

* 154686401 A B Bearing, hinge pin

5 154079601 A B Nut, arm assy, and handle mtg.

7 154494601 A B Liner, door assy.

9 154574401 A B Dispenser, det/rinse aid, w/o reed

9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B Screw, latch mtg, (2)

12 # 154556701 A - Latch assy, white

12 # 154556703 - B Latch assy, black

20 154538301 A - Door, white

20 154538303 - B Door, black

20* 5304428306 A B Screw, door mtg., (2)

22 154388801 A B Cap, Rinse aid

49 154576501 A B Gasket, door, bottom

51 154320301 A B Clamp, drip loop, wire

* 154409401 A B Screw, #8-18 x .375

Publication No: 5995529012 FDB520RH

11/08 6

TUB

FDB520RH Publication No: 5995529012

# Functional Parts 7 11/08

* Non-Illustrated Parts

TUB

Model Index: AFDB520RH (FDB520RHS0)

BFDB520RH (FDB520RHB0)

POS. NO PART NO. DESCRIPTION

1 # 154729301 A B Tub assy, w/frame parts, white, PW

2 154662601 A B Strike, door

3 # 154561001 A B Gasket, tub

4 154200602 A B Screw, 10-16 x 3/8, hex

5 154333902 A B Roller, tub

6 5303943103 A B Screw, w/washer, (8)

22 154577401 A B Tubing, water inlet

23 5303318539 A B Clamp, tubing, (2)

24 # 154606701 A B Hose, drain

25 # 154209701 A B Float

28 154408701 A B Switch Assy, float

29 # 154290204 A B Thermostat, re-settable

30 154241101 A B Retainer, thermostat

30* 154297701 A B Screw, retainer-thermo

* 154685101 A B Gasket, tub, corner, (2)

* 5300807270 A B Screw, (2), countertop mtg.

* 154041001 A B Screw, plask #1, 10-10 x 9/16

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995529012 FDB520RH

11/08 8

MOTOR & PUMP

FDB520RH Publication No: 5995529012

# Functional Parts 9 11/08

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDB520RH (FDB520RHS0)

BFDB520RH (FDB520RHB0)

POS. NO PART NO. DESCRIPTION

1 154247601 A B Heater

1* 154106202 A B Nut, heater, (2)

1* 154289801 A B Shield, heater terminal

2 154479601 A B Bracket, heater, (2)

10 154245501 A B Cover, volute

13 154246801 A B Gasket, sump

14 154365902 A B Housing, sump

16 154246502 A B Retainer, sump

24 154568001 A B Spray arm, white, lower, w/heat shield

24A 154313601 A B Spray arm, center

24A* 154252001 A B Nut, spray arm, center

32 154406601 A B Tube, delivery

32A 154406401 A B Gasket, delivery tube

40 154348401 A B Clamp, hose, red, push spring, (3)

40 154348502 A B Clamp, red, hose

40* 154106801 A B Clamp, hose, 1.29" open, worm gear, (2)

40* 154380601 A B Clamp, hose, 1.5" open, worm gear, (5)

54 154234401 A B Hose, connector

55 154595901 A B Bracket, motor

55* 5303316032 A B Screw, truss ss, 8 .625, (7)

58 154246402 A B Check ball

59 154246901 A B O-ring, rear

59A 154247001 A B O-ring, front

60 # 154640201 A B Drain Pump Assy

60* 154426201 A B Bracket, motor, drain

60* 154581501 A B Screw, drain motor, (3)

61 154606801 A B Nozzle, 3rd level, spray

62 154294101 A B Support, spray arm, lower

63 154252201 A B Base, soil director

64 154252301 A B Filter, soil director, white

65 154252401 A B Filter, polypro

66 154252701 A B Trap, glass

70 # 154700101 A B Motor & Pump Assy, johnson, 2900

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995529012 FDB520RH

11/08 10

FRAME
