Frigidaire FDBB1940D Manuel utilisateur

P30L0058.eps P30C0143.eps P30B0037.eps P30U0021.eps P30M0036.eps P30F0022.eps

P30R0082.eps

Product No. FDBB1940DB0 FDBB1940DS0

Series Built-in 24" Built-in 24"

Color black white

Owner's Guide 154493801 154493801

Service Data Sheet 154493101 154493101

Energy Guide 154494101 154494101

Installation Instructions 154427301 154427301

Market North America North America

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995417762

04/10/04

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

FDBB1940D

Publication No: 5995417762 FDBB1940D

10/04 2

CONTROL PANEL

P30C0143

FDBB1940D Publication No: 5995417762

# Functional Parts 3 10/04

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AFDBB1940D (FDBB1940DS0)

BFDBB1940D (FDBB1940DB0)

POS. NO PART NO. DESCRIPTION

1 154486001 A - Panel, control, white

1 154486003 - B Panel, control, black

2 154525501 A - Insert, control panel, white

2 154525503 - B Insert, control panel, black

3 154522804 A B Board, control

3* 154200401 A B Screw, 6-10 x 3/8, pan plask

4 154460601 A B Cover, control

4* 154478901 A B Gasket, cover

8 # 154474601 A B Switch, selector, 10 pad

8* 5303318719 A B Screw, mtg.

8A 154486201 A B Shield, tactile switch

20 154423601 A B Vent assy, active dry, w/actuator

20* 154436201 A B Screw, dry duct, (3)

27 154433501 A B Actuator, active dry vent

28 154474401 A B Adapter, vent

* # 154468901 A B Harness, wiring

* 154494101 A B Energy guide label

Publication No: 5995417762 FDBB1940D

10/04 4

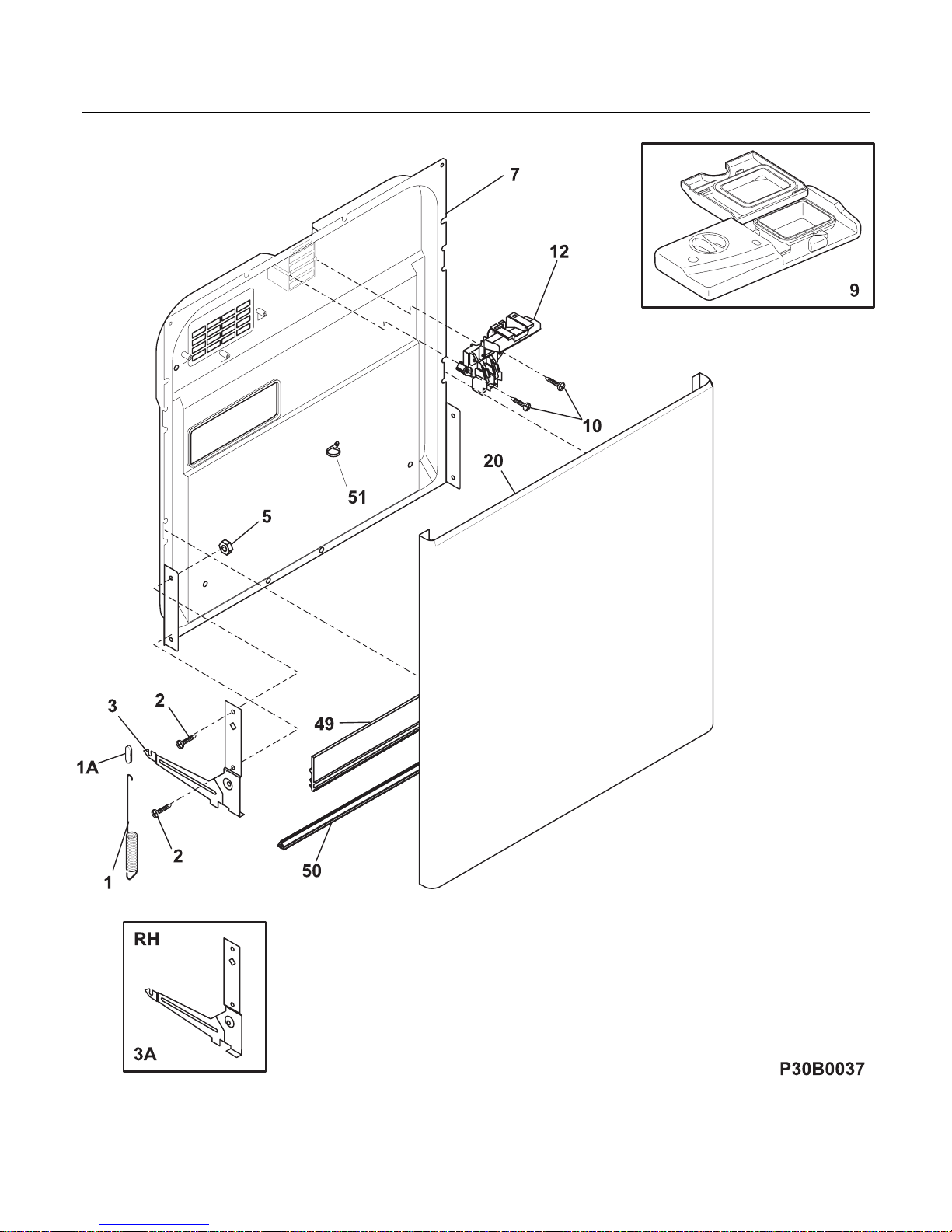

DOOR

FDBB1940D Publication No: 5995417762

# Functional Parts 5 10/04

* Non-Illustrated Parts

DOOR

Model Index: AFDBB1940D (FDBB1940DS0)

BFDBB1940D (FDBB1940DB0)

POS. NO PART NO. DESCRIPTION

1 154430501 A B Spring, door, (2)

1A 154325201 A B Linkage, door spring, (2)

2 154093301 A B Screw, arm assy, (4)

3 154325302 A B Arm Assy, LH

3A 154325301 A B Arm Assy, RH

* 154400601 A B Pin, arm assy

5 154079601 A B Nut, arm assy, and handle mtg.

7 154494601 A B Liner, door assy.

9 154452703 A B Dispenser, det/rinse aid, w/o reed

9* 154294701 A B Screw, #7 plas .375, (6), disp. assy.

10 154103702 A B Screw, latch mtg, (2)

12 # 154475101 A - Latch assy,white

12 # 154475103 - B Latch assy, black

20 154359006 A - Door, white

20 154359007 - B Door, black

20* 5304428306 A B Screw, door mtg., (2)

49 154297603 A B Gasket, door, bottom

50 154211401 A B Support, door hinge

51 154320301 A B Clamp, drip loop, wire

Publication No: 5995417762 FDBB1940D

10/04 6

TUB

FDBB1940D Publication No: 5995417762

# Functional Parts 7 10/04

* Non-Illustrated Parts

TUB

Model Index: AFDBB1940D (FDBB1940DS0)

BFDBB1940D (FDBB1940DB0)

POS. NO PART NO. DESCRIPTION

1 # 154534701 A B Tub assy, w/frame parts

2 154429101 A B Strike, door

3 # 154211801 A B Gasket, tub

4 154200602 A B Screw, 10-16 x 3/8, hex

5 154333902 A B Roller, tub

6 5303943103 A B Screw, w/washer, (8)

22 154446002 A B Tubing, water inlet

23 5303318539 A B Clamp, tubing, (2)

24 # 154411003 A B Hose, drain

25 # 154209701 A B Float

28 154408701 A B Switch Assy, float

29 # 154290204 A B Thermostat, re-settable

30 154241101 A B Retainer, thermostat

30* 154297701 A B Screw, retainer-thermo

* 154447102 A B Insulation, blanket

* 154447301 A B Insulation, tub back

* 154041001 A B Screw, plask #1, 10-10 x 9/16

* 5300807270 A B Screw, (2), countertop mtg.

Publication No: 5995417762 FDBB1940D

10/04 8

MOTOR & PUMP

FDBB1940D Publication No: 5995417762

# Functional Parts 9 10/04

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: AFDBB1940D (FDBB1940DS0)

BFDBB1940D (FDBB1940DB0)

POS. NO PART NO. DESCRIPTION

1 # 154482901 A B Heater, round

1* 154106201 A B Nut, heater, (2)

1* 154289801 A B Shield, heater terminal

2 154465101 A B Bracket, heater, (2)

10 154245501 A B Cover, volute

13 154246801 A B Gasket, sump

14 154461902 A B Housing, sump

16 154246502 A B Retainer, sump

24 154467702 A B Spray arm, grey, lower

24A 154468502 A B Spray arm, grey, center

24B 154478201 A B Spray arm, 3rd level

32 154464101 A B Tube, delivery

32* 154491101 A B Screw, delivery tube

32A 154406401 A B Gasket, delivery tube

40 154348401 A B Clamp, red, pump

40 154348502 A B Clamp, red, pump

40* 154106801 A B Clamp, hose, (2)

40* 154380601 A B Clamp, hose, (1)

54 154234401 A B Hose, connector

55 154362301 A B Bracket, motor, askoll

55* 5303316032 A B Screw, truss ss, 8 .625

58 154246402 A B Check ball

59 154246901 A B O-ring, rear

59A 154247001 A B O-ring, front

60 154491301 A B Pump, drain

60* 5303318719 A B Screw, mtg.

61 154463402 A B Grommet, delivery tube

62 154294101 A B Support, spray arm, lower

63 154252201 A B Base, soil director

64 154252301 A B Filter, soil director

65 154252401 A B Filter, polypro

66 154252701 A B Trap, glass

70 154523501 A B Motor & Pump Assy

71 # 154473901 A B Sensor, turbidity

* 154200601 A B Screw, #10-16 x 3/8

Publication No: 5995417762 FDBB1940D

10/04 10

FRAME
