Frigidaire 970D15462300A Mode d’emploi

970D15463.jpg C970D15462300A.wmf B970D15462300A.wmf UCDB350NB0A.wmf

MFFBD2406NB0A.wmf P30F0022.eps R970D15462300A.wmf 807802601.eps

SEARS CANADA

Product No. 970D15462300A

970D15463300A

Series 24" Built-in 24" Built-in

Color white stainless

Owner's Guide 807749201 807749201

Service Data Sheet 807802601 807802601

Energy Guide 154849264 154849264

Installation Instructions

154847701 154847701

Market Canada Canada

Frigidaire

5855 TERRY FOX WAY

MISSISSAUGA, ONTARIO, CANADA L5V 3E4

Publication No.

5995631925

13/05/14

(EN/SERVICE/ECL)

821

24-INCH BUILT-IN

DISHWASHER

Model No.

970D1546

Publication No: 5995631925 970D1546

05/13 2

CONTROL PANEL

970D1546 Publication No: 5995631925

# Functional Parts 3 05/13

* Non-Illustrated Parts

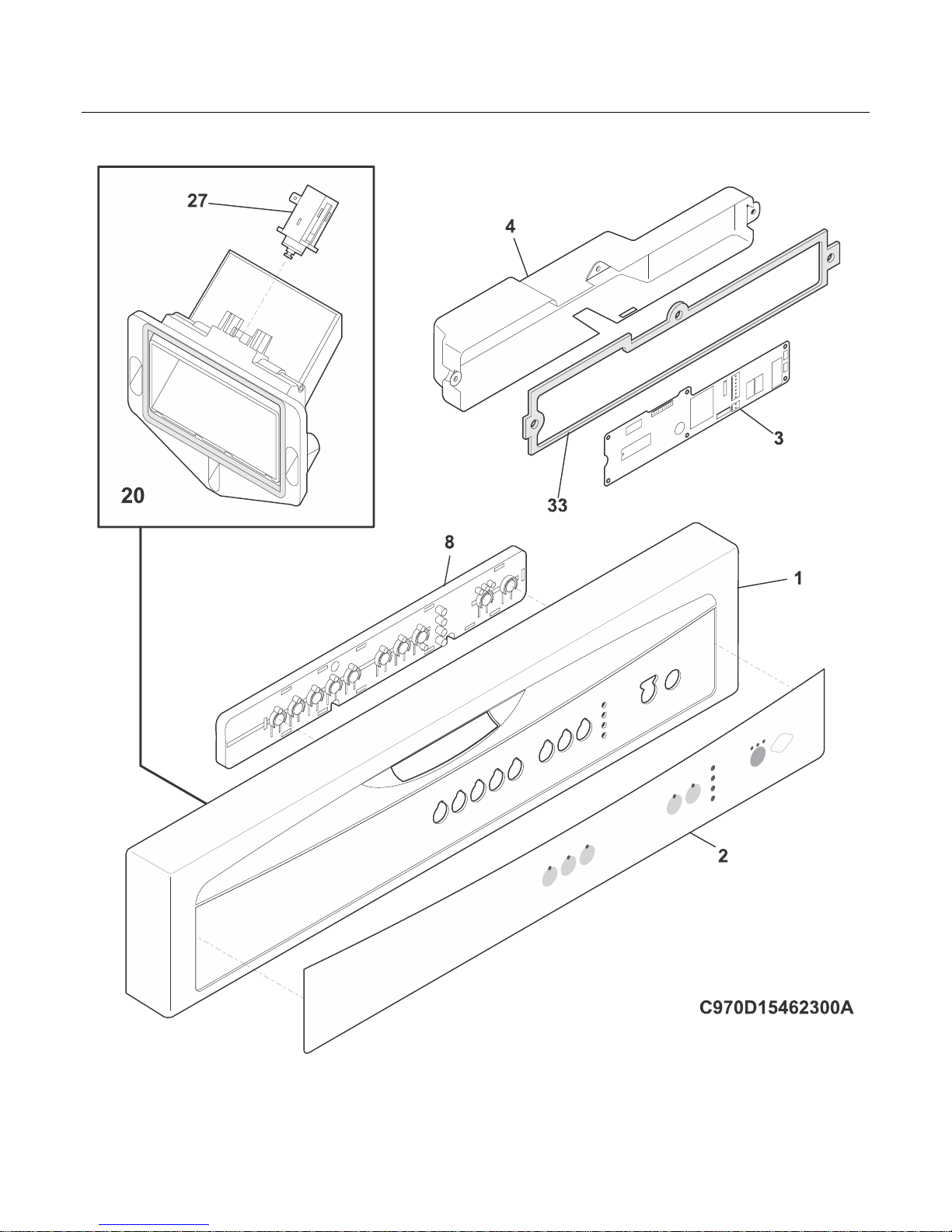

CONTROL PANEL

Model Index: A970D1546 (970D15462300A)

B970D1546 (970D15463300A)

POS. NO PART NO. DESCRIPTION

1 154645001 A - Panel, control, white

1 154645003 - B Panel, control, black

2 807642301 A - Insert, control panel, white

2 807642302 - B Insert, control panel, black

3 # 154776602 A B Board, control

* 154294701 A B Screw, #7 plas .375, (6), disp. assy.

4 154552101 A B Cover, control

8 # 154872701 A B Switch Assembly, 7 button

20 # 154423601 A B Vent assy, active dry, w/actuator

20* 154793401 A B Screw, dry duct, (3)

27 # 154433501 A B Actuator, active dry vent

33 154553501 A B Gasket, cover

* # 154851601 A B Harness, wiring, main

* 807749201 A B Owners Manual, en/fr

* 807802601 A B Service Data Sheet

* 154847701 A B Instructions, installation

* 154849264 A B Energy Guide

* 154409401 A B Screw, ground, #8-18 x .375

Publication No: 5995631925 970D1546

05/13 4

DOOR

970D1546 Publication No: 5995631925

# Functional Parts 5 05/13

* Non-Illustrated Parts

DOOR

Model Index: A970D1546 (970D15462300A)

B970D1546 (970D15463300A)

POS. NO PART NO. DESCRIPTION

1 154430501 A B Spring, door, (2)

1A 154325201 A B Linkage, door spring, (2)

2 154093301 A B Screw, arm assy, (4)

3 154691201 A B Arm Assy, LH

3A 154691101 A B Arm Assy, RH

* 154647101 A B Hinge Pin, arm assy

* 154686401 A B Bearing, hinge pin

4 154825401 A B Screw, hex hd, 8-18 x .4, w/washer

5 154079601 A B Nut, arm assy, and handle mtg.

6 154783101 A B Screw, PLT, 8-10

7 154494601 A B Liner, door assy.

8 154294701 A B Screw, #7 plas .375, (6), disp. assy.

9 # 154860101 A B Dispenser, det/rinse aid, w/level ind.

9* 154719301 A B Shield, dispenser assy

10 154103702 A B Screw, latch mtg, (2)

12 # 5304490365 A - Latch assy, white

12 # 5304490366 - B Latch assy, black

20 154829001 A - Door, outer, white, w/barrier

20 154829007 - B Door, outer, stainless, w/barrier

21 154754701 A B Screw, truss hd, 8-18 type AB

49 154576501 A B Gasket, door, bottom

51 154320301 A B Clamp, drip loop, wire

Publication No: 5995631925 970D1546

05/13 6

TUB

970D1546 Publication No: 5995631925

# Functional Parts 7 05/13

* Non-Illustrated Parts

TUB

Model Index: A970D1546 (970D15462300A)

B970D1546 (970D15463300A)

POS. NO PART NO. DESCRIPTION

1 # 154729401 A B Tub assy, w/frame parts, white, DF

2 154662601 A B Strike, door

3 # 154827601 A B Gasket, tub

3A 154685101 A B Shield, tub splash, corner, (2)

4 154825401 A B Screw, hex hd, 8-18 x .4, w/washer

5 154333902 A B Roller, tub

6 5303943103 A B Screw, w/washer, (8)

22 154446002 A B Tubing, water inlet

23 5303318539 A B Clamp, tubing, (2)

24 # 154753201 A B Hose, drain

* 154380601 A B Clamp, hose, 1.5" open, worm gear, (5)

25 # 154767801 A B Float

28 # 154773201 A B Switch Assy, float

29 # 154642901 A B Thermostat, hi limit

30 154241101 A B Retainer, thermostat

30* 154297701 A B Screw, retainer-thermo

* 154227501 A B Thermistor

* 154406801 A B Bracket Kit, countertop mtg, w/scrws & instr

* 5300807270 A B Screw, (2), countertop mtg.

* 154041001 A B Screw, plask #1, 10-10 x 9/16

Publication No: 5995631925 970D1546

05/13 8

MOTOR & PUMP

970D1546 Publication No: 5995631925

# Functional Parts 9 05/13

* Non-Illustrated Parts

MOTOR & PUMP

Model Index: A970D1546 (970D15462300A)

B970D1546 (970D15463300A)

POS. NO PART NO. DESCRIPTION

1 # 154825001 A B Heater, round

1* 154106202 A B Nut, heater, (2)

1* 154289801 A B Shield, heater terminal

2 154465101 A B Bracket, heater, (2)

10 154724001 A B Cover, volute

* 154783101 A B Screw, PLT, 8-10

13 154246801 A B Gasket, sump

14 154728201 A B Sump Assembly

16 154246502 A B Retainer, sump

16* 154754901 A B Screw, sump mtg, 8-16, (4)

24 154568002 A B Spray arm, grey, lower, w/heat shield

24A 154468502 A B Spray arm, grey, center

24B 154754502 A B Spray arm, assembly, upper

32 154824201 A B Tube, delivery

32* 154106801 A B Clamp, hose, 1.29" open, worm gear, (2)

32* 154491101 A B Screw, delivery tube

32A 154406401 A B Gasket, delivery tube

55 154595901 A B Bracket, motor

55* 154779601 A B Screw, PH, 8-10, (2)

58 154246402 A B Check ball

59 154246901 A B O-ring, rear

59A 154247001 A B O-ring, front

60 # 154736201 A B Pump Assembly, drain, w/seal-impeller

60* 154617301 A B Flapper, valve, drain pump

60* 154741501 A B Screw, drain motor mtg, (3)

61 154463402 A B Grommet, delivery tube

62 154294101 A B Support, spray arm, lower

63 154775401 A B Base, soil director, w/filter

65 154252401 A B Filter, polypro

66 154252701 A B Trap, glass

70 # 154844301 A B Motor & Pump Assy, w/o-rings

Publication No: 5995631925 970D1546

05/13 10

FRAME
