WALL SLEEVE INSTALLATION INSTRUCTIONS FOR

FRIGIDAIRE

THRU-THE WALL AIR CONDITIONERS

READ AND SAVE THESE INSTRUCTIONS

To avoid risk of personal injury, property damage, or

product damage due to the weight of this device and

sharp edges that may be exposed:

Air conditioners covered in this manual pose an

excessive weight hazard. Two or more peopleare

needed to moveand install theunit.

To prevent injury or strain, use proper lifting and

carrying techniques whenmoving unit.

Carefully inspect location where air conditioner will

be installed. Be sure it will support the weight of the

unit over an extended period of time.

Handle air conditioner with care. Wear protective

gloves whenever liftingor carrying the unit. AVOID

the sharp metalfins of front and rear coils.

Make sure air conditioner does not fall during

installation.

CAUTIONCAUTION

For New Construction install Frigidaire Wall Sleeve

(Part EA108T).

Remove old air conditioner and inspect sleeve for the

following:

Installation - Make sure that sleeve is securely

installed and in sound structural condition.

Dimensions-Measure the size to make sure the air

conditioner will fit.

Slope - There should be a rearward slope for

condensate to drain from the rear of the sleeve.

Check against Fig.A.

REAR

Wall Sleeve

UNIT

FRONT

LEVEL

1/4” to 5/16”

Fig. A

Manufacturer-So the method of installation can be

determined.

If the installation and slope are suspect, then removal

and correct installation of a Frigidaire Wall Sleeve

(Part EA108T), is recommended.

Check the contents of the accessories supplied with

your air conditioner as shown below:

Number Part name QTY.

Top/Bottom TrimFrame

Side TrimFrame

Plastic Mesh

TaperedSpacer Block Board

TaperedSpacer Block

Vertical Foam

Horizontal Foam

Vertical Trim Foam

Horizontal TrimFoam

Screw

Washer

P/N: 819042236-01

INSTALLATION

HOW TO INSTALL

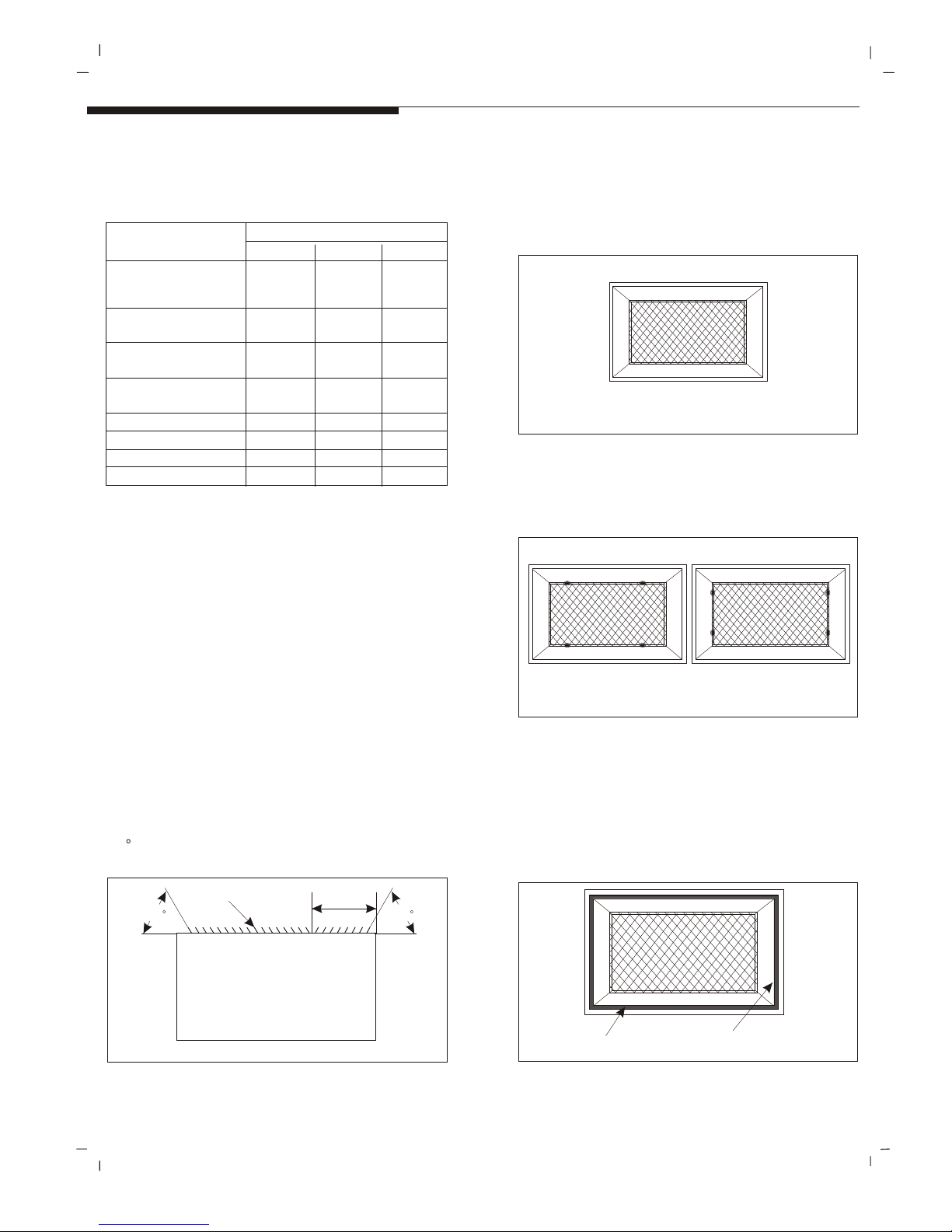

1. Identify the existing wall sleeve before installing

the unit from the listed below.

Brand Wall Sleeve Dimensions(inches)

White-Westinghouse

Frigidaire

Carrier(52F series)

General Electric

/Hotpoint

Whirlpool

Fedders/Emerson

Sears/Kenmore

Carrier(51S series)

Emerson/Fedders

Friedrich

Width Height Depth

25-1/2 15-1/4 16, 17-1/2

or 22

26 15-5/8 16-7/8

25-7/8 16-1/2 17-1/8

or 23

27 16-3/4 16-3/4

or 19-3/4

25-7/8 15-17/32 16-23/32

25-3/4 16-7/8 18-5/8

26-3/4 15-3/4 15

27 16-3/4 16-3/4

NOTE: All wall sleeves used to mount the new Air

Conditioner must bein sound structural condition and

have a rear grille that securely attaches to sleeve, or

rear flange that serves as a stop for the Air

2.Clean the interior of the sleeve (do not disturb

seals).

3.Repaint the sleeveif needed.

4.Redirect the louversat the back of the wallsleeve to

60 angle as shown in the Fig.B. The use of pliers is

recommended.

6060

TopView

Rear Louvers 10-1/4”

Fig. B

5. If the wall sleeve already has a rear grille, skip to

step 7. If the wall sleeve doesnot have a rear grille or

louvered panel, install the plastic grille from the kit.

Cut the plastic mesh to

Place the plastic grille to the inside of the wall sleeve

match the sleeve installed.

at the rear flange.

conditioner.

Fig. C

Place the plastic grille

6.Use the 4washers and screws to secure thegrille to

the wall sleeve.

Fig. D

Fasten the screws

Fig. E

Horizontal Foam

7.Remove the backing from the Vertical Foam and

attach that to the insideright of the sleeve as shown

below.

Remove the backing from the Horizontal Foam and

attach that to the insidefront of the sleeve as shown

below.

Vertical Foam

INSTALLATION

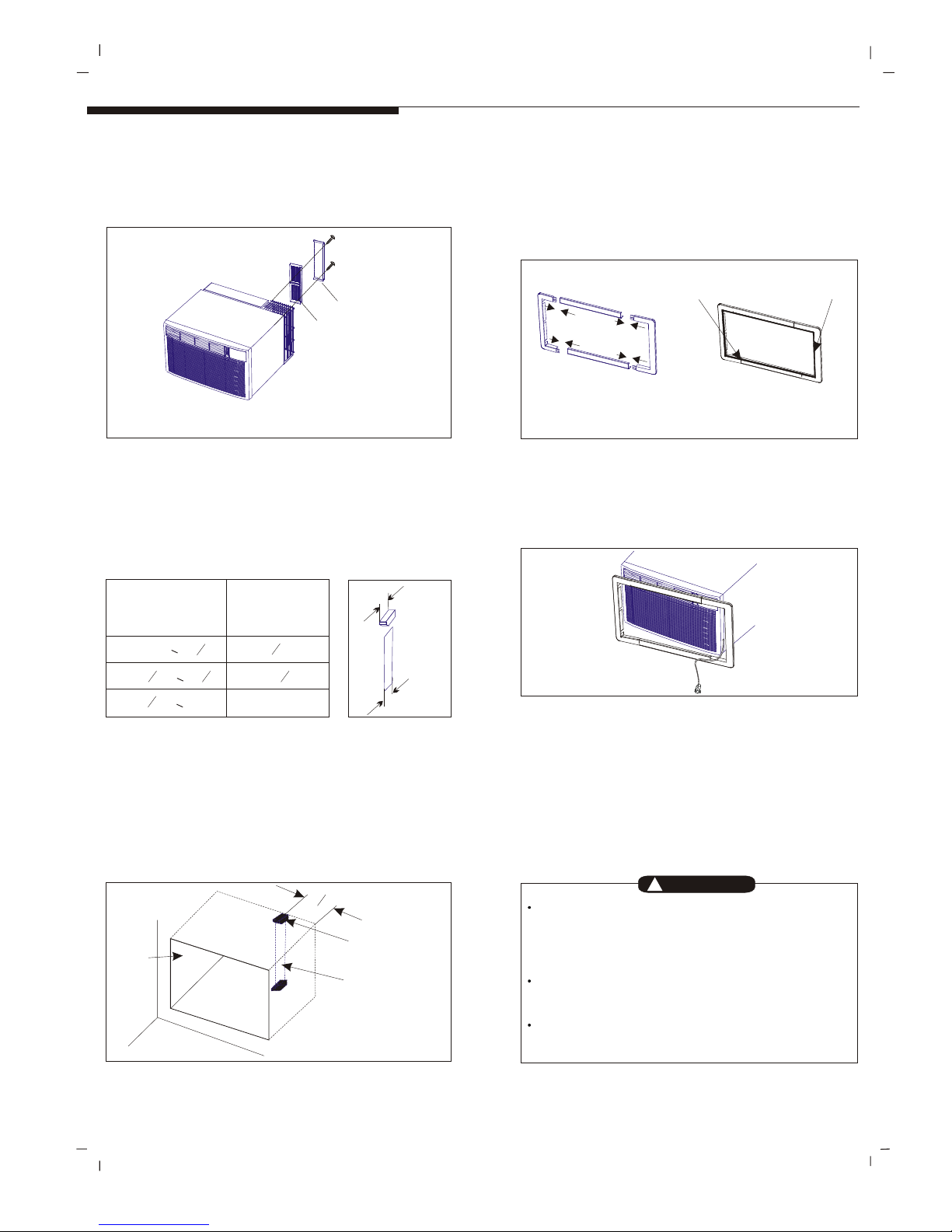

8.If you wish to keep the unit be operated at higher

performance state, remove the steel rear grille and

attach the plastic rear grille. The plastic grille will

minimize the recirculation of hot discharge air.

Fig. F

9.If the depth of your existing wall sleeve is less than

or equal to 20”, skip to step 11. Otherwise, cut the

baffles and the support blocks according to length“A”

in the table below.

Fig. G

10.Remove the backing from the support blocks and

attach them to the inside of the wall sleeve as shown

FIG H. Slide the baffle into slots of the support blocks.

Fig. H

11.Install the new unit into the wall sleeve.

Fig. I

12.To assemble trim, snap the tab of each piece into

the slot of the other piece as shown below. Remove

the backing from the trim foam and stick that to the

inside of the trim as shown below.

Fig. J

12.Slide trim over the front of the air conditioner until

trim is flush with sleeve as shown below.

Air conditioners covered in this manual pose an

excessive weight hazard. Two or m ore people are

needed to moveand install the unit. To prevent injury

or strain, use proper lifting and carrying techniques

when moving unit.

When handling the air conditioner, be careful to

avoid cuts from sharp metal fins on front and rear

coils.

Make sure air conditioner does not fall during

removal.

CAUTIONCAUTION

Plastic rear grille

Steel rear grille

Depth “D” of the

existing wall

sleeve (inches)

Length “A”

(inches)

20<D<205

20 <D<21

21 <D<24

Wall

Sleeve

Front

TaperedSpacer

Block Board

TaperedSpacer

Block

7 ”

Attach TrimFoamAssemble Trim

Vertical

Trim Foam

Horizontal

Trim Foam

NOTE: Be sure to route the cord through the trim

frame before placingthe trim frame on the unit.
