Frigidaire FAC105P1 Manuel utilisateur

M40L0001.eps M40C0002.eps M40M0002.eps 2202049158.eps

Product No. FAC105P1A1 FAC105P1A2 FAC105P1A3 FAC105P1A4 FAC105P1A5 FAC105P1A6

Series ROOM AIR ROOM AIR ROOM AIR ROOM AIR ROOM AIR ROOM AIR

Color white white white white white white

Volts 115 115 115 115 115 115

BTU-Cooling 10,000BTU 10,000BTU 10,000BTU 10,000BTU 10,000BTU 10,000BTU

Owner's Guide 220201d011 220201d011 220201d011 220201d011 220201d011 220201d011

Installation Instructions COMINSTALLEN COMINSTALLEN COMINSTALLEN COMINSTALLEN COMINSTALLEN COMINSTALLEN

Market North America North America North America North America North America North America

Electrolux Major Appliances

North & Latin America

P.O. BOX 212378

AUGUSTA, GA 30917

Publication No.

5995436911

05/05/17

(EN/SERVICE/WC)

099

ROOM AIR

CONDITIONER

Model No.

FAC105P1

Publication No: 5995436911 FAC105P1

05/05 2

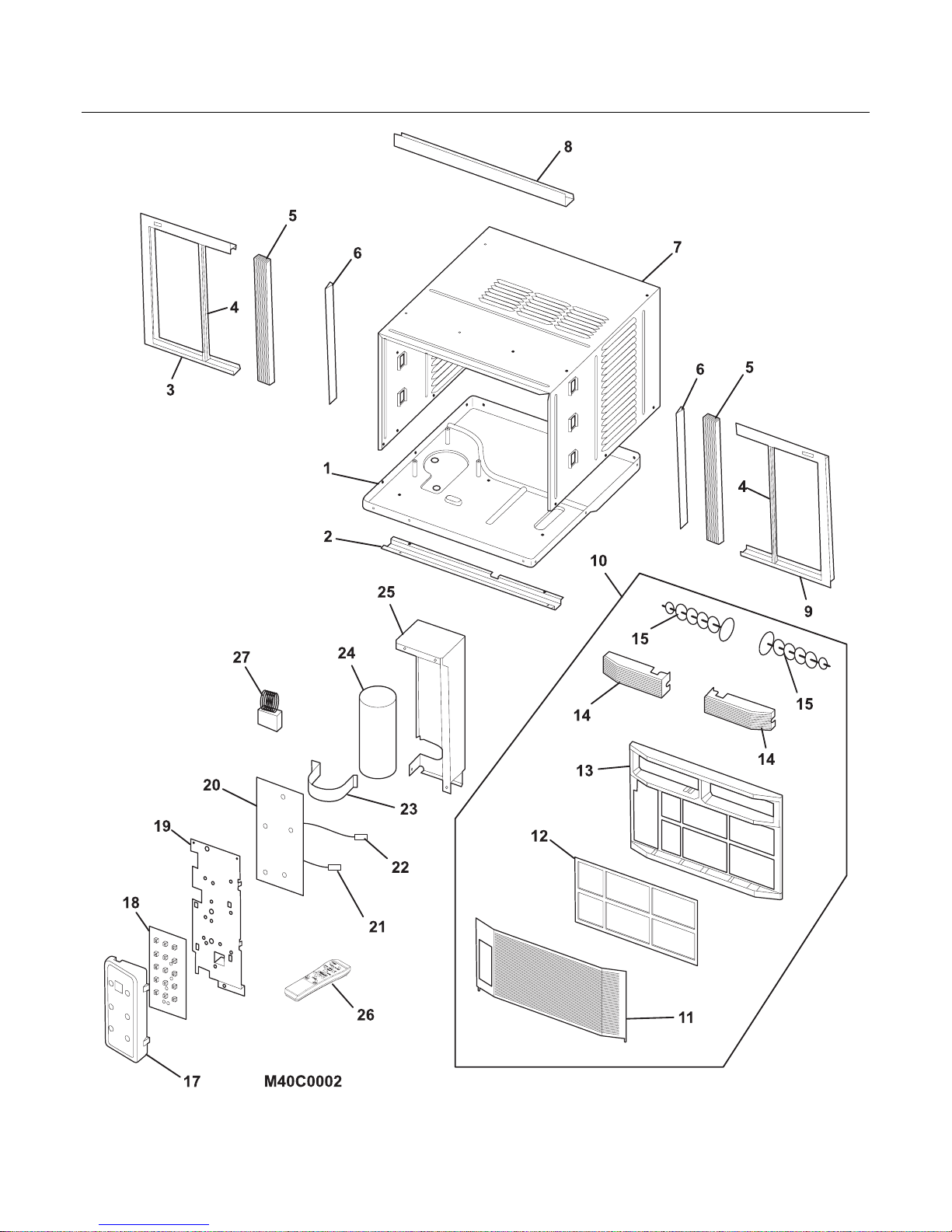

CABINET, FRONT, CONTROLS

FAC105P1 Publication No: 5995436911

# Functional Parts 3 05/05

* Non-Illustrated Parts

CABINET, FRONT, CONTROLS

Model Index: AFAC105P1A (FAC105P1A1)

BFAC105P1A (FAC105P1A2)

CFAC105P1A (FAC105P1A3)

DFAC105P1A (FAC105P1A4)

EFAC105P1A (FAC105P1A5)

FFAC105P1A (FAC105P1A6)

POS. NO PART NO. DESCRIPTION

1 5304446456 A B - - - F BASE, CHASSIS

1 5304436521 - - C D E - Base, unit chassis

2 5304436523 A B C D E F Rail, shutter track, bottom

3 5304436544 A B C D E F Frame, shutter panel, LH

4 5304436545 A B C D E F Retainer, shutter lock

5 5304436546 A B C D E F Shutter, accordion panel

6 5304436547 A B C D E F Retainer, shutter mount, cabinet sides

7 5304446442 A B C D E F Cabinet, wrapper/sleeve

8 5304436549 A B C D E F Rail, shutter track, top

9 5304436550 A B C D E F Frame, shutter panel, RH

10 5304436600 A B C D E F Front Assembly, complete panel, includes

11 5304436551 A B C D E F Panel, front grille, tilt-out

12 5304436552 A B C D E F Filter, air, plastic frame

13 5304436553 A B C D E F Frame, front assembly

14 5304436554 A B C D E F Louver, horizontal

15 5304446443 A B C D E F Louver, vertical

17 5304436536 A B C D E F Enclosure, control, pcb display

17* 5304436541 A B C D E F Control Panel, display, electronic

18 # 5304436535 A B C D E F PC Board, display/input

19 5304446441 A B C D E F Panel, control mounting board

20 # 5304436532 A B C D E F PC Board, control/power

21 # 5304436543 A B C D E F Sensor, ambient temp

22 # 5304436542 A B C D E F Sensor, evap temp, defrost

23 5304436530 A B C D E F Strap, capacitor mtg.

24 5304446457 A B - - - F Capacitor

24 # 5304436525 - - C D E - Capacitor

25 5304436524 A B C D E F Control Box

26 # 5304436595 A B C D E F Remote Control, transmitter

27 # 5304436529 A B C D E F Ionizer

* 5304458023 A B C D E F Hardware Kit, installation

Publication No: 5995436911 FAC105P1

05/05 4

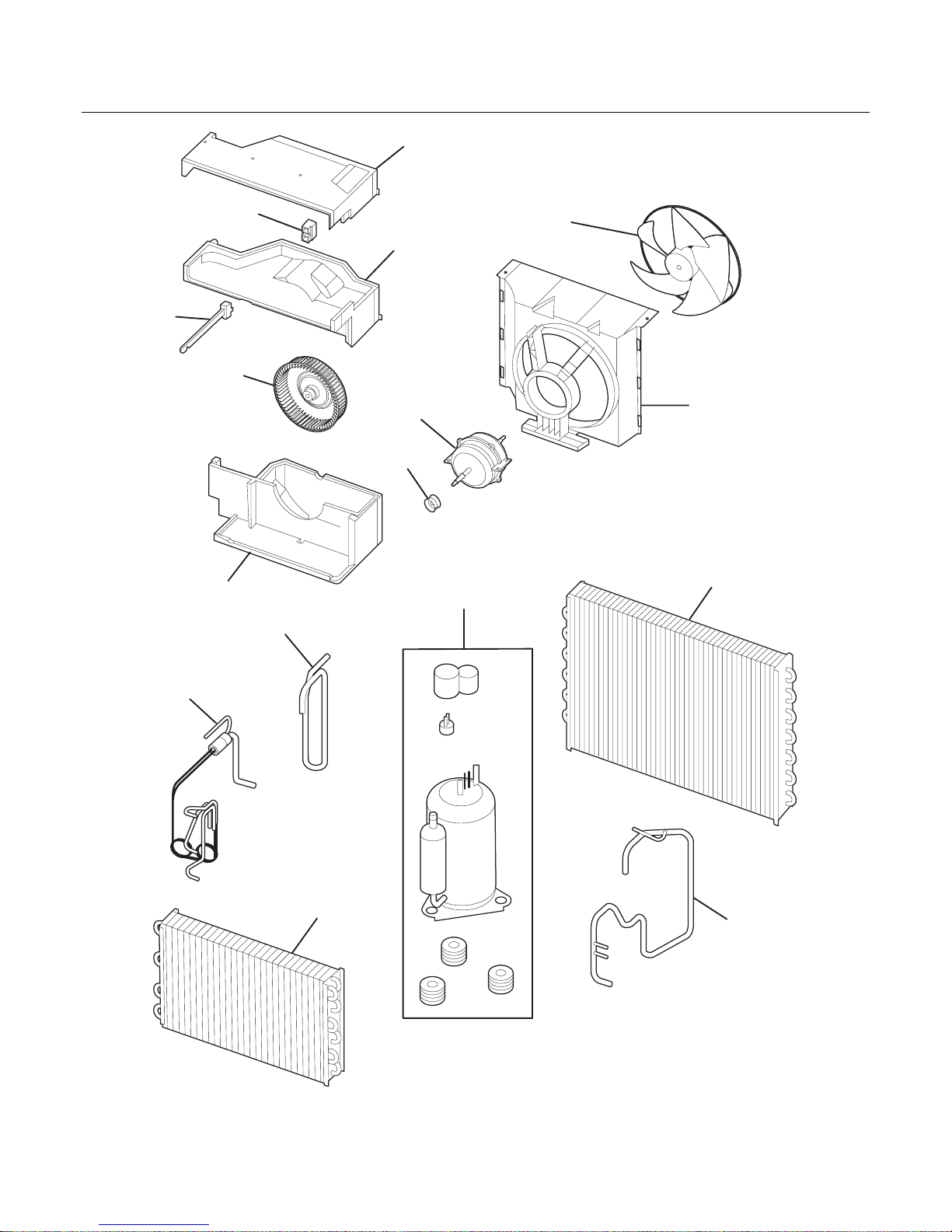

COOLING & AIR FLOW SYSTEMS

M40M0002

FAC105P1 Publication No: 5995436911

# Functional Parts 5 05/05

* Non-Illustrated Parts

COOLING & AIR FLOW SYSTEMS

Model Index: AFAC105P1A (FAC105P1A1)

BFAC105P1A (FAC105P1A2)

CFAC105P1A (FAC105P1A3)

DFAC105P1A (FAC105P1A4)

EFAC105P1A (FAC105P1A5)

FFAC105P1A (FAC105P1A6)

POS. NO PART NO. DESCRIPTION

1 5304436556 A B C D E F Scroll, blower housing, bottom, w/drain tray

2 # 5304436557 A B C D E F Blower Wheel, centrifugal fan

3 5304436559 A B C D E F Scroll, blower housing, top

4 5304436558 A B C D E F Door, fresh air vent, with lever

5 5304436564 A B C D E F Guide, vent door/lever

6 5304436565 A B C D E F Cover, blower scroll, top

7 # 5304436563 A B C D E F Fan Blade, propeller, axial flow

8 # 5304436562 A B C D E F Shroud, fan housing

9 # 5304441406 A - - D - - Motor, fan

9 5304446455 - B - - E - Motor, fan

9 # 5304441405 - - C - - F Motor, fan

10 5304436560 A B C D E F Seal, fan motor, rubber ring, water proof

11 # 5304436566 A B C D E F Evaporator

12 5304446461 A B - - - F Capillary Tube

12 # 5304436582 - - C D E - Capillary Tube, assy w/strainer

13 5304446460 A B - - - F Discharge Tube

13 # 5304436574 - - C D E - Discharge Tube

14 5304446459 A B - - - F Compressor Assy

14 # 5304437082 - - C D E - Compressor Assy

15 # 5304436572 A B - - - F Condenser

15 # 5304436571 - - C D E - Condenser

16 5304446458 A B - - - F Suction Tube

16 # 5304436569 - - C D E - Suction Tube

* # 5304446449 A B C D E F Power Cord, electric, 115 V

Publication No: 5995436911 FAC105P1

05/05 6

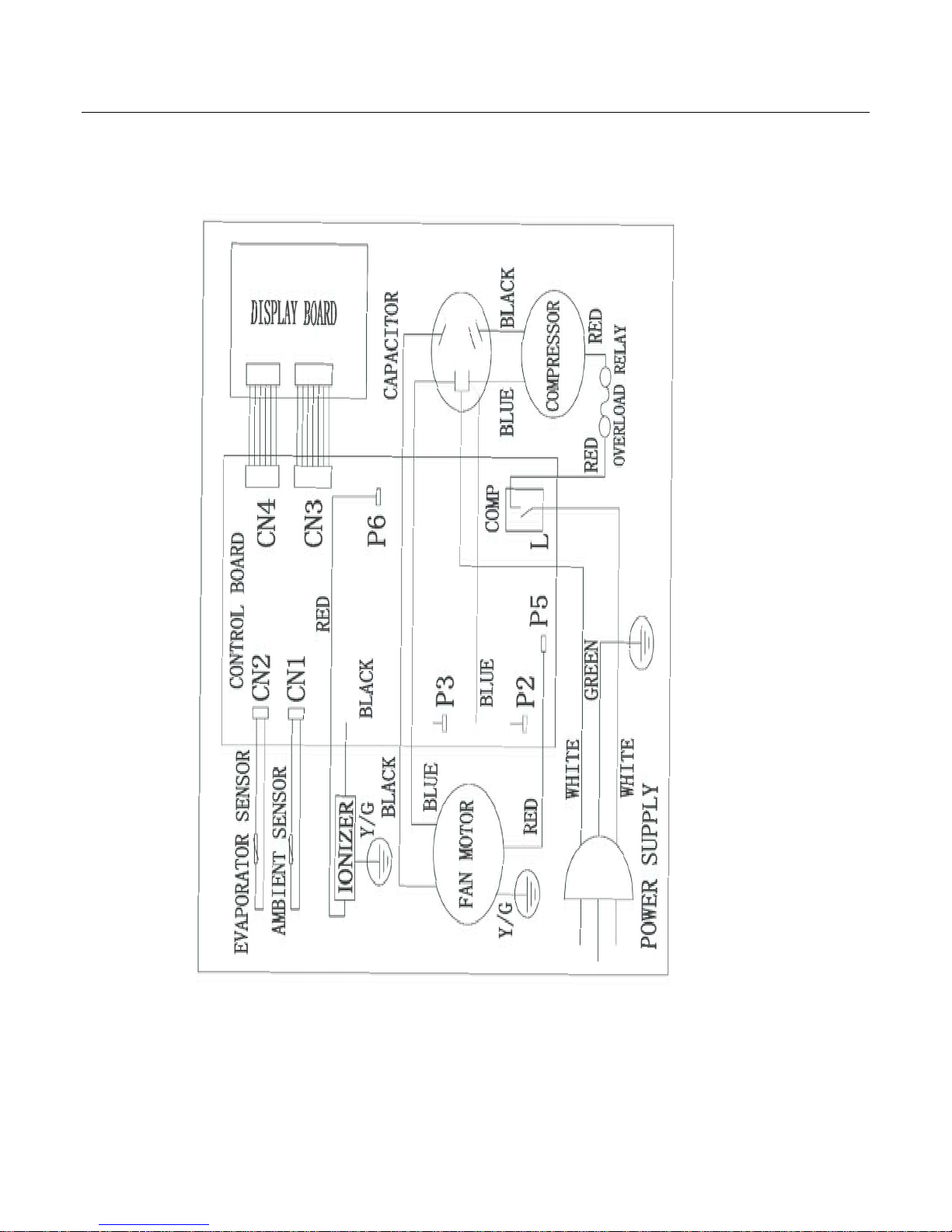

WIRING DIAGRAM

2202019158
