Frigidaire FAC104M1A1 Manuel utilisateur

PRODUCT NO. BASE MODEL NO. SERIES VOLTS BTU-COOLING

FAC104M1A1 FAC104M1A Compact 115 10000 BTU

MARKET

Frigidaire

Publication No.

5995384236

030116

-EN/SERVICE /KC

345

ROOM AIR CONDITIONER

Model No.

FAC104M1A1

FACTORY PARTS CATALOG

ROOM AIR CONDITIONER

WIRING DIAGRAM - # 309364201

OWNER’S GUIDE - # 309000848

ENERGY GUIDE - # 309369914

ELECTROLUX HOME PRODUCTS, INC

P.O.BOX 212378, AUGUSTA, GA 30917

01/03 2

Publication No. FAC104M1A1

5995384236

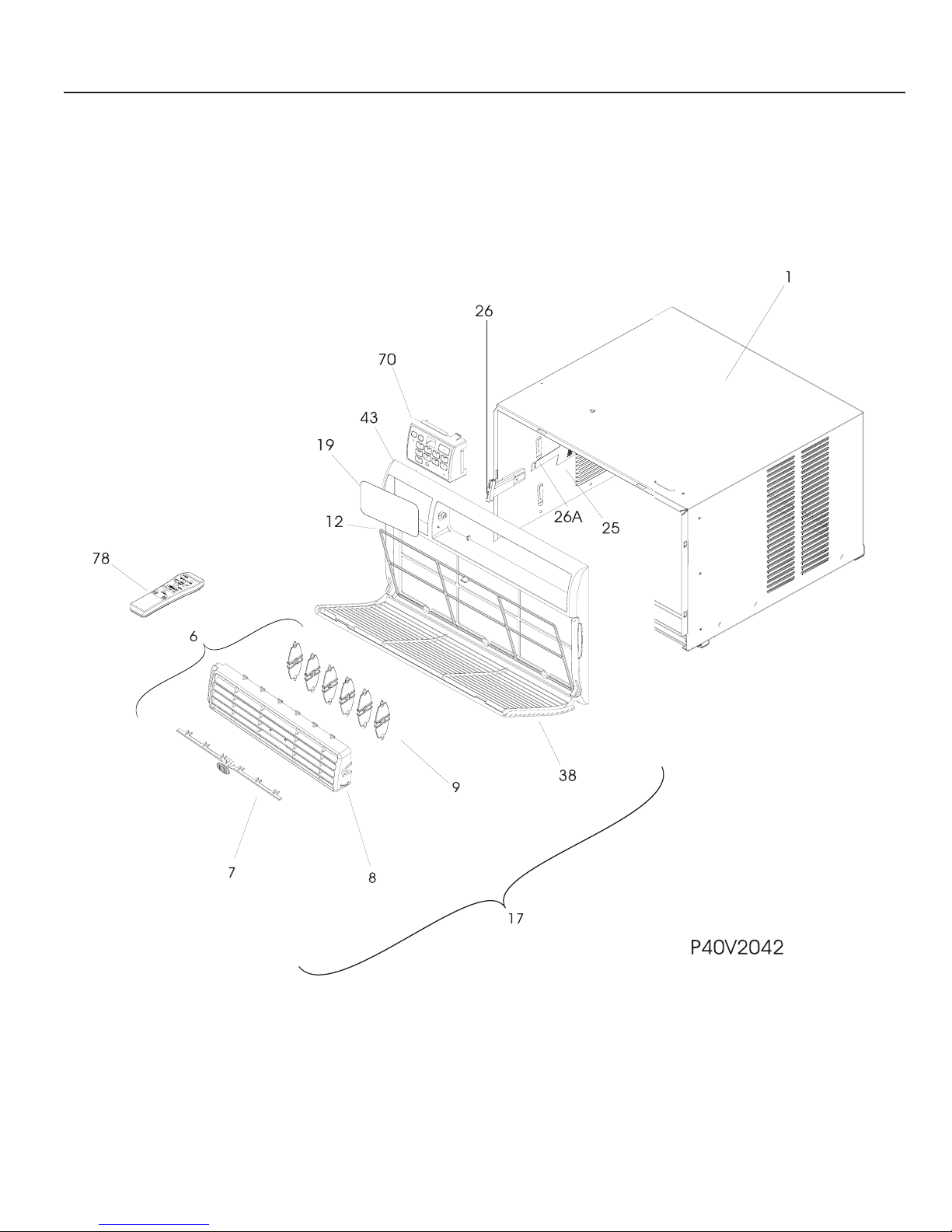

CABINET FRONT AND WRAPPER

# = Fast-moving Parts 3 01/03

* = Non-Illustrated Parts

FAC104M1A1 Publication No.

5995384236

CABINET FRONT AND WRAPPER

POS. NO PART NO DESCRIPTION

1 309643602 Cabinet,wrapper

* 5303303691 Screw,truss head ,8-18AB x 0.375 ,w/nibs

6 309640206 Louver Assy,Includes 7,8,9

7 309638002 * Link,vertical louver ,with handle

8 309639302 * Louver,horizontal

9 309342001 * Louver,vertical ,(6)

12 309343501 Filter,air ,7.12 x 17.31 ,no frame

17 309640104 Front Assembly,cabinet ,w/8,9,12,38,43

* 3015312 Screw,8-18AB x 0.500

19 309359904 Overlay,control

25 309328603 Door,fresh air vent

26 309638201 Handle,vent door

26A 309330201 Detent,vent

38 309646301 Panel,cabinet front

43 309646401 Frame,cabinet front

70 309369501 Enclosure,control mount

78 # 309342607 Remote Control,transmitter ,with batteries

* 309369914 Energy Guide,FAC104M1A1

01/03 4

Publication No. FAC104M1A1

5995384236

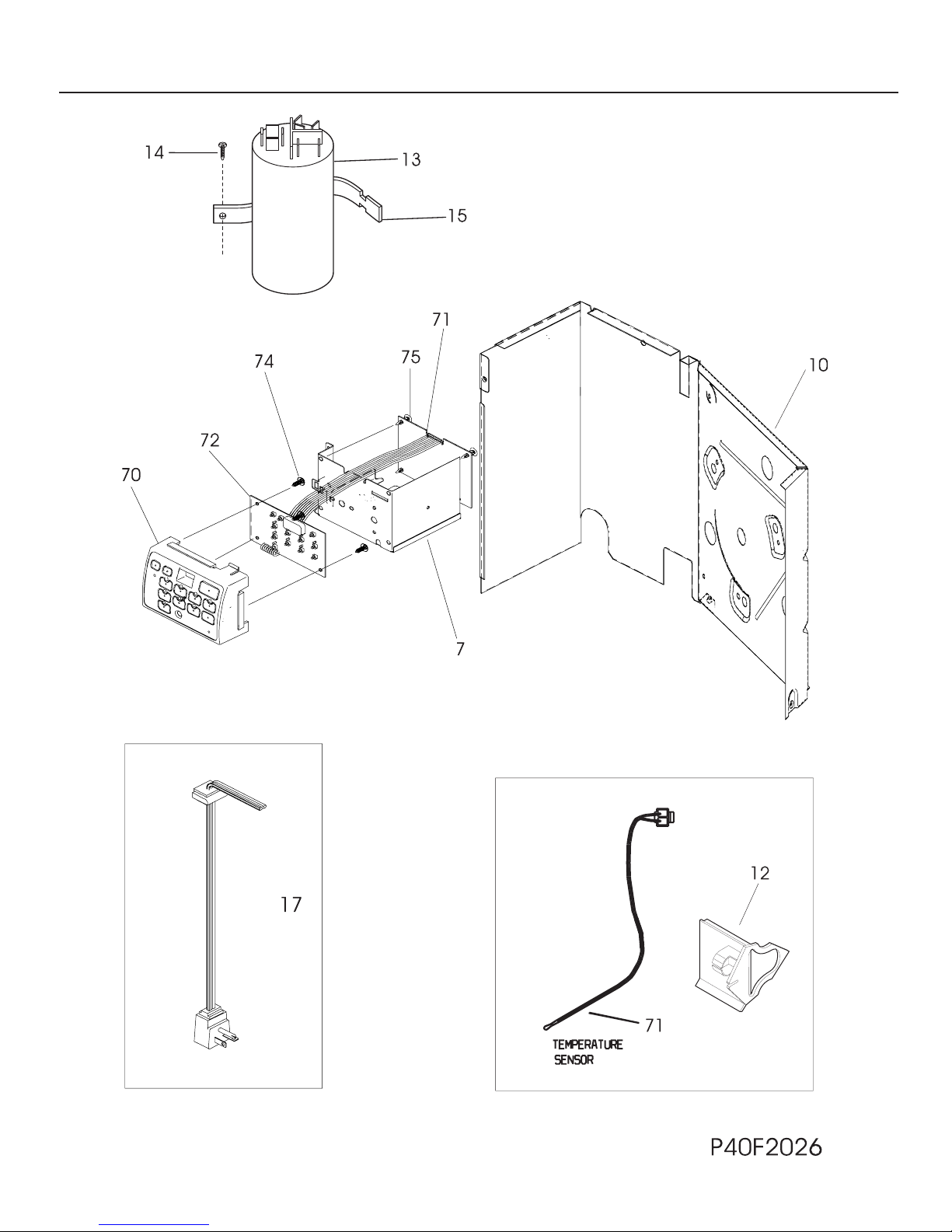

CONTROLS

# = Fast-moving Parts 5 01/03

* = Non-Illustrated Parts

FAC104M1A1 Publication No.

5995384236

CONTROLS

POS. NO PART NO DESCRIPTION

7 # 309643801 Control Box

10 309643702 Bulkhead

10* 309111201 Grommet,wire protector

12 5304413782 Holder,thermistor ,w/seal

13 # 5304426337 Capacitor,250 V ,50+10 mfd

14 3015312 Screw,8-18AB x 0.500

15 309351901 Strap,capacitor mtg.

17 # 309343123 Cord-electric power,16 AWG ,115 V

* 5303285199 Screw,Ph truss hd ,8-18 x 0.38 ,grounding

70 309369501 Enclosure,control mount

71 # 309350404 PC Board,power ,w/trans,sensor

72 # 309350406 PC Board,input ,sleep/filter ck

72* 5304417643 Ribbon Protector

74 5303301590 Screw,6-20AB x 0.38

75 5304413781 Hardware,PCB support

01/03 6

Publication No. FAC104M1A1

5995384236

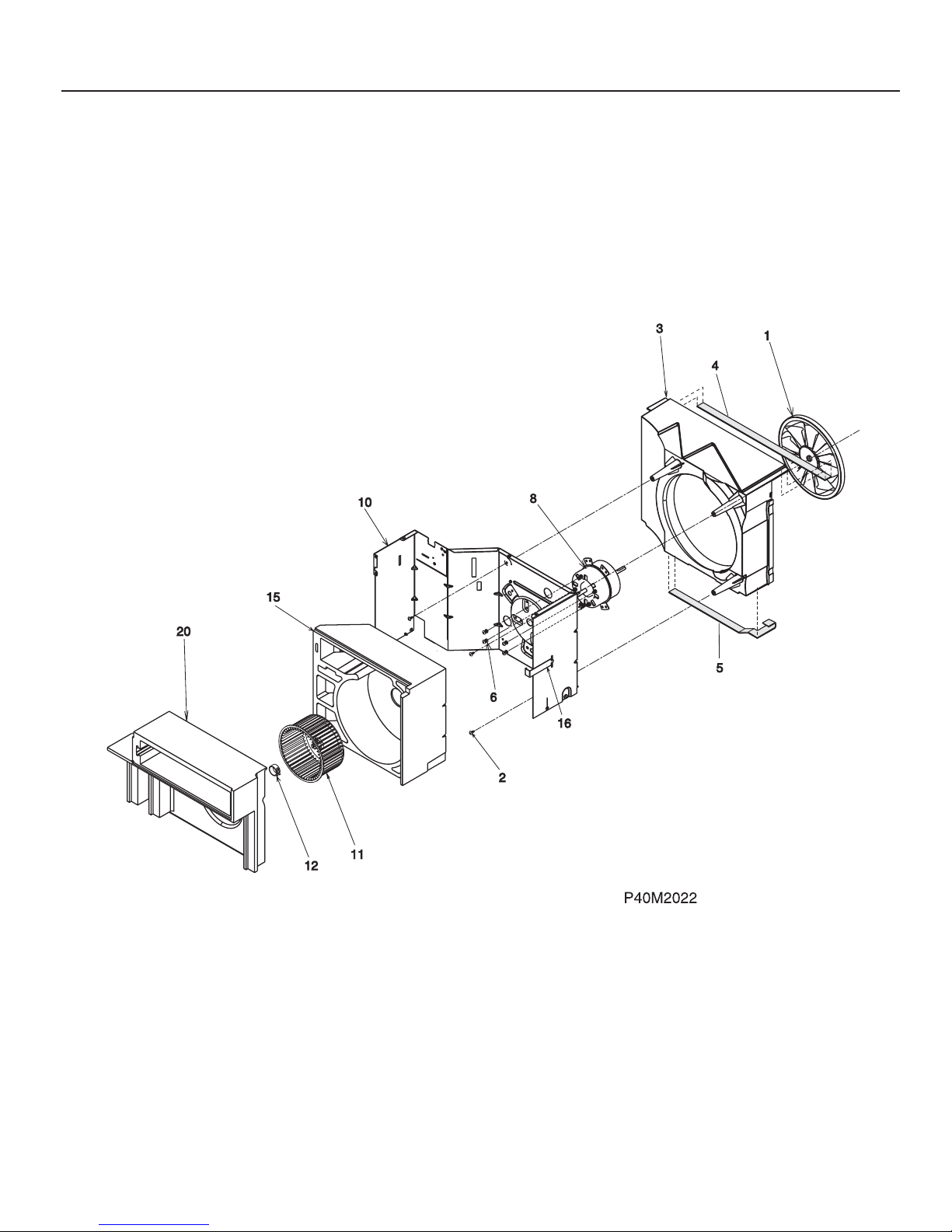

AIR HANDLING PARTS

# = Fast-moving Parts 7 01/03

* = Non-Illustrated Parts

FAC104M1A1 Publication No.

5995384236

AIR HANDLING PARTS

POS. NO PART NO DESCRIPTION

1 309645702 Fan Blade,with clamp

2 3202975 Screw,10-16AB x 0.72 ,square drive

3 309643901 Housing,fan shroud

4 5304421913 Seal,top

5 5303303759 Seal,bottom

6 08007481 Nut,Keps ,motor mtg ,(4)

8 # 309644302 Motor,fan

10 309643702 Bulkhead

11 # 309643301 Blower Wheel

12 309112101 Clamp,blower wheel mt ,compression

15 309642901 Housing,blower scroll ,Extended

16 309100201 Clip,evap/bulkhead

20 309643002 Plate,scroll cover

01/03 8

Publication No. FAC104M1A1

5995384236

COMPRESSOR PARTS

# = Fast-moving Parts 9 01/03

* = Non-Illustrated Parts

FAC104M1A1 Publication No.

5995384236

COMPRESSOR PARTS

POS. NO PART NO DESCRIPTION

1 # 309603116 Compressor

2 5303283877 Grommet,compressor mtg ,(3)

3 5308006948 Nut,compressor mtg ,(3)

6 5304431275 Gasket,terminal cover

7 5304416126 Cover,elec terminal ,compressor

8 # 5304430489 Overload Protector

9 5303294292 Nut,terminal cover

10 # 5303317601 Start Assist Kit,compressor

11 # 309619319 Evaporator

12 # 309645405 Condenser

13 # 309642801 Tray,evap drip

14 309644001 Base,compressor mt. ,with studs

16 # 5304403237 Capillary Tube,50 inch long

17 # 5300265301 Drier-filter,service kit

19 309112501 Washer,metallic

21 5303293809 Washer,terminal cover

01/03 10

Publication No. FAC104M1A1

5995384236

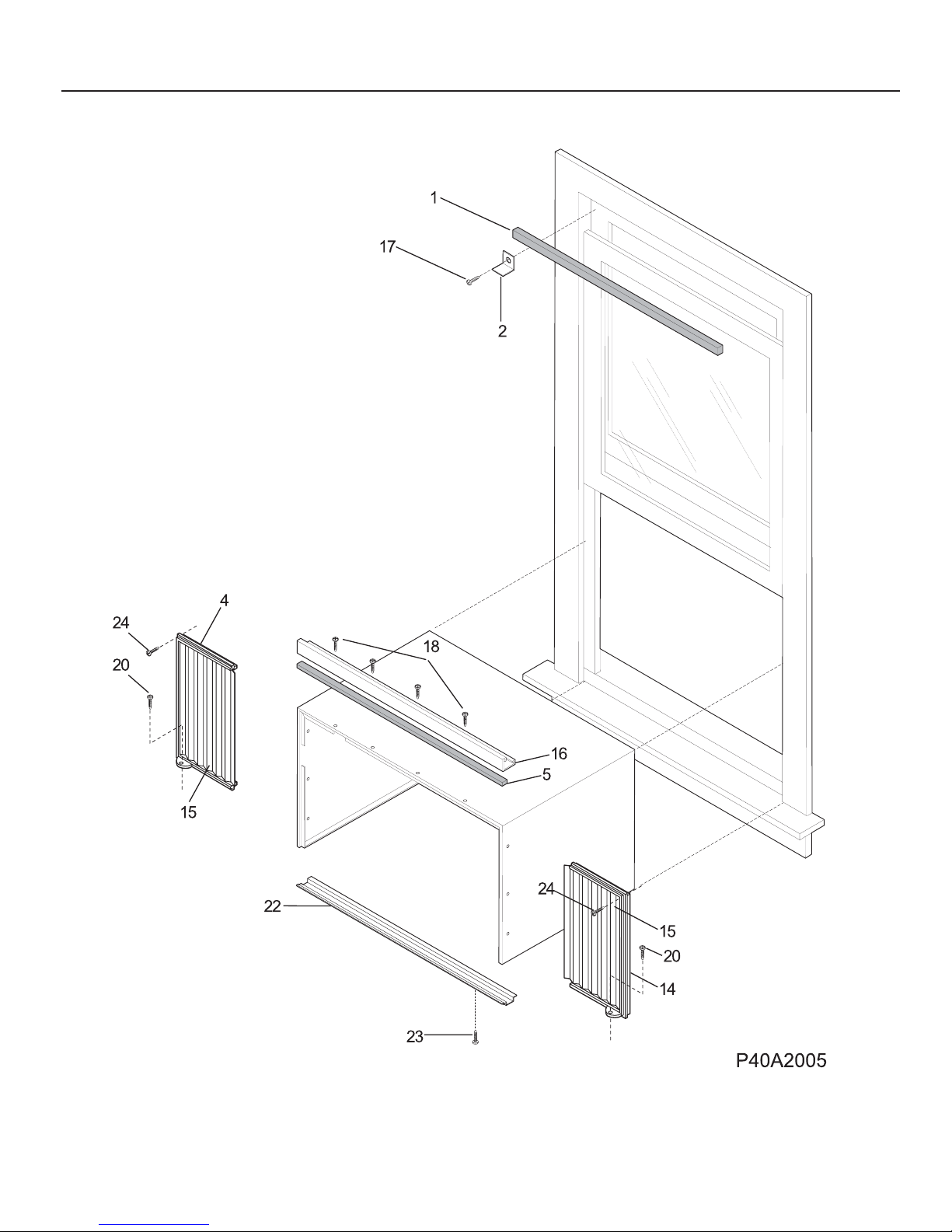

WINDOW MOUNTING PARTS
