Friedrich DVKA Manuel utilisateur

Installation Manual

Ventilation Kit

Model : DVKA / DVKB

960-912-11

VENTILATION KIT INSTALLATION MANUAL

TABLE OF CONTENTS

1. Safety Precautions ............................................................................................................3

2. Included Items....................................................................................................................4

3. Assembly Diagram ............................................................................................................5

4. Ventilation Kit Installation (DVKA) ...................................................................................6

5. Flange Installation (DVKB) ...............................................................................................7

6. Front Panel Installation.....................................................................................................9

7. Electrical Wiring To The Indoor Unit .............................................................................13

1. Safety Precautions

Installation Manual 3

To prevent injury to the user or other people and property damage, the following instructions

must be followed.

nIncorrect operation due to ignoring instruction will cause harm or damage. The seriousness

is classified by the following indications.

1. Electric works should be carried out according to ‘The technology requirement on the

electric installation’, The wiring standard’and this manual by a qualified personnel.

If the installation isn’t complete, electric shock or fire may occur, or death or injury can be caused.

3. If the capacity of the power circuit is insufficient or its installation wasn’t done completely,

this may cause electric shock, fire or etc..

4. If the installation was done by a user, there may be incompleteness, which may cause

electric shock, fire, injury and death.

5. When operating the machine (applying power to the machine), do not carry out any electric

work and do not put hand or finger into it. This may cause electric shock, injury and death.

nMeanings of symbols used in this manual are as shown below.

WARNING

CAUTION

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage.

Be sure not to do.

Be sure to follow the instruction.

Warning

1. Before installation, read this manual and carry out the worksaccording to it.

2. This machine can be installed on the ceiling air conditioner cassette type unit.(However,

please check the applicable models with PDB.)

3. When installing, the diameter of the duct connected to the flange, PTVK-420, is Ø150

4. Before installation, be sure to check all the included items. (However, be sure to use all

kinds of certified products when purchasing the items other than those provided by LG at

your local store.)

5. Be sure to carry out the earth work. (However, do not connect the unit to gas pipe, water

pipe, a lightning rod and a phone earth line. In addition, if the earth wasn’t completely done,

this may cause electric shock and fire.)

Caution

1. Safety Precautions

Item ¿ Ventilation kit ¡Bolt ¬ Bolt √ Insulation

Q’ty 1 4 4 1

2. Included Items

※Provided by LG.

DVKA

Figure

¿¡¬ √

Item Flange Screw

Q’ty 1 7

DVKB

Figure

ƒ≈

M4 x 10

Installation Manual 5

3. Assembly Diagram

Indoor

Ventilation 1

Front panel

Bolt 2

Flange 5

Ventilation 1

4. Ventilation Kit Installation (DVKA)

4.1 Cut the styrofoam's groove for ventilation kit(¿)

4.2 Trim the cutting surface

Cutting Surface

4-1 and 4-2 are intended to obtain the air inflow path for ventilation.

If not used, do not cut the styrofoam.

Caution

5. Flange Installation (DVKB)

Installation Manual 7

5. Flange Installation (DVKB)

5-1. Use screws (≈) to fix 3 points on the side of the flange (ƒ).

5-2. Use screws (≈) to fix 4 points on the upper surface of the flange (ƒ).

Screw 6

Flange 5

Screw 6

Flange 5

5. Flange Installation (DVKB)

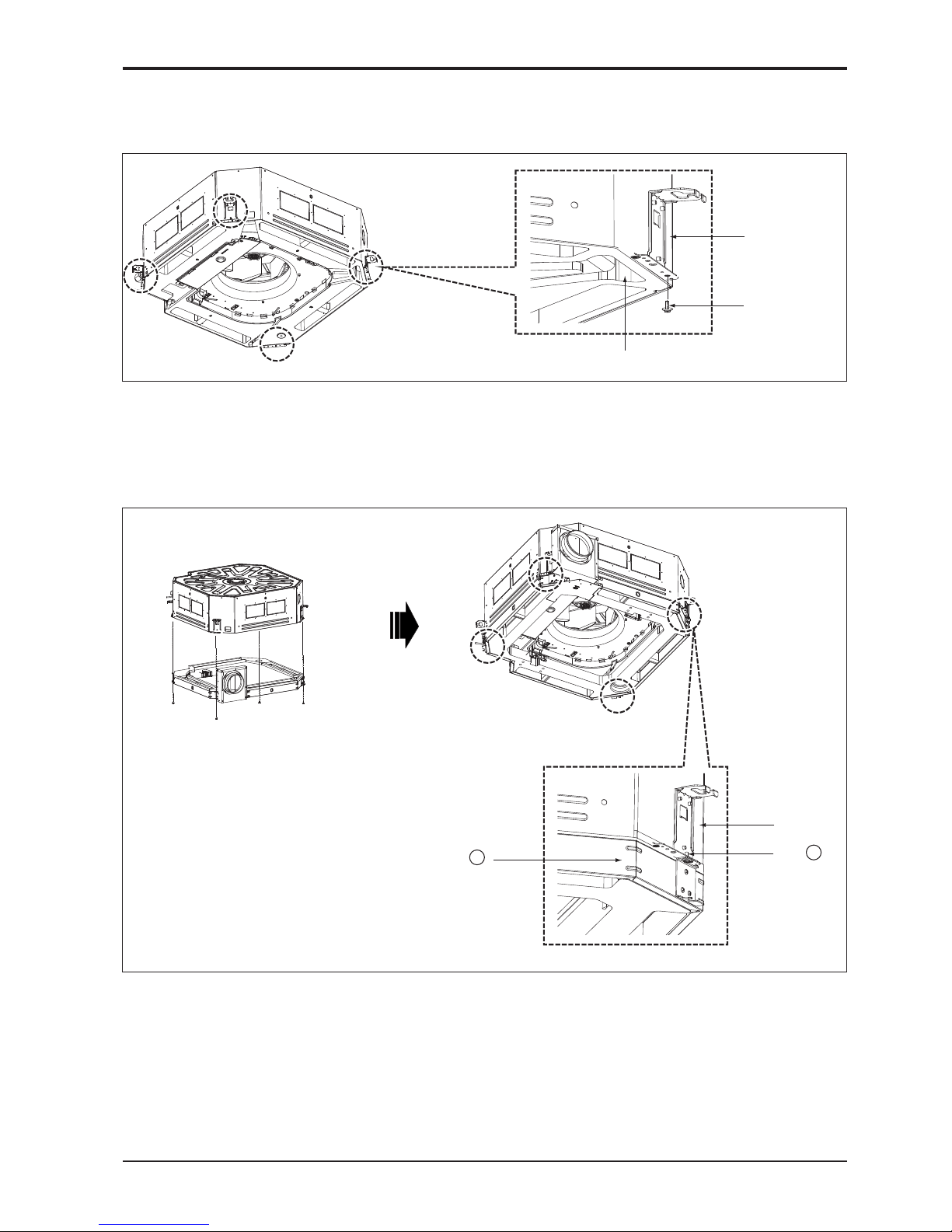

5-3. Remove four screws which bond drain pan.

Indoor

Drain pan X

bond screw

Drain pan

Indoor

Ventilation Kit ( 1 ) Bolt( 2 )

5-4. Attach ventilation kit (

) to air conditoner with bolt (

)

Installation Manual 9

6. Front Panel Installation

※Part of this instruction is the same as the installation manual.

6-1. Disassemble the front panel packing and remove the front grill and checking edge cover from

the front panel.

Front grill

Edge cover

6. Front Panel Installation

6-2. Attach the front panel to the assembly(

≈

+ indoor unit) and use bolt(¡) to fix both the

front panel and the assembly to the indoor unit.

When attaching, get the bracket of the front panel to the hanger of the ventilation kit(

).[Fig.2]

Be sure to assemble the bolts tightly, so that they are tightened to the upper part of the indoor

unit. [Fig.3]

Firstly, insert 1/3 of bolt (¬) into 2 diagonal

places. After checking the position with the

ceiling, insert them into all of 4 places.

Through the edge hole, adjust the ceiling fixing

bolts to fit the ceiling and the front panel.

During above 6-2, the bolts(¬) are

only used for PTVK use the bolts in

the front panel package box. For

details, see the section of the front

panel in the air conditioner installation

manual. When the machine +

ventilation kit + front panel are not

closely assembled, cold air may leak

and cooling/heating gets weak and

water drops may fall. [Fig. 4]

Fig. 2 Fig. 3

INDOOR ONIT BRACKET

KIT BRACKET

FRONT PANEL

VENTILATION HOOK

INDOOR

FRONT PANEL

VENTILATION KIT

FRONT PANEL BRACKET

※ Front panel installation

Caution

Be sure to completely mount the fixing hanger on the ventilation kit hanger,

so that the front panel doesn’t fall.

If this isn’t assembled completely, fall, injury and accident may occur.

Warning

Fig.4
