Congratulations! Thank you for choosing

Friedrich.

Your Friedrich unit is designed for

maximum comfort and quietness.

Table of Contents

Introduction ..................................................................................2

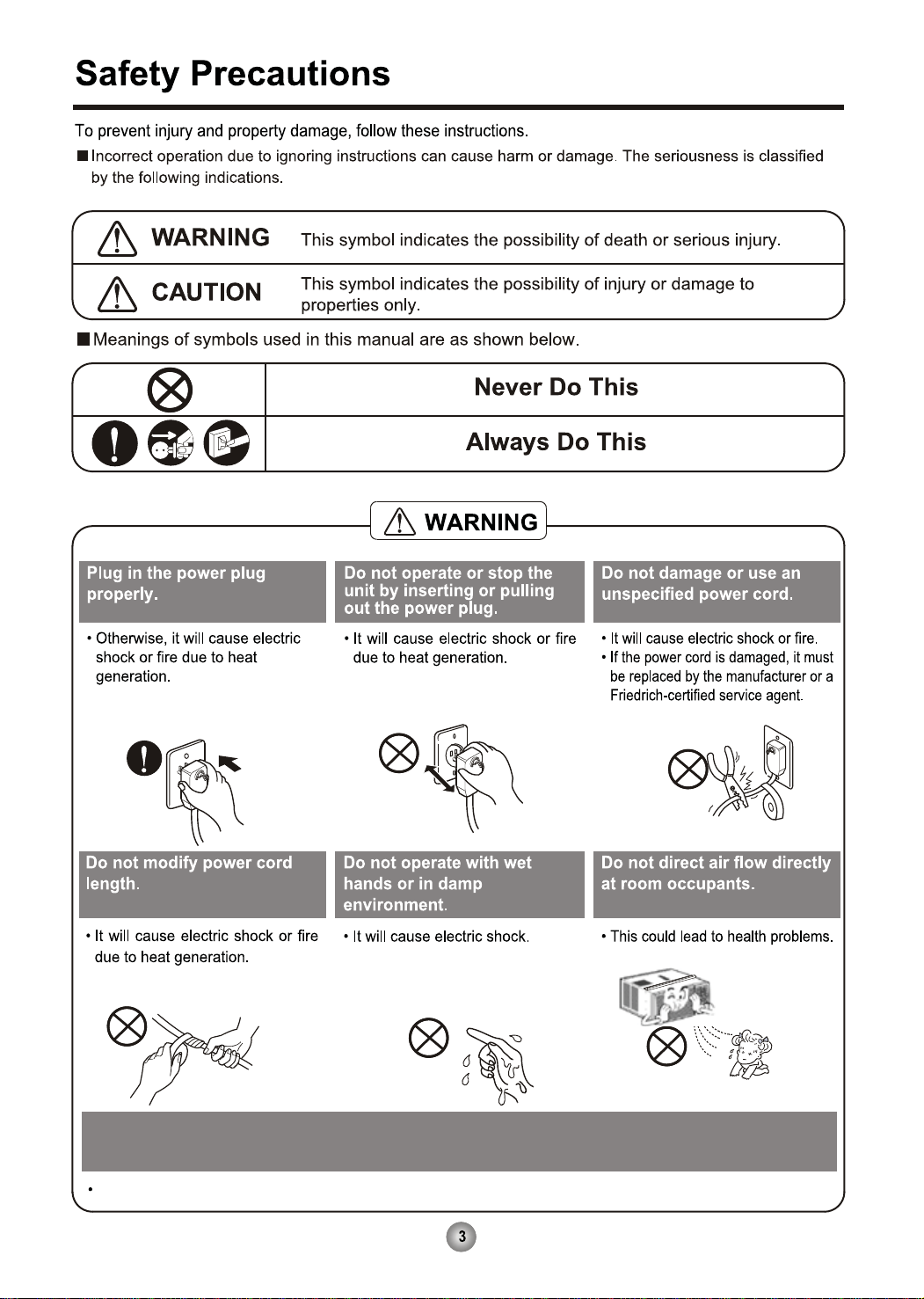

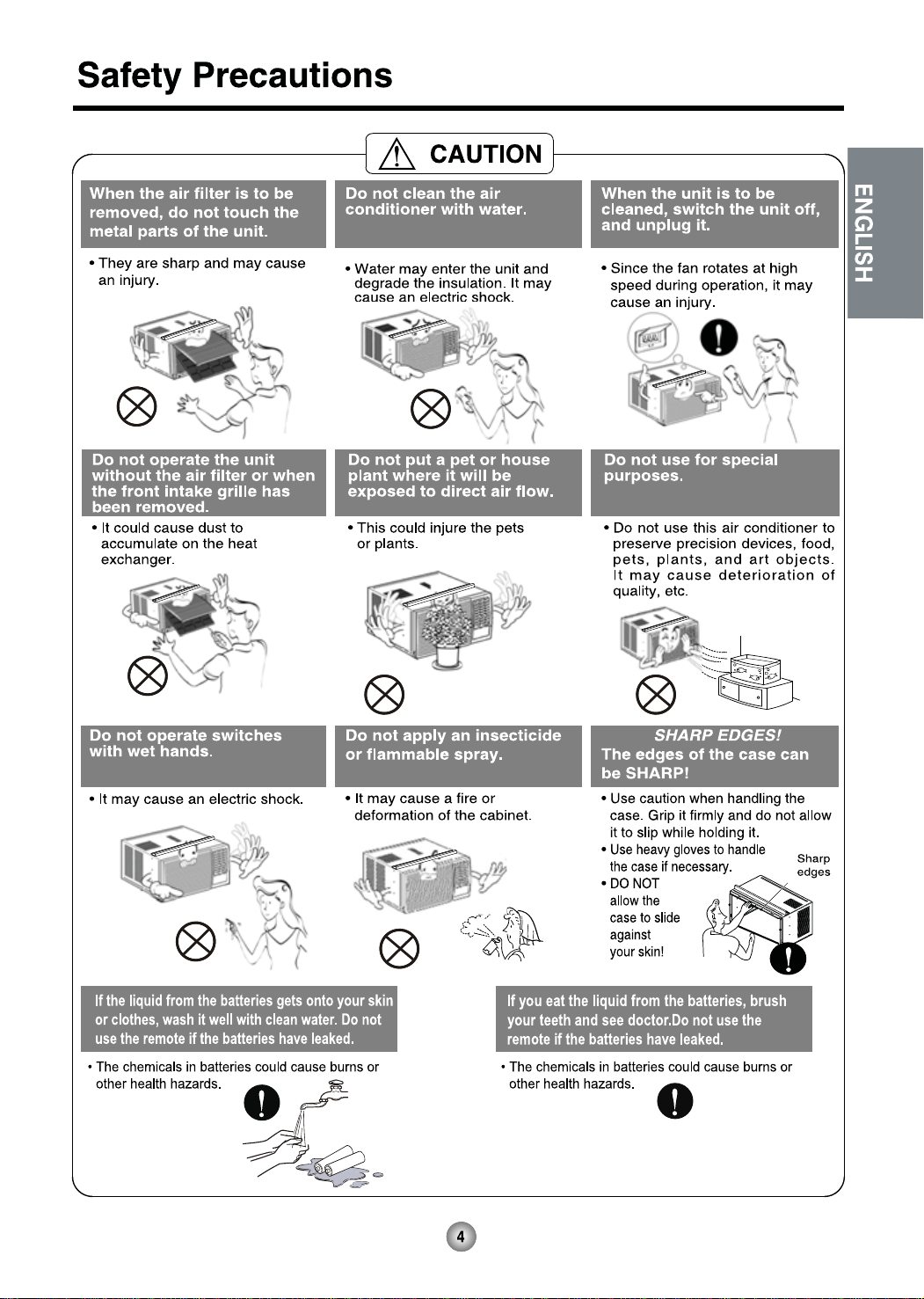

Safety Precautions.......................................................................3

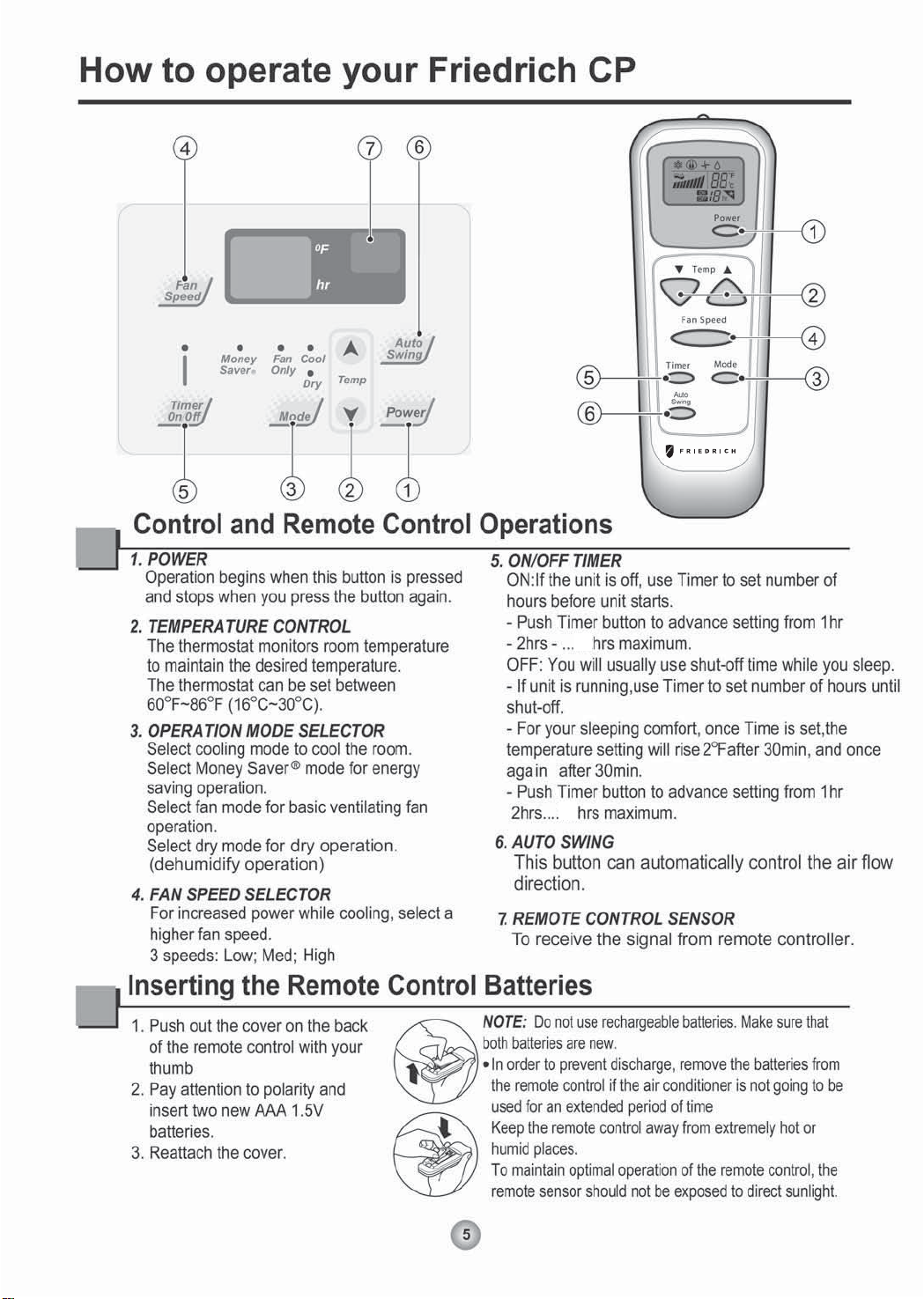

How to operate your Friedrich ...................................................5

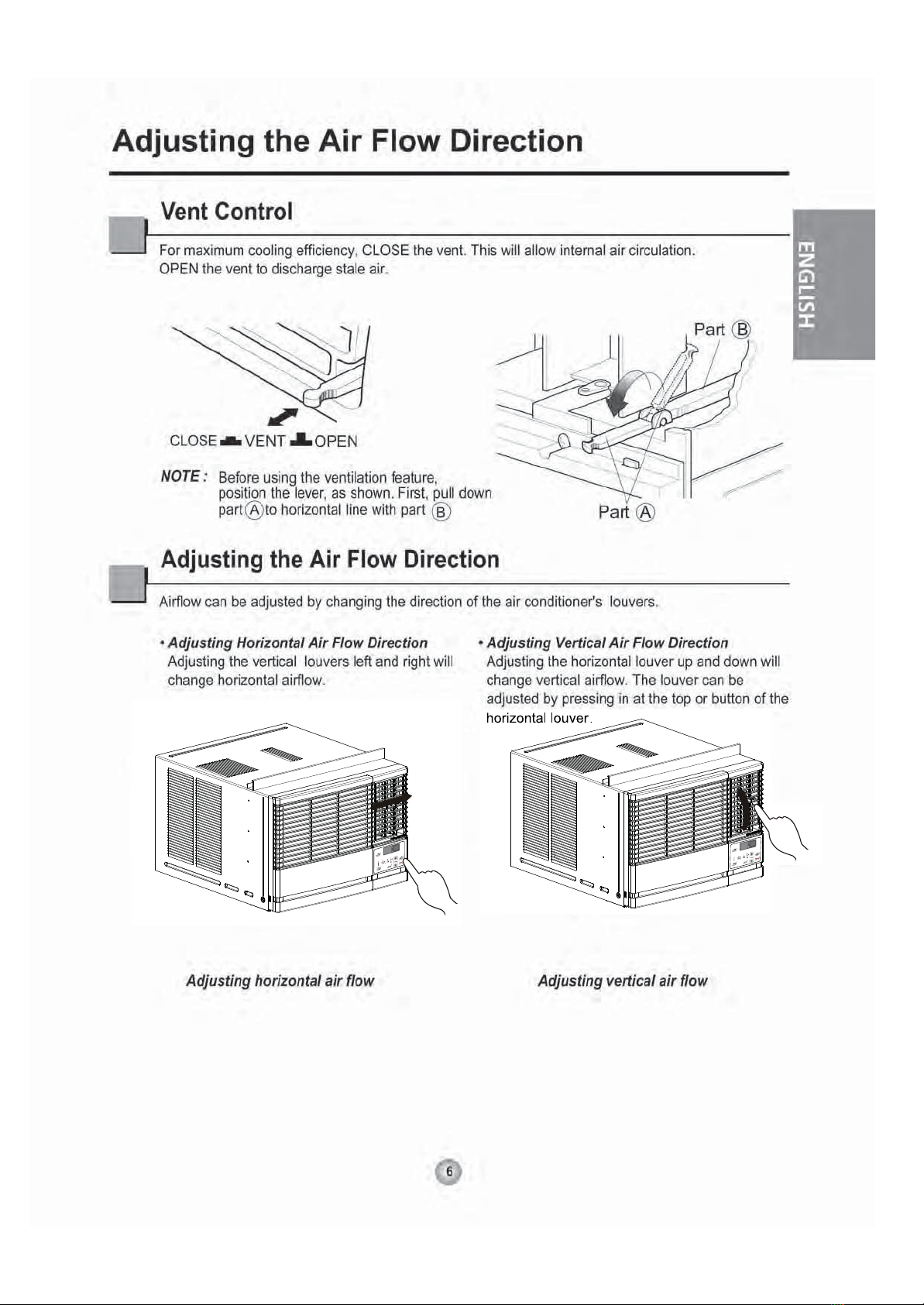

Adjusting the Air Flow Direction.................................................6

Care and Maintenance.................................................................7

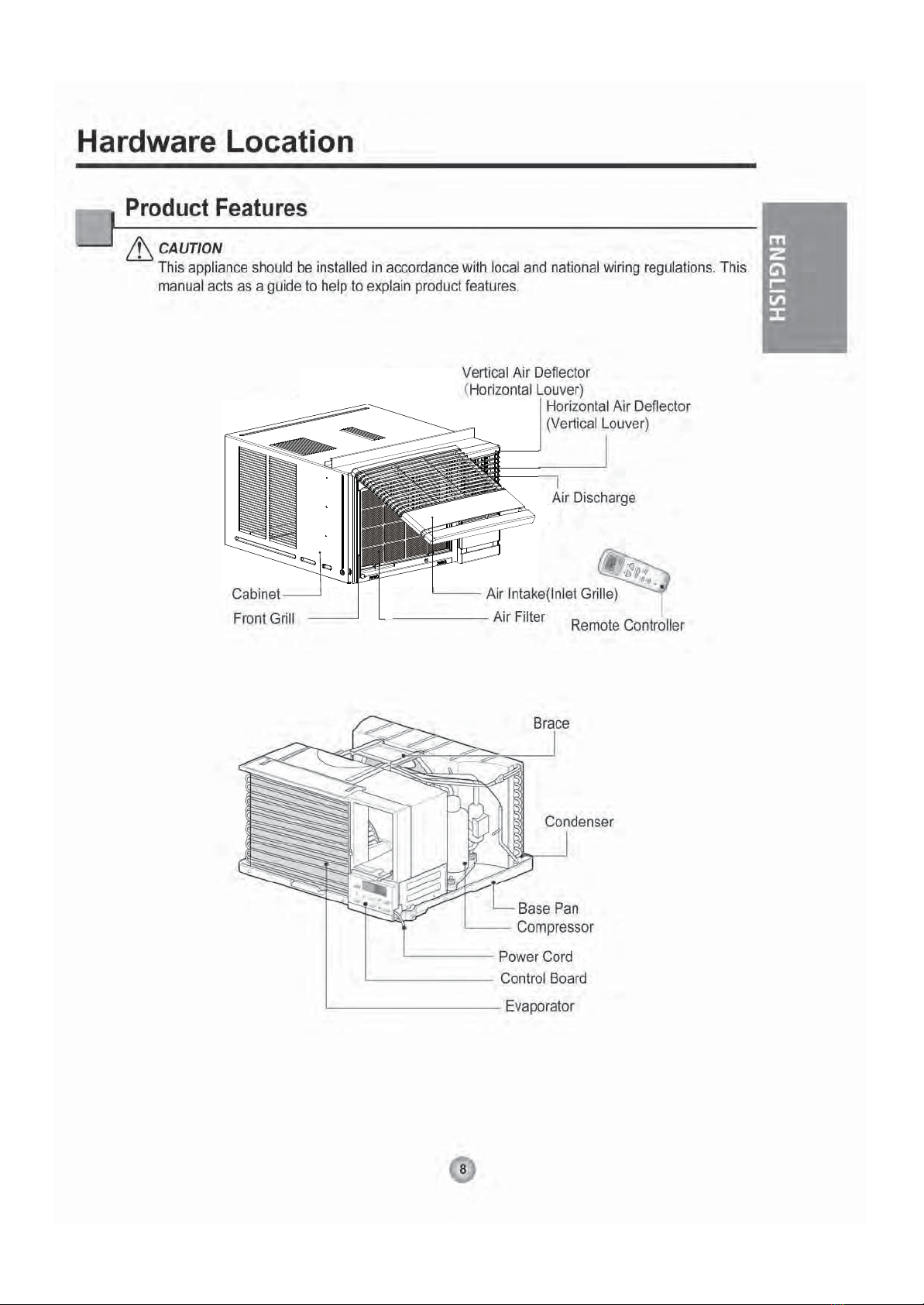

Hardware Location.......................................................................8

Installation Instructions

..........................................................

Troubleshooting Tips.................................................................17

Warranty......................................................................................18

GNE

Before Operating Your Unit

Make sure the wiring is adequate for your unit.

If you have fuses, they should be of the time delay type. Before you install or relocate this unit, be sure that

the amperage rating of the circuit breaker or time delay fuse does not exceed the amp rating listed in figure 1.

DO NOT use an extension cord.

The cord provided will carry the proper amount of electrical power to the unit; an extension cord will not.

Make sure that the receptacle is compatible with the wall plug provided.

This insures proper grounding. If you have a two-prong receptacle you will need to have the circuit replaced

by a certified electrician with a grounded circuit that meets all national and local codes and ordinances. You

must use the three-prong plug furnished with the air conditioner.

Figure 1

For the Best Cooling Performance and Energy Efficiency

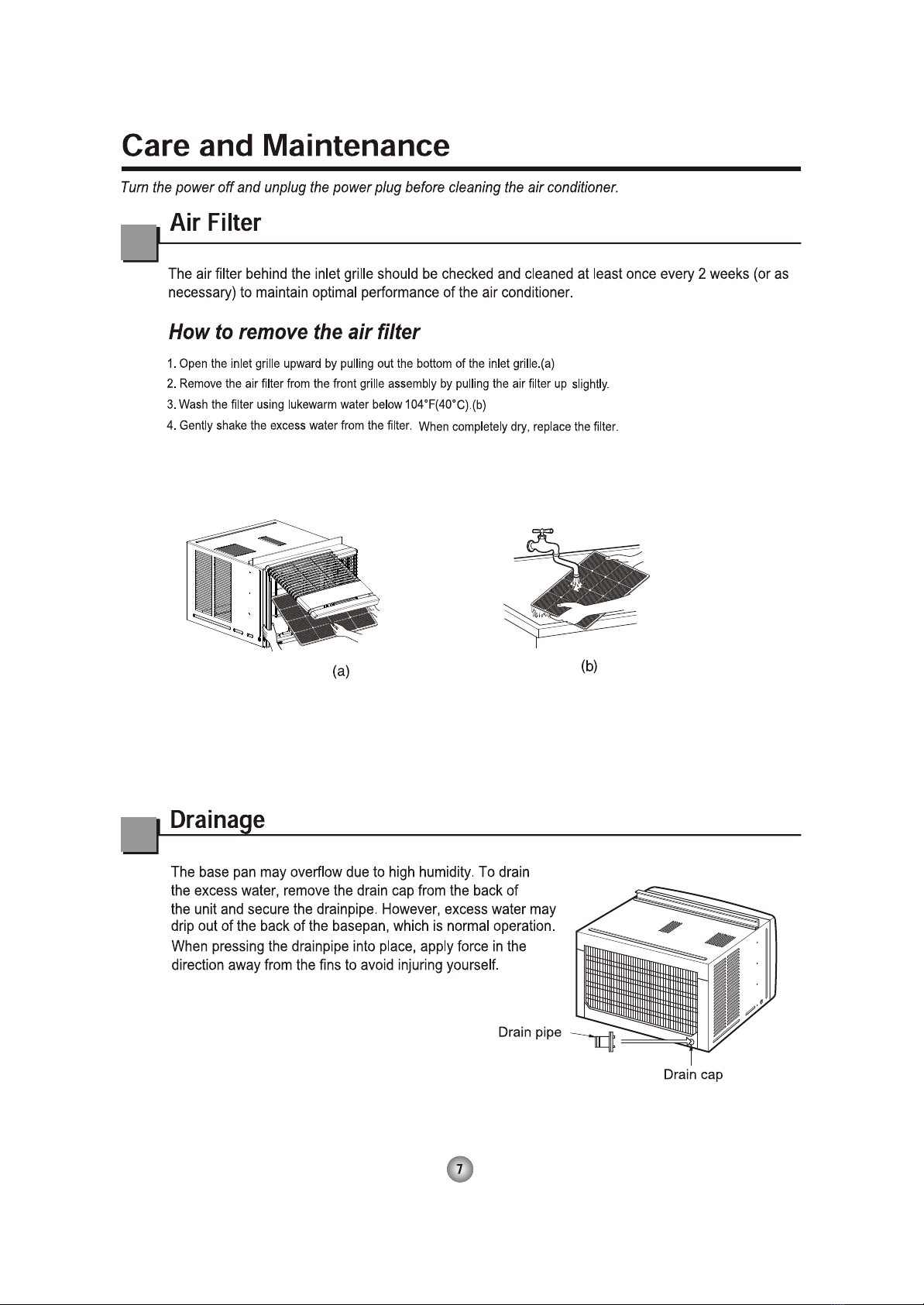

Keep the filter clean

Make sure that your air conditioner is always in top performing condition by cleaning the filter regularly.

Instructions for removing and cleaning the filter can be found on page 7.

Provide good air flow

Make sure that the airflow to and from the unit is clear. Your air conditioner puts the air out at the side of

the unit, and takes in air at the left. Airflow is critical for good operation. It is just as important on the

outside of the building that the airflow around the unit exterior is not blocked.

Unit Placement

If your air conditioner can be placed in a window or a wall that is shaded by a tree or another building, the

unit will operate even more efficiently. Using drapes or blinds on the sunny side of the dwelling will also

add to your unit's efficiency.

Insulation

Good insulation will be a big help in maintaining desirable comfort levels. Doors should have weather

stripping. Be sure to caulk around doors and windows.

Introduction

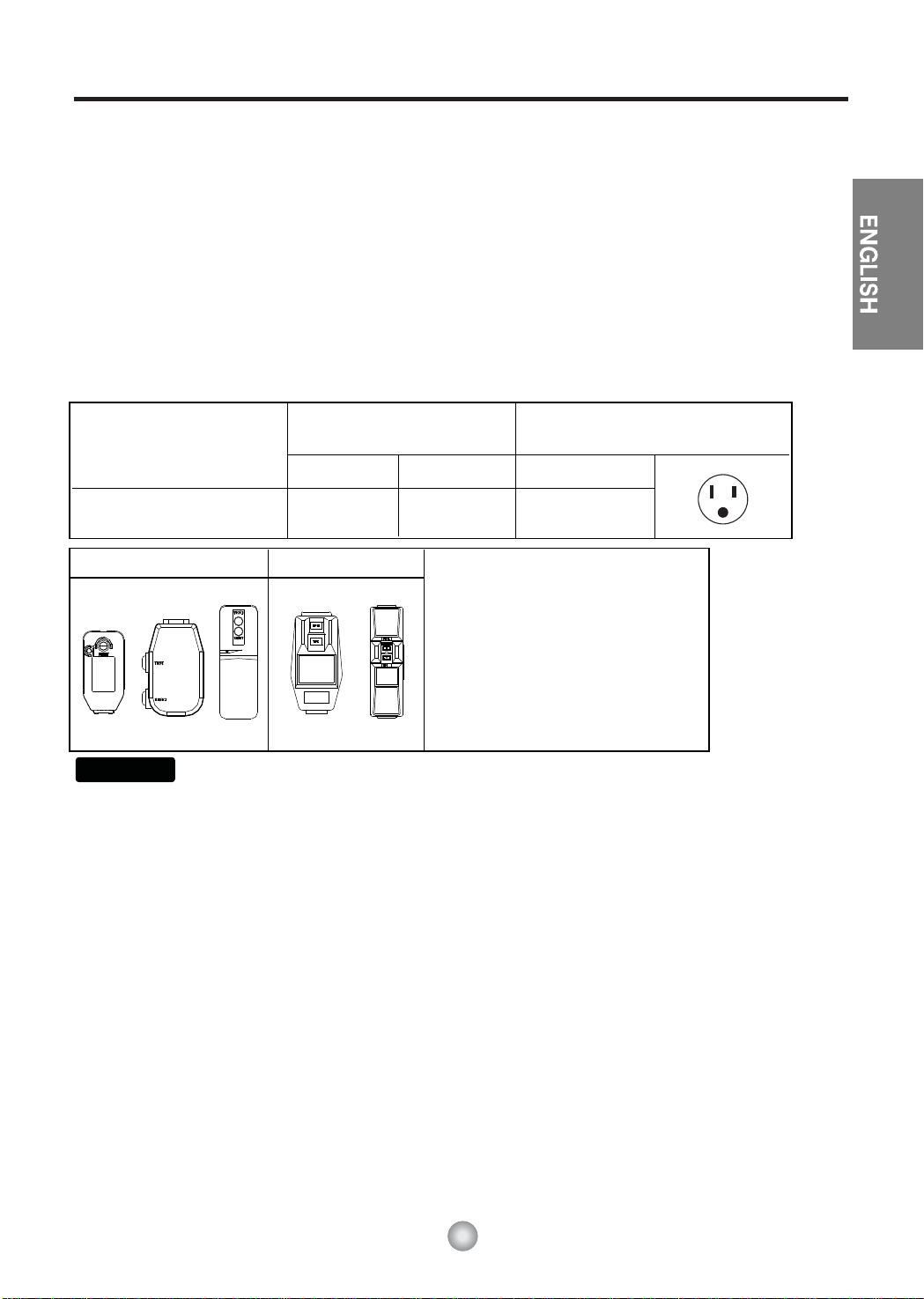

MODEL

CP06 CP08

AMP VOLT NEMA NO.

15 125 5-15P

CIRCUIT RATING OR

TIME DELAY FUSE PLUG FACE

115V~ 230V~

Power cord may include a current

interrupter device. A test and reset button is

provided on the plug case. The device

should be tested on a periodic basis by first

pressing the TEST button and then the

RESET button. If the TEST button does not

trip or if the RESET button will not stay

engaged, discontinue use of the air

conditioner and contact a qualified service

technician.

Aluminum house wiring may pose special problems. Consult a qualified electrician.

NOTE

For inner cleaning, contact an Authorized Service Center or a dealer.

Do not use harsh detergent that causes corrosion or damage on the unit.

Harsh detergent may also cause failure of product, fire, or electronic shock.

ENGLISH

NOTE TO INSTALLER: Leave these

instructions with the air conditioner after

installation is complete.

NOTE TO CONSUMER: Keep this Installation

and Operation Manual for future use.

Important notes:

It is recommended that proper attire be worn

during installation.

For personal safety, this air conditioner must

be properly grounded.

It is important to have the wall outlet and circuit

checked by a qualified electrician if there is any

doubt as to whether a proper ground exists.

CAUTION:

Do not under any circumstances, cut or remove

the third (ground) prong from the power cord.

Do not change the plug on the power cord of

this air conditioner.

Aluminum house wiring may present special

problems ; consult a qualified electrician.

Before You Begin

Read these instructions completely and carefully.

Installation Instructions

❒Phillips-head screwdriver

❒Flat-blade screwdriver

❒Ruler or tape measure

❒Scissors or knife

❒Pencil

❒Level

❒Hammer

Tools You Will Need
