Freespirit 123 30410-0 Manuel utilisateur
123 30410-0
Treadmill User’s Guide
Table of Contents
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
TREADMILL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
EXPLODED DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
1
Important Precautions
2
SAVE THESE INSTRUCTIONS
Read all instructions before using this treadmill. When using an electrical product, basic precautions
should always be followed, including the following: Read all instructions before using this treadmill. It
is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all
warnings and precautions.
WARNING! Connect this exercise product to a properly grounded outlet only. See grounding instruc-
tions.
GROUNDING INSTRUCTIONS
This product must be grounded. If a treadmill should malfunction or breakdown, grounding provides a
path of least resistance for electrical current to reduce the risk of electrical shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must
be plugged into an appropriate outlet that is properly installed and grounded in accordance with local
codes and ordinances.
DANGER! Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product
is properly grounded. Do not modify the plug provided with the product. If it will not fit the outlet, have
a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug
illustrated below. A temporary adapter such as the one illustrated below may be used to connect this
plug to a 2-pole receptacle as shown, if a properly grounded outlet is not available. The temporary
adapter should be used only until a properly grounded outlet can be installed by a qualified electrician.
The green colored rigid ear, lug, or the like extending from the adapter must be connected to a perma-
nent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be
held in place by a metal screw.
3-Pole Grounded Outlet
Grounded Treadmill Power Cord
Metal Grounding Screw
2-Pole Outlet In Grounded Box
Adapter
3
WARNING! To reduce the risk of burns, fire, electrical shock or injury to persons:
•Never use the treadmill before securing the safety tether clip to your clothing.
•If you experience chest pains, nausea, dizziness, or shortness of breath, stop exercising immediately
and consult your physician before continuing.
•Do not wear clothes that might catch on any part of the treadmill.
•Keep power cord away from heated surfaces.
•Keep children off of treadmill at all times.
•Do not use treadmill in garages, porches, car ports or outdoors.
•The treadmills are intended for in-home use only. Do not use this treadmill in any commercial,
rental, or institutional setting.
•Unplug treadmill before moving it.
•Do not remove the treadmill motor covers or roller covers. Service should be performed only by an
authorized service provider.
• At no time should more than one person be on treadmill while in operation.
•Keep children under the age of 12 and pets at least 10 feet away from the treadmill at all times.
•The treadmills should not be used by persons weighing more than 250 pounds,
•Clean with soap and slightly damp cloth only; never use solvents.
OTHER SAFETY TIPS FOR YOUR TREADMILL
OPERATION
To reduce the risk of damaging important components on your treadmill, it is strongly recommended
that your treadmill is plugged into a dedicated 20amp outlet, without the use of an additional exten-
sion cord. IMPORTANT: The treadmill is not compatible with GFCI-equipped outlets.
It is essential that your treadmill is used only indoors, in a climate controlled room. If your treadmill
has been exposed to colder temperatures or high moisture climates, it is strongly recommended that
the treadmill is warmed up to room temperature before first time use. Failure to do so may cause pre-
mature electronic failure.
4
Before proceeding, find your treadmill’s serial number and model name located to the left of the on/off
power switch and power cord and enter it in the space provided below and be sure to read the Safety
Instructions and complete User’s guide section before using your new treadmill:
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOX BELOW:
IMPORTANT: PLEASE READ BEFORE USE!
CAUTION! There are several areas during the assembly process of a the treadmill that special
attention must be paid. It is very important to follow the assembly instructions correctly and to make
sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the
treadmill could have frame parts that are not tightened and will seem loose and may cause irritating
noises. There should be no side-to-side play in the console masts or any forward and back play in the
console assembly or handlebars. If there is any play in these areas, the treadmill has not been prop-
erly assembled. To prevent damage to the treadmill, the assembly instructions must be reviewed and
corrective actions should be taken.
UNPACKING
Place your treadmill on a level flat surface. It is recommended that you place a protective covering on
your floor. Take CAUTION when handling and transporting this unit. Never open box when it is on its
side. Once the banding straps have been removed, do not lift or transport this unit unless it is fully
assembled and in the upright folded position, with the lock latch secure. NOTE: The console assem-
bly is located under the treadmill deck and should ONLY be removed after STEP 1 of the assembly
instructions have been fully completed! FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY!
Unpack the unit where it will be used. The enclosed treadmill is equipped with high-pressure shocks
and may spring open if mishandled. Never grab hold of any portion of the incline frame and attempt
to lift or move the treadmill. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN
INJURY!
Assembly
Refer to the serial number and model name when calling for service, also enter this serial number on
your Warranty Card.
5
TOOLS (Included)
• 5mm Allen Wrench/Phillips Screw Driver • 8mm Allen Wrench or 6mm Allen Wrench
PARTS
• 1 Safety Key • 1 Console Assembly (located under treadmill deck) • 1 Power Cord • 1 Hardware
Pack (contents listed)
If you have questions, or if there are any missing parts, we will guarantee complete satisfaction.
CONTACT THE SEARS CUSTOMER ASSISTANCE CENTER; TOLL FREE @ 1.800.469.4663
45mm Bolt (A)
Qty: 2
Console
Running Belt
Transport Wheel
Side Rail
Motor Cover
Water Bottle Holder*
Console Mast
Touch Pad
Roller End
Cap
Teflon Washer (B)
Qty: 2
On/Off Switch
Circuit Breaker
*Water bottle is not included
Rear Roller
Adjustment Bolt
8mm Bolt (D)
Qty: 4
Grip Pulse
Handrails Safety Key Placement
Air Cell
Reading Rack
Fan
Teflon Washer (C)
Qty: 2
Lock Washer (E)
Qty: 2
Arc Washer (F)
Qty: 2
6
NOTE: It is recommended that you apply grease to the threads of each bolt as you assemble your tread-
mill, to prevent loosening and noise. Also, during each assembly step, ensure that ALL nuts and bolts
are in place and partially threaded in before completely tightening any ONE bolt.
Assembly Step 1
1. Lift left console mast into upright position.
Be sure to hold the console mast firmly, as it
will not stay in the upright position on it’s own.
2. Move left side linkage arm, Teflon Washer (B)
and Teflon Washer (C) into position and insert
bolt (A) and tighten.
3. Repeat on the right side.
4. Cut and remove the banding strap.
1. Lift the running deck until lock latch is fully
engaged.
2. Remove console assembly from treadmill car-
ton and place out of the way.
3. Lower the treadmill running deck from the
folded position.
Assembly Step 2
B
C
7

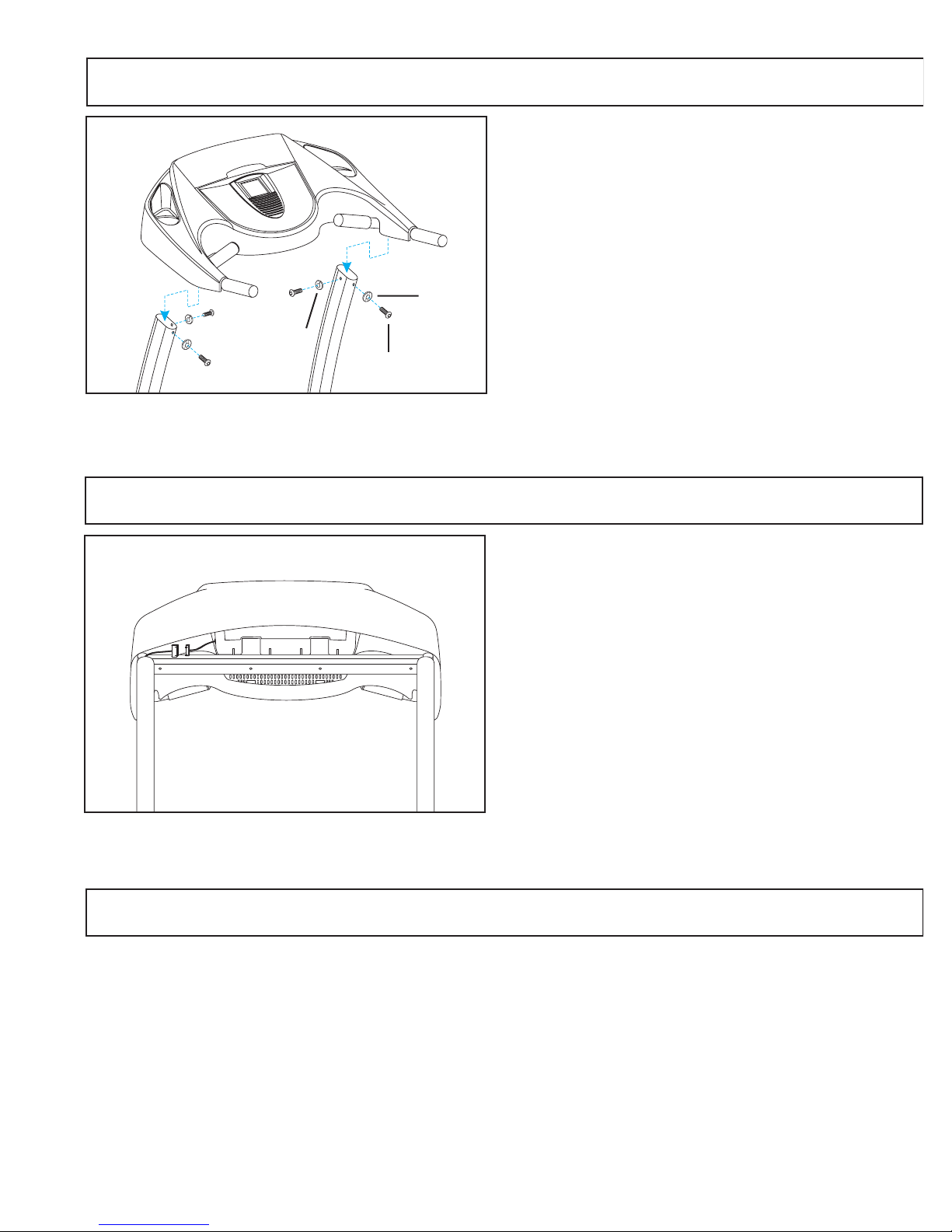

1. Connect the console cable. Carefully tuck
wires in mast to avoid damage.
NOTE: Do not pinch the wires
Assembly Step 4
FINISH
1. Place console assembly into its correct
position.
2. Place Lock Washer (E) and bolt (D) into left
upright support and tighten.
3. Place Arc Washer (F) and bolt (D) into left
upright support and tighten.
4. Repeat STEPS 2 and 3 for the right-side
upright support.
NOTE: Do not pinch console cable or grip pulse
wires.
Assembly Step 3
E
F
D
8
CONGRATULATIONS! on choosing your treadmill. You’ve taken an important step in developing
and sustaining an exercise program! Your treadmill is a tremendously effective tool for achieving your
personal fitness goals. Regular use of your treadmill can improve the quality of your life in so many
ways.
Here are just a few of the health benefits of exercise:
•Weight Loss •A Healthier Heart •Improved Muscle Tone •Increased Daily Energy Levels •Reduced
Stress •Help In Countering Anxiety and Depression •An Improved Self Image
The key to reaping these benefits is to develop an exercise habit. Your new treadmill will help you elim-
inate the obstacles that prevent you from getting in your exercise time. Inclement weather and dark-
ness won't interfere with your workout when you use your treadmill in the comfort of your home. This
guide provides you with basic information for using and enjoying your new machine. A more complete
knowledge of your new treadmill will assist you in realizing your goal of a healthy lifestyle.
Before You Begin

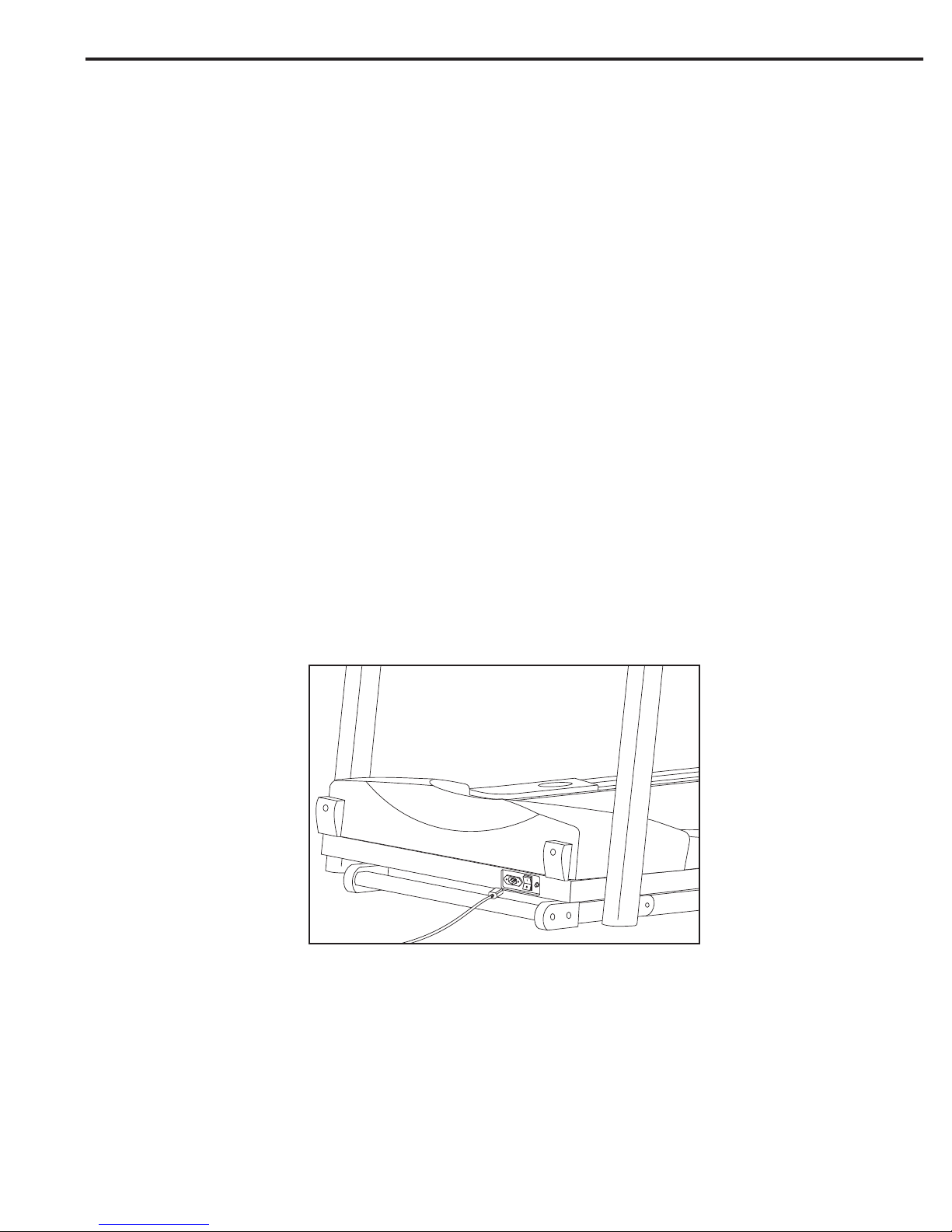

TURN POWER ON
Make sure that your treadmill is properly connected to a power outlet. The on/off switch is located next to
the power cord. Flip this switch to the 'on' position, so that the switch is lit. You will hear a beep and the
console will light up.
DO NOT STAND ON THE BELT
While you are preparing to use the treadmill, do not stand on the belt. Place your feet on the side rails
before starting the treadmill. Start walking on the belt only after the belt has begun to move. Never
start the treadmill at a fast running speed and attempt to jump on!
9
SAFETY KEY
Your treadmill will not start unless the safety key is placed in position. Attach the clip end securely to
your clothing. This safety key is designed to cut the power to the treadmill if you should fall. NEVER
USE THE TREADMILL WITHOUT SECURING THE SAFETY KEY CLIP TO YOUR CLOTHING. PULL ON
THE SAFETY KEY CLIP FIRST TO MAKE SURE IT WILL NOT COME OFF YOUR CLOTHING.
MOVING
Your treadmill has a pair of transport wheels built into the frame. To move, make sure the treadmill is
folded and securely latched. Then firmly grasp the handlebars, tilt the treadmill back and roll.
CAUTION! Our Treadmills are heavy, use care and additional help if necessary when moving. Do not
attempt to move or transport treadmill unless it is in upright, folded position with the lock latch
secured. Failure to follow these instructions could result in injury.
FOLDING
Firmly grasp the back end of the treadmill. Carefully lift the end of the treadmill deck into the upright
position until the foot lock latch engages and securely locks the deck into position. Make sure the deck
is securely latched before letting go. To unfold, firmly grasp the back end of the treadmill. Gently press
down on the foot lock latch with your foot until the lock latch disengages. Carefully lower the deck to
the ground.
