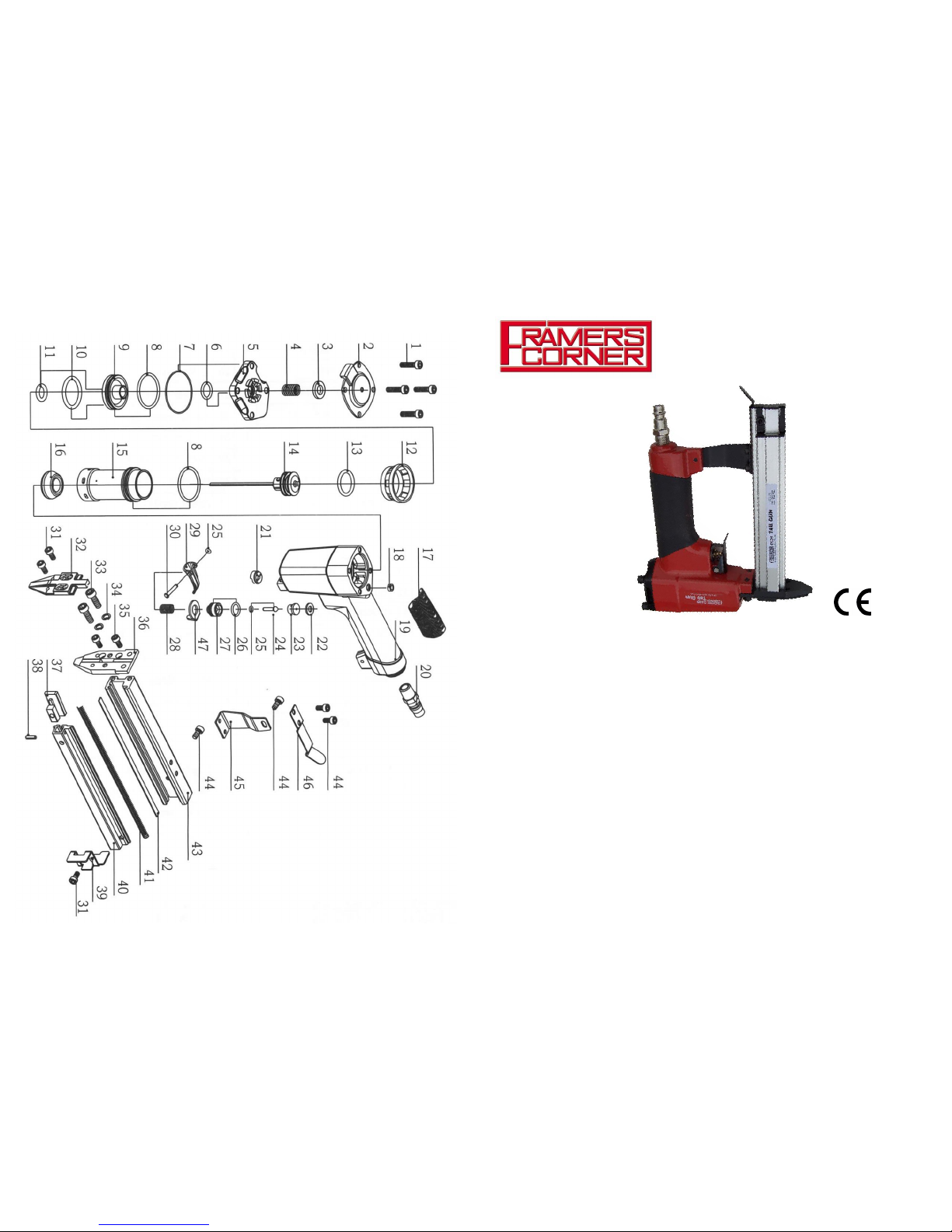

Safety Rules
1. Know your air tool. For your own safety, read the owner's manual carefully.
Learn its application and limitations, as well as specific potential hazards
pertinent to this tool.
2. Keep your work area clean. Cluttered areas and workbenches increase the
chance of an accident.
3. Do not use in dangerous environments. Do not use air tools in damp or wet
locations, or expose them to rain. Keep work areas well illuminated.
4. Keep children away. All visitors should be kept a safe distance from the work
area.
5. Wear proper apparel. Avoid loose clothing, gloves, ties, rings, bracelets, and
jewellery which could get caught in moving parts. Non-slip footwear is
recommended. Wear protective hair covering to contain long hair.
6. Always use safety glasses. Normal spectacles only have impact resistant
lenses. They are not safety glasses.
7. Do not over-reach. Keep proper footing and balance at all times.
8. Maintain the machine in good condition. Keep the machine clean for best and
safest performance. Follow instructions for lubrication.
9. Disconnect the machine from the air supply before servicing.
10. Do not use any power tools while under the effects of drugs, alcohol or
medication.
11. When operating for long periods, use ear protection equipment.
12. Always leave the trigger lock in place when the tool is not in use.
Wear Ear Wear Eye
Protection Protection
Operating Instructions
Air supply: Clean, dry air is essential for trouble free working. Ensure the
compressor is fitted with a pressure regulator and a lubricator containing a suitable
oil. Set the pressure on the regulator between 4 and 7 bar.
Loading Tabs: Disconnect the air supply. Open the magazine cover by lifting the
spring clip at the end of the cover. Pull back the cover and Insert a full strip of T4
type tabs with the pointed end towards the nose of the driver. Close the magazine
cover.
Insert a Tab: Connect the air supply
using a suitable hose and quick action
fitting. Hold the tool firmly, always
pointing away from the operator. Press
the nose up against the rebate of the
picture frame. Rotate the trigger lock to
activate the trigger. Use the little finger
to press the trigger. The tab driver will
cycle and drive 1 tab in the frame, to a
depth of approximately 7mm. Pull the
driver away from the inserted tab and
move to the next position.
Maintenance Misfire or Jam: Disconnect from the
air supply. Open the magazine cover
and check if there any tabs present (If
the magazine is empty, just re-load).
Remove the strip of tabs. Using the
3mm hex key provided, loosen the 2
screws which secure the nose cover.
Slide the cover over the screw heads,
remove any jammed tabs. Refit the
nose cover and tighten the screws.
Lubrication: If the compressor does not have a lubricator, it is important to put 2
drops of the supplied oil into the air intake each day before use. Be aware: over
lubricating will damage the O-rings.
Air Leak: If an air leak can be heard or the tab driver is not performing sufficiently,
it is most likely that there is an air leak caused by a worn or damaged O-ring. A set
of replacement O-rings is provided with the tool. Only a person with some technical
knowledge should attempt to find the leak and fit new O-rings.
CE Marking
Framers Corner declare that Air Nailer Model C325 conforms with the Machinery
Directive 2006/42/EC. And further conforms to the machinery example for which
the EC type examination Certificate No. AM 50415473 has been issued by TUV
Rheinland LGA Products GmbH, Tillystrasse 2, 90431 Nurnberg, Germany.
