FOURKAY MX4K44BT-TW Manuel utilisateur

M 4K44BT-TW

4K/18G 4x4 HDMI/HDBaseT Matrix w/ Audio Breakout

Thank you for purchasing this product. For optimum performance and safety, please read

these instructions carefully before connecting, operating or adjusting this product. Please keep

this manual for future reference.

SURGE PROTECTION DEVICE RECOMMENDED

This product contains sensitive electrical components that may be damaged by electrical

spikes, surges, electric shock, lightning strikes, etc. Use of surge protection systems is highly

recommended in order to protect and extend the life of your equipment.

SAFTY NOTICE

1. The transmission distances of HDMI over UTP cables are measured using TE

CONNECTIVITY 1427071-6

2. EIA/TIA-568-B termination (T568B) for CAT cables is recommended for better

performance.

3. DO NOT use 568A/568B standard mixed CAT cable (cross-over cable) because there are

2 pairs swapped, this will make POE OVER-CURRENT and damage POE components.

Please use straight-through CAT cable (both RJ45 headers are 568A or 568B standard).

4. It is recommended that power up the device after connections of source, sink and CAT

cable.

5. To reduce the interference among the unshielded twisted pairs of wires in CAT cable, do

not run HDBaseT / Zone Cat5e/6/6a cabling with or in close parallel proximity to mains

power cables. Shielded CAT cables can be used to improve EMI problems, which is

worsen in long transmission.

6. Because the quality of the CAT cables has the major effect on how long the transmission

limit can achieve and how good is the received picture quality, the actual transmission

range is subject cables.

7. Do not substitute or use any other Power Supply other than the enclosed unit, or a Factor

Electronics approved Replacement Part. Doing so will void the warranty and potentially

expose the user to dangerous voltages resulting in an electrical shock.

8. Do not disassemble the device

warranty. Also, our unique case is an integral part of the design of this unit and is

responsible for cooling and circuitry shielding. Any modifications to this case will

potentially cause malfunction and product failure.

9. Do not expose the device to water, moisture, or liquid. Possible electric shock may result

as well as failure of the unit to operate.

Table of Content

Introduction......................................................................................................4

Features...........................................................................................................4

Panel Descriptions...........................................................................................5

Front Panel...............................................................................................5

Back Panel................................................................................................7

Remote Control Description.............................................................................8

Application Diagram.........................................................................................9

Specifications.................................................................................................10

Package Contents..........................................................................................10

RS-232 Pin Assignment.................................................................................11

RS232 and Telnet Commands.......................................................................12

GUI Control....................................................................................................15

Maintenance ................................................................................................. 25

Introduction

The MX4K44BT is a HDMI/HDBaseT matrix which can routes four Hi-Def sources to any four

HDTV displays, supporting 1080p Full HD up to 4K@60Hz HDR plus all 3D formats, along with

multichannel digital audio formats such as Dolby® True HD and DTS-

Embedded audio extractors can extract the audio and output via L/R or Coaxial. Volume can

be controlled for analogue audio out. Based on HDBaseT Lite chipset inside, the output

distance can reach up to 70m via Cat5e/Cat6. Each source can be routed to any display using

the front-panel push buttons, IR remote control, RS-232 interface, or via TCP/IP.

Features

4x HDMI inputs, 4x HDBT outputs and 1x HDMI loop output

Supports 4K@60Hz 4:4:4, HDR and full 3D

HDBT output 1 supports conversion from 4K to 1080P

Supports 4K resolution up to 40m, and 1080p to 70m over single CAT cable

Smart CSC technology supports outputting 6G or 3G video depends on sink device

IR/RS232 signal can pass through to the corresponding receiver (1 to 1, 2 to 2, 3 to 3, 4 to

4) via HDBaseT.

Supports IR extension to control the matrix via remote control away from 10m

Supports IR Matrix function to control the sinks or sources.

Support IDIR function to separately control each sink connected to HDBT Output.

1x L/R audio input, can be embedded into any HDMI input

Analogue/ digital audio output simultaneously

Push buttons, IR, RS-232, TCP/IP and Web GUI for control

EDID management

HDCP 2.2 compliant

Volume control on analogue audio outputs

12V POC

Panel Descriptions

Front Panel

1. LCD display---Shows the status of input-output selection, EDID info and so on.

2. IR receiver window----Receives the IR from the remote control of the HDBaseT-4x4Matrix.

3. Power LED indicator---Indicates the power status for the matrix.

4. Power button---Press to power on/off the matrix.

5. HDMI output selection buttons 1 to 4---Press to select the outputs from 1 to 4.

6. All button for HDMI outputs---Press to select all of the outputs from 1 to 4.

7. Menu button---Press to enter EDID set mode. Three EDID segments will display on the LCD

panel formatted as: INPUT VIDEO AUDIO, for example: IN1 1080P 2.0CH, means to set

1080P 2.0CH EDID to INPUT1. The blinking segment can be changed currently. Segment

content items listed below:

INPUT VIDEO AUDIO Note

IN1 1080P 2.0CH.

IN2 1080I 5.1CH

IN3 3D 7.1CH

IN4 4K303G HDMI 4K@30Hz 444

ALL 4K603G ALL=Set EDID to ALL INPUTs

HDMI 4K@60Hz 420

4K606G HDMI 4K@60Hz 444

D1024 D1024=DVI 1024 x 768

D1080 D1080=DVI 1920 x 1080

D1200 D1200=DVI 1920 x 1200

OUT1 OUT1=Copy OUTPUT1 EDID to INPUTx

OUT2 OUT2=Copy OUTPUT2 EDID to INPUTx

OUT3 OUT3=Copy OUTPUT3 EDID to INPUTx

OUT4 OUT4=Copy OUTPUT4 EDID to INPUTx

8. Up selection button--- Press to change a

9. ESC---Press to quit EDID set mode.

10. Lock LED indicator---Indicates the status of Lock.

11. Lock button---Press to lock the buttons of the front panel.

12. HDMI input selection button 1 to 4---Press to select the inputs from 1 to 4.

13. PTP button---Press to mirror all inputs and outputs (e.g. output 1 to input1, output 2 to

input2 and so on).

14. Selection button---Press to select a segment to change settings. The selected segment will

be blinking.

15. Down select button---

16. Enter button--- Press to set the EDID to a specified INPUT or copy the EDID from a

specified OUTPUT to a specified INPUT.

Back Panel

17. L/R in 3.5mm Analogue audio input for embedding audio onto HDMI outputs.

18. IR inputs 1 to 4--- 3.5mm stereo phone-jack, connect to an IR receiver

19. IR outputs 1 to 4 --- 3.5mm mono phone-jack, connect to an IR transmitter cable.

20. RS232 port with each HDBT out--- 3-pin phoenix terminal connector. Connect to a PC,

RS232 extension to the Balun.

21. Coaxial digital audio output ---Extracted audio corresponds with the HDMI video output

22. L/R analog audio output---Extracted audio corresponds with the HDMI video output.

23. TCP/IP port RJ45 connector, TCP/IP control

24. RS232 port DB9 connector, to control the matrix from a PC or control processor

25. DIP switches Used for global EDID settings

26. HDMI inputs 1 to 4---Connect HDMI sources

27.HDBT outputs 1 to 4--- Connect to remote baluns via CAT cable

28. HDMI loop output 1--- Connect to HDMI display device.

29. IR extension receiver input --- 3.5mm stereo phone-jack, connects to the IR receiver cable

to receive the IR from the HDBaseT-4x4Matrix remote.

30. Power port---Use the included 24V/3.5ADC adaptor to power the matrix.

31. GND Connect to ground if necessary

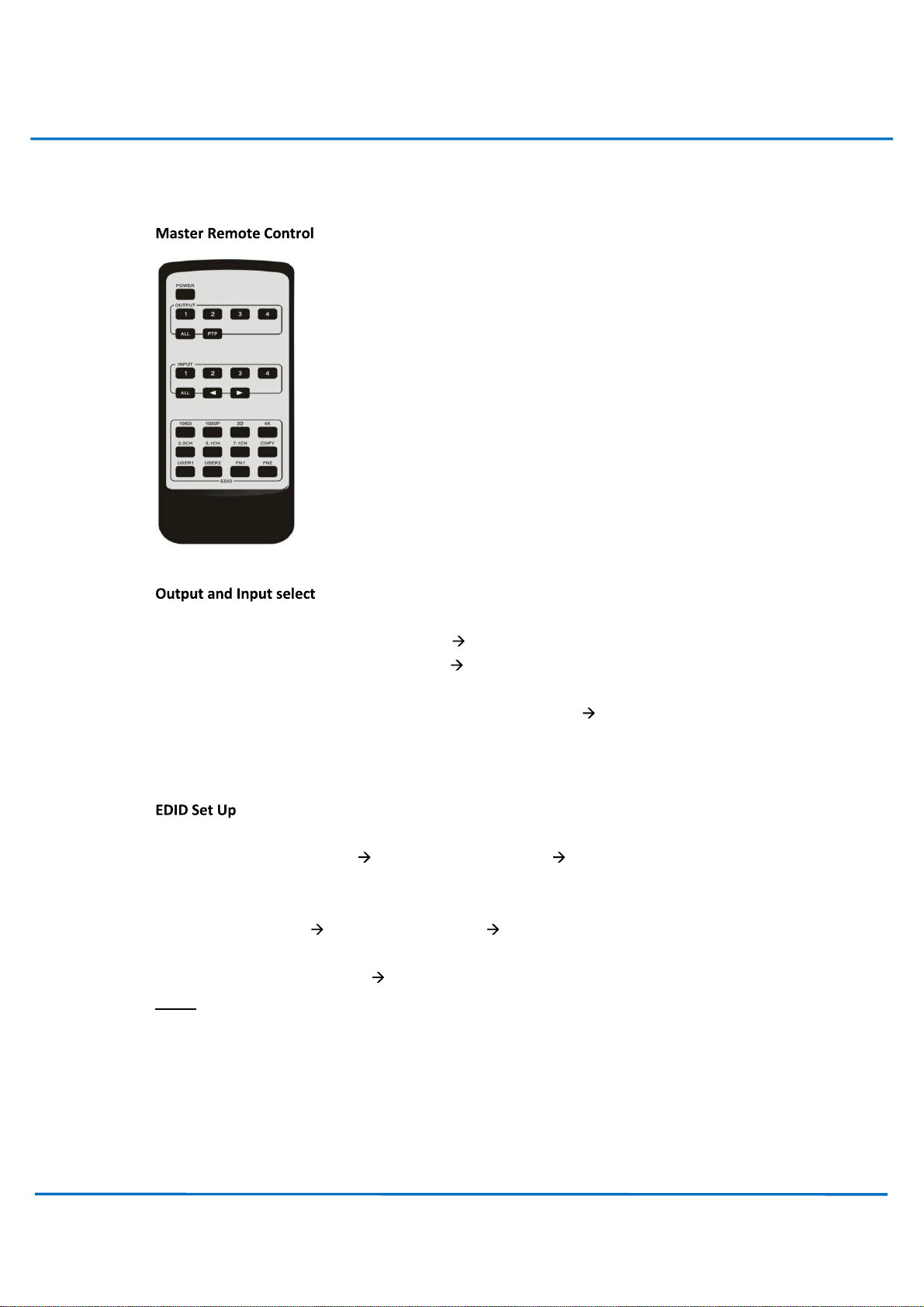

Remote Control Description

A. OUTPUT-X select INPUT-Y:

1. Press OUTPUT-X (X = outputs1 to 4 ) Press INPUT-Y ( Y = inputs 1 to 4 )

2. Press OUTPUT-X (X= outputs 1 to 4 ) press the left and right arrow buttons to select

the input.

B. All outputs select INPUT-Y: PressALL button in zone OUTPUT Press INPUT-Y button ( Y

means 1 to 4 of inputs ), then INPUT-Y switched to ALL OUTPUTS

C. Mirror all inputs and outputs (Ex. Input 1 to output 1, input 2 to output 2, etc): Press PTP

button in the Zone OUTPUT

A. Fixed EDID to INPUT-Y/ALL

Press 1080I/1080P/3D/4K Press 2.0CH/5.1CH/7.1CH INPUT-Y/ALL button in Zone

INPUT

B. Copy EDID of OUTPUT-X to INPUT-Y/ALL

Press COPY button Press OUTPUT-X button Press INPUT-Y/ALL button

C. User defined EDID to INPUT-Y/ALL

Press USER1/USER2 button Press INPUT-Y/ALL

NOTE: Pressing button sequence should be finished in 5 seconds, otherwise, operation

discarded.

Application Diagram

Note: There is three IR Control Modes

1. Via IR extension to control the matrix using matrix remote control

2. Via IR input cable on HDBT Receiver and IR output cable on matrix to return control the DVD.

3. Via IR input on matrix to control the TV.

Specifications

Bandwidth 18Gbps (4K@60Hz 4:4:4 8bit)

Video Input Connectors 4xHDMI Type A, 19-pin, female

Video Output Connectors 1x HDMI Type A, 19-pin, female, 4x RJ45 Connector

Audio Input Connectors 1x L/R

Audio Output Connectors 4x RCA(SPDIF), 4x L/R

RS232 Serial port 1x DB-9, female

4x 3-pin phoenix terminal connector.

TCP/IP Control 1x RJ45, female

IR input ports 5x3.5mm stereo jack

IR output ports 4x3.5mm mono jack

Rack-Mountable rack ears included

Dimensions(Lx WxD) 440mm x 235mm x 43mm, w/o feet

Shipping Weight 2.7KG

Operating Temperature 32°F to 104°F (0°C to 40°C)

Storage Temperature -4°F to 140°F(-20°C to 60°C)

Power Supply 24V/3.5A DC

Package Contents

1) 1x MX4K44BT-TW

2) 1x 24V/3.5A DC Power Supply

3) 1x Power Cord

4) 1x Master Remote Control

5) 4x IR Transmitter

6) 5x IR Receiver

7) 1xRack-mount kit
