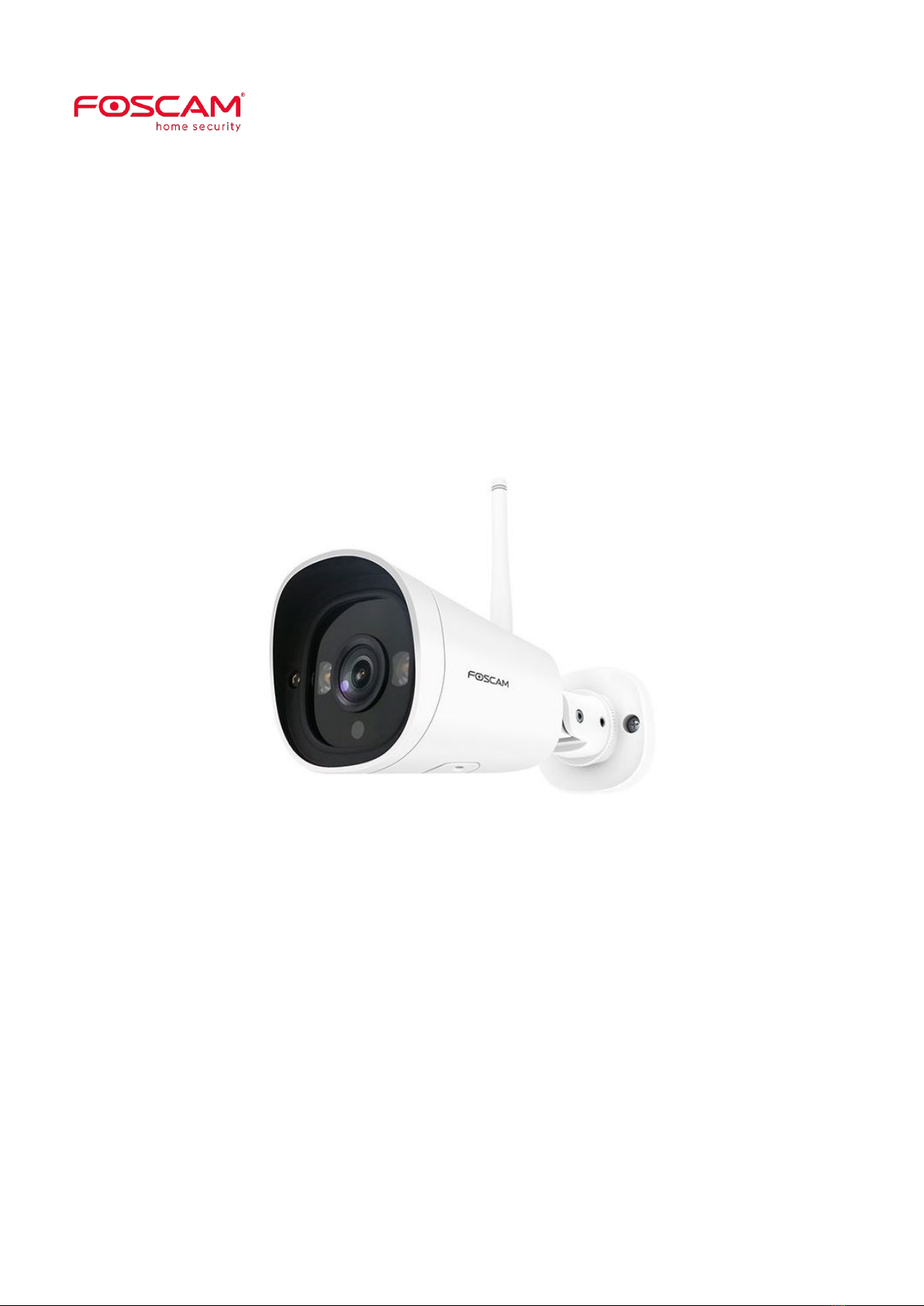

Foscam G4C Manuel utilisateur

User

User Manual

Manual

Foscam 2K Starlight Outdoor

Wi-Fi IP Security Camera

Model: G4C

V1.2

Table of Contents

1 Overview............................................................................................................................................................................. 3

1.1 Key Features...........................................................................................................................................................3

1.2 Read before Use.................................................................................................................................................... 3

1.3 Packing Contents................................................................................................................................................... 3

1.4 Physical Description.............................................................................................................................................. 4

1.5 SD Card Management...........................................................................................................................................5

1.6 Add Device: Connection via the Foscam App................................................................................................... 5

1.7 Installation............................................................................................................................................................... 5

1.8 Waterproof Lid Installation Guide........................................................................................................................ 6

2 Default Parameters........................................................................................................................................................... 7

3 Specification....................................................................................................................................................................... 7

1 Overview

1.1 Key Features

4MP QHD Waterproof IP Camera

H.264+/H.264 video Compression

Supports Human detection, Motion Detection

Compatible with free Foscam Video Management Software

Compatible with free Foscam iOS and Android APP

Support 2.4GHz&5GHz dual-band WiFi

Built-in 2pcs Spotlight and IR LED, has excellent night vision image

Supports WDR(Wide-Dynamic Range)

Supports 256GB Micro SD Card storage(External)

Night Vision Range up to 20m(66 feet)

P2P Feature for Easy Remote Access

Supports image snapshot

Supports dual-stream

Supports remote viewing & record from anywhere anytime

Multi-level users management with password protection

Supports multiple network protocols: IP, TCP, UDP, SMTP, FTP, DHCP, RTSP

Supports Alexa

Supports Google Assistant

1.2 Read before Use

Please first verify that all contents received are complete according to the Package Contents listed below.

Before the Network Camera is installed, please carefully read and follow the instructions in the Quick Setup

Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly

as intended.

1.3 Packing Contents

● Camera× 1

● Ethernet Cable× 1

● Quick Setup Guide × 1

● Expansion Screws× 1

● Waterproof Lid × 1

● Wi-Fi Antenna * 1

● Surveillance sign× 1

●Power Adapter × 1

1.4 Physical Description

1 WIFI Antenna: Wireless Antenna

2 LENS: All Glasses Material

3 Infrared LED: 2pcs Spotlight and IR LED

4 Light Sensor

1.4.2 Interface

1 LAN

10/100M adaptive Ethernet interface. Through this interface, IP camera can be connected with various network

devices, such as hub, router, etc.

2 Audio input interface

The jack is used to plug external input device such as sound pick up device directly. Here microphone cannot

directly insert to the interface, it must connect to adapter first.

3 Audio output interface

The jack is used to plug external output device such as loud speaker directly. Here microphone cannot directly

insert to the interface, it must connect to adapter first.

4 Power Interface

Connect the external power adapter, request for 12V / 1A power.

5 Reset button

Press and hold on the reset button for 5 seconds. Releasing the reset button, the password will back to the

factory default administrator password. The default administrator user is admin with no password.

1.5 SD Card Management

This camera supports Micro SD Card.

When you plug in the SD card during the camera work process, please reboot the camera again, or else the

SD card might not work well.

On Foscam app go to the SettingsDevice StatusDevice Status page, you can see the SD card status.

1.6 Add Device: Connection via the Foscam App

Scan the QR code below to download and install the Foscam APP.

Please refer to the Quick Setup Guide.

1.7 Installation

Please refer to the Quick Setup Guide.

Point the camera at the desired location and use the screws provided to mount it.

Please Note:

Ensure that rain or water will not reach the connector ports at the end of the pig tail wiring. These connectors

are not weather-resistant.

1.8 Waterproof Lid Installation Guide

When mounting your camera outdoors, you are suggested to install the waterproof lid for it. You may follow the

steps for installation.

1. Thread the Ethernet cable through the top cover and then the waterproof connector.

2. Put the rubber seal ring around the Ethernet cable between the top cover and the waterproof connector.

Note: The rubber seal ring provided has been cut. If not, you may manually cut it.

3. Put on the rubber O-ring to the Ethernet port of the camera and plug the Ethernet cable into the Ethernet

port.

4. Align the waterproof connector with the Ethernet port, then twist it clockwise to tighten the two parts.

5. Push the rubber seal ring into the waterproof connector, then screw the top cover and lock it into position

firmly to finish installation.

2 Default Parameters

Default network parameters

IP address: obtain dynamically

Subnet mask: obtain dynamically

Gateway: obtain dynamically

3 Specification

ITEMS

G4C

Spotlight

Color temperature

2800K

Image Sensor

Sensor Type

High Definition Color CMOS Sensor

Display Resolution

4.0Megapixels (2560*1440)

Min. Illumination

0 Lux (With IR Illuminator)

Lens

Lens Type

f:4.9mm; F1.65

Angle of view

Diagonal: 101.5°, Horizontal: 89°, Vertical: 51°

Video

Image Compression

H.264+/H.264

Resolution

2K(2560*1440) 25fps,1080P(1920x1080) 25fps, 720P(1280 x

720), VGA(640 x 480), VGA(640 x 360)

Stream

Dual stream

Image Adjustment

The hue, brightness, contrast, saturation, sharpness are

adjustable

Flip Image

Flip and mirror

Night Vision

Color night vision, Infrared night vision, Automatic mode

Night Visibility

With 2pcs Spotlight and IR LED, Night Vision Range up to 20m

Audio

Input/Output

External RCA interface for Full Duplex two-way audio

Network

Ethernet

One 10/100Mbps RJ45 port

Wireless Standard

IEEE802.11b/g/n/ac

Data Rate

IEEE802.11b: 11Mbps(Max.);

IEEE802.11g: 54Mbps(Max.);

IEEE802.11n: 150Mbps(Max.).

IEEE802.11ac: 433Mbps(Max.).

Wireless Security

WPA, WPA2

Remote Access

P2P

Network Protocol

IP, TCP, UDP, SMTP, FTP, RTSP

System

Requirements

Operating System

Microsoft Windows (Foscam VMS), MacOS (Foscam VMS),

Android (Foscam app), iOS (Foscam app)

Other Features

Motion Detection

Alarm via E-Mail, FTP and Foscam app when an event is

detected

Human Detection

Alarm via E-Mail, FTP and Foscam app when an event is

detected

User Accounts

Three levels user role

HDR

Improve image clarity in complex scenario

Zoom

6X digital zoom function

Storage

Support max. 256GB Micro SD card, local and FTP

storage,Foscam cloud storage

Privacy Block

Yes

Intelligent Assistant

Supports Alexa, Google Assistant

Power

Power Supply

DC 12V/1.0A

Power Consumption

6 Watts (Max.)

Physical

Dimension(LxWxH)

97(L)x67 (W)x64 (H)

Net Weight

375g

Environment

Waterproof

IP66

Operating Temperature

-20°C~ 60°C (-4°F ~ 140°F)

Operating Humidity

10% ~ 80% non-condensing

Storage Temperature

-20°C ~ 60°C (-4°F ~ 140°F)

Storage Humidity

0% ~ 90% non-condensing

Certification

FCC, CE, RoHS, WEEE, IP66

For other parts, please refer to the “FOSCAM Camera User Manual”
