Foscam FI8620 Manuel utilisateur

V3.01

Model: FI8620

Quick Installation Guide

Outdoor Dome Water-proof Network Camera

ShenZhen Foscam Intelligent Technology Co., Ltd

FI8620 Quick Installation Guide

www.foscam.com - 1 -

Quick Installation Guide - For Windows OS

zIP Camera FI8620 x 1

zDC Power Adapter (12V-2.0A) x 1

zNetwork Cable x1

zMounting Bracket .x 1

zQuickInstallationGuide x1

zCD-ROM with Setup Software .x 1

zWarranty Card x 1

QuickInstallationGuideFlowChart

P.12

Quick Installation Dia

ram

Packa

e Contents

Remote Access Setup

Software Installation

Other Settings

Hardware Installation

FI8620 Quick Installation Guide

www.foscam.com - 2 -

1) Open the package. Take out the camera out of the box carefully.

2) Get the camera connected to the router, and get it powered.

Use the network cable to connect the camera to the router or the switch in the LAN network at your

home or your office. Plug in the power. The small green light on RJ45 will turn on.

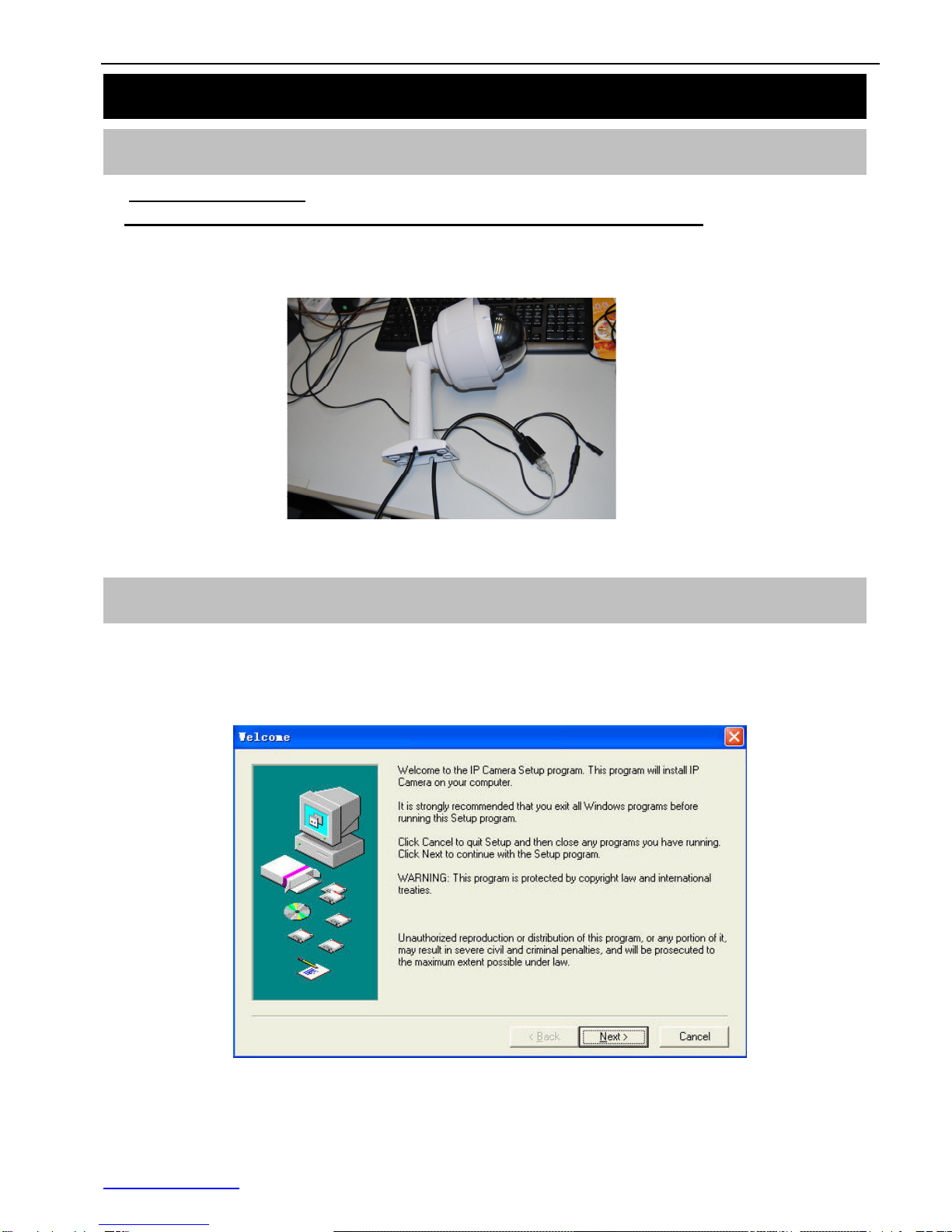

Figure 1.1 Plug the network cable

Insert the CD into the CD drive of your computer and find the folder “For Windows OS”. Select the IP

Camera Tool folder. Double click IPCamSetup.exe to install, it pops up a window as below (Fig.1.2).

Just click button “Next” to finish the installation.

Figure 1.2 Click Next, next to continue the installation

1. Hardware Installation

Start Installation

2. Software Installation

FI8620 Quick Installation Guide

www.foscam.com - 3 -

Figure 1.3 Click Close to finish installation, and get computer restarted

A shortcut icon will appear on your desktop after the IP Camera Tool software installation is

successfully completed.

Figure 1.4 Shortcut icon

Double click the IP Camera Tool icon and the following screen should appear.

Figure 1.5 IP Camera Tool Windows

The IP camera tool should find the camera’s IP automatically after you plug in the network cable. If

not, please make sure that DHCP is enabled on your router and that MAC address filtering, firewalls

and anti-virus are disabled temporarily until the camera is set up.

Double click the LAN IP address of the camera, it pops up a password dialog box.

3. Lo

in the Camera

FI8620 Quick Installation Guide

www.foscam.com - 4 -

Figure 1.6 Enter the username and password

Camera supports three-level users management: admin, user and guest.The default “admin” user

name and password are all “admin”, the default “user” user name and password are all “user”, and

the default “guest” user name and password are all “guest”. Different usernames have different

permissions. Admin user has the highest authority. He can do any settings. Guest has the lowest

authority.

Figure 1.7 The user interface

There are two login methods. One is Video View for PC user, the other is Mobile

View for Mobile user. Please choose Video View if you are using PC now.

Note

If you use PC, select this login mode

If you use Mobile, select this login mode

FI8620 Quick Installation Guide

www.foscam.com - 5 -

Figure 1.8 Surveillance Windows

Congratulations! You have succeeded in accessing in the camera by wired connection. Just leave

all the menus alone before you finish the quick installation.

The default administrator user name and password are all admin.

For the first time using you have to download the ActixeX and install it. For IE browser you can

download the ActiveX from the login UI, for Firefox,Google Chrome and Safari, you should download

QuickTime Player as the ActiveX from other website. (For more details: see user manual)

If you are still unable to see a live video, try shutting down any firewall or anti-virus software on your

computer.

We have been able to access the camera within the LAN network, but how to access the camera via

WAN or via internet? We have to do Remote Access Settings before we want to access the

camera outside the LAN network.

4.1 Static IP user

Static IP users do not need to set DDNS service settings for remote access. When you have finished

connecting the camera using LAN and port forwarding, you can access the camera directly from the

Internet by the WAN IP and port number.

Note

4. Remote Access Settin

FI8620 Quick Installation Guide

www.foscam.com - 6 -

zObtain the WAN IP from IPCAM

Please choose “For Administrator” and click “Remote Access”.

Figure 1.9 Obtain the WAN IP from IPCAM

Click show, you will see the WAN IP as below.

Figure 2.0 WAN IP

zHow to Obtain the WAN IP from a public website

To obtain your WAN IP address, enter the following URL in your browser:

http://www.whatismyip.com.The webpage at this address will show you the current WAN IP.

FI8620 Quick Installation Guide

www.foscam.com - 7 -

Figure 2.1 Get to know the WAN IP address of the router

Access the IP Camera from the Internet

You can access the IP Camera from the Internet (remote access). Enter the WAN IP address and

port number in IE browser or other browsers you use. For example, Http:// 218.17.160.187:85

Make sure port mapping (or also known as port forwarding) is successful. You can do port

mapping in two ways.

1) Enter the setting page of the router to enable UPNP function. Then login the camera as

administrator, choose UPnP Settings to enable UPNP and make sure the state is “UPnP success”.

2) Do port forwarding manually. (details: Fig.2.5)

If your router has a Virtual Server, it will do port mapping. Please add the camera’s LAN IP and port

which you set in basic network settings to the Virtual map list.

Note: If you plug the camera in a router, it will have dynamic IP address and you need to set DDNS

service settings to view it remotely.

4.2 How to configure Remote Access Settings (For dynamic IP user)

①Step 1 Go to the website www.no-ip.com to create a free hostname

Firstly: Login on www.no-ip.com and click No-IP Free to register.

Note

FI8620 Quick Installation Guide

www.foscam.com - 8 -

Figure 2.2 Register a user name on www.no-ip.com

Please register the account step by step according to instructions on www.no-ip.com

After registration, please login your email which used to register. You will receive an email from

website as below, please click the link to activate your ACCOUNT as indicated in email.

Secondly: Login the link with the registered username and password to create your domain

name.

Click here to register

FI8620 Quick Installation Guide

www.foscam.com - 9 -

Figure 2.3 Login the link to create a domain name

Figure 2.4 Create a domain name

Please create the domain name step by step according to instructions on www.no-ip.com

②Step 2, DO DDNS Service Settings within the Camera

Please set DDNS within the camera by hostname, a user name and password you’ve got from

www.no-ip.com

Take hostname ycxgwp.no-ip.info, user name foscam, password foscam2012 for example.

Firstly, goes to option of Remote Access on the administrator panel and enable DDNS.

Secondly, select No-ip.com as a server.

Thirdly, fill foscam as DDNS user, fill password foscam2012 as DDNS password, fill

ycxgwp.no-ip.info as DDNS domain and server URL, Then click save to make effect.

If failed, please double check if you have input the correct hostname, user name,

and password, and try to redo the settings.

③Step 3,Make Port Forwarding of the HTTP Port of the camera

What is port forwarding?

If you have no concept of Port Forwarding, please open the webpage

http://portforward.com/help/portforwarding.htm to learn some knowledge of Port Forwarding.

Note
