Fortinet FortiVoice Enterprise 200F8 Manuel utilisateur
FortiVoice™ Enterprise
200F8
QuickStart Guide
August 22, 2019
3rd Edition
Copyright© 2019 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and
certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other
Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or
company names may be trademarks of their respective owners. Performance and other metrics contained herein
were attained in internal lab tests under ideal conditions, and actual performance and other results may vary.
Network variables, different network environments and other conditions may affect performance results. Nothing
herein represents any binding commitment by Fortinet, and Fortinet disclaims all warranties, whether express
or implied, except to the extent Fortinet enters a binding written contract, signed by Fortinet’s General Counsel,
with a purchaser that expressly warrants that the identified product will perform according to certain expressly-
identified performance metrics and, in such event, only the specific performance metrics expressly identified in
such binding written contract shall be binding on Fortinet. For absolute clarity, any such warranty will be limited
to performance in the same ideal conditions as in Fortinet’s internal lab tests. In no event does Fortinet make any
commitment related to future deliverables, features or development, and circumstances may change such that
any forward-looking statements herein are not accurate. Fortinet disclaims in full any covenants, representations,
and guarantees pursuant hereto, whether express or implied. Fortinet reserves the right to change, modify,
transfer, or otherwise revise this publication without notice, and the most current version of the publication shall
be applicable.
Technical Documentation http://docs.fortinet.com
Knowledge Base http://kb.fortinet.com
Forums https://forum.fortinet.com
Customer Service & Support https://support.fortinet.com
Training Services http://training.fortinet.com
FortiGuard Threat Research and Response http://www.fortiguard.com
Table of Contents
Package Contents 2
Connecting to FortiVoice 3
Registering Your Product 5
Technical Specifications 6
LED Specifications 7
Cautions and Warnings 8
License Agreement 15
Page 1
Package Contents
FortiVoice Enterprise 200F8 PBX appliance
QuickStart Guide
Power cable (US or EU type depending on destination country/region)
Console cable
Ethernet cable
Rack-mount brackets and screws
Page 2
Connecting to FortiVoice
You can configure your FortiVoice appliance using either its web pages (the web UI)
or the command line interface (CLI). After connecting, follow the setup instructions in
the FortiVoice Enterprise Phone System Administration Guide.
To connect to the FortiVoice web UI
Browser requirements: Internet Explorer 11 and Edge 40, 41; Firefox 52.7.2 ESR,
59; Safari 10, 11; Chrome 65; Adobe Flash Player 9 or higher plug-in required to
display statistics charts.
1. Connect the FortiVoice appliance’s port1 to your computer using the provided
Ethernet cable.
2. On your computer, configure it to match the appliance’s default port1 subnet.
For example, on Windows 7, click the Start (Windows logo) menu to open it, then
click Control Panel. Click Networkand Sharing Center, Local Area Connection,
then the Properties button. Select Internet Protocol Version 4 (TCP/IPv4) then
click its Properties button. Select Use the following IP address, then change your
computer’s settings to:
• IP address: 192.168.1.2
• Subnet mask: 255.255.255.0
3. To access the FortiVoice web UI, start a browser and browse to
https://192.168.1.99/admin (remember to include the “s” in https:// and “/admin”
at the end of the URL).
4. Type admin in the Name field, leave the Password field blank, and click Login.
To connect to the FortiVoice CLI
1. Connect the FortiVoice console port to your computer using the console cable.
2. On the management computer, start a terminal emulation program (such as
PuTTY). Use these settings:
• Serial line: COM1
• Baud rate: 9600
• Data bits: 8
Page 3
• Parity: None
• Stop bits: 1
• Flow control None
3. Press Enter on your keyboard to connect to the CLI.
4. Type admin in the Name field, leave the Password field blank, then press Enter.
To power off the appliance via the web UI
Always properly shut down the FortiVoice appliance’s operating system before
turning off the power switch or unplugging it. This causes it to finish writing any
buffered data, and to correctly spin down and park the hard disks.
Do not unplug or switch off the FortiVoice appliance without first halting
the operating system. Failure to do so could cause data loss and hardware
problems.
1. Connect to the web UI.
2. Go to System > Status.
3. In the System Command widget, click the Shut Down button.
You may be able to hear the appliance become more quiet when the appliance
halts its hardware and operating system, indicating that power can be safely
disconnected.
4. Disconnect the power cable from the power supply.
To power off the appliance via the CLI
1. Connect to the CLI.
2. Enter the following command:
execute shutdown
You may be able to hear the appliance become more quiet when the appliance
halts its hardware and operating system, indicating that power can be safely
disconnected.
3. Disconnect the power cable from the power supply.
Page 4
Registering Your Product
Register
Register your Fortinet product in order to receive:
• Technical Support • Software updates
Enregistrer
Vous devez enregistrer le produit pour recevoir:
• Support technique • Mises-à-jour
Registra
La reistrazione ti permette di usufruire di:
• Supporto Tecnico • Nuove funzionalita
Registrar
Debe registrar el producto para recibir:
• Apoyo técnico • Nuevas funcionalidades del producto
登録のお願い
本日、フォーティネット製品の登録をしてください。
登録すると次のメリットがあります。
• テクニカルサポート • 新機能の追加
请马上注册
您的飞塔产品
您在注册以后才能得到技术支持、新产品特点信息
Web: https://support.fortinet.com/
Toll free: 1 866 648 4638
Phone: 1 408 486 7899
Fax: 1 408 235 7737
Email: [email protected]
Page 5
Technical Specifications
Page 6

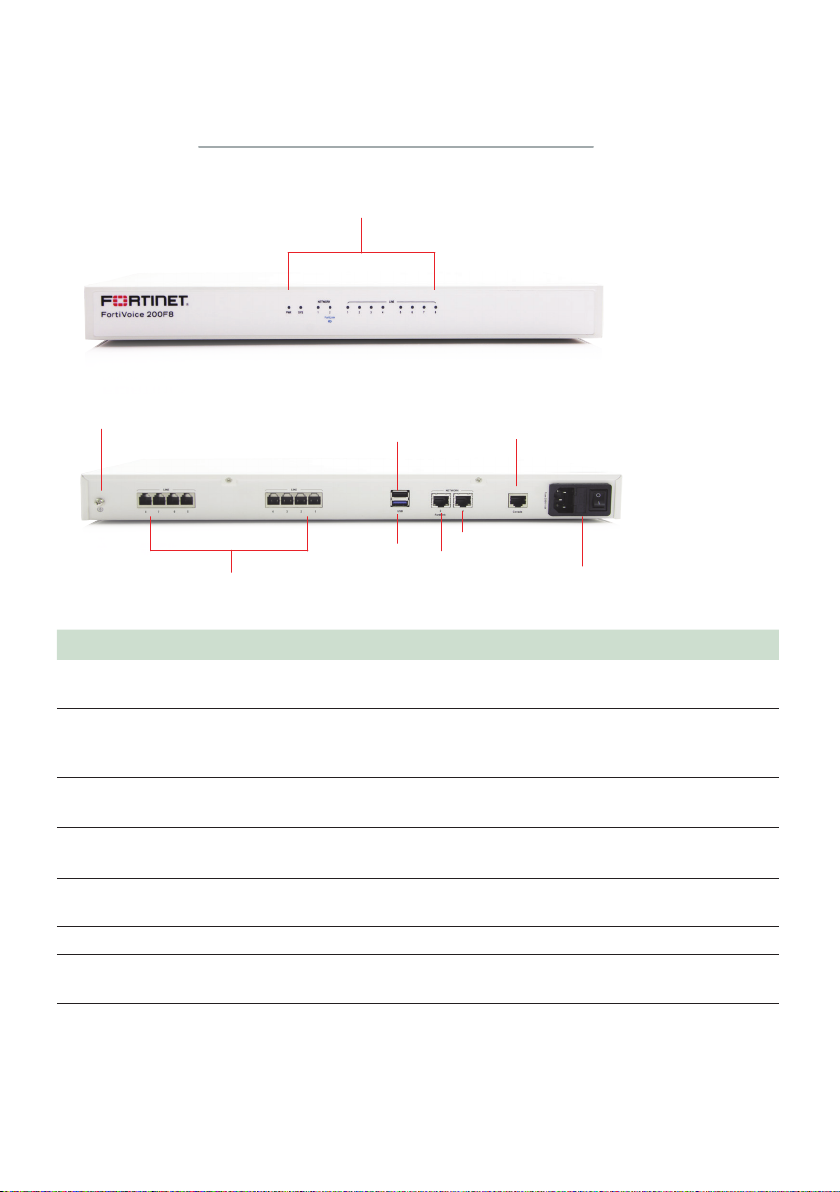

Power, System, Network, and FXO Lines
FortiVoice Enterprise
200F8 front view
Ground
FXO Ports
Ethernet Port
USB 2.0 Port Console Port
Power Connection
FortiVoice Enterprise
200F8 back view
USB 3.0 Port FortiLink
Interface Type Protocol Description
Ethernet
Port 1
RJ-45 100M Ethernet Ethernet port for connection to your
network and the Internet.
Ethernet Port
2 - FortiLink
RJ-45 100M Ethernet Ethernet port for Fortinet security fabric
integration. Can be used as a regular
Ethernet port.
USB Port USB-A USB 2.0 Reserved for future use.
USB Port USB-A USB 3.0 Reserved for future use.
Console Port RJ-45 RS-232 serial Optional connection to the management
computer. Provides access to the CLI.
FXO Ports 1-8 RJ-11 Connect to PSTN networks.
Power
Connection
100-240V AC, 50-60Hz, 1.5A
LED State Description
PWR Green The appliance is on.
SYS Off System is not ready.
Green System is ready.
NETWORK Green Ethernet port is ready.
Flashing green Ethernet port is in use.
LINE
Green FXO port is ready.
Red FXO port is in use.
Flashing red FXO port is ringring.
Off FXO port is not ready
LED Specifications
Page 7
Cautions and Warnings
Page 8
Environmental specications
Refer to specific Product Model Data Sheet for Environmental Specifications
(Operating Temperature, Storage Temperature, Humidity, and Altitude)
Référez à la Fiche Technique de ce produit pour les caractéristiques
environnementales (Température de fonctionnement, température de stockage,
humidité et l’altitude).
Safety
Battery – Risk of explosion if the battery is replaced by an incorrect type. Do not
dispose of batteries in a fire. They may explode. Dispose of used batteries according
to your local regulations. IMPORTANT: Switzerland: Annex 4.10 of SR814.013
applies to batteries.
Batterie – Risque d’explosion si la batterie est remplacée par un type incorrect.
Ne jetez pas les batteries au feu. Ils peuvent exploser. Jetez les piles usagées
conformément aux réglementations locales. IMPORTANT: Suisse: l’annexe 4.10 de
SR814.013 s’appliquent aux batteries.
警告
本電池如果更換不正確會有爆炸的危險
請依製造商說明書處理用過之電池
CAUTION: For continued protection against risk of fire, replace only with same type
and rating of fuse.
ATTENTION: Pour une protection continue contre le risque d’incendie, ne remplacez
qu’avec le même type et valeur de fusible.
Grounding — To prevent damage to your equipment, connections that enter from
outside the building should pass through a lightning / surge protector, and be
properly grounded. Use an electrostatic discharge workstation (ESD) and/or wear
an anti-static wrist strap while you work. In addition to the grounding terminal of the
plug, on the back panel, there is another, separate terminal for earthing.
