Formax FD 372 Manuel utilisateur

FORMAX

FD 372

Document Folder

Operator Manual

First Edition

Introduction

Thank you very much for purchasing the FD 372 Document Folder. This machine

enables users to achieve greater efficiency at work by releasing them from

paper-folding work that has manually been performed in the past. Please read this

Operation Manual carefully before using this machine.

Contents

Introduction .............................................................................. 1

Contents ................................................................................... 1

(1) Specifications ....................................................................... 2

(2) Accessories .......................................................................... 3

(3) Parts Names......................................................................... 4

(4) Designation and Functions of Operation Panel........................... 5

(5) Counter Indication ................................................................ 6

(A) Addition Counter ............................................................. 6

(B) Batch Counter................................................................. 7

(6) Preparation .......................................................................... 8

(7) Operation........................................................................... 10

(A) Standard Folding of Standard-Size Paper.......................... 10

(B) Standard Folding of Non-Standard-Size Paper ................... 12

(8) Adjustments....................................................................... 16

(A) Skew Adjustments......................................................... 16

(B) Fine Adjustments .......................................................... 18

Fine Adjustments for Table 1 ............................................. 18

Fine Adjustments for Table 2 ............................................. 19

(9) Storing Custom Folds in Memory........................................... 20

(A) Memory Storage............................................................ 20

(B) Cancellation of memory ................................................. 21

(1) Specifications

Model: FD 372

Paper sizes: 3.5” x 5.0” to 11” x 17”

Smaller size for single fold only.

Paper quality: High-quality paper, high-quality paper for stencil printing,

medium-quality paper

Fold types: Single, Gate, Letter, Zigzag, Double Parallel, and Fold-out

In addition, irregular folds and cross fold using double fold are

available.

Fold dimensions: Maximum fold dimensions

Table 1: 13” (zigzag, double parallel, and fold-out)

Table 2: 9 ½” (single, gate, and letter)

Minimum fold dimensions

Table 1: 2” (gate and letter)

Table 2: 1 ½” (single, zigzag, double parallel, and fold-out)

Paper feed

system:

Three-roller friction feed system

Maximum

capacity:

500 sheets (20lb)

Folding speed: 3240 to 11000 sheets per hour (single fold using 8 ½” x 11”)

Control system: Automatic setting by a built-in microcomputer

Additional

functions:

Skew adjustment memory, paper jam detector, four-digit counter

with addition/subtraction modes, and automatic paper size detector

Auxiliary paper guide for cross fold

A perforator can be installed (optional)

Power

consumption:

75W

Power source: 110V, 50Hz

110V 60Hz

Dimensions: W 29 ½” x D 21 ½” x H 21” (during use)

W 22” x D 21 ½” x H 21” (during storage)

Net weight: 85lb

Option: Perforator table assembly with a 2-mm or 4-mm perforation cutter

(2) Accessories

Make sure that the following accessories are included in the package after opening

it. Contact your sales agency immediately if there are missing accessories.

Accessories Number Figure

Table 1 1

Table 2 1

Power source cord 1

Paper support guides

(right and left)

Machine cover 1

Operation Manual 1

(3) Description of Parts

Number Name Number Name

1 Roller cover 11 Paper feed table

2 Left side cover 12 Table 2

3 Paper feed roller 13 Right side cover

4 Paper guide 14 Paper feed table

5 Auxiliary feed table 15 Table 1 socket

6 Paper discharge roller 16 Table 2 socket

7 Paper discharge table 17 Power source switch

8 Stopper fine adjustment knob 18 Inlet

9 Table 1 19 Circuit breaker

10 Control panel

(4)Designation and Functions of Operation Panel

No. Designation/Indication Function

1 Fold type key Six foldin

types can be input and stored.

2 Te st k ey Te st f o l di n

of two sheets is performed.

3 Start/Stop key Operation sta

ts and if pushed again, the machine

stops.

4 Clear/Reset key Clearin

the indication of the counter / resettin

an error.

5 Store key Fold position after ad

ustment is stored.

6 Counter input mode

lamp

It is on when batch countin

is indicated on the

counter.

7 Select key

Used for selecting the indication of the counter, the

position of the stopper stud of Table 1 and 2 and

paper length.

8 Perforation mode lamp It is on when the optional sewin

unit is installed.

9 +/- key Used for ad

ustin

the position of the stopper of

Table 1 and 2 and paper length

10 Speed ad

ust key Used for ad

ustin

the speed.

11 Numerical key Used for inputting the batch count and the

length of non-standard-size paper

12 Counter The number of sheets, the position of the stopper

pin of Table 1 and 2, paper size are indicated.

13 Check lamp It is on when paper stock runs short, or indicates a

Place where paper feed trouble occurs.

14 Table 1 stopper move

mode lamp

It is on when the position of stopper of Table 1 is

Adjusted.

15 Table 2 stopper move

mode lamp

It is on when the position of stopper of Table 1 is

adjusted.

16 Paper size paper size

input mode lamp It is on when paper size is indicated.

(5)Counter Indication

(A)Addition

As a sheet is folded, the number indicated on the

counter increases by one.

Press the Select key and select the Counter Input Mode

Lamp

Press Clear/Reset key and reset the number to zero

(0).

(B) Batch Counting

As a sheet is folded, the number indicated on the

counter decreases by one.

Press the Select key and select the Counter Input Mode

Lamp.

Input the desired number using the Numerical key. (20

is input in this case)

The Batch Counting Mode Lamp will be on.

When the machine is started it will fold the desired

number of documents and stop

Batch Counting Mode Lamp

(6)Preparation

Install Table 1 and 2.

Insert the front cut-away section of Table 1 onto the

stud (1) of the machine and drop its rear cut-away

section on the stud (2). Insert the plug into the

connector (3).

Caution:

The connector will only go in one way,

Insertion by force may cause trouble.

Insert the front cut-away section of Table 2 into the

stud (4) of the machine and drop its rear cut-away

section on the stud (5). Insert the plug into the

connector (6).

Caution:

The connector will only go in one way,

Insertion by force may cause trouble.

Pull the paper-stacking table out and set it while lifting

the auxiliary table.

Table des matières

Autres manuels Formax Plieuse

Formax

Formax 6600 Series Manuel utilisateur

Formax

Formax FD 280-10 Manuel utilisateur

Formax

Formax FD 540 Manuel utilisateur

Formax

Formax FD 2054 AutoSeal Manuel utilisateur

Formax

Formax FD 300 Manuel utilisateur

Formax

Formax FD 1402 autoseal Manuel utilisateur

Formax

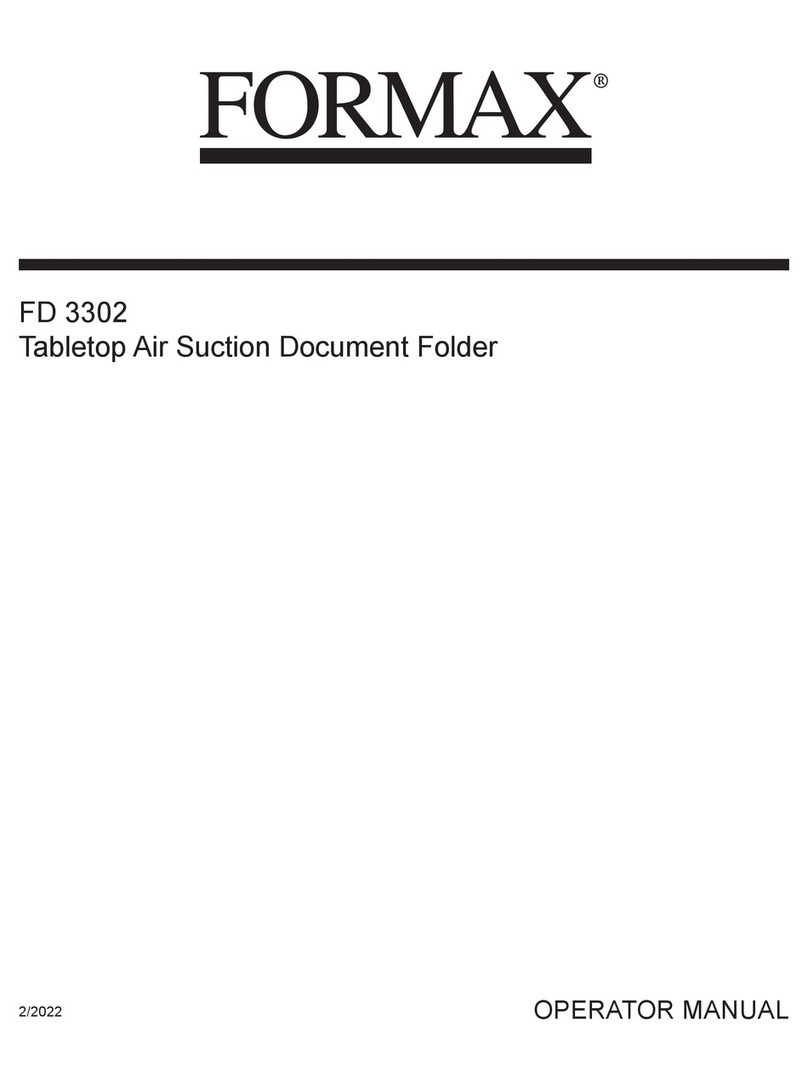

Formax FD 3302 Manuel utilisateur
