Form 143PL Manuel utilisateur
Form 143PL Instructions for mounting power feed system on LT15DC sawmills Rev.D1.00doc012810 Page 1
FORM 143PL INSTRUCTIONS FOR MOUNTING POWER FEED
SYSTEM ON LT15DC SAWMILLS REV.D1.00
WARNING! Before performing any service to the sawmill control
box panel, turn the key to the “0” position.
To mount the power feed system (Part No. 500730) on LT15DC Rev. D1.00 sawmills with manual
feed system, manufactured from 1 October 2009 it is necessary to:
1. Remove the lower guard.
Page 2 doc012810Form 143PL Instructions for mounting power feed system
2. Remove the middle track cover with a felt strip.
3. Remove the rope as well as the front and rear rope mount brackets.
Form 143PL Instructions for mounting power feed system on LT15DC sawmills Rev.D1.00doc012810 Page 3

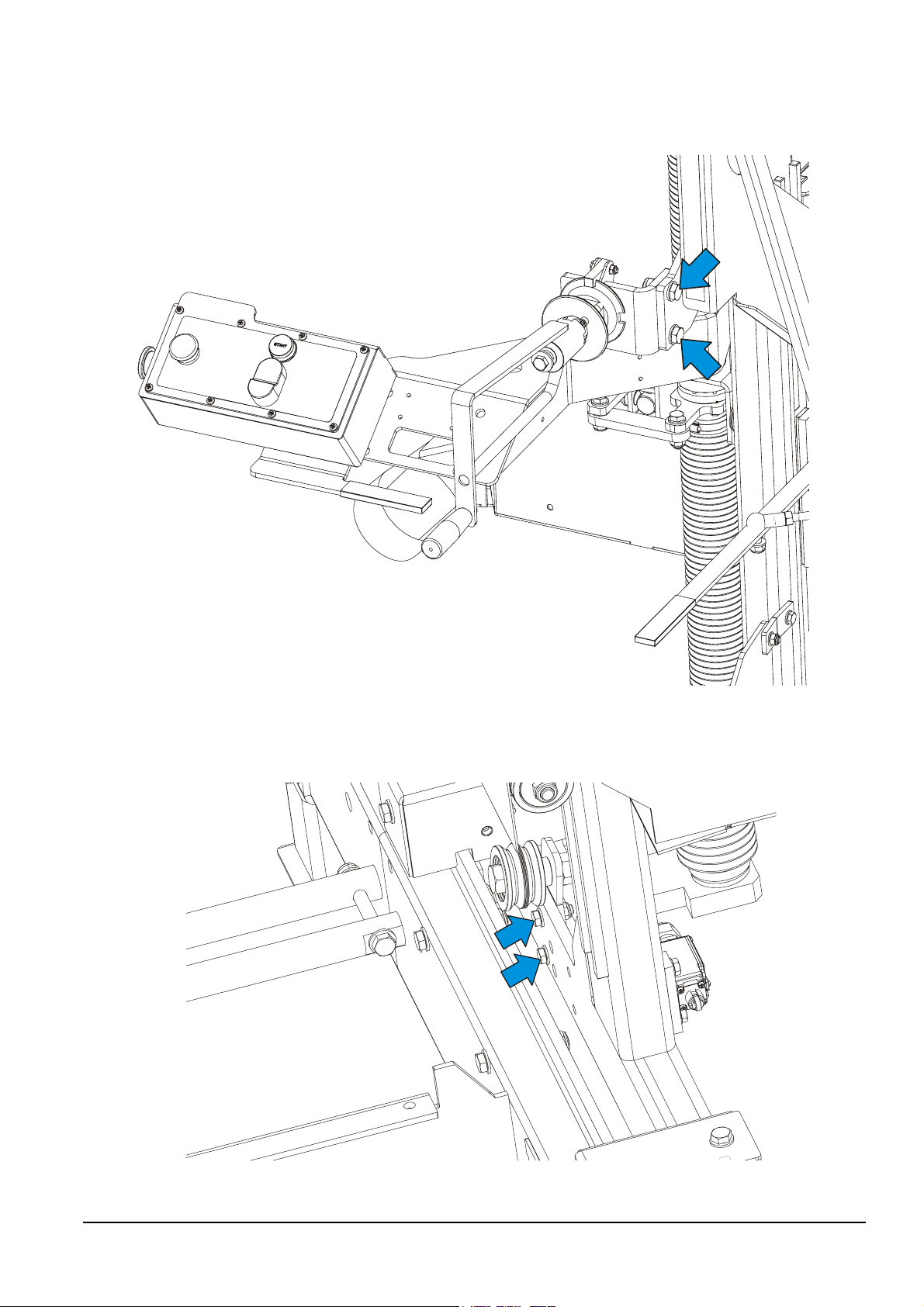

4. Remove the feed crank and the manual feed system bracket.
5. Remove the rope guide roller system.
Page 4 doc012810Form 143PL Instructions for mounting power feed system
6. Dismount the control box front panel. Mount the forward/backward joystick and the feed rate
potentiometer. Make electrical connections according to the electrical diagram located at the end
of these instructions.
Form 143PL Instructions for mounting power feed system on LT15DC sawmills Rev.D1.00doc012810 Page 5
7. Mount the power feed support plates with rubber bushings (2) to the pins located in the middle of
the bed extensions (1) and bolt the tensioners (3) to the end pins. Fasten the spring to the short
tensioner.
8. Mount the motoreducer with four bolts.
1
2
2
3
3
Page 6 doc012810Form 143PL Instructions for mounting power feed system
9. Prepare the cable by closing its ends up with steel caps.
10. Mount the cable. Install it on the pulley as shown below and secure with clamps (1). Tighten the
rope until the gap between the spring coils is .8-1.2 mm.
0,8-1,2mm
1
1
Form 143PL Instructions for mounting power feed system on LT15DC sawmills Rev.D1.00doc012810 Page 7
11. Mount the new middle track cover with a felt strip. Soak the felt strip with oil (WD-40).
12. Mount the motoreducer pulley front cover.
Page 8 doc012810Form 143PL Instructions for mounting power feed system
13. Mount the new lower guard.
14. Make electrical connections according to the electrical diagrams.
Form 143PL Instructions for mounting power feed system on LT15DC sawmills Rev.D1.00doc012810 Page 9
LT15G15 Electrical Diagram with Power Feed System
1
2
3 4
5 6
1
2
3 4
5 6
D2
D1
SOL3
SOL2
Battery
Negative
Co ntact
B1
W2
W3
W2
W3
GND
IGN
IGN
ST
ST
R1
P1
D1
+
-
LED
STP
S2
W1
W2 W3
Starter
Engine
G15
Ignition System
Gnd
Alternator
105A
A1
B
LIG
ENKODER
W4
12V
SW 10
Vcc GND W1 W2
+
-
DWN
UP
UP/DWN
WP
PG
PD
1
2
3 4
5 6
1
2
3 4
5 6
D2
D3
SOL5SOL4
S1
P1
FWD/REV
M1
M2
SOL1 2
3
1
2
3
50A
CB2
50A
CB1
+12V
RE
BR
VIO
GND
DG
SS
Page 10 doc012810Form 143PL Instructions for mounting power feed system
LT15D10 Electrical Diagram with Power Feed System
1
2
3 4
5 6
1
2
3 4
5 6
D2
D1
SOL3
SOL2
Battery
Ne gative
Contact
B1
W2
W3
W2
W3
GND
IGN
IGN
ST
ST
R1
P1
D1
+
-
LED
STP
S2
W1
W2 W3
Starter
Engine
D10
Gnd
Alternator
105A
A1
B
LIG
ENKODER
W4
12V
SW 10
Vcc GND W1 W2
+
-
DWN
UP
UP/DWN
WP
PG
PD
1
2
3 4
5 6
1
2
3 4
5 6
D2
D3
SOL5SOL4
+12V
RE
BR
VIO
S1
P1
FWD/REV
M1
M2
SOL1 2
3
1
2
3
50A
CB2
50A
CB1
BAT
ACC IGN
ST
S1 L1
SOL 1
GND
DG
SS
