Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.
TECHNICAL SPECIFICATIONS
Suitable for All Pressures
Minimum Pressure = 35kPa
Maximum operating Pressure = 500kPa*
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.
CONFIGURATION
Mains Pressure systems Install the flow regulator as shown in the diagram below.
Unequal Low Systems Install as supplied.
Equal Low systems Install as supplied.
CONTENTS
• Wall brackets and covers
• Fixing kit (wall anchors & screws)
• Glide bar with adjuster/holder
• 1.5m supply hose
• Supply elbow
• Shower handpiece
• Soap dish
• Flow regulator for Mains Pressure installation
INSTALLATION
*FOR PRESSURES EXCEEDING 500kPa INSTALL A PRESSURE REDUCING VALVE. THOROUGHLY FLUSH ALL
PIPES TO ELIMINATE ANY REMAINING DIRT AND RESIDUE, AND INSTALL INLINE FILTERS. FAILURE TO DO SO
MAY VOID THE WARRANTY.
CAUTION: If using your own screws to install the wall brackets, DO NOT use counter sunk type screws as
this will void the warranty.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
7.5L/min Flow Regulator
Black O-ring Water Flow
Shower Elbow
(O-ring side)
Flow Regulator
Washer
Flexi Hose
Mains Pressure installation:
Insert the flow regulator with the O ring
facing away from the hose (as shown).
This will comply with the WELS rating.
9 421027 595989
SYMPHONY Slide Shower
Chrome SYM04
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
2
4
4
5
7
7a
6
8
10
11
12
12
2
1
1
9
9
Max. 680mm
ATTACH PROOF OF PURCHASE HERE
WARRANTY
PLEASE CALL US BEFORE REMOVING OR UNDERTAKING ANY REPAIR WORK.
Please refer to our website for warranty information: www.foreno.co.nz/warranty
In the unlikely event that this product fails during its warranty period, phone our Customer Service team
immediately on 0508 FORENO (0508 367 366) – as unauthorised removal of the product may void the warranty.
CARE AND MAINTENANCE
SHOULD NOT BE CLEANED WITH ACIDIC, CAUSTIC/ALKALINE, ABRASIVE OR CITRIC CLEANERS.
A so, damp cloth is recommended for cleaning (Not a Micro fibre cloth). Mild soap solutions can also be used on
occasion.
The bottom bracket can
be adjusted to desired height

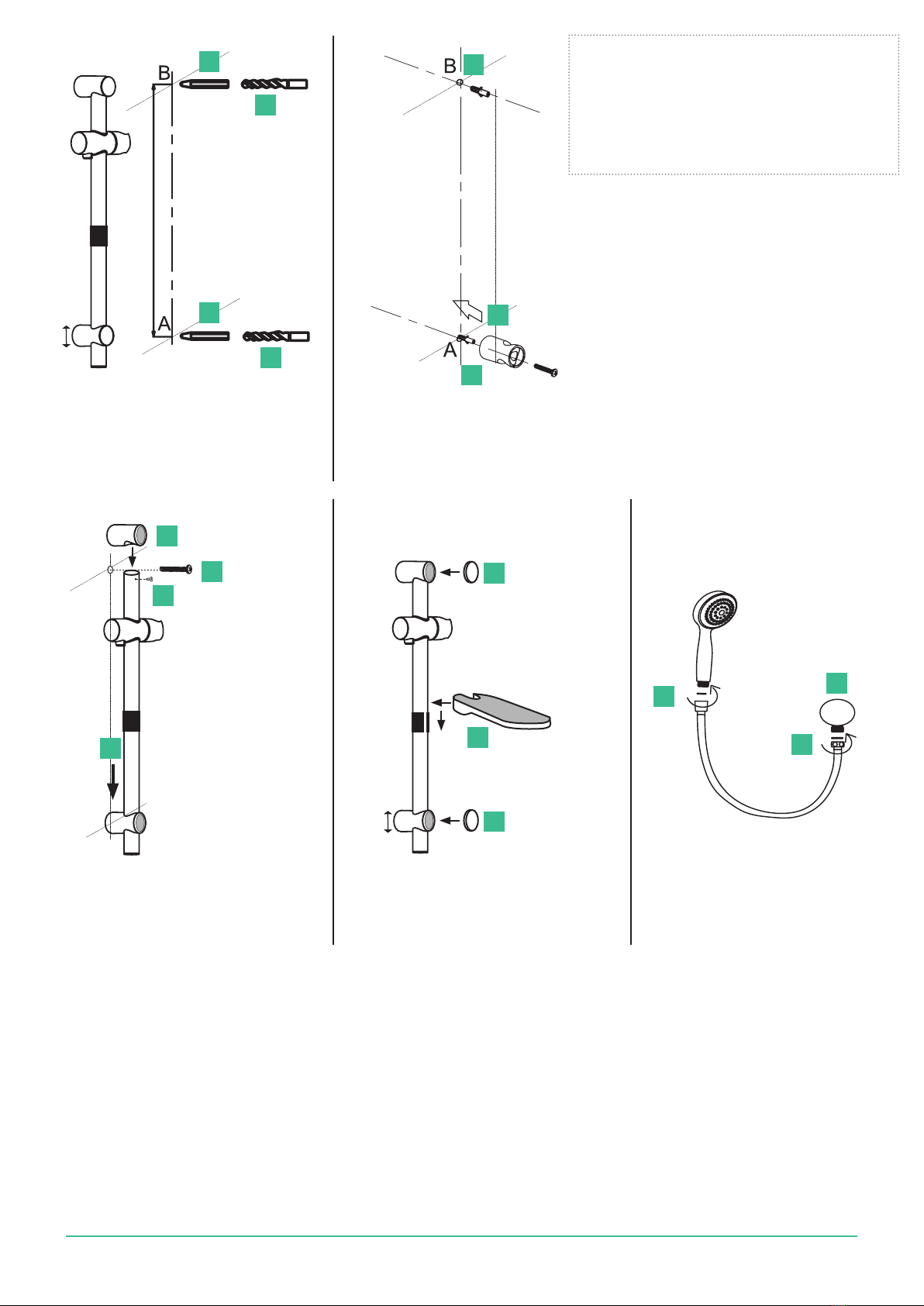

1. Measure and mark anchor positions with pencil.
2. Drill mounting holes suitable for wall anchors.
3. Remove end covers from brackets. Slide bottom
bracket o rail, then unscrew retaining screw
from top bracket and remove.
4. Push wall anchors into holes.
5. Fix bottom bracket in place with screw into wall
anchor A.
9. Push end covers onto brackets.
10. Attach soap dish to black plastic fitting on slide
rail tube, ensure small tab on soap dish aligns
with opening on the fitting.
11. Attach the supply elbow to the
supply connection on the wall.
12. Attach hose to elbow and handpiece,
then insert handpiece into holder.
6. Slide the rail tube through the botttom bracket.
7. Slide top bracket onto tube and attach with
retaining screw (7a).
8. Fix top bracket in place with screw into wall
anchor B.
