Horizon Elite™1412 Ice Machine Installation Instructions
for Remote Condensing Unit
HMF1412R _ _
01519131R00
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com
2REMOTE CONDENSING UNIT
Horizon Elite 1412 series
W1 Width 39.6” (100.6 cm)
D1 Depth 28.2” (71.6 cm)
H1 Height 26.0” (66.0 cm)
Electrical three phase – 208-230/60/3 (Emerson/Copeland)
Minimum circuit ampacity three phase – 12A
Maximum overcurrent protection three phase – 20A
Outdoor condensing unit operating limits
(air temperature)
min –20 F (–29 C)
max 120 F (49 C)
Maximum refrigerant line run length 100' (30,5 m)
Maximum line rise above evaporator 35' (10,7 m)
Evaporator mounting above condenser 15' (4,6 m)
Maximum refrigeration line drop without oil trap 15' (4,6 m)
Refrigerant charge 8 lb
Approximate ship weight three phase – 265 lbs (120.2 kg)
Approximate net weight three phase – 230 lbs (104.3 kg)
3
REMOTE CONDENSING UNIT
Prior to installation, carefully unpack and inspect the
contents of your condensing unit!
1
Site preparation
2.1
To ensure proper performance, ease of service and warranty coverage, it is critical that you follow
the requirements detailed in this manual. If you cannot meet these requirements or have questions,
call our technical service group at 877.612.5086 for installation support.

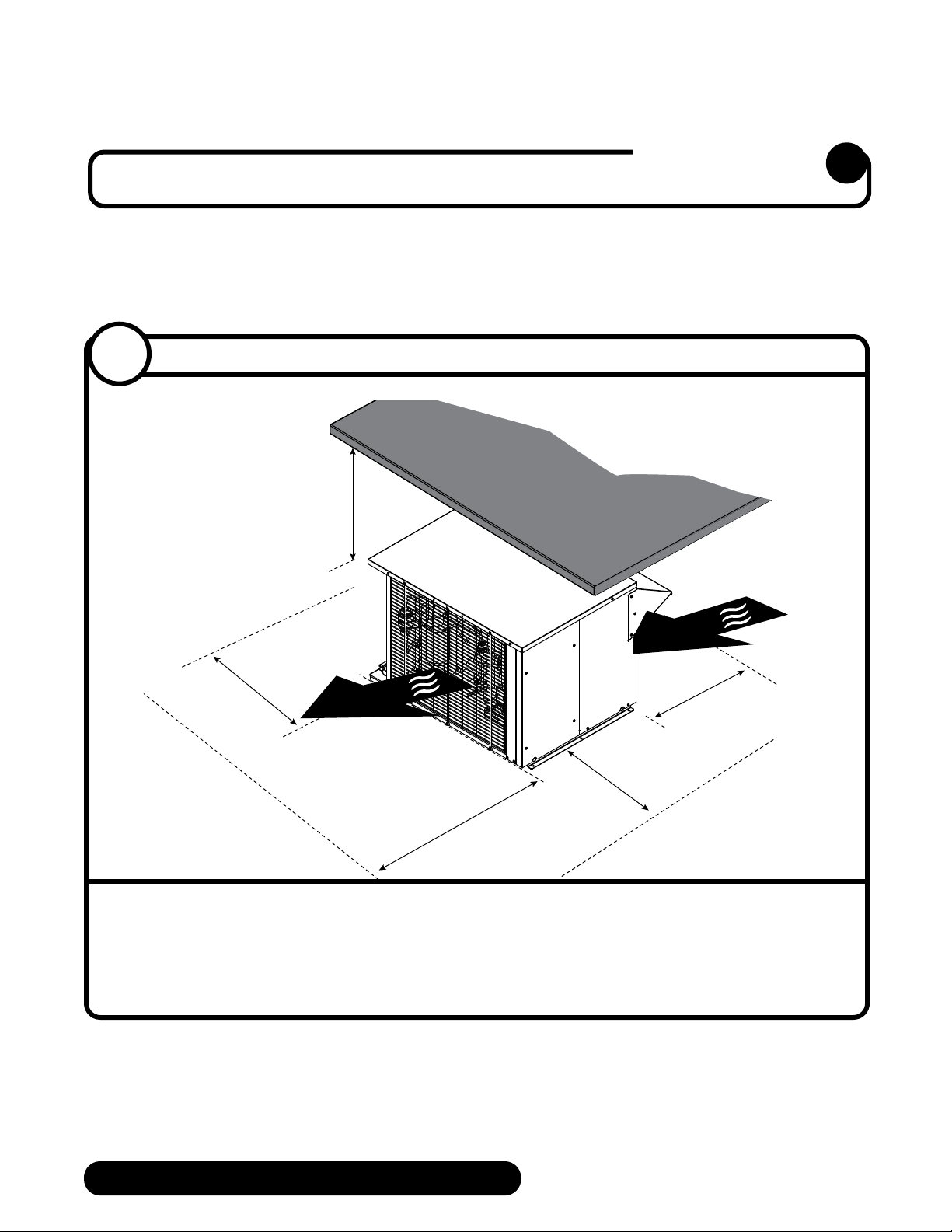

• Position condenser unit as shown.
Required clearances:
§Mininum 48” (121.9 cm) front and back
§Minimum 24” (61.0 cm) left and right
§Minimum 36” (91.4 cm) above
Condenser Unit Clearances
1. 1
48.00"
(121.9 cm)
24.00"
(61.0 cm)
48.00"
(121.9 cm)
24.00"
(61.0 cm)
min. 36.00"
(91.4 cm)
air in
exhaust
4REMOTE CONDENSING UNIT
+20'
(+6.1 m)
+35'
(+10.7 m)
EVAPORATOR UNIT LEVEL
EVAPORATOR
UNIT
CONDENSER UNIT
CONDENSER UNIT
maximum
line rise
100' max.
(30.5 m)
100' max.
(30.5 m)
➊
➊
➋
➍
➍
➌
Low voltage control (24 Vac) required
PSIG
THEUSA
MADEIN
OZ
PHASE
SINGLE
LOWSIDE
CHARGE
PARTNO
RR
HZ
EastonPennsylvania
208264
AMPS
AMPS
VOLTS
SERIALNO
CORPORATION
MODEL
ServiceNo.
Product
ModuleNo.
REFRIGERANT
FULLLOADAMPS
StockModuleIdentificationPlate
DESIGNPRESSUREHIGHSIDE
MAX.BRANCHCIRCUITFUSESIZE
MIN.BRANCHCIRCUITAMPACITY
MOTORCOMPRESSORTHERMALLYPROTECTED
C
NSF
ULUL
S-trap
required
P-trap
required
P-trap
required

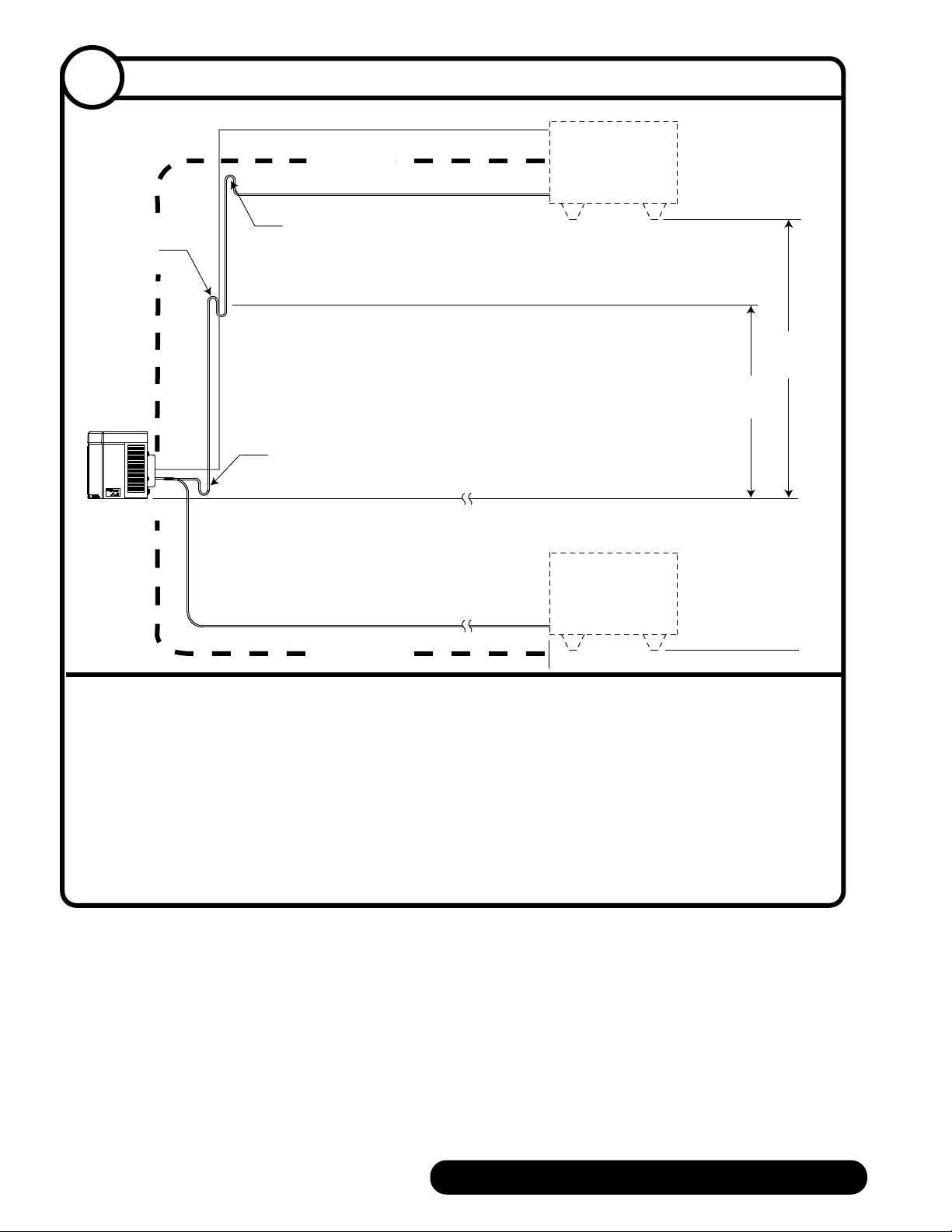

Site layout:
• Outdoor ambient temperature range: –20 F to 120 F (–29 C to 49 C)
• Installation with condenser unit elevations above 20' (6.1 m) require an S-trap at the midpoint
of the rise and a P-trap at the top of the rise ➊
• Maximum line rise must not exceed 35' (10.7 m) ➋
• Maximum line set length must not exceed 100' (30.5 m) ➌
• Low voltage control (24 Vac signal wire) must be connected ➍
2.1 Condenser installation specications
1. 2
5
REMOTE CONDENSING UNIT
Rack system
2.2
• Level unit
• Securely attach base of unit using holes found in base plate
Condenser installation 2
Install condensing unit
2.1
• 1412N not compatible with rack system. Consult Technical Service.
Electrical requirements
2.3
CAUTION
• Electrical disconnects required
• Electrical disconnects installed in accordance with NEC and local electrical codes
Horizon Elite 1412 series
Minimum circuit ampacity three phase – 12A
Maximum overcurrent protection three phase – 20A
Outdoor condensing unit operating limits
(air temperature)
min –20 F (–29 C)
max 120 F (49 C)
6REMOTE CONDENSING UNIT
7
8
1
2
6
5
4
3
L1 L2 L3
T1 T2 T3
24
208COM 240
BLK
BRN
GRN/YEL FAN 2
BLK
BRN
GRN/YEL
A1 A2
L3
L2
L1
GND
(L3)
(L2)
(L1)
DISCH
T-STAT
T1
10 RED 16AWG
11 BLK 16AWG
12 BLU 18AWG
13 YEL 18AWG
F1x12CU
CRANKCASE
HEATER
CRANKCASE
T-STAT
MAIN
POWER
17 RED 18AWG
18 WHT 18AWG
22 BRN 18AWG
23 ORN 18AWG
21 BLK 16AWG
20 RED 16AWG
16 BLU 16AWG
GRN / YEL
COMPRESSOR
L1
C
L2
S
L3
R
L3
L2
L1
01449735R03
19 BLU 16AWG
15 RED 16AWG
14 BLK 16AWG
FAN 1
LT GRY
DK GRY
BLK
TB1
TB2
PM1
K1
GRN/YEL
L1 L2 L3
123 4 56
123 4 56
BLK H1
BLK TS2
BLK TS1
HTR
BLK H2
GRN / YEL
GRN / YEL
PS1
PS2
TS3
TS4
IMS1
IMS2
3-PHASE, 208-230 VAC OUTDOOR CONDENSING UNIT
ICE MAKER
SIGNAL, FIELD
WIRED,CLASS 2
TB2-1, TB2-2
GRN / YEL
DISCH
HIGH
PRESS SW
LOW
SIDE
RELAY
DOCKING
STATION
24
24

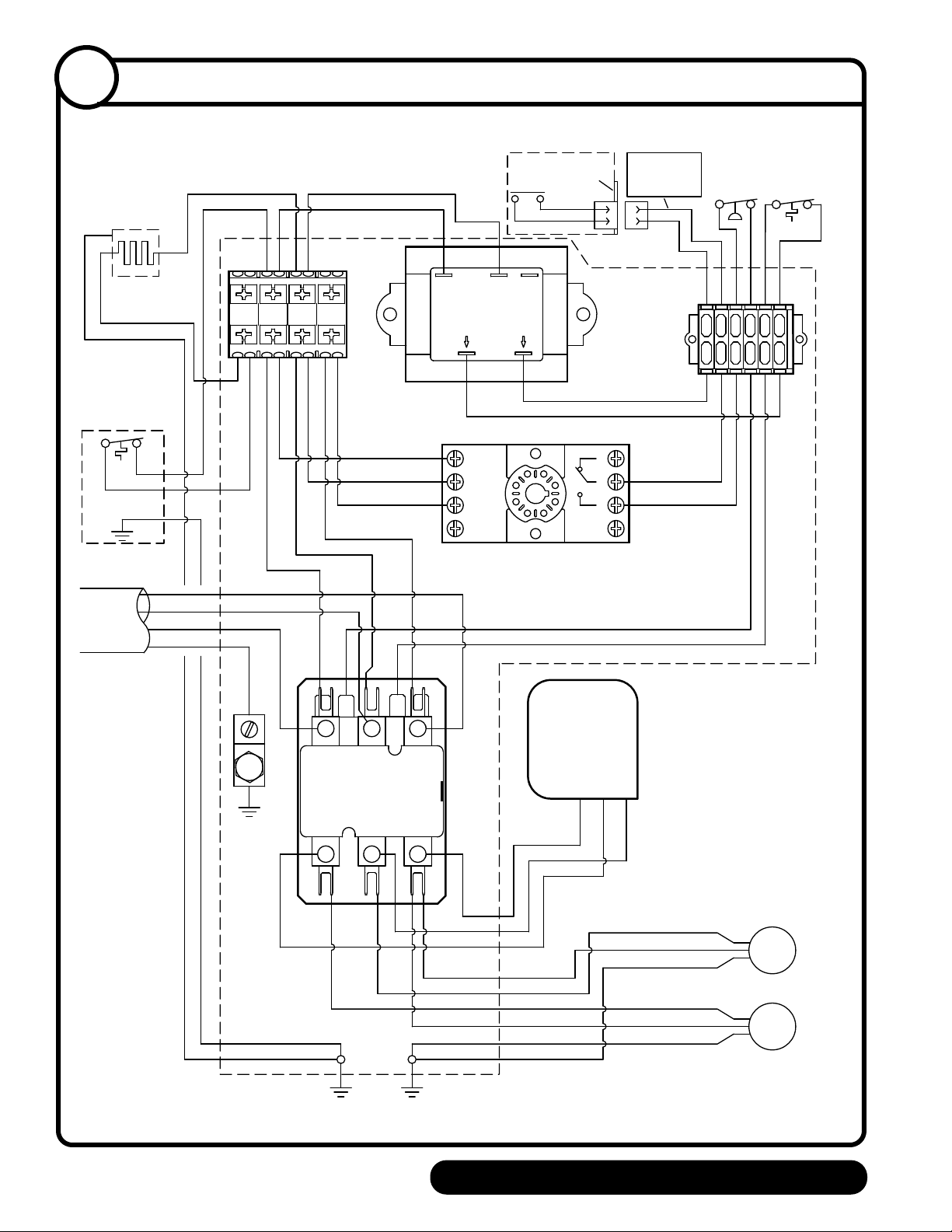

Electrical schematic
2.3
7
REMOTE CONDENSING UNIT

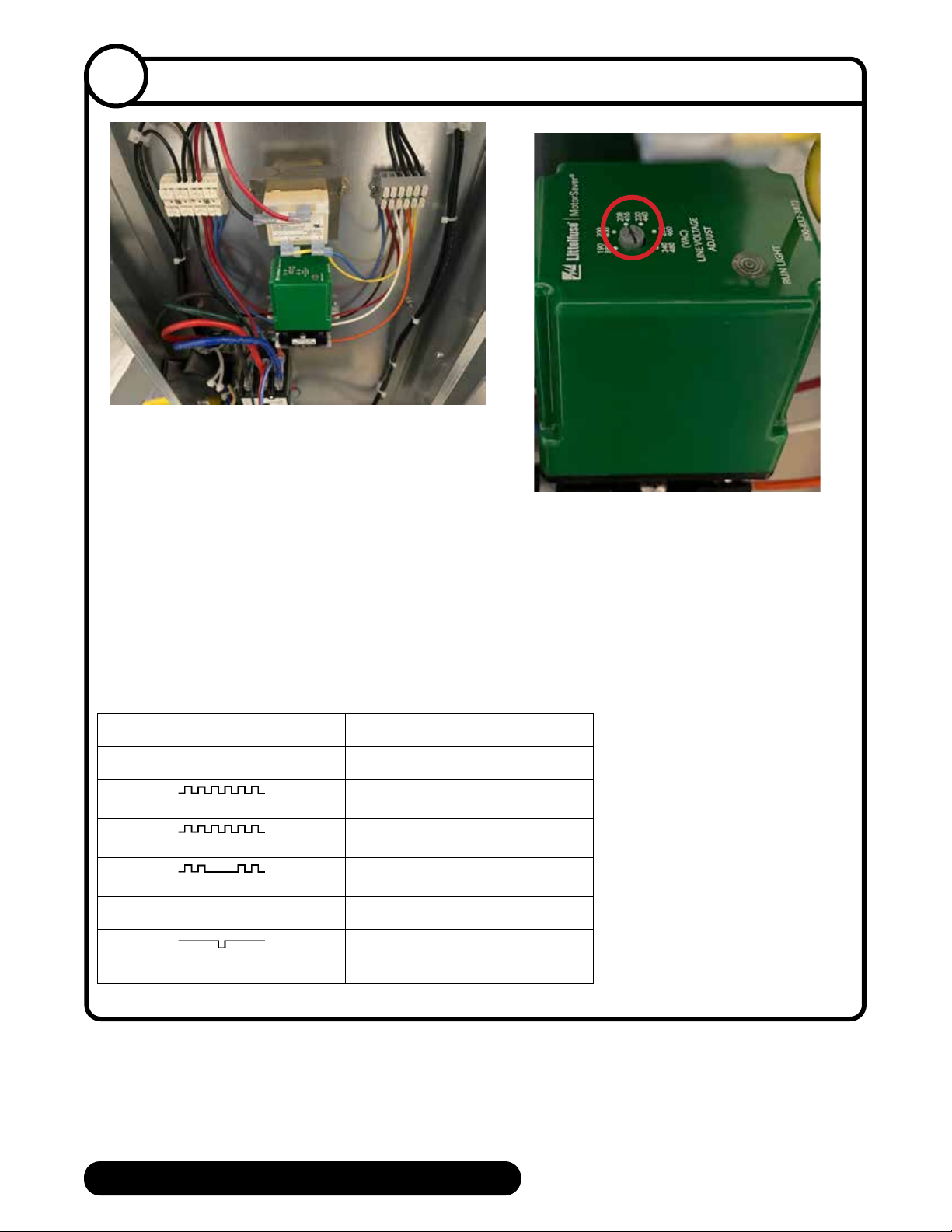

Phase monitor adjustments (if necessary)
2.4
1. The phase monitor is preset to 208 Vac from the factory.
2. If building voltage is less than 208 Vac, consult technical service.
3. See below chart for phase monitor diagnostics.
PLEASE NOTE THAT ANY TIME POWER IS APPLIED TO THE CONDENSING UNIT, OR THE
UNIT COMES OUT OF A FAULT STATE, IT WILL TAKE APPROXIMATELY 200 SECONDS FOR
THE UNIT TO POWER ON.
INDICATOR LIGHT STATUS
GREEN RUN
GREEN RESTART DELAY
RED REVERSE PHASE
RED
UNBALANCE / SINGLE PHASE
(SEE EXAMPLE BELOW)
RED LOW VOLTAGE
RED HIGH VOLTAGE (201A-9 ONLY)
8REMOTE CONDENSING UNIT

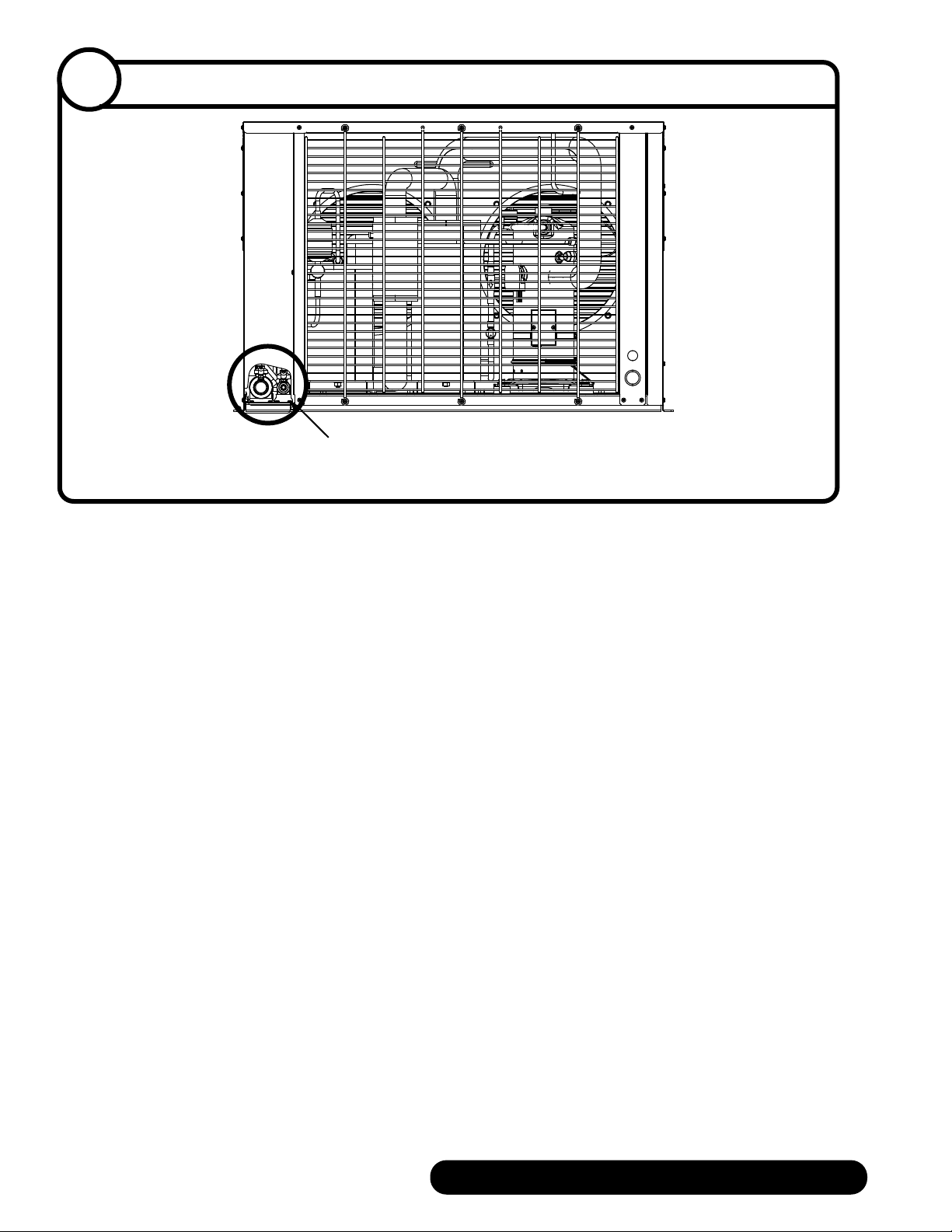

Condensing unit refrigeration line-set connection point
2.5
1412:
7/8" OD suction line
3/8" OD liquid line
9
REMOTE CONDENSING UNIT
Refrigeration line installation 3
Refrigeration line installation: 7/8" OD suction line / 3/8" OD liquid line
3.1
CAUTION
• The installer of the refrigeration line set must be USA Government Environmental Protection Agency
(EPA) certied in proper refrigeration handling and service procedures
• A qualied person must perform all roof or wall penetration
• Do not form unwanted traps in refrigeration lines. A service loop is not considered an oil trap.
• Never coil excess refrigeration tubing
• The compressor oil rapidly absorbs moisture. Minimize the exposure of the refrigeration system by not
releasing the condenser unit or evaporator unit holding charge until all line connections are nished
and the system is ready for evacuation.
WARNING
• This unit contains a full charge of R449A.
1. Make and connect line set run from the condensing unit to the evaporator unit with all
specications found in the installation specications section. Do not overheat shut off valves on
the condenser unit or evaporator unit.
Note: Insulate entire suction line (not the liquid line) including shut off valves to prevent
condensation.
2. Leak check eld joints via the evaporator unit service valves.
3. Evacuate line set via the evaporator unit service valves.
R449A Ice Machine Charge Specications
Line Run Total Charge 1412R three phase
0 - 100' (0 - 30.5 m) 8 lb (3.63 kg)
100’ + (30.5 m+) Consult Technical Service
Note: Condensing unit shipped fully charged with 8 lb R449A.
5. Ensure all valves are open on condensing unit and ice machine.
9. Turn on power to condensing unit and evaporator unit.
10 REMOTE CONDENSING UNIT

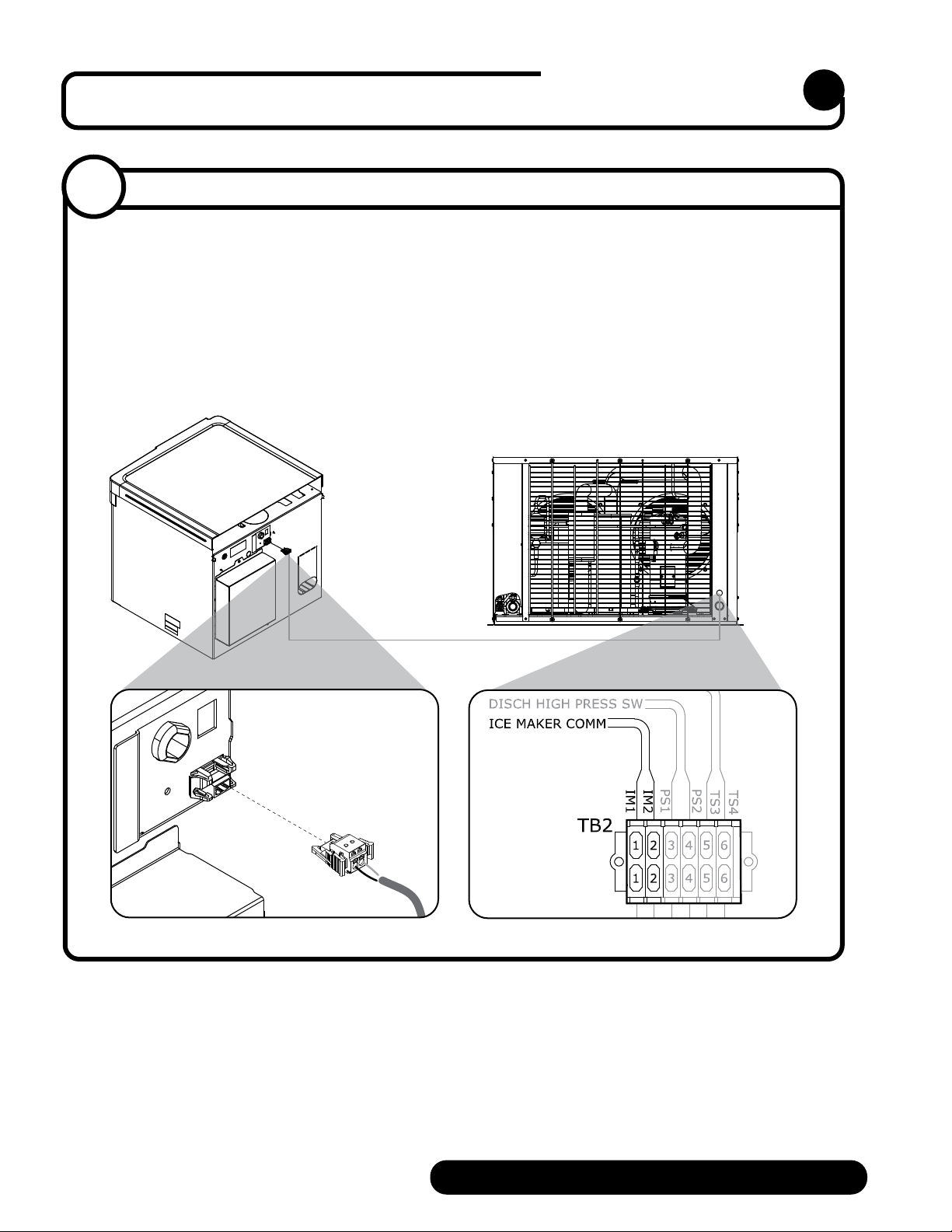

Low Voltage Control 4
24 Vac signal wire
Run 24 Vac signal
wire to connector,
then plug connector
into socket at ice
machine.
Ice Machine
Outdoor Condensing Unit
Run 24 Vac signal
wire to TB2 terminals
1 and 2 of condens-
ing unit.
The low voltage control (24 Vac signal wire) must be run and connected at the back of the ice machine
and to the condensing unit. Route low voltage wire through the upper knockout at the condensing unit
and secure with appropriate connector per NEC.
Follett suggests the following wire for the ice machine signal wire (2 conductor, 18 gauge thermostat
wire), but be sure to follow NEC guidelines:
Southwire: 553020507, Johnston Supply: G80-220, United refrigeration: UL1825
Low voltage control (24 Vac)
4.1
