Horizon Elite 1010/1410 Ice Machines (Remote Condensing) 1

Horizon Elite™ 1010/1410 Ice Machines

(Remote Condensing)

User Guide

Serial Number L60418 to L82637

Please visit www.follettice.com/technicaldocuments

for the Operation and Service manual for your unit.

Installation and Service Videos:

www.follettice.com/servicevideolibrary

01252592R03

801 Church Lane • Easton, PA 18040, USA

Toll free (877) 612-5086 • +1 (610) 252-7301

www.follettice.com

Welcome to Follett

Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding

after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide

carefully before you begin your installation.

Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.

Please have your model number, serial number and complete and detailed explanation of the problem when

contacting Technical Service.

Getting Started

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All freight

is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt

"damaged." Follett Customer Service must be notied within 48 hours. Wherever possible, please include detailed

photos of the damage with the original packaging so that we may start the freight claim process.

HCD1010R/N, HCD1410R/N,

HMD1010R/N, HMD1410R/N,

HCF1010R/N, HCF1410R/N,

HMF1010R/N, HMF1410R/N

2 Horizon Elite 1010/1410 Ice Machines (Remote Condensing)

CAUTION

• Warranty does not cover exterior or outside installations.

• Moving parts. Do not operate with front cover removed.

• Hot parts. Do not operate with cover removed.

• To reduce risk of shock, disconnect power before servicing.

• Drain line must not be vented.

• Water supply must have particle ltration.

• Most ice machine cleaners contain citric or phosphoric acid, which can cause skin irritation. Read caution label

on product and follow instructions carefully.

• Ice is slippery. Maintain counters and oors around dispenser in a clean and ice-free condition.

• Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.

Specications

Electrical

Separate circuit and equipment ground required.

Evaporator unit

Standard electrical: 115/60/1

Maximum fuse: 15A

Amperage: 5A

Condensing unit

Electrical Min Circuit

Ampacity

Max Circuit HVACR

breaker size

1010 Single-Phase (Tecumseh AJA7490ZXDPN)

208-230 V, 60 Hz

10.7A 15A

1010 Single-Phase (Tecumseh ASFR9510ZNAMC1) 10.7A 15A

1410 Single-Phase (Tecumseh AWA9513ZXDPN) 19.3A 30A

1410 Single-Phase (Tecumseh ASFS9516ZNAMC1) 16.4A 25A

1010 3-Phase (Tecumseh AWA9490ZXTPN) 9.9A 15A

1010 3-Phase (Tecumseh ASFR9511ZFAMC1) 9.9A 15A

1410 3-Phase (Tecumseh AWA9517ZXTPN) 14.2A 25A

1410 3-Phase (Larkin AWA9517ZXTPN) 15A 15A

1410 3-Phase (Larkin LZT015M6CFIM) 15A 20A

Evaporator plumbing

§3/8" OD push-in water inlet (connection inside machine) - 3/8" OD tubing required.

§Water shut-off recommended within 10 feet (3 m).

§Follett recommends installation of Follett water lter system (part# 00130286) in ice machine inlet water line.

Flush drain plumbing

§3/4" MPT ush drain connection at the rear of the machine.

§Drain must slope 1/4" inch per foot (6 mm per 30.4 cm).

§Drain line should not be shared with any other piece of equipment.

§Drain line cannot be reduced to a size smaller than 1 inch.

§Drain should be piped without a vent.

Horizon Elite 1010/1410 Ice Machines (Remote Condensing) 3

3/4" barb x 3/4" FPT

1" Stand pipe/Drain

2 ft. x 1" OD

silicone tubing

Minimum 8"

radius

3/4" MPT x 1" slip

1" PVC Drain

2 ft. x 1" OD

silicone tubing 3/4" MPT x 1" slip

3/4" barb x 3/4" FPT

1/4" per foot

(6,4 mm per 0,3 m)

Chassis drain plumbing

§Plug must be removed from John Guest tting.

§Route 3/8" drain tubing through knockout in back of docking station and insert fully into John Guest tting

connection at the rear of the machine chassis. Route other end of 3/8" drain tubing to drain.

§Drain must slope 1/4" inch per foot (6 mm per 30.4 cm).

4 Horizon Elite 1010/1410 Ice Machines (Remote Condensing)

Ambient

Evaporator unit

Air temperature 100 F/38 C max. 50 F/10 C min.

Water temperature 90 F/32 C max. 45 F/7 C min.

Water pressure 70 psi max. (483 kPa) 10 psi min. (69 kPa)

Condenser unit

Air temperature 120 F/49 C max. –20F/–29C min.

Refrigeration

§3/8" liquid line

§5/8" suction line

Note: Rack system installations require a capacity of 10,000 BTU/hr for 1010 machines and 13,000 BTU/hr for

1410 machines at 0 F (–18 C) evaporator temperature. Evaporator pressure regulator (not supplied) is

required.

Weight

Evaporator unit: 125 lbs (57 kg)

Condensing unit:

Horizon Elite 1010 series Horizon Elite 1410 series

Approximate

ship weight

260 lb (118 kg) – All others

212 lb (96 kg) – Tecumseh ASFS9516ZNAMC1

232 lb (105 kg) – Tecumseh AJA7490ZXDPN

270 lb (122 kg) – Tecumseh AJA7490ZXDPN

234 lb (106 kg) − Tecumseh ASFS9516ZNAMC1

230 lb (104 kg) – three phase (Larkin)

Approximate

net weight

250 lb (114 kg) – All others

180 lb (82 kg) – Tecumseh AJA7490ZXDPN

200 lb (91 kg) – Tecumseh ASFS9516ZNAMC1

260 lb (118 kg) – Tecumseh AWA9513ZXDPN

202 lb (92 kg) – Tecumseh ASFS9516ZNAMC1

210 lb (95 kg) – three phase (Larkin)

Ice production

1010 ice machine capacity/24 hrs.

Ambient Air Temperature F/C

Evap Potable Water Temperature F/C

F 60 70 80 90 100

C16 21 27 32 38

50 1051 978 906 834 763 lbs

10 477 444 411 379 346 kg

60 994 925 855 796 737 lbs

16 451 420 388 361 335 kg

70 937 871 805 758 711 lbs

21 425 395 365 344 323 kg

80 904 839 774 727 680 lbs

27 410 381 351 330 309 kg

90 872 807 743 696 648 lbs

32 396 366 337 316 294 kg

1410 ice machine capacity/24 hrs.

Ambient Air Temperature F/C

Evap Potable Water Temperature F/C

F 60 70 80 90 100

C16 21 27 32 38

50 1474 1372 1269 1212 1154 lbs

10 669 623 576 550 524 kg

60 1385 1292 119 8 114 8 1097 lbs

16 628 586 544 521 498 kg

70 1296 1212 1127 1083 1039 lbs

21 588 550 5 11 492 472 kg

80 1239 115 5 1072 1030 988 lbs

27 562 524 487 468 449 kg

90 90 118 1 1099 1017 976 lbs

32 32 536 499 462 425 kg

Horizon Elite 1010/1410 Ice Machines (Remote Condensing) 5

Dimensions and clearances

§Entire front of ice machine must be clear of obstructions/connections to allow removal.

§1" (26 mm) clearance above ice machine for service.

§1" (26 mm) minimum clearance on sides.

§The intake and exhaust air grilles must provide at least 250 sq in (1615 sq cm) of open area.

§Air-cooled ice machines – 18" (458 mm) minimum clearance between discharge and air intake-grilles.

A 21.26" (54.0 cm)

B21.11" (53.6 cm)

C23.77" (60.4 cm)

D2.66" (6.8 cm)

E19.59" (49.8 cm)

F16.00" (40.6 cm)

G2.73" (6.9 cm)

H2.28" (15.3 cm)

I6.04" (5.8 cm)

J22.00" (55.9 cm)

K22.69" (57.6 cm)

C (1410 ONLY)

D (1410 ONLY)

NEMA 5-15

RIGHT ANGLE

1410 ONLY

6 Horizon Elite 1010/1410 Ice Machines (Remote Condensing)

Condensing unit

1010/1410 single phase (Tecumseh)

1010 three phase (Tecumseh)

1410 three phase (Larkin)

Horizon Elite 1010 series Horizon Elite 1410 series

W1 Width 36.25" (91.4 cm) – AJA7490ZXDPN and

AWA9490ZXTPN

38.10" (96.8 cm) – all others

36.25" (90.1 cm) – single phase (Tecumseh)

37.75" (95.9 cm) – three phase (Larkin)

D1 Depth 25.50" (64.8 cm) – AJA7490ZXDPN and

AWA9490ZXTPN

21.50" (54.6 cm) – all others

25.50" (64.8 cm) – single phase (Tecumseh)

28.25" (71.6 cm) – three phase (Larkin)

H1 Height 26.10" (66.3 cm) – AJA7490ZXDPN and

AWA9490ZXTPN

28.50" (20.3 cm) – all others

26.10" (66.3 cm) – single phase

19.75" (50.2 cm) – three phase (Larkin)

Electrical single phase – 208-230/60/1

three phase – 208-230/60/3

single phase – 208-230/60/1 (Tecumseh)

three phase – 208-230/60/3 (Larkin)

Minimum circuit ampacity single phase – 10.7A

three phase – 9.9A

single phase – 19.3A (Tecumseh AWA9513ZXDPN)

single phase – 16.4A (Tecumseh ASFS9516ZNAMC1)

three phase – 14.2A (Tecumseh AWA9517ZXDPN)

three phase – 15A (Larkin)

Maximum overcurrent

protection

single phase – 15A

three phase – 15A

single phase – 30A (Tecumseh AWA9513ZXDPN)

single phase – 25A (Tecumseh ASFS9516ZNAMC1)

three phase – 25A (Tecumseh AWA9517ZXDPN)

three phase – 15A (Larkin LZT015M6CFIM)

three phase – 20A (Larkin LCH0015MCACZ)

Outdoor condensing unit

operating limits

(air temperature)

min –20 F (–29 C)

max 120 F (49 C)

min –20 F (–29 C)

max 120 F (49 C)

Maximum refrigerant line run

length

100' (30.5 m) 100' (30.5 m)

Maximum line rise above

evaporator

35' (10.7 m) 35' (10.7 m)

Evaporator mounting above

condenser

15' (4.6 m) 15' (4.6 m)

Maximum refrigeration line

drop without oil trap

15' (4.6 m) 15' (4.6 m)

Refrigerant charge 12.5 lb required at installation 12.5 lb – single phase (Tecumseh)

10 lb – three phase (Larkin)

required at installation

Approximate ship weight 260 lb (118 kg) – All others

212 lb (96 kg) – Tecumseh ASFS9516ZNAMC1

232 lb (105 kg) – Tecumseh AJA7490ZXDPN

270 lb (122 kg) – Tecumseh AJA7490ZXDPN

234 lb (106 kg) − Tecumseh ASFS9516ZNAMC1

230 lb (104 kg) – three phase (Larkin)

Approximate net weight 250 lb (114 kg) – All others

180 lb (82 kg) – Tecumseh AJA7490ZXDPN

200 lb (91 kg) – Tecumseh ASFS9516ZNAMC1

260 lb (118 kg) – Tecumseh AWA9513ZXDPN

202 lb (92 kg) – Tecumseh ASFS9516ZNAMC1

210 lb (95 kg) – three phase (Larkin)

Horizon Elite 1010/1410 Ice Machines (Remote Condensing) 7

Operation

Cleaning/sanitizing and preventive maintenance (all models)

Note: Do not use bleach to sanitize or clean the icemaker.

Preventive maintenance

Periodic cleaning of Follett’s icemaker system is required to ensure peak performance and delivery of clean,

sanitary ice. The recommended cleaning procedures that follow should be performed at least as frequently as

recommended, and more often if environmental conditions dictate.

Cleaning of the condenser can usually be performed by facility personnel. Cleaning of the icemaker system,

in most cases, should be performed by your facility’s maintenance staff or a Follett authorized service agent.

Regardless of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed

according to the schedule below. Service problems resulting from lack of preventive maintenance will not be

covered under the Follett warranty.

Weekly exterior care

The exterior may be cleaned with a stainless cleaner such as 3M Stainless Steel Cleaner & Polish or equivalent.

Monthly condenser cleaning (air-cooled icemaker only)

1. Use a vacuum cleaner or stiff brush to carefully clean condenser coils of air-cooled icemakers to ensure

optimal performance.

2. When reinstalling counter panels in front of remote icemakers, be sure that ventilation louvers line up with

condenser air duct.

Semi-annual evaporator cleaning (every 6 months)

WARNING

• Wear rubber gloves and safety goggles (and/or face shield) when handling ice machine cleaner or sanitizer.

CAUTION

• Use only Follett approved SafeCLEAN Plus™ cleaning solution.

• DO NOT USE BLEACH.

• It is a violation of federal law to use these solutions in a manner inconsistent with their labeling.

• Read and understand all labels printed on packaging before use.

Note: Complete procedure for cleaning an sanitizing MUST be followed. Ice must be collected for 10minutes

before putting ice machine back into service.

Fig. 1

1. Press the CLEAN button. The machine will drain. The

auger will run for a short time and then stop. Wait for

the LOW WATER light to come on. LO WATER

8 Horizon Elite 1010/1410 Ice Machines (Remote Condensing)

Fig. 2

2. Follow the directions on the SafeCLEAN Plus

packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN

Plus solution. Use 100 F (38 C) water.

3. Using a 1 quart (1L) container, slowly ll cleaning cup

until CLEANER FULL light comes on. Do not overll.

4. Place one SaniSponge™ cleaning sponge in

remaining sanitizing and cleaning solution and retain

for Step 9.

Note: Do not use bleach to sanitize or clean the icemaker.

CLEANER FULL

Fig. 3

5. Replace cover on cleaner cup. Machine will clean,

then ush 3 times in approximately 15 minutes. Wait

until machine restarts.

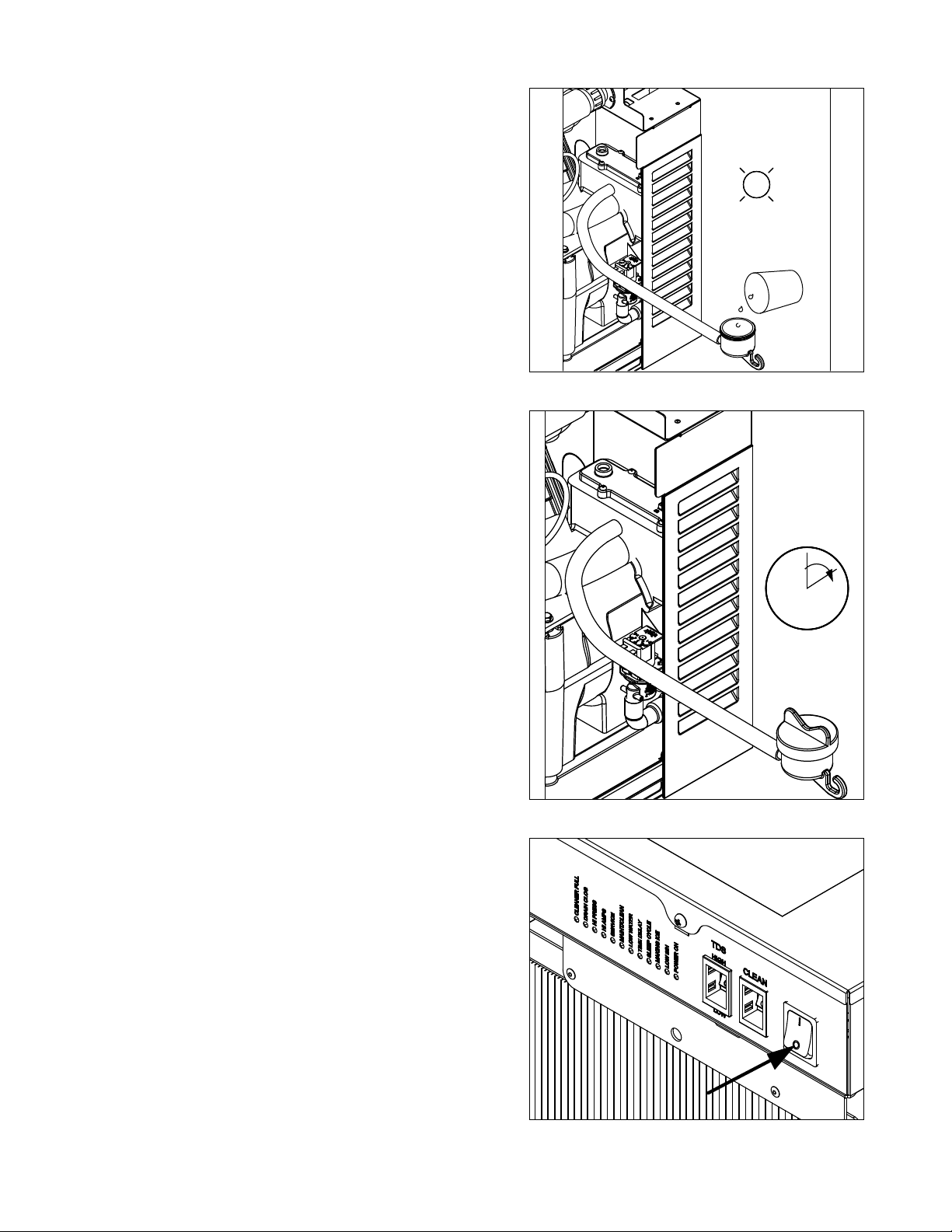

Fig. 4

6. To clean/sanitize ice transport tube – Press power

switch OFF

Horizon Elite 1010/1410 Ice Machines (Remote Condensing) 9

Fig. 5

7. Disconnect coupling as shown.

Fig. 6

8. Using disposable foodservice grade gloves, insert dry

SaniSponge cleaning sponge.

9. Insert SaniSponge cleaning sponge soaked in

SafeClean Plus (from Step 4).

10. Push both SaniSponge cleaning sponges down ice

transport tube with supplied pusher tube. 1

16"

(407 mm)

Fig. 7

11. Remove and discard 16 inch (407 mm) pusher tube.

10 Horizon Elite 1010/1410 Ice Machines (Remote Condensing)

Fig. 8

12. Reconnect coupling. Press power switch ON. Ice

pushes SaniSponge cleaning sponges through ice

transport tube.

Fig. 9

13. Place a sanitary (2 gal. or larger) container in bin or

dispenser to collect SaniSponge cleaning sponges

and ice for 10 minutes.

14. Collect 5.5 lbs (3 kg) of ice from unit. Discard ice and

SaniSponge cleaning sponges.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Follett Machine à glaçons

Follett

Follett HCC1400A Manuel d'utilisation

Follett

Follett Horizon Elite 710 Series Manuel utilisateur

Follett

Follett HCE1400A Manuel d'utilisation

Follett

Follett Maestro Plus MCD425A BS Manuel utilisateur

Follett

Follett HCD1000RBT Manuel utilisateur

Follett

Follett MCC400A Guide de configuration

Follett

Follett HCC1000ABS Manuel utilisateur

Follett

Follett Horizon Elite HCD710A Manuel utilisateur

Follett

Follett Maestro Plus P425 Manuel utilisateur

Follett

Follett Horizon Chewblet series Manuel utilisateur

Follett

Follett U300 Series Manuel utilisateur

Follett

Follett Horizon Elite 1810 Series Manuel utilisateur

Follett

Follett Horizon Elite 1010 Series Manuel utilisateur

Follett

Follett Horizon Elite HME1410A/W Manuel d'utilisation

Follett

Follett Horizon Elite HCD1010R/N Manuel d'utilisation

Follett

Follett Horizon Elite Harmony HCD E 710AHT Series Manuel utilisateur

Follett

Follett Horizon Elite Chewblet HCD1410RBT Manuel utilisateur

Follett

Follett Horizon HMD700NHT Manuel utilisateur

Follett

Follett Ice Pro EDB1000-SA Series Manuel utilisateur

Follett

Follett HCC1000A Manuel d'utilisation

Follett

Follett HCC1000A Manuel d'utilisation

Follett

Follett Horizon Elite Chewblet 1010 Series Manuel utilisateur

Follett

Follett Horizon Elite 1400 Series Manuel d'utilisation

Follett

Follett Horizon HCC1000ABT Manuel utilisateur

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
