Follett HCC1400W Manuel d'utilisation

HCC1400A, HCC1400W Icemakers

00135830R04

801 Church Lane • Easton, PA 18040, USA

Toll free (800) 523-9361 • (610) 252-7301

Fax (610) 250-0696 • www.follettice.com

Following installation, please forward this manual

to the appropriate operations person.

Operation and Service Manual

Order parts online

www.follettice.com

Follett Corporation

Equipment Return Policy

Follett equipment may be returned for credit under the following conditions:

1. The equipment is new and unused.

2. A return authorization number has been issued by customer service within 30 days after shipment.

3. Follett receives the equipment at the factory in Easton, PA within 30 days after issuance of the return authorization number.

4. The equipment must be returned in Follett packaging. If the packaging has been damaged or discarded, Follett will forward,

at the customer’s expense, new packaging.

Note: Return freight charges are the responsibility of the customer. If equipment is returned and is damaged because of

improper packaging, Follett Corporation will not be held responsible.

Credit will be issued when:

The equipment has been inspected by Follett and deemed suitable to be returned to stock.

Note: A 15% restocking charge will be deducted from the credit. If the cost to return the product to stock exceeds 15%, the

actual cost will be deducted.

Welcome to Follett Corporation

Specifications

Operation

Cleaning

Weekly exterior care

Monthly condenser cleaning

Semi-annual evaporator cleaning

Service

Icemaker operation

Water system

Electrical system

Normal control board operation

Test points

Time delay and self flushing jumpers

Error faults

Hard error

Soft errors

Relay output indication

Compressor/refrigerant solenoid output

Wiring diagram

Compressor data

Gearmotor data

Resistance of windings

Mechanical system

Evaporator disassembly

Evaporator reassembly

Refrigeration system

Refrigeration pressure data

Refrigeration system diagram

Refrigerant charge size

Refrigerant replacement requirements

Evacuation

Ambients

Ice capacity test

Bin full detection system

Troubleshooting

Replacement parts

Table of contents

Welcome to Follett

Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and

outstanding after-the-sale support. To ensure that this equipment delivers the same degree of service, we ask

that you review the installation manual (provided as a separate document) before beginning to install the unit.

Our instructions are designed to help you achieve a trouble-free installation. Should you have any questions or

require technical help at any time, please call our technical service group at (800) 523-936 or (610) 252-7301.

Before you begin

After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. If damage

is found, notify the shipper immediately and contact Follett Corporation so that we can help in the filing of a claim,

if necessary.

Check your paperwork to determine which model you have. Follett model numbers are designed to provide information

about the type and capacity of Follett equipment. Following is an explanation of the different model numbers in the

1400 series.

Horizon Series Icemaker Model Number Configurations

A Air-cooled, self-contained

W Water-cooled, self-contained

R Air-cooled, remote condensing unit

N Air-cooled, no condensing unit for

connection to parallel rack system

AVSC 1400HC

HC Horizon

Chewblet®

D Low side 115/60/1

Condenser 208-230/60/1

(remote condensing only)

C 208-230/60/1

(self-contained only)

E 230/50/1

(self-contained only)

Icemaker

Model Series Voltage

Capacity

Model Series Condenser

V Vision™

H Harmony™

B Ice storage

bin

J Drop-in

1000 up to

1036 lbs

(471kg)

1400 up to

1450 lbs

(658kg)

S Satellite-fill™

T Top-mount

Application Configuration

Chewblet is a registered trademark of Follett Corporation, registered in the US.

CAUTION

• Warranty does not cover exterior or outside installations.

• Moving parts. Do not operate with front cover removed.

• Hot parts. Do not operate with cover removed.

• To reduce risk of shock, disconnect power before servicing.

• Most ice machine cleaners contain citric or phosphoric acid, which can cause skin irritation. Read caution

label on product and follow instructions carefully.

• Ice is slippery. Maintain counters and floors around dispenser in a clean and ice-free condition.

• Ice is food. Follow recommended cleaning instructions to maintain cleanliness of delivered ice.

Specifications

Electrical

Each icemaker requires its own separate circuit with electrical disconnect within 10 ft (6m).

Equipment ground required.

Standard electrical – 208-230/60/1

Maximum icemaker fuse – 20 amps each

Amperage – 12 amps

6 ft (2m) NEMA 6-20 cord and plug provided on icemaker

Plumbing

3/8" OD push-in water inlet

3/4" MPT drain

1/4" FPT condenser inlet (water-cooled condenser only)

1/4" FPT condenser drain (water-cooled condenser only)

Notes: 3/4" vented drain line must slope a minimum of 1/4" per foot (6mm per 30.4cm run).

Drain to be hard piped and insulated.

To prevent back flow, do not connect drains.

Separate drains for icemaker and condenser.

Water shut-off recommended within 10 feet (3m).

Follett recommends installation of a Follett water filter system (part# 00130286) in icemaker inlet

water line.

Ambient

Air temperature 100˚F/38˚C max. 50˚F/10˚C min.

Water temperature 90˚F/32˚C max. 45˚F/7˚C min.

Water pressure – potable 70 psi max. (483 kPa) 10 psi min. (69 kPa)

Note: Water-cooled condenser pressure 150 psi (1034 kPa)

Heat rejection

Air-cooled rejects 14,500 BTU/hr to air

Water-cooled rejects 14,500 BTU/hr to water

Ice production

1591

722

1509

684

1396

633

1364

619

1270

576

1454

660

1374

541

1270

576

1267

575

1169

530

1315

596

1197

543

1178

534

1129

512

1071

486

1187

538

1127

511

1068

484

1020

462

969

440

100

1056

479

1030

467

932

423

902

409

870

395

lbs

Inlet Water Temperature F/C

Ambient Air Temperature F/C

Air-cooled icemaker capacity/24 hrs.

1356

615

1272

577

1160

526

1065

483

999

453

1356

615

1272

577

1160

526

1065

483

999

453

1356

615

1272

577

1160

526

1065

483

999

453

1356

615

1272

577

1160

526

1065

483

999

453

100

1356

615

1272

577

1160

526

1065

483

999

453

lbs

Water-cooled icemaker capacity/24 hrs.

Inlet Water Temperature F/C

Ambient Air Temperature F/C

Dimensions and clearances

Entire front of icemaker must be clear of obstructions/connections to allow removal.

1" (26mm) clearance above icemaker for service.

1" (26mm) minimum clearance on sides.

The intake and exhaust air grilles must provide at least 170 sq in (968 sq cm) of open area.

Air-cooled model HCC1400A icemakers – 18" (458mm) minimum clearance between discharge and air

intake-grilles.

MOTORCOMPRESSORTHERMALLY PROTECTED

MIN.BRANCHCIRCUITAMPACITY

MAX.BRANCHCIRCUITFUSE SIZE

DESIGNPRESSURE HIGH SIDE

StockModule Identification Plate

FULLLOADAMPS

REFRIGERANT

ModuleNo.

Product

ServiceNo.

MODEL

CORPORATION

SERIALNO

VOLTS

AMPS

208264

EastonPennsylvania

PART NO

CHARGE

LOWSIDE

SINGLE

PHASE

MADEIN

THEUSA

PSIG

NEMA 6-20

right angle

Air intake

23.50"

(597mm)

2.72"

(69mm)

23.8" (580mm)

21.05" (535mm)

Air exhaust

both sides

3/8" OD push-in water inlet

3/4" MPT drain

Air exhaust

15.56"

(395mm)

6.97"

(177mm) 2.53"

(64mm)

2.43" (62mm)

29.63" (753mm)

NSF

21.28" (541mm)

Front View Side View Back View

Ice transport hose connection

1/4" FPT

condenser inlet

1/4" FPT

condenser drain

Operation

Cleaning and preventive maintenance (all models)

Note: Do not use bleach to sanitize or clean the icemaker.

Preventive maintenance

Periodic cleaning of Follett’s icemaker system is required to ensure peak performance and delivery of clean,

sanitary ice. The recommended cleaning procedures that follow should be performed at least as frequently as

recommended, and more often if environmental conditions dictate.

Cleaning of the condenser can usually be performed by facility personnel. Cleaning of the icemaker system,

in most cases, should be performed by your facility’s maintenance staff or a Follett authorized service agent.

Regardless of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed

according to the schedule below. Service problems resulting from lack of preventive maintenance will not be

covered under the Follett warranty.

Weekly exterior care

The exterior may be cleaned with a stainless cleaner such as 3M Stainless Steel Cleaner & Polish or equivalent.

Monthly condenser cleaning (air-cooled icemaker only)

1. Use a vacuum cleaner or stiff brush to carefully clean condenser coils of air-cooled icemakers to ensure

optimal performance.

2. When reinstalling counter panels in front of remote icemakers, be sure that ventilation louvers line up with

condenser air duct.

Semi-annual evaporator cleaning (every 6 months)

WARNING

• Wear rubber gloves and safety goggles (and/or face shield) when handling ice machine cleaner or sanitizer.

CAUTION

• Use only Follett approved SafeCLEAN™ Cleaner (part #00132001) and NU-CALGON IMS-II SANITIZER.

• Do not mix Cleaner and Sanitizer solutions together.

• DO NOT USE BLEACH.

• It is a violation of Federal law to use these solutions in a manner inconsistent with their labeling.

• Read and understand all labels printed on packaging before use.

Note: Complete procedure for cleaning an sanitizing MUST be followed. Ice must be collected for 10

minutes before putting ice machine back into service.

1. To clean – Remove cover. Press the CLEAN

button. The machine will drain. Wait for the LO

WATER light to come on (Fig. 1).

LO WATER

CLE

Fig. 1

2. Mix 1 gallon (3.8L) 120˚F (49˚C) water and

7 ounces (198g) (one 7 ounce packet of Follett

SafeCLEAN ice machine cleaner, part#-00132001).

Locate cleaning cup. Fill until HI WATER light

comes on (Fig. 2).

Note: Do not use bleach to sanitize or clean the

icemaker.

HI WATER

Fig. 2

Fig. 3

LO WATER

Fig. 4

3. Replace cover on cleaning cup. Wait until machine

restarts. Machine will clean, then flush 3 times in

approximately 12 minutes (Fig. 3).

4. To sanitize – Press CLEAN button. The machine

will drain. Wait for LO WATER light to come on

(Fig. 4).

HI WATER

Fig. 5

Fig. 6

Fig. 7

5. Mix 1 gallon 120˚F (49˚C) water and 1.6 ounces

(48ml) NU-CALGON IMS-II SANITIZER. Fill until

HI WATER light comes on (Fig. 5).

Note: Do not use bleach to sanitize or clean the

icemaker.

6. Replace cover on cleaning cup. Wait until machine

restarts. Machine will sanitize, then flush 3 times in

approximately 12 minutes (Fig. 6).

7. To clean transport tube – Press power switch OFF

(Fig. 7).

Fig. 8

16"

(407mm)

Fig. 9

Fig. 10

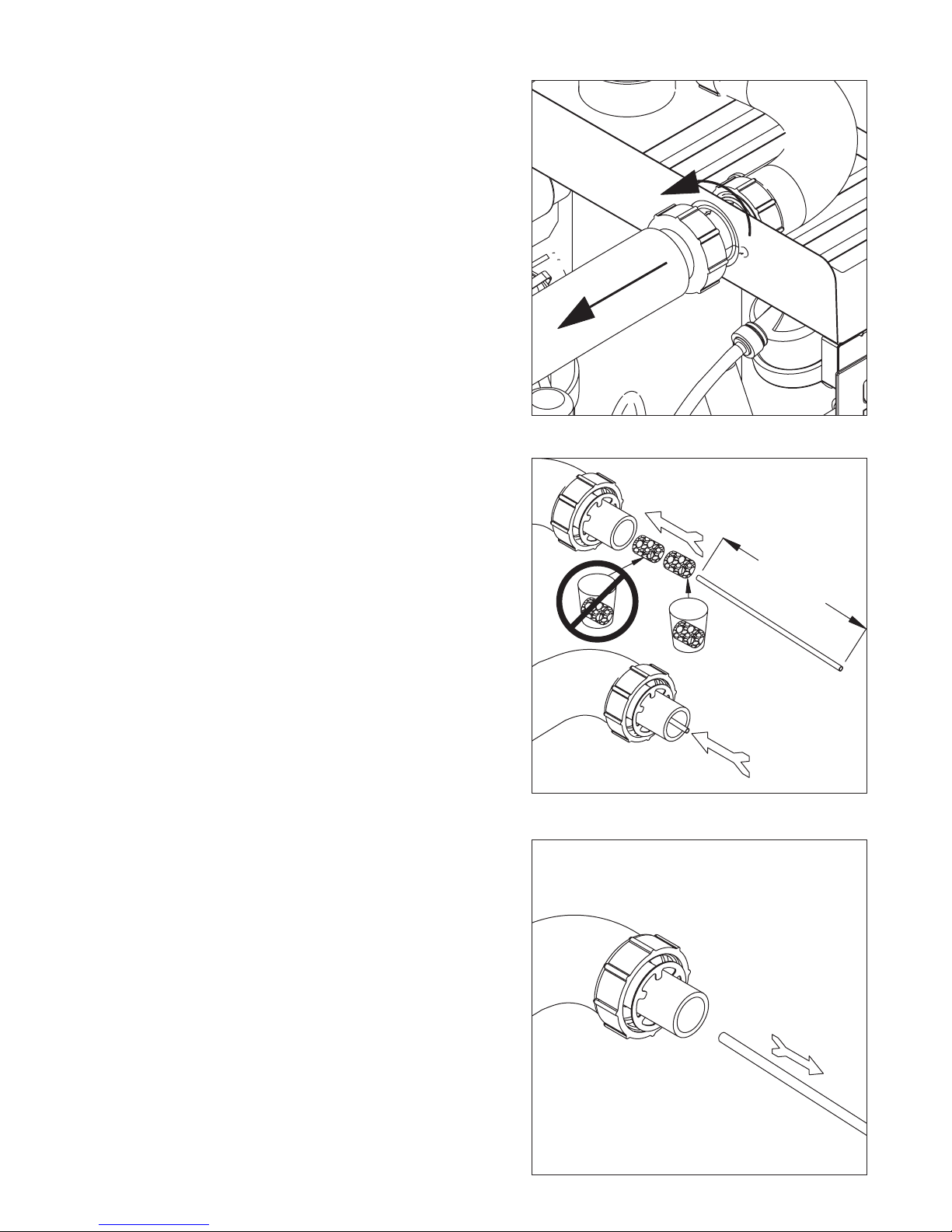

8. Disconnect coupling as shown (Fig. 8).

9. Using disposable food service grade gloves,

insert dry Sani-Sponge™ (kit part# 00132068).

Next,-insert Sani-Sponge soaked in Nu-Calgon

IMS-II sanitizer solution. Push both Sani-Sponges

down ice transport tube with supplied pusher tube

(Fig. 9).

10. Remove and discard 16" (407mm) pusher tube

(Fig. 10).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Follett Machine à glaçons

Follett

Follett Maestro Plus MC 425A Series Manuel utilisateur

Follett

Follett HCC1400A Manuel d'utilisation

Follett

Follett Horizon Elite 1010 Series Manuel utilisateur

Follett

Follett Horizon Elite HCD710A Manuel utilisateur

Follett

Follett 7FS100A Guide de configuration

Follett

Follett Horizon Elite HCD710A Manuel d'utilisation

Follett

Follett Horizon Chewblet 710 Series Manuel utilisateur

Follett

Follett Horizon HCC1000AJS Manuel utilisateur

Follett

Follett HMF1000R Manuel d'utilisation

Follett

Follett Horizon Elite HMF1810RJS Manuel utilisateur

Follett

Follett Maestro Plus MC 414A Series Guide de configuration

Follett

Follett MC 414A Series Manuel utilisateur

Follett

Follett Horizon Elite 1010 Series Manuel utilisateur

Follett

Follett H_C700AHS Manuel utilisateur

Follett

Follett HCC1000A Manuel d'utilisation

Follett

Follett HCC1010A Manuel d'utilisation

Follett

Follett Horizon Elite HCD1010A Manuel d'utilisation

Follett

Follett Horizon Elite 710 Series Manuel utilisateur

Follett

Follett Horizon HCD700RHT Manuel utilisateur

Follett

Follett 25CI425A Guide de configuration

Follett

Follett Horizon Elite HCD710AHS Manuel utilisateur

Follett

Follett T400A Guide de configuration

Follett

Follett HCD Manuel d'utilisation

Follett

Follett Maestro Plus MCC425A BS Manuel d'utilisation

Manuels Machine à glaçons populaires d'autres marques

Hoshizaki

Hoshizaki KMD-460MWJ Manuel utilisateur

Sub-Zero

Sub-Zero 315I Instructions d'utilisation

Unold

Unold 48945 Manuel utilisateur

Kenmore

Kenmore 2217402A Manuel utilisateur

Cornelius

Cornelius WM600 Mode d'emploi

GE XPIO43SCSS Manuel utilisateur

Hoshizaki

Hoshizaki KMD-901MAH Manuel utilisateur

Whynter

Whynter FIM-450HA Manuel utilisateur

U-Line

U-Line UMCR014-SC01A Manuel d'installation

Andrew James

Andrew James AJ000522 Manuel utilisateur

Scotsman

Scotsman CME1356 Manuel utilisateur

Scotsman

Scotsman ACM 25 Manuel utilisateur

Kärcher

Kärcher IP 120 Manuel utilisateur

U-Line

U-Line SS1095 Manuel utilisateur

Maytag

Maytag MIM1554WRS - Ice Maker Manuel utilisateur

Hoshizaki

Hoshizaki KM-630MAH Manuel utilisateur

Princess

Princess Yonanas Manuel utilisateur

Unold

Unold 48946 Manuel utilisateur
